13 |

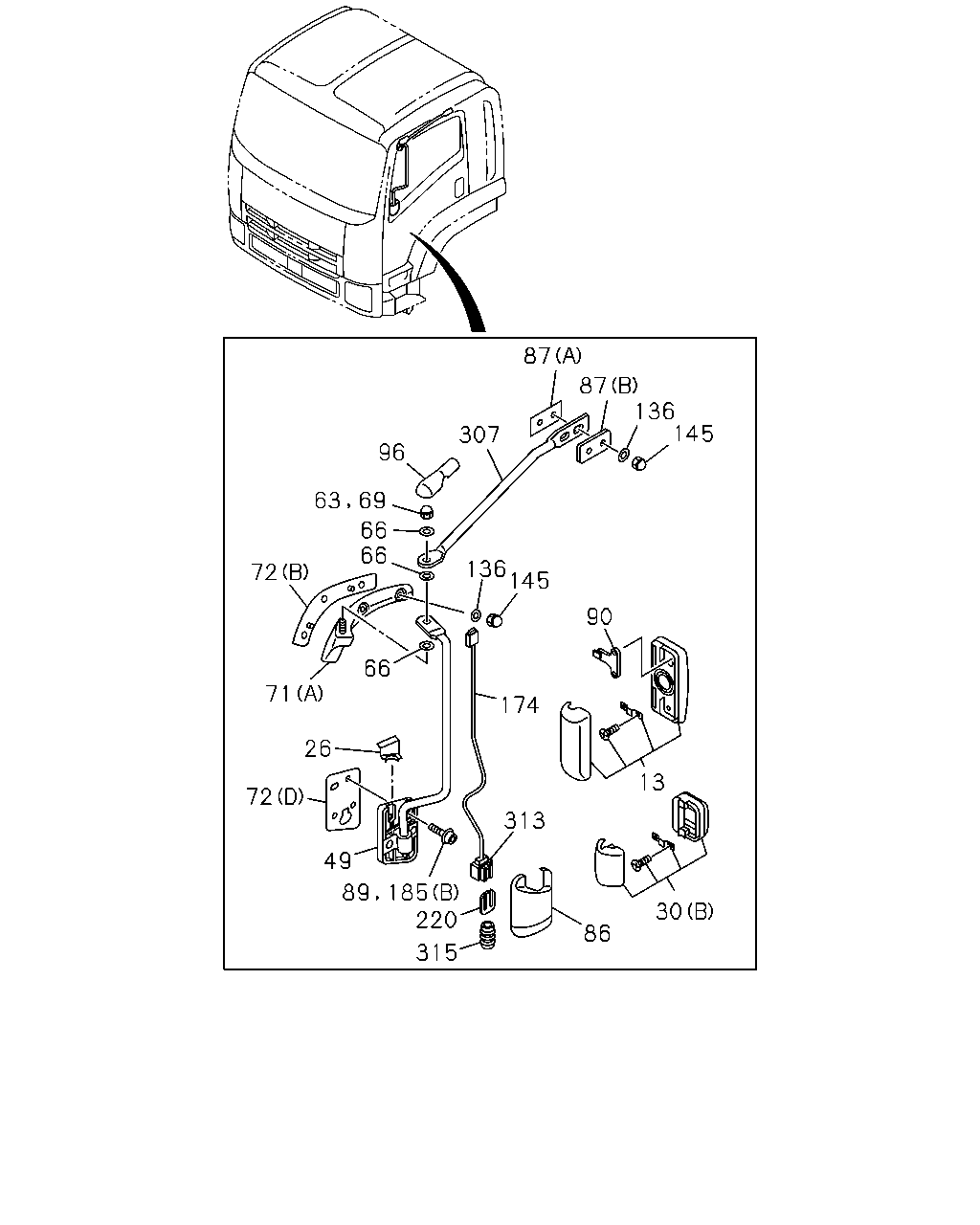

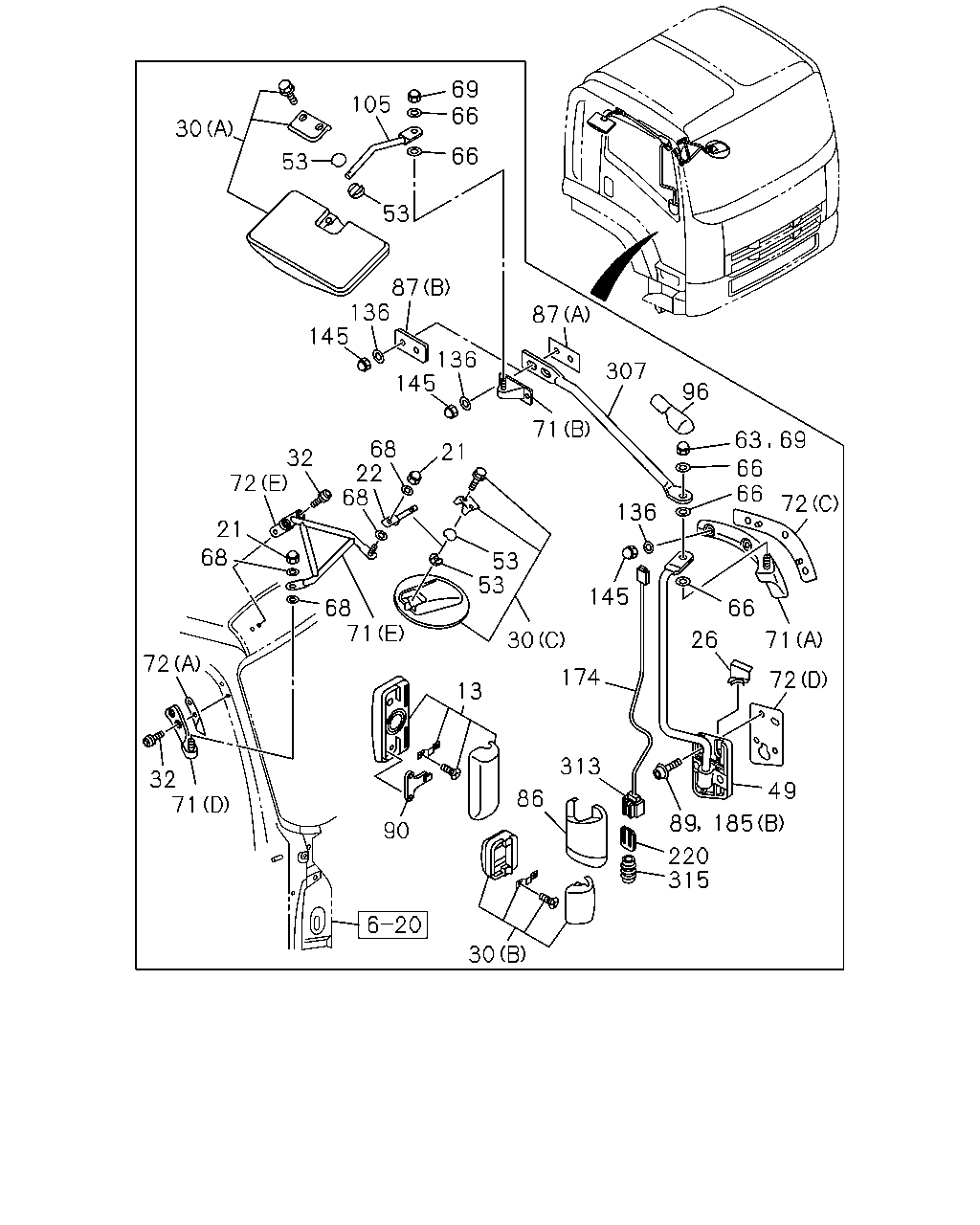

MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
|
8-98043-060-1 |
01 |
1 |
1010-1505 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-060-1 |
01 |
1 |
1506- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
|
8-98043-176-1 |
01 |
1 |
1010-1505 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-176-1 |
01 |
1 |
1506- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
|
8-98043-056-2 |
01 |
1 |
0809-1410 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-056-2 |
01 |
1 |
1411-1412 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-056-2 |
01 |
1 |
1501-1503 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-056-2 |
01 |
1 |
1504- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
|
8-98043-172-2 |
01 |
1 |
0809-1410 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-172-2 |
01 |
1 |
1411-1412 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-172-2 |
01 |
1 |
1501-1503 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-172-2 |
01 |
1 |
1504- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-991-1 |
01 |
1 |
0803-0808 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. SAUDI ARABIA EQUIPMENT(GH3)
|
8-98055-991-1 |
01 |
1 |
0809-0907 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. SAUDI ARABIA EQUIPMENT(GH3)
|
8-98055-991-1 |
01 |
1 |
0908-1007 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-991-1 |
01 |
1 |
0908-1007 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
|
8-98055-991-1 |
01 |
1 |
1008- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-991-1 |
01 |
1 |
1008- |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-992-1 |
01 |
1 |
0803-0808 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. SAUDI ARABIA EQUIPMENT(GH3)
|
8-98055-992-1 |
01 |
1 |
0809-0907 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. SAUDI ARABIA EQUIPMENT(GH3)
|
8-98055-992-1 |
01 |
1 |
0908-1007 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-992-1 |
01 |
1 |
0908-1007 |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
|
8-98055-992-1 |
01 |
1 |
1008- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-992-1 |
01 |
1 |
1008- |
|
● |
| |
21 |
NUT; MIRROR
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0803-0808 |
● |
|
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0809-0907 |
● |
|
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0908- |
● |
● |
| |
22 |
STAY; OUTSIDE MIRROR
|
8-98092-493-0 |
01 |
1 |
0803-0808 |
● |
|
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
0809-0907 |
● |
|
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
0908- |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-805-0 |
01 |
1 |
0803-0907 |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-805-0 |
01 |
1 |
0908- |
● |
● |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-806-0 |
01 |
1 |
0803-0907 |
● |
|
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-806-0 |
01 |
1 |
0908- |
● |
● |
| |
30 |
MIRROR; UNDER
VIETNAM COUNTRY(CL0)
(B)
|
8-98043-061-0 |
01 |
1 |
1401- |
● |
● |
| |
30 |
MIRROR; UNDER
(B)
|
8-98043-061-0 |
02 |
1 |
0803-0808 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
(B)
|
8-98043-061-0 |
02 |
1 |
0809-1009 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(B)
|
8-98043-061-0 |
02 |
1 |
1010-1410 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T)
(B)
|
8-98043-061-0 |
02 |
1 |
1411-1412 |
● |
|
| |
30 |
MIRROR; UNDER
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
(B)
|
8-98043-061-0 |
02 |
1 |
1411-1412 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(B)
|
8-98043-061-0 |
02 |
1 |
1501- |
● |
|
| |
30 |
MIRROR; UNDER
(A)
|
8-98043-065-0 |
01 |
1 |
0803-0808 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
(A)
|
8-98043-065-0 |
01 |
1 |
0809-1009 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(A)
|
8-98043-065-0 |
01 |
1 |
1010-1410 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T)
(A)
|
8-98043-065-0 |
01 |
1 |
1411-1412 |
● |
|
| |
30 |
MIRROR; UNDER
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
(A)
|
8-98043-065-0 |
01 |
1 |
1411-1412 |
● |
|
| |
30 |
MIRROR; UNDER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(A)
|
8-98043-065-0 |
01 |
1 |
1501- |
● |
|
| |
30 |
MIRROR; UNDER
(C)
|
8-98055-994-0 |
01 |
1 |
0803-0808 |
● |
|
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98055-994-0 |
01 |
1 |
0809-0907 |
● |
|
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98055-994-0 |
01 |
1 |
0908-1504 |
● |
● |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
8-98309-725-0 |
01 |
1 |
1505- |
● |
● |
| |
32 |
SCREW; UNDER MIRROR
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
0803-0808 |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
0809-0907 |
● |
|
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
0908- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
VIETNAM COUNTRY(CL0)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-196-0 |
01 |
1 |
1401- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98064-780-1 |
01 |
1 |
1010-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-198-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98064-781-1 |
01 |
1 |
1010-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-199-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98075-066-1 |
01 |
1 |
1010-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-210-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98075-067-1 |
01 |
1 |
1010-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-211-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
|
8-98096-941-0 |
01 |
1 |
0809-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98096-941-0 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-202-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
|
8-98096-942-0 |
01 |
1 |
0809-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98096-942-0 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-203-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
|
8-98060-215-1 |
01 |
1 |
0809-0907 |
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
|
8-98060-215-1 |
01 |
1 |
0908-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98060-215-1 |
01 |
1 |
0908-1007 |
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. TAIWAN EQUIPMENT(B04),O/SIDE MIRROR ELEC REM
CONT,HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3)
|
8-98060-215-1 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98060-215-1 |
01 |
1 |
1008-1202 |
|
● |
| |
49 |
STAY; MIRROR SIDE
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
|
8-98060-216-1 |
01 |
1 |
0809-0907 |
● |
|
| |
49 |
STAY; MIRROR SIDE
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
|
8-98060-216-1 |
01 |
1 |
0908-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98060-216-1 |
01 |
1 |
0908-1007 |
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. TAIWAN EQUIPMENT(B04),O/SIDE MIRROR ELEC REM
CONT,HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3)
|
8-98060-216-1 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98060-216-1 |
01 |
1 |
1008-1202 |
|
● |
| |
49 |
STAY; MIRROR SIDE
|
8-98060-218-1 |
01 |
1 |
0803-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
TAIWAN EQUIPMENT(B04)
|
8-98060-218-1 |
01 |
1 |
0809-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
TAIWAN EQUIPMENT(B04)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98060-218-1 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
|
8-98166-194-0 |
01 |
1 |
1203-1312 |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98166-194-0 |
01 |
1 |
1203-1312 |
|
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. VIETNAM COUNTRY(CL0),O/SIDE MIRROR ELEC REM
CONT,HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3)
|
8-98166-194-0 |
01 |
1 |
1401- |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98166-194-0 |
01 |
1 |
1401- |
|
● |
| |
49 |
STAY; MIRROR SIDE
|
8-98064-777-1 |
01 |
1 |
0803-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
TAIWAN EQUIPMENT(B04)
|
8-98064-777-1 |
01 |
1 |
0809-1007 |
● |
|
| |
49 |
STAY; MIRROR SIDE
TAIWAN EQUIPMENT(B04)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98064-777-1 |
01 |
1 |
1008-1202 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
|
8-98166-195-0 |
01 |
1 |
1203- |
● |
|
| |
49 |
STAY; MIRROR SIDE
|
8-98166-195-0 |
01 |
1 |
1203- |
|
● |
| |
53 |
PIVOT; SIDE MIRROR
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0803-0808 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0803-0808 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0809-0907 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0809-0907 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0908-1009 |
● |
● |
| |
53 |
PIVOT; SIDE MIRROR
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0908-1009 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1010-1410 |
● |
● |
| |
53 |
PIVOT; SIDE MIRROR
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1010-1410 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1411-1412 |
● |
● |
| |
53 |
PIVOT; SIDE MIRROR
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1411-1412 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
SAUDI ARABIA EQUIPMENT(GH3)
PRICING MIRROR ASSEMBLY<PVF>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1411-1412 |
● |
|
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1501- |
● |
● |
| |
53 |
PIVOT; SIDE MIRROR
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1501- |
● |
|
| |
63 |
NUT; STAY
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808-0907 |
● |
|
| |
63 |
NUT; STAY
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0908- |
● |
● |
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
0803-0808 |
● |
|
| |
66 |
WASHER; PL
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
0809-1009 |
● |
|
| |
66 |
WASHER; PL
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
02 |
1 |
1010- |
● |
|
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0803-0907 |
● |
|
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0908- |
● |
● |
| |
68 |
WASHER; STAY
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
05 |
1 |
0803-0805 |
● |
|
| |
68 |
WASHER; STAY
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0806-0808 |
● |
|
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0809-0907 |
● |
|
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0908- |
● |
● |
| |
69 |
NUT; CAP
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
0803-0808 |
● |
|
| |
69 |
NUT; CAP
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
0809-1009 |
● |
|
| |
69 |
NUT; CAP
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
1010- |
● |
|
| |
69 |
NUT; CAP
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0803-0807 |
● |
|
| |
71 |

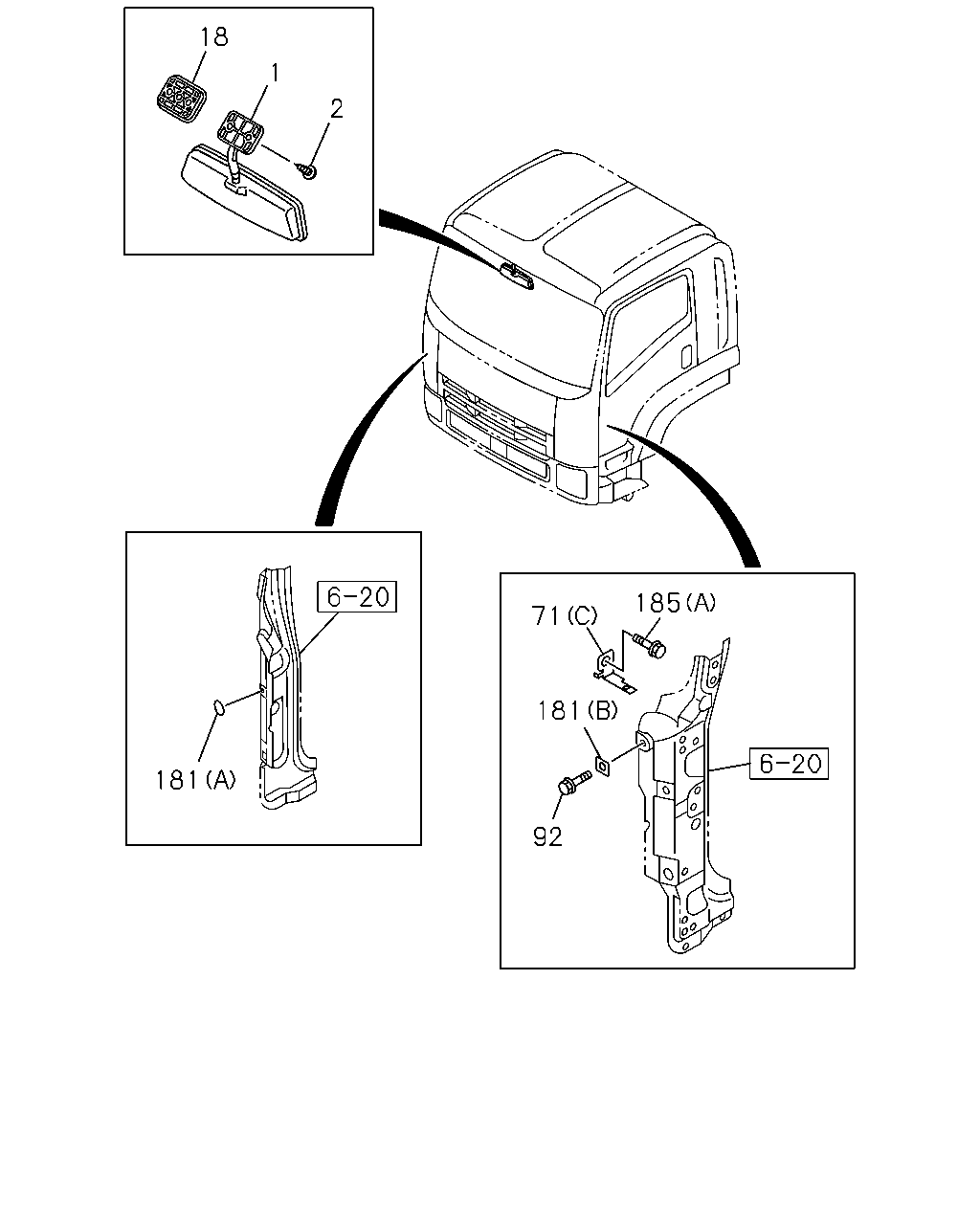

BRACKET; OUTSIDE MIRROR
(B)
|
1-71798-484-1 |
01 |
1 |
0803-0808 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
(B)
|
1-71798-484-1 |
01 |
1 |
0809-1009 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(B)
|
1-71798-484-1 |
01 |
1 |
1010- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0803-0907 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0908- |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0803-0907 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0908- |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98039-277-2 |
02 |
1 |
0803-0907 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98039-277-2 |
02 |
1 |
0908-1202 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
(C)
|
8-98039-277-2 |
02 |
1 |
1203- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(D)
|
8-98064-775-0 |
01 |
1 |
0803-0808 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-775-0 |
01 |
1 |
0809-0907 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-775-0 |
01 |
1 |
0908- |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(E)
|
8-98092-491-3 |
01 |
1 |
0803-0808 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98092-491-3 |
01 |
1 |
0809-0907 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98092-491-3 |
01 |
1 |
0908- |
● |
● |
| |
72 |
SHEET
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98116-604-0 |
01 |
1 |
1203-1312 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
(D)
|
8-98116-604-0 |
01 |
1 |
1203-1312 |
● |
|
| |
72 |
SHEET
(D)
|
8-98116-604-0 |
01 |
1 |
1203-1312 |
|
● |
| |
72 |
SHEET
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98116-604-0 |
01 |
1 |
1401- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. VIETNAM COUNTRY(CL0),O/SIDE MIRROR ELEC REM
CONT,HEATED<DL8>,SAUDI ARABIA EQUIPMENT(GH3)
(D)
|
8-98116-604-0 |
01 |
1 |
1401- |
● |
|
| |
72 |
SHEET
VIETNAM COUNTRY(CL0)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98116-604-0 |
01 |
1 |
1401- |
● |
|
| |
72 |
SHEET
(D)
|
8-98116-604-0 |
01 |
1 |
1401- |
|
● |
| |
72 |
SHEET
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98116-605-0 |
01 |
1 |
1203- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
(D)
|
8-98116-605-0 |
01 |
1 |
1203- |
● |
|
| |
72 |
SHEET
(D)
|
8-98116-605-0 |
01 |
1 |
1203- |
|
● |
| |
72 |
SHEET
(D)
|
8-98116-605-0 |
01 |
1 |
0805-0807 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-865-0 |
01 |
1 |
0808-0907 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-865-0 |
01 |
1 |
0908-1009 |
● |
● |
| |
72 |
SHEET
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98101-865-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
(D)
|
8-98101-865-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-865-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-865-0 |
01 |
1 |
1010-1202 |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-865-0 |
01 |
1 |
1203- |
● |
|
| |
72 |
SHEET
(C)
|
8-98031-796-0 |
01 |
1 |
0803-0907 |
● |
|
| |
72 |
SHEET
(C)
|
8-98031-796-0 |
01 |
1 |
0908- |
● |
● |
| |
72 |
SHEET
(B)
|
8-98031-797-0 |
01 |
1 |
0803-0907 |
● |
|
| |
72 |
SHEET
(B)
|
8-98031-797-0 |
01 |
1 |
0908- |
● |
● |
| |
72 |
SHEET
(E)
|
8-98060-225-1 |
01 |
1 |
0803-0808 |
● |
|
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98060-225-1 |
01 |
1 |
0809-0907 |
● |
|
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98060-225-1 |
01 |
1 |
0908- |
● |
● |
| |
72 |
SHEET
(A)
|
8-98064-773-0 |
01 |
1 |
0803-0808 |
● |
|
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98064-773-0 |
01 |
1 |
0809-0907 |
● |
|
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98064-773-0 |
01 |
1 |
0908- |
● |
● |
| |
72 |
SHEET
(D)
|
8-98080-418-0 |
02 |
1 |
0803-0804 |
● |
|
| |
72 |
SHEET
(D)
|
8-98116-604-0 |
01 |
1 |
0805-0807 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-864-0 |
01 |
1 |
0808-0907 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-864-0 |
01 |
1 |
0908-1009 |
● |
● |
| |
72 |
SHEET
SAUDI ARABIA EQUIPMENT(GH3)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(D)
|
8-98101-864-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
SAUDIARABIA EQUIPMENT(GH3)
(D)
|
8-98101-864-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-864-0 |
01 |
1 |
1010-1202 |
● |
|
| |
72 |
SHEET
(D)
|
8-98101-864-0 |
01 |
1 |
1010-1202 |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-864-0 |
01 |
1 |
1203- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-802-2 |
01 |
1 |
0803-0907 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-802-2 |
01 |
1 |
0908- |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-803-2 |
01 |
1 |
0803-0907 |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-803-2 |
01 |
1 |
0908- |
● |
● |
| |
87 |
SPACER
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
(B)
|
8-98063-789-0 |
02 |
1 |
0809-0907 |
● |
|
| |
87 |
SPACER
EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA
EQUIPMENT(GH3)
(B)
|
8-98063-789-0 |
02 |
1 |
0908-1009 |
● |
|
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
0908-1009 |
|
● |
| |
87 |
SPACER
EXC. TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),
SAUDI ARABIA EQUIPMENT(GH3)
(B)
|
8-98063-789-0 |
02 |
1 |
1010- |
● |
|
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
1010- |
|
● |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
0803-0907 |
● |
|
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
0908- |
● |
● |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
01 |
1 |
0803-0808 |
● |
|
| |
87 |
SPACER
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
(B)
|
8-98063-789-0 |
01 |
1 |
0809-1009 |
● |
|
| |
87 |
SPACER
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
(B)
|
8-98063-789-0 |
01 |
1 |
1010- |
● |
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X23
|
8-97310-216-1 |
08 |
1 |
0808-0907 |
● |
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X23
|
8-97310-216-1 |
08 |
1 |
0908- |
● |
● |
| |
90 |
BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
|
8-98129-822-0 |
02 |
1 |
1010-1505 |
● |
|
| |
90 |
BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98129-822-0 |
02 |
1 |
1506- |
● |
|
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
0803-0907 |
● |
|
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
0908- |
● |
● |
| |
105 |
STAY; SUB UNDER MIRROR
|
8-98080-109-2 |
01 |
1 |
0803-0808 |
● |
|
| |
105 |
STAY; SUB UNDER MIRROR
TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)
|
8-98080-109-2 |
01 |
1 |
0809-1009 |
● |
|
| |
105 |
STAY; SUB UNDER MIRROR
TAIWAN EQUIPMENT(B04),IRAN EQUIPMENT(D8T),SAUDI
ARABIA EQUIPMENT(GH3)
|
8-98080-109-2 |
01 |
1 |
1010- |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0803-0907 |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0908- |
● |
● |
| |
145 |
NUT; CAP,SUB STAY
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0803-0907 |
● |
|
| |
145 |
NUT; CAP,SUB STAY
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0908- |
● |
● |
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98125-653-0 |
02 |
1 |
1010- |
● |
|
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0803-0907 |
● |
|
| |
185 |
BOLT; BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0908-1202 |
● |
● |
| |
185 |
BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1203- |
● |
|
| |
185 |
BOLT; BRKT
(B) SCREW
M8X23
|
8-97310-216-1 |
08 |
1 |
0803-0807 |
● |
|
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-94447-536-0 |
02 |
1 |
1010- |
● |
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
0803-0907 |
● |
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
0908- |
● |
● |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
0803-0907 |
● |
|
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
0908- |
● |
● |
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-94447-532-0 |
02 |
1 |
1010- |
● |
|
| |
315 |
RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
IRAN EQUIPMENT(D8T)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
|
1-82691-026-0 |
02 |
1 |
1010- |
● |
|
