◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#68044) — 109 parça

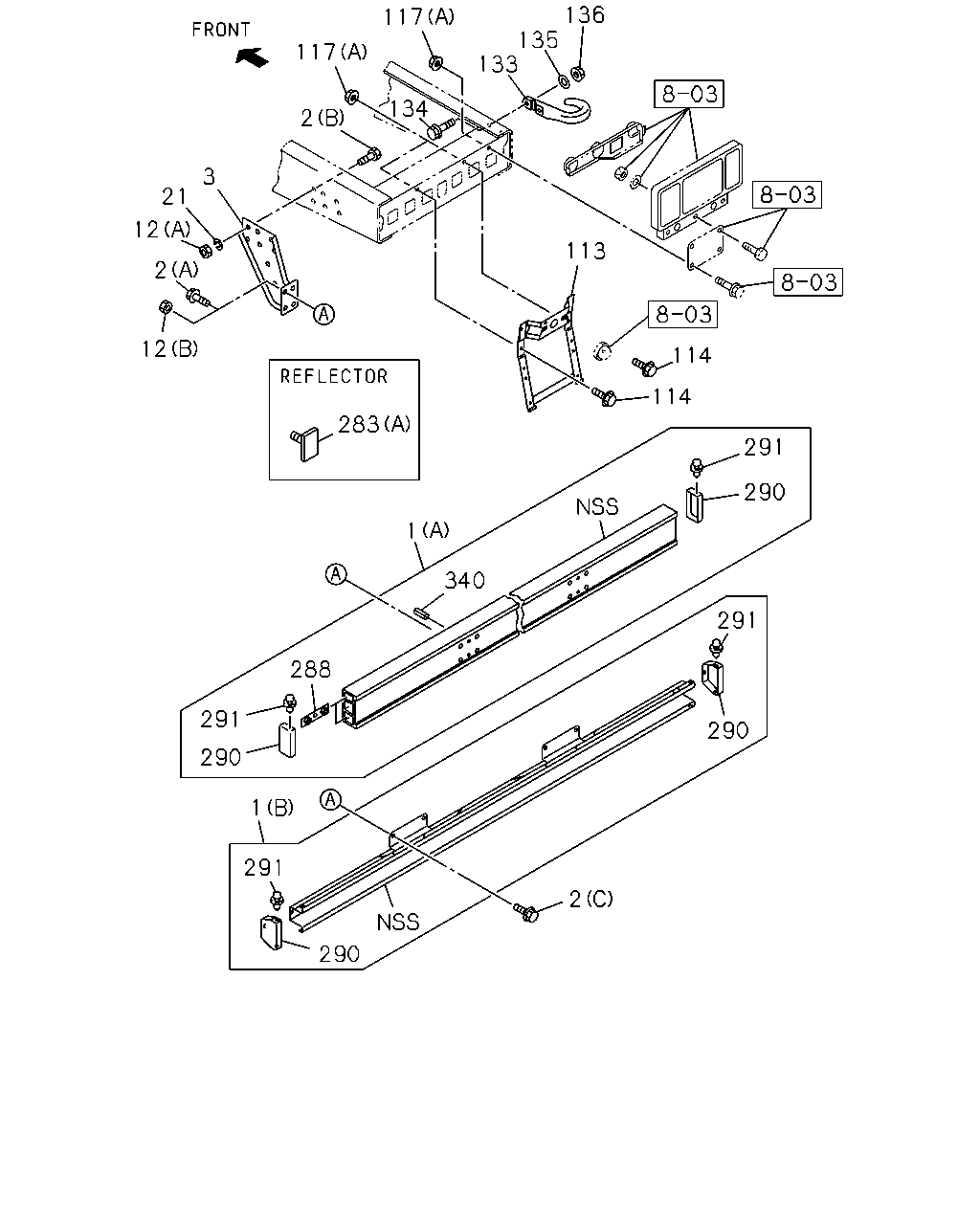

çizim 132202
2 290 291 290 291 340 288 291 290 1 291 290 114 114 113 136 135 133 134 2 117 117 3 21 12 2 12 283 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER; RR
IRAN EQUIPMENT(D8T) REAR UNDERRUN PROTECTOR<6DY> (A) STAMP E4W 		8-98194-029-0 01 1 1205- ●
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> (A) STAMP E3W 		8-98098-060-0 01 1 1008-1204 ●
1 BUMPER; RR
REAR UNDERRUN PROTECTOR<6DY> EXC. IRAN EQUIPMENT(D8T) (A) STAMP E3W 		8-98098-060-0 01 1 1205- ●
1 BUMPER; RR
REAR BUMPER,REINFORCEMENT<SMS> (B) STAMP B1W 		1-71220-220-0 01 1 1003- ●
1 BUMPER; RR
BUMPER REAR<7HZ> (A) STAMP D7W 		1-71220-216-0 01 1 0809- ●
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY> (B) M16X50 		0-20851-650-0 12 1 1008- ●
2 BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS> (C) M12X35 FLANGE 		0-28651-235-0 08 1 1003- ●
2 BOLT; BACK BAR
BUMPER REAR<7HZ> (B) M16X40 		0-20851-640-0 04 1 0809-1002 ●
2 BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> (B) M16X40 		0-20851-640-0 04 1 1003- ●
2 BOLT; BACK BAR
BUMPER REAR<7HZ> (A) M12X30 FLANGE 		0-28651-230-0 08 1 0809-1007 ●
2 BOLT; BACK BAR
REAR UNDERRUN PROTECTOR<6DY>,BUMPER REAR<7HZ> (A) M12X30 FLANGE 		0-28651-230-0 08 1 1008- ●
3 BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS> STAMP BL 		1-71230-256-1 01 1 1003- ●
3 BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS> STAMP BL 		1-71230-257-1 01 1 1003- ●
3 BRACKET; BUMPER
BUMPER REAR<7HZ> STAMP BL1 		1-71230-587-0 01 1 0809-1007 ●
3 BRACKET; BUMPER
REAR UNDERRUN PROTECTOR<6DY>,BUMPER REAR<7HZ> STAMP BL1 		1-71230-587-0 01 1 1008- ●
3 BRACKET; BUMPER
BUMPER REAR<7HZ> STAMP BL1 		1-71230-594-0 01 1 0809-1007 ●
3 BRACKET; BUMPER
REAR UNDERRUN PROTECTOR<6DY>,BUMPER REAR<7HZ> STAMP BL1 		1-71230-594-0 01 1 1008- ●
12 NUT; BRKT
REAR UNDERRUN PROTECTOR<6DY> (A) M16 		0-91110-516-0 12 1 1008- ●
12 NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS> (B) M12 FLANGE 		0-91180-212-0 08 1 1003- ●
12 NUT; BRKT
BUMPER REAR<7HZ> (A) M16 		0-91110-516-0 04 1 0809-1002 ●
12 NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> (A) M16 		0-91110-516-0 04 1 1003- ●
21 WASHER; LK,BUMPER
REAR UNDERRUN PROTECTOR<6DY> ID=16.2 		0-91510-816-0 12 1 1008- ●
21 WASHER; LK,BUMPER
BUMPER REAR<7HZ> ID=16.2 		0-91510-816-0 04 1 0809-1002 ●
21 WASHER; LK,BUMPER
REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> ID=16.2 		0-91510-816-0 04 1 1003- ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0803-0907 ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0908-1009 ● ●
113 BRACKET; LICENSE PLATE
EXC. IRAN EQUIPMENT(D8T) 		1-53485-074-0 01 1 1010- ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 1010- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0907 ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0908-1009 ● ●
114 BOLT; BRKT,LICENSE PLATE
EXC. IRAN EQUIPMENT(D8T) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
117 NUT; BRKT
IRAN EQUIPMENT(D8T) (B) M10 FLANGE 		0-91180-210-0 06 1 1010- ●
117 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0908- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ● ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
133 HOOK 1-57181-027-1 01 1 0803-1003 ●
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1004- ●
134 BOLT; HOOK
M16X50 		0-20851-650-0 01 1 0803-1003 ●
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1004- ●
134 BOLT; HOOK
M16X60 		0-20851-660-0 01 1 0803-1003 ●
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1004- ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0803-1003 ●
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1004- ●
136 NUT; HOOK
M16 		0-91110-516-0 02 1 0803-1003 ●
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1004- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) IRAN EQUIPMENT(D8T) (B) 		1-82290-011-1 04 1 1010- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) IRAN EQUIPMENT(D8T) (B) 		1-82290-011-1 08 1 1010- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) SAUDI ARABIA EQUIPMENT(GH3) (A) 		1-82290-061-0 02 1 0809- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 5500MM(55W) SAUDI ARABIA EQUIPMENT(GH3) (A) 		1-82290-061-0 04 1 0809- ●
288 PLATE; RR BUMPER,REFLECTOR
BUMPER REAR<7HZ> 		1-71290-066-0 04 1 0809-1007 ●
288 PLATE; RR BUMPER,REFLECTOR
REAR UNDERRUN PROTECTOR<6DY>,BUMPER REAR<7HZ> 		1-71290-066-0 04 1 1008- ●
290 COVER; RR
REAR UNDERRUN PROTECTOR<6DY> 		1-71290-067-0 02 1 1008- ●
290 COVER; RR
REAR BUMPER,REINFORCEMENT<SMS> 		1-71290-039-0 02 1 1003- ●
290 COVER; RR
BUMPER REAR<7HZ> 		1-71290-063-0 02 1 0809- ●
291 RIVET; REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> 		8-98099-978-0 04 1 1008-1204 ●
291 RIVET; REFLECTOR
REAR UNDERRUN PROTECTOR<6DY> EXC. IRAN EQUIPMENT(D8T) 		8-98099-978-0 04 1 1205- ●
291 RIVET; REFLECTOR
REAR BUMPER,REINFORCEMENT<SMS> PUSH RIVET BLACK 		1-71290-041-0 06 1 1003- ●
291 RIVET; REFLECTOR
BUMPER REAR<7HZ> 		1-71290-062-0 04 1 0809-1204 ●
291 RIVET; REFLECTOR
BUMPER REAR<7HZ> 		1-71290-062-0 04 1 1205- ●
291 RIVET; REFLECTOR
IRAN EQUIPMENT(D8T) REAR UNDERRUN PROTECTOR<6DY> 		1-71290-062-0 04 1 1205- ●
340 RIVET
BUMPER REAR<7HZ> 		1-71290-065-0 04 1 0809-1007 ●
340 RIVET
REAR UNDERRUN PROTECTOR<6DY>,BUMPER REAR<7HZ> 		1-71290-065-0 04 1 1008-1204 ●
340 RIVET
BUMPER REAR<7HZ> 		1-71290-065-0 04 1 1205- ●
340 RIVET
REAR UNDERRUN PROTECTOR<6DY> EXC. IRAN EQUIPMENT(D8T) 		1-71290-065-0 04 1 1205- ●
çizim 193768
283 117
BalonParca AdiParca NoAdetTipApplied Date A B
117 NUT; BRKT
IRAN EQUIPMENT(D8T) (B) M10 FLANGE 		0-91180-210-0 06 1 1010- ●
117 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0908- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ● ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) IRAN EQUIPMENT(D8T) (B) 		1-82290-011-1 04 1 1010- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) IRAN EQUIPMENT(D8T) (B) 		1-82290-011-1 08 1 1010- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) SAUDI ARABIA EQUIPMENT(GH3) (A) 		1-82290-061-0 02 1 0809- ●
283 REFLECTOR; REFLEX,RR
WHEEL BASE 5500MM(55W) SAUDI ARABIA EQUIPMENT(GH3) (A) 		1-82290-061-0 04 1 0809- ●
çizim 193797
114 114 113 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0803-0907 ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0908-1009 ● ●
113 BRACKET; LICENSE PLATE
EXC. IRAN EQUIPMENT(D8T) 		1-53485-074-0 01 1 1010- ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 1010- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0907 ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0908-1009 ● ●
114 BOLT; BRKT,LICENSE PLATE
EXC. IRAN EQUIPMENT(D8T) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
117 NUT; BRKT
IRAN EQUIPMENT(D8T) (B) M10 FLANGE 		0-91180-210-0 06 1 1010- ●
117 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0908- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ● ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-1009 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1205 ●
117 NUT; BRKT
EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. IRAN EQUIPMENT(D8T) (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
