Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#6804) — 521 parça

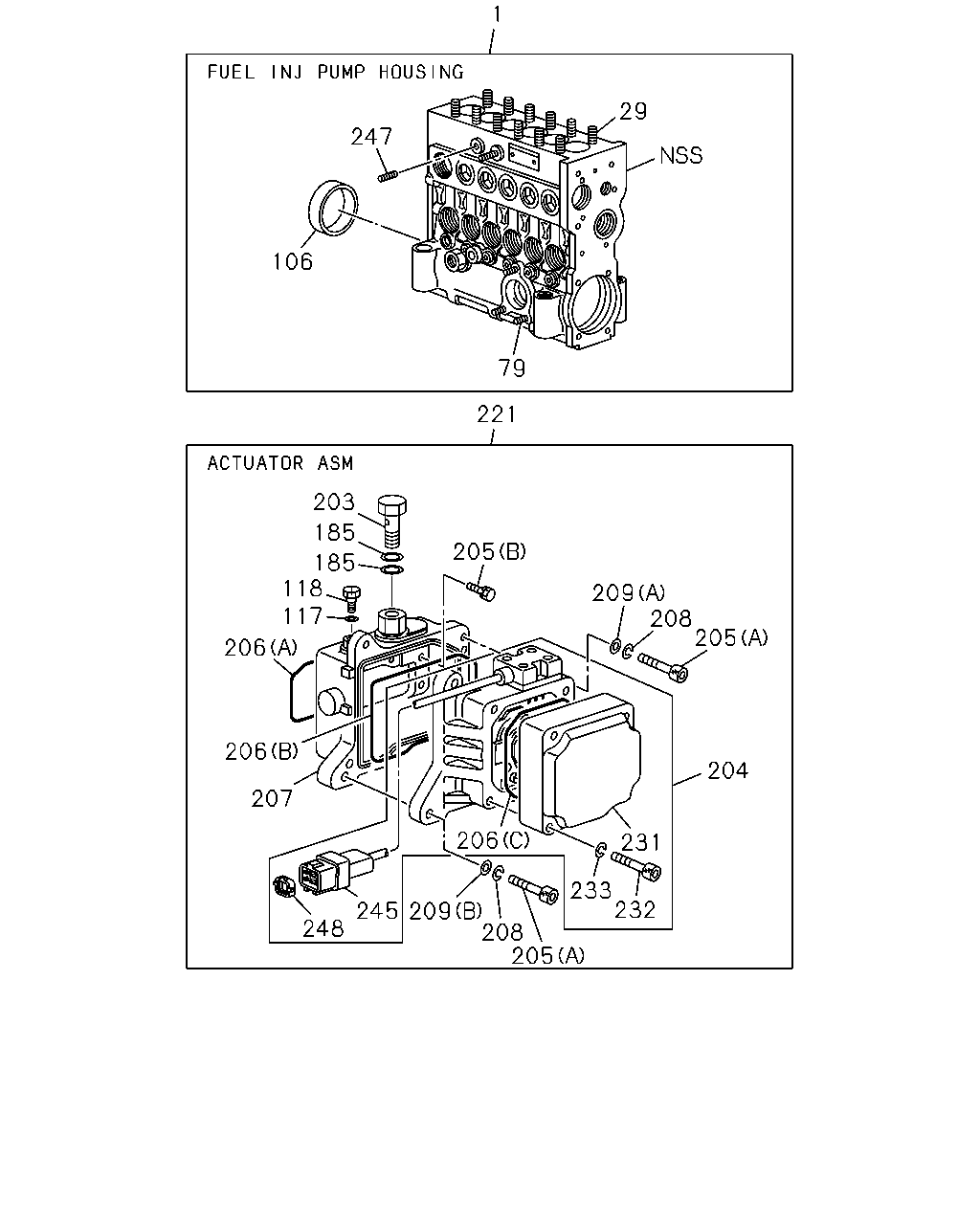

1 29 247 106 79 221 203 185 205 185 118 117 209 208 205 206 206 204 207 206 231 233 232 245 209 208 205 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15611-176-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94392-439-0	1-15611-200-0	01	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 8-94392-439-0	1-15619-426-0	12	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81215-115-0	03	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 8-94392-439-0	9-81225-064-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-94392-439-0	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94392-439-0	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 8-94392-439-0	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: A = 8-94392-439-0	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: A = 8-94392-439-0	1-15612-077-0	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: A = 8-94392-439-0	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: A = 8-94392-439-0	1-15619-348-0	04	1	-
206	GASKET; ACTUATOR (C) ASM PART: A = 8-94392-439-0	1-15619-379-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: A = 8-94392-439-0	1-15619-438-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: A = 8-94392-439-0	1-15619-439-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: A = 8-94392-439-0	1-15611-199-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: A = 8-94392-439-0	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: A = 8-94392-439-0	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: A = 8-94392-439-0	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: A = 8-94392-439-0	1-15612-076-0	01	1	-
231	COVER; ACTUATOR ASM PART: A = 8-94392-439-0	1-15619-440-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: A = 8-94392-439-0	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: A = 8-94392-439-0	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-441-0	01	1	-
247	STUD; HOUSING,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-427-0	02	1	-
248	RING; SOCKET HOUSING,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-442-0	01	1	-

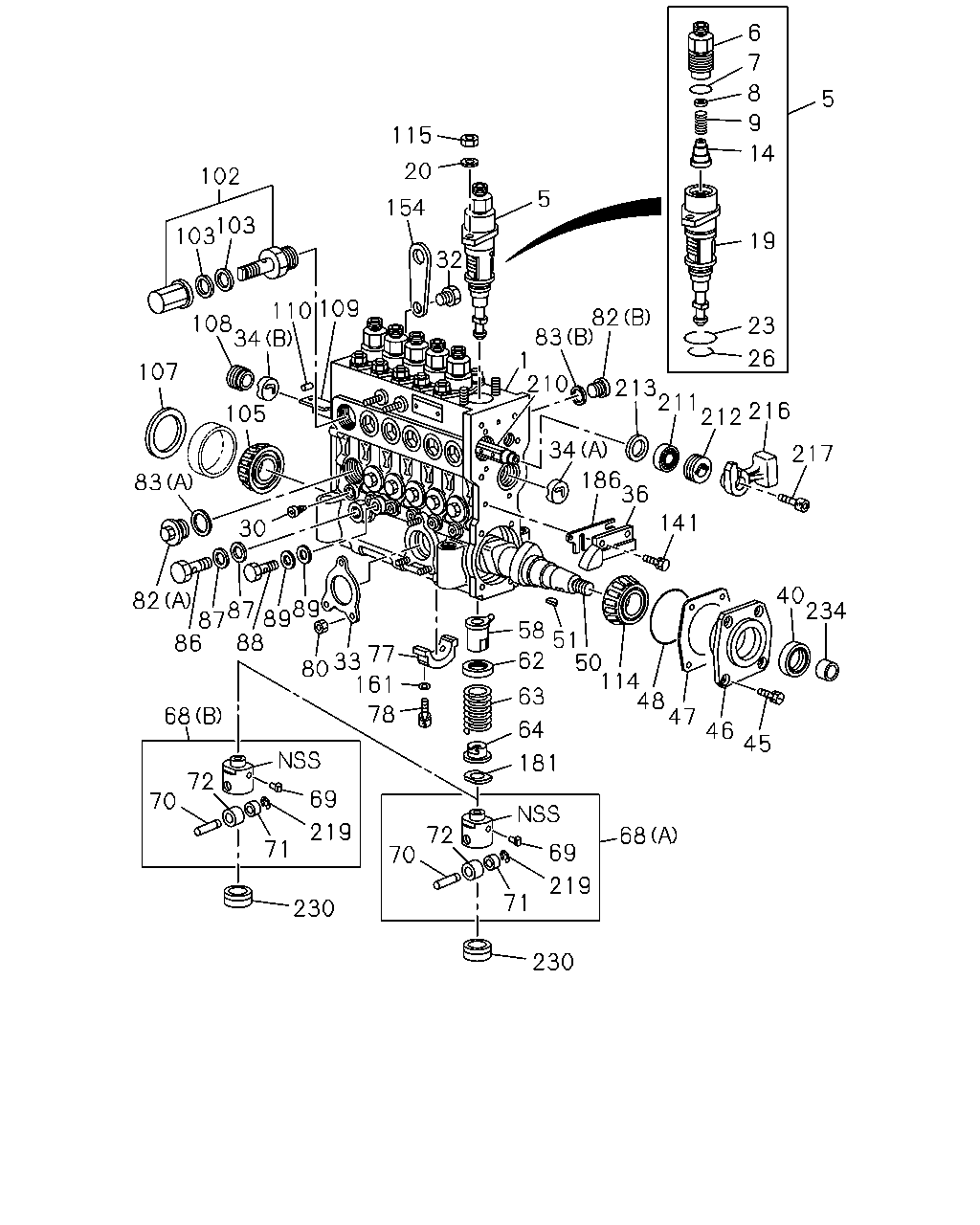

6 7 8 5 9 115 14 20 102 5 154 103 103 19 32 110 109 108 34 82 83 1 210 23 26 107 213 211 216 212 105 34 217 186 36 83 141 30 40 234 82 58 51 62 50 114 48 47 46 45 77 33 80 161 63 78 68 64 181 72 69 70 219 72 68 7 69 70 219 71 230 230 86 87 87 89 89 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15611-176-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94392-439-0	1-15611-200-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 8-94392-439-0	1-15631-203-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-439-0	1-15644-018-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-439-0	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-045-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94392-439-0	1-15643-012-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15641-021-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94392-439-0	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94392-439-0	1-15632-044-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 8-94392-439-0	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 8-94392-439-0	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 8-94392-439-0	1-15629-132-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 8-94392-439-0	9-81215-130-0	06	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 8-94392-439-0	9-02341-012-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: A = 8-94392-439-0	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 8-94392-439-0	9-81215-123-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-304-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-94392-439-0	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94392-439-0	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15629-034-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 8-94392-439-0	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 8-94392-439-0	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 8-94392-439-0	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 8-94392-439-0	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 8-94392-439-0	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 8-94392-439-0	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 8-94392-439-0	1-15639-172-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94392-439-0	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94392-439-0	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) NO.1,4,5,6 ASM PART: A = 8-94392-439-0	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) NO.2,3 ASM PART: A = 8-94392-439-0	1-15622-015-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-134-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15622-006-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-133-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-010-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-433-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15629-014-0	01	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-434-0	06	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-94392-439-0	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-94392-439-0	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-136-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: A = 8-94392-439-0	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 8-94392-439-0	5-15729-021-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-309-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94392-439-0	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-363-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94392-439-0	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 8-94392-439-0	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 8-94392-439-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 8-94392-439-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 8-94392-439-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 8-94392-439-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 8-94392-439-0	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 8-94392-439-0	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 8-94392-439-0	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-439-0	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-337-0	12	1	-
141	BOLT; POINTER ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15729-758-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-347-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-94392-439-0	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81225-043-0	02	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: A = 8-94392-439-0	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: A = 8-94392-439-0	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: A = 8-94392-439-0	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: A = 8-94392-439-0	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: A = 8-94392-439-0	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: A = 8-94392-439-0	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: A = 8-94392-439-0	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: A = 8-94392-439-0	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: A = 8-94392-439-0	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: A = 8-94392-439-0	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: A = 8-94392-439-0	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: A = 8-94392-439-0	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: A = 8-94392-439-0	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: A = 8-94392-439-0	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: A = 8-94392-439-0	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: A = 8-94392-439-0	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: A = 8-94392-439-0	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: A = 8-94392-439-0	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: A = 8-94392-439-0	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: A = 8-94392-439-0	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: A = 8-94392-439-0	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: A = 8-94392-439-0	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: A = 8-94392-439-0	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: A = 8-94392-439-0	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: A = 8-94392-439-0	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: A = 8-94392-439-0	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: A = 8-94392-439-0	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: A = 8-94392-439-0	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: A = 8-94392-439-0	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: A = 8-94392-439-0	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: A = 8-94392-439-0	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: A = 8-94392-439-0	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: A = 8-94392-439-0	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: A = 8-94392-439-0	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: A = 8-94392-439-0	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: A = 8-94392-439-0	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: A = 8-94392-439-0	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: A = 8-94392-439-0	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: A = 8-94392-439-0	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: A = 8-94392-439-0	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: A = 8-94392-439-0	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: A = 8-94392-439-0	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: A = 8-94392-439-0	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: A = 8-94392-439-0	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: A = 8-94392-439-0	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: A = 8-94392-439-0	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: A = 8-94392-439-0	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: A = 8-94392-439-0	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: A = 8-94392-439-0	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: A = 8-94392-439-0	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: A = 8-94392-439-0	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: A = 8-94392-439-0	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: A = 8-94392-439-0	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: A = 8-94392-439-0	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: A = 8-94392-439-0	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: A = 8-94392-439-0	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: A = 8-94392-439-0	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: A = 8-94392-439-0	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: A = 8-94392-439-0	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: A = 8-94392-439-0	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-096-0	AR	1	-
210	ROD; CONT ASM PART: A = 8-94392-439-0	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 8-94392-439-0	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 8-94392-439-0	1-15619-330-0	01	1	-
213	WASHER; CONT ROD ASM PART: A = 8-94392-439-0	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 8-94392-439-0	1-15619-451-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 8-94392-439-0	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-94392-439-0	1-15619-432-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 8-94392-439-0	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: A = 8-94392-439-0	1-15635-002-0	01	1	-

176 6 7 8 9 118 117 117 10 45 14 141 19 36 186 74 73 48 40 114 167 46 109 75 148 162 162 49 87 87 86 1 51 159 107 107 89 89 88 33 80 178 58 177 50 1 77 127 126 161 62 105 160 63 64 68 181 69 70 71 72 82 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15611-120-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15611-176-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94392-439-0	1-15611-200-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-439-0	1-15644-018-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15644-017-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-439-0	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-045-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15643-003-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94392-439-0	1-15643-012-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15649-001-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15641-021-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94392-439-0	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15631-139-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94392-439-0	1-15632-044-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-304-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-94392-439-0	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94392-439-0	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94392-439-0	9-81215-128-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-004-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-024-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15621-080-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94392-439-0	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81225-058-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81235-015-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-022-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	8-94387-977-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94392-439-0	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81235-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) NO.1,4,5,6 ASM PART: A = 8-94392-439-0	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) NO.2,3 ASM PART: A = 8-94392-439-0	1-15622-015-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15622-009-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-134-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-041-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15622-006-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81215-185-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15629-001-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15629-133-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15622-003-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-010-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-433-0	03	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15629-014-0	01	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-94392-439-0	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-94392-439-0	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-136-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94392-439-0	1-15619-309-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94392-439-0	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-00090-677-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 8-94392-439-0	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 8-94392-439-0	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 8-94392-439-0	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 8-94392-439-0	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 8-94392-439-0	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-81225-033-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 8-94392-439-0	9-88410-441-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94392-439-0	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-439-0	9-81225-068-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-94392-439-0	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94392-439-0	9-81215-148-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	1-15629-057-0	01	1	-
141	BOLT; POINTER ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15729-758-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-004-0	01	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-023-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-017-0	02	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	9-88410-066-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-94392-439-0	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81225-043-0	02	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-025-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-026-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-027-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-028-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-029-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-030-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-031-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4	5-15629-032-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: E = 8-94395-979-4, F = 8-94395-980-4	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: A = 8-94392-439-0	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: A = 8-94392-439-0	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: A = 8-94392-439-0	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: A = 8-94392-439-0	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: A = 8-94392-439-0	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: A = 8-94392-439-0	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: A = 8-94392-439-0	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: A = 8-94392-439-0	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: A = 8-94392-439-0	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: A = 8-94392-439-0	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: A = 8-94392-439-0	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: A = 8-94392-439-0	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: A = 8-94392-439-0	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: A = 8-94392-439-0	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: A = 8-94392-439-0	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: A = 8-94392-439-0	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: A = 8-94392-439-0	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: A = 8-94392-439-0	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: A = 8-94392-439-0	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: A = 8-94392-439-0	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: A = 8-94392-439-0	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: A = 8-94392-439-0	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: A = 8-94392-439-0	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: A = 8-94392-439-0	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: A = 8-94392-439-0	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: A = 8-94392-439-0	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: A = 8-94392-439-0	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: A = 8-94392-439-0	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: A = 8-94392-439-0	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: A = 8-94392-439-0	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: A = 8-94392-439-0	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: A = 8-94392-439-0	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: A = 8-94392-439-0	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: A = 8-94392-439-0	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: A = 8-94392-439-0	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: A = 8-94392-439-0	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: A = 8-94392-439-0	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: A = 8-94392-439-0	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: A = 8-94392-439-0	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: A = 8-94392-439-0	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: A = 8-94392-439-0	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: A = 8-94392-439-0	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: A = 8-94392-439-0	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: A = 8-94392-439-0	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: A = 8-94392-439-0	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: A = 8-94392-439-0	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: A = 8-94392-439-0	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: A = 8-94392-439-0	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: A = 8-94392-439-0	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: A = 8-94392-439-0	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: A = 8-94392-439-0	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: A = 8-94392-439-0	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: A = 8-94392-439-0	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: A = 8-94392-439-0	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: A = 8-94392-439-0	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: A = 8-94392-439-0	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: A = 8-94392-439-0	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: A = 8-94392-439-0	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: A = 8-94392-439-0	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: A = 8-94392-439-0	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4	1-15639-096-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
