◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#68038) — 42 parça

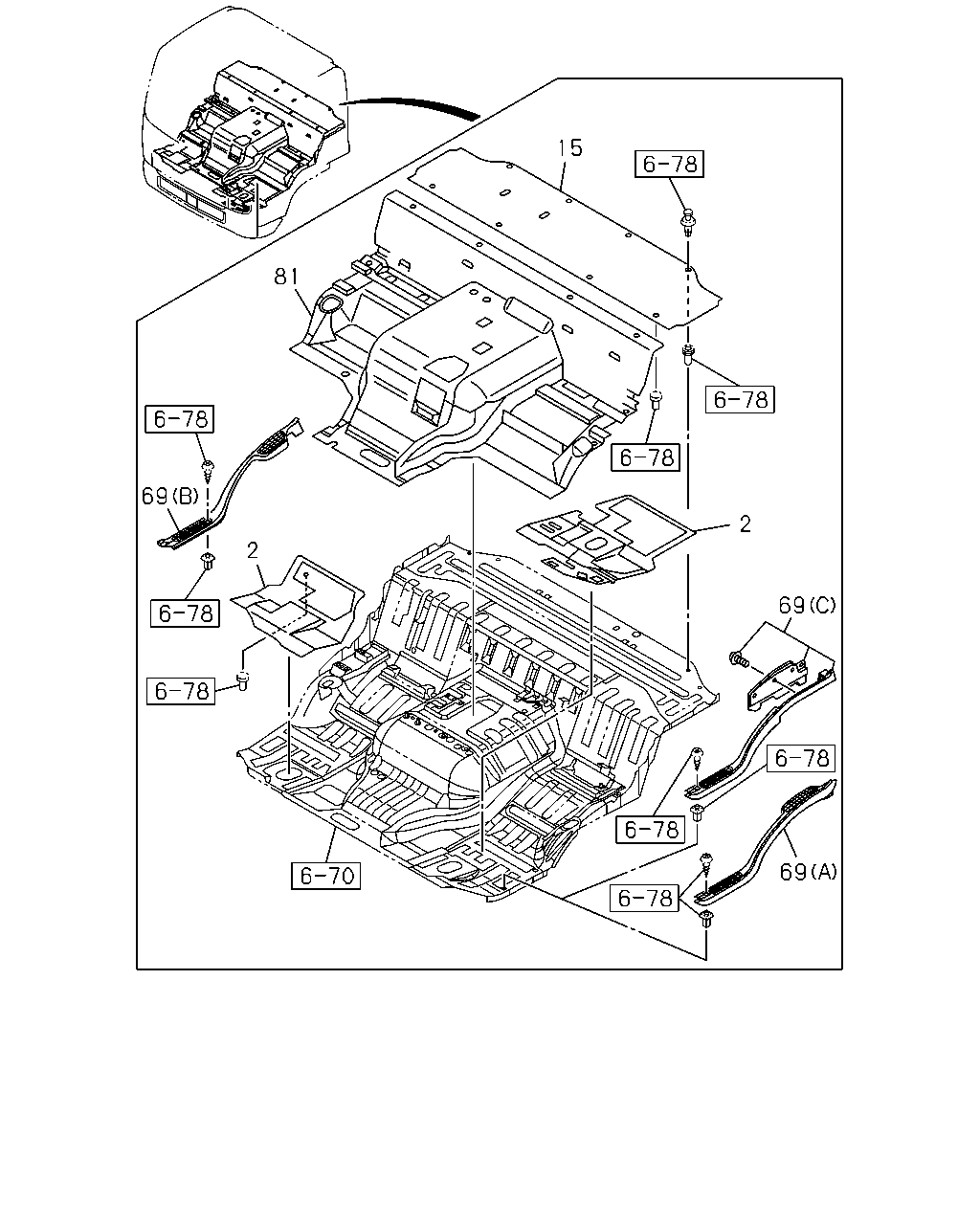

çizim 132505
15 81 69 2 69 69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
IRAN EQUIPMENT(D8T) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-026-1 01 1 1010-1107 ●
2 MAT; FLOOR
GRAY 		8-97414-161-1 01 1 0803-0907 ●
2 MAT; FLOOR
GRAY 		8-97414-161-1 01 1 0908- ● ●
2 MAT; FLOOR
GRAY 		8-97414-162-2 01 1 0803-0907 ●
2 MAT; FLOOR
GRAY 		8-97414-162-2 01 1 0908-1009 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. IRAN EQUIPMENT(D8T) GRAY 		8-97414-162-2 01 1 1010-1107 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97414-162-2 01 1 1010-1107 ●
2 MAT; FLOOR
GRAY 		8-97414-162-3 01 1 1108- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004- ● ●
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005 ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0803-0907 ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0908-1003 ● ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1004- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
IRAN EQUIPMENT(D8T) (B) GRAY 		8-97412-925-0 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
IRAN EQUIPMENT(D8T) DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-929-0 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
IRAN EQUIPMENT(D8T) EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97412-927-0 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97409-776-2 01 1 0803-0907 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97409-776-2 01 1 0908-1009 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> EXC. IRAN EQUIPMENT(D8T) (C) GRAY 		8-97409-776-2 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97409-776-2 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97409-776-2 01 1 1108- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 0803-0907 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 0908-1009 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. IRAN EQUIPMENT(D8T) (B) GRAY 		8-97407-412-1 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(B) GRAY 		8-97407-412-1 01 1 1108- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 0803-0907 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 0908-1009 ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. IRAN EQUIPMENT(D8T),DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1010-1107 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-413-1 01 1 1108- ● ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-649-3 01 1 1008-1107 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-648-3 01 1 1008-1107 ●
81 MAT; FLOOR,CENTER
GRAY 		8-97417-928-0 01 1 0908- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-558-2 01 1 0803-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-558-2 01 1 1004-1007 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-558-2 01 1 1008-1107 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-558-2 01 1 1108- ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-644-2 01 1 0803-1003 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-644-2 01 1 1004-1007 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-644-2 01 1 1008-1107 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97411-644-2 01 1 1108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
