◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

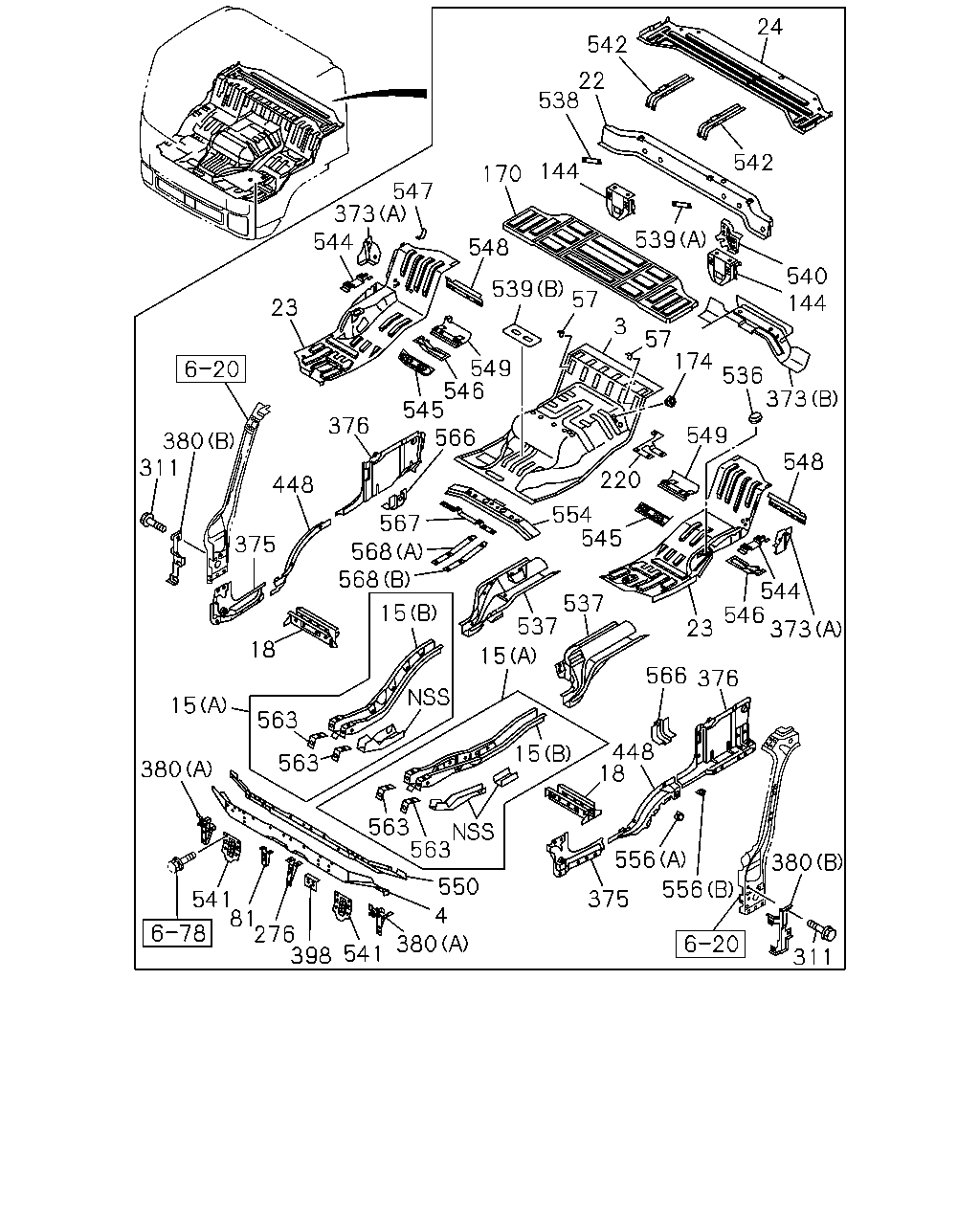

6-70 — FLOOR PANEL (#68037) — 188 parça
çizim 193672
311 380 556 556 375 18 376 566 373 546 23 448 544 548 373 536 144 540 542 24 542 22 538 144 170 539 57 174 549 3 539 548 547 373 544 23 376 448 375 380 311 18 15 380 563 563 541 81 276 398 541 563 563 550 380 15 15 15 568 567 568 566 545 546 549 554 220 57 545 537 537 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-363-4 01 1 1010-1108 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) IRAN EQUIPMENT(D8T) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-363-4 01 1 1010-1108 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-365-4 01 1 1010-1108 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98069-933-5 01 1 0803-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98069-933-5 01 1 0908-1009 ●
3 HOOD ASM; ENG 8-98069-933-5 01 1 0908-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. IRAN EQUIPMENT(D8T) 		8-98069-933-5 01 1 1010-1108 ●
3 HOOD ASM; ENG
FULLER FS8209HD DD M/T(Y3A) 		8-98069-933-5 01 1 1010-1108 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98069-933-5 01 1 1109- ●
3 HOOD ASM; ENG 8-98069-933-5 01 1 1109- ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 		8-98036-244-4 01 1 0803-0805 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-4 01 1 0803-0805 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-98036-244-5 01 1 0806-0906 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 0806-0906 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98036-244-5 01 1 0907-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 0907-1009 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. IRAN EQUIPMENT(D8T),ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 1010-1108 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) ASSISTOR SHIFT CONTROL<WX8> EXC. IRAN EQUIPMENT(D8T) 		8-98036-244-5 01 1 1010-1108 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98036-244-5 01 1 1109-1404 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 1109-1404 ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. IRAN EQUIPMENT(D8T),AUTO CAB TILT<WV2>, ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 1405- ●
3 HOOD ASM; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) ASSISTOR SHIFT CONTROL<WX8> EXC. IRAN EQUIPMENT(D8T),AUTO CAB TILT<WV2> 		8-98036-244-5 01 1 1405- ●
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 0803-0907 ●
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 0908- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0803-0907 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0908- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0803-0907 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0908- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0803-0907 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0908- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0803-0907 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0908- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 0803-0907 ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 0908-1404 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 1405- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 0803-0907 ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 0908-1404 ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 1405- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0803-0907 ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0908- ● ●
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 0803-0907 ●
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 0908-1404 ● ●
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 1405- ● ●
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 0803-0907 ●
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 0908-1404 ● ●
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 1405- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0803-0907 ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0908- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0803-0907 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0908- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0803-0907 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0908- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0803-0907 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0908-1404 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1405- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0803-0907 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0908-1404 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1405- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0803-0907 ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0908- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0803-0907 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0908- ● ●
220 PATCH 8-97589-704-0 01 1 0803-0907 ●
220 PATCH 8-97589-704-0 01 1 0908- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0803-0907 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0908- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0803-0907 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0908- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 0803-0907 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 0908-1009 ● ●
373 REINFORCEMENT; SEAT BELT
EXC. IRAN EQUIPMENT(D8T) (B) 		8-98017-308-4 01 1 1010-1108 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1010-1108 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1109- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0803-0907 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0908- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0803-0907 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0908- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0803-0907 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0908- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0803-0907 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0908- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0803-0907 ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0908-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 0803-0907 ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0908- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0803-0907 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0908- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0803-0907 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0908- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0803-0907 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0908- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0803-0907 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0908- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0803-0907 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0908- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0803-0907 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0908-1404 ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1405- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0803-0907 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0908-1404 ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1405- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0803-0907 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0908- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0803-0907 ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0908-1404 ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1405- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0803-0907 ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0908-1404 ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1405- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0803-0907 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0908- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809-0907 ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0908- ● ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0803-0907 ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0908- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0803-0907 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0908- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0803-0907 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0908- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0803-0907 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0908- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0803-0907 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0908-1404 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1405- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0803-0907 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0908-1404 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1405- ● ●
545 BRACKET; SEAT FRT
IRAN EQUIPMENT(D8T) 		8-98050-188-0 01 1 1010-1108 ●
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0803-0907 ●
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0908-1404 ● ●
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1405- ● ●
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 0803-0907 ●
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 0908-1009 ● ●
545 BRACKET; SEAT FRT
EXC. IRAN EQUIPMENT(D8T) 		8-97589-706-0 01 1 1010-1108 ●
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1010-1108 ●
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1109-1404 ● ●
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1405- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0803-0907 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0908- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0803-0907 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0908- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0803-0907 ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0908-1404 ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1405- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0803-0907 ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0908-1404 ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1405- ● ●
549 BRACKET; SEAT RR
IRAN EQUIPMENT(D8T) 		8-98050-189-1 01 1 1010-1108 ●
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0803-0907 ●
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0908-1404 ● ●
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1405- ● ●
549 BRACKET; SEAT RR 8-98017-370-1 01 1 0803-0907 ●
549 BRACKET; SEAT RR 8-98017-370-1 01 1 0908-1009 ● ●
549 BRACKET; SEAT RR
EXC. IRAN EQUIPMENT(D8T) 		8-98017-370-1 01 1 1010-1108 ●
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1010-1108 ●
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1109-1404 ● ●
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1405- ● ●
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 0803-0907 ●
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 0908- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0803-0907 ●
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0908- ● ●
556 BRACKET; TILT HANDLE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 		8-98077-605-1 01 1 0810-0811 ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 0810-0811 ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 0812-0907 ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 0908-1009 ● ●
556 BRACKET; TILT HANDLE
EXC. IRAN EQUIPMENT(D8T) (A) 		8-98077-605-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1109- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1109- ●
556 BRACKET; TILT HANDLE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 		8-98077-606-1 01 1 0810-0811 ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 0810-0811 ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 0812-0907 ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 0908-1009 ● ●
556 BRACKET; TILT HANDLE
EXC. IRAN EQUIPMENT(D8T) (B) 		8-98077-606-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1010-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1109- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1109- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0803-0907 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0908- ● ●
566 REINFORCEMENT; FENDER,RR
IRAN EQUIPMENT(D8T) 		8-98076-133-0 02 1 1405- ●
566 REINFORCEMENT; FENDER,RR
IRAN EQUIPMENT(D8T) 		8-98076-133-0 02 1 1010-1108 ●
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0803-0907 ●
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0908- ● ●
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0803-0907 ●
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0908- ● ●
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0803-0907 ●
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
