◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#68036) — 31 parça

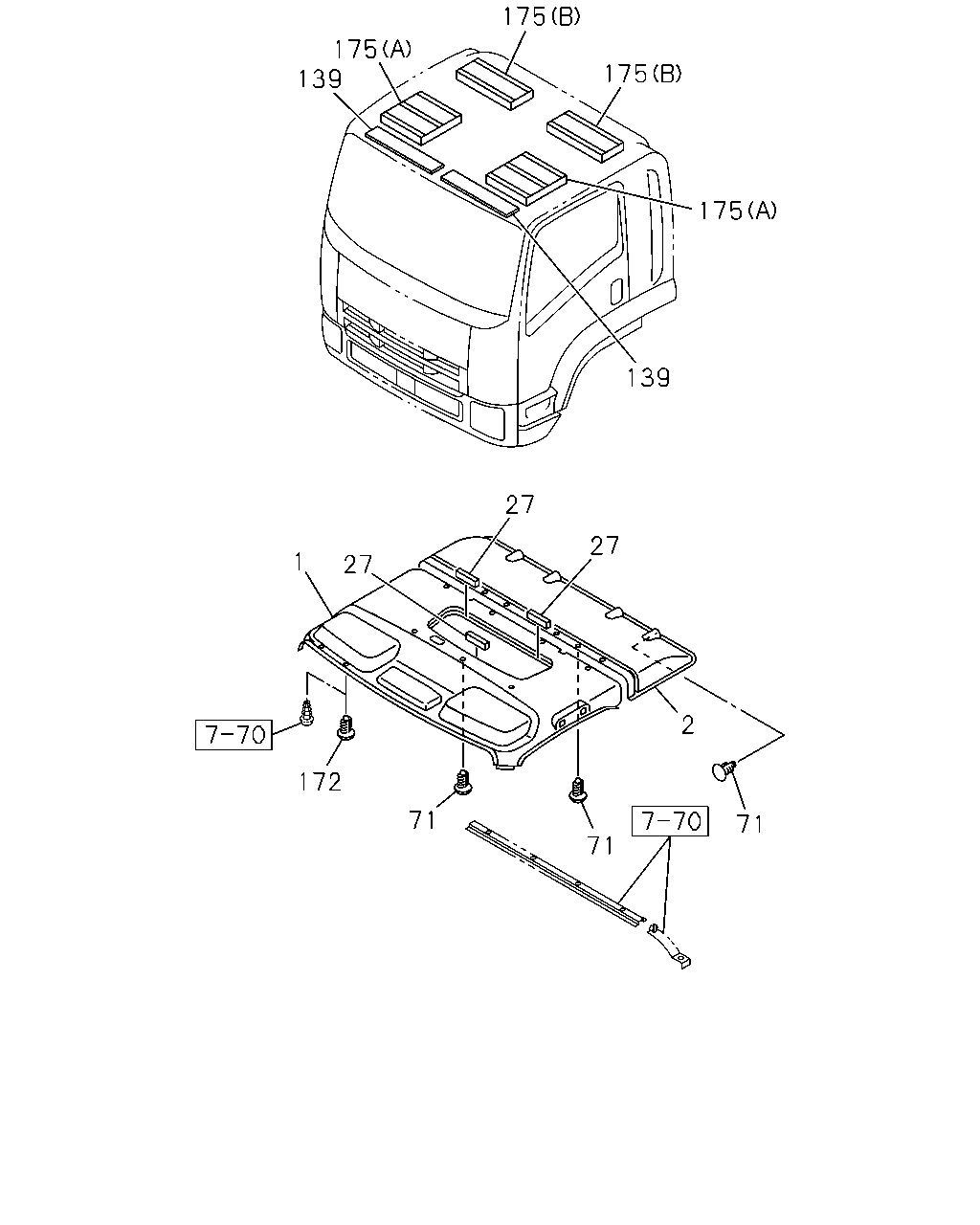

çizim 131271
71 2 71 71 172 1 27 27 139 27 175 175 175 175 139
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-882-3 01 1 0803-0907 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-882-3 01 1 0908-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-730-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-885-3 01 1 0803-0907 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-885-3 01 1 0908-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-732-0 01 1 1307- ● ●
1 LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97411-883-3 01 1 0803-0907 ●
1 LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97411-883-3 01 1 0908-1306 ● ●
1 LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-734-0 01 1 1307- ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-884-3 01 1 0803-0907 ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY 		8-97411-884-3 01 1 0908-1306 ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-733-0 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 0803-0804 ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-674-0 01 1 0805-0907 ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-674-0 01 1 0908-1306 ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97427-627-0 01 1 1307- ● ●
27 INSULATION; ROOF 8-98046-638-1 03 1 0803-0907 ●
27 INSULATION; ROOF 8-98046-638-1 03 1 0908-0911 ● ●
27 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 0912- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 0803-0907 ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 0908- ● ●
139 SEAL; ROOF 8-98076-274-0 02 1 0803-0907 ●
139 SEAL; ROOF 8-98076-274-0 02 1 0908-1009 ● ●
139 SEAL; ROOF 8-98169-116-0 02 1 1010- ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 12 1 0803-0804 ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 14 1 0805-0907 ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 14 1 0908- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 0803-0907 ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 0908- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 0803-0907 ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 0908- ● ●
