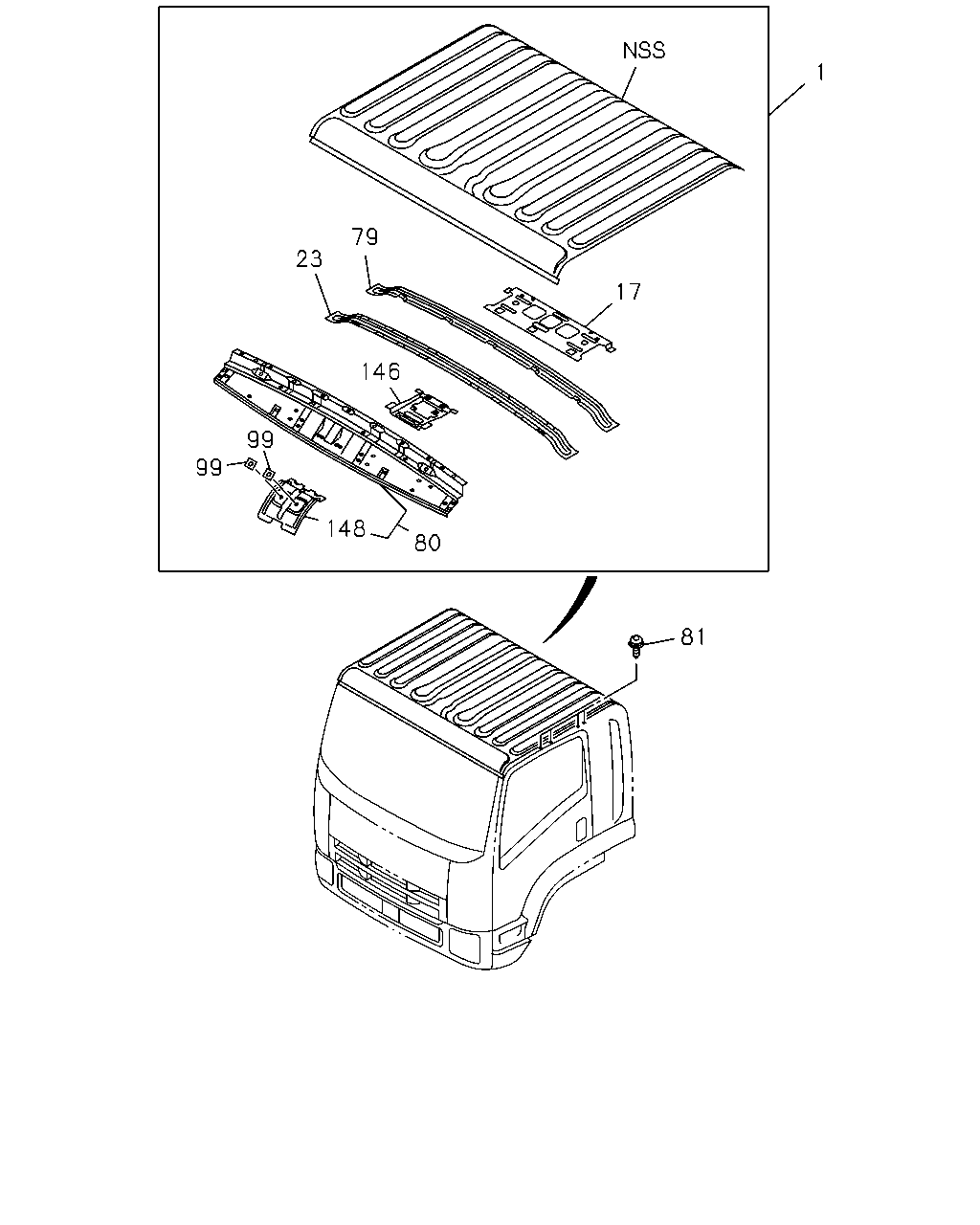

6-60 — ROOF PANEL (#68035) — 34 parça

81 80 148 99 99 23 79 17 146 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC>	8-98152-807-0	01	1	1002-1308	●	●
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC>	8-98246-482-0	01	1	1309-	●	●
1	PANEL; ROOF EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC>	8-98152-808-0	01	1	1002-1308	●	●
1	PANEL; ROOF EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC>	8-98246-483-0	01	1	1309-	●	●
1	PANEL; ROOF EXC. MIRROR O/S UNDER VIEW<RR9>	8-98020-507-5	01	1	0809-0907	●
1	PANEL; ROOF EXC. MIRROR O/S UNDER VIEW<RR9>	8-98020-507-5	01	1	0908-1001	●	●
1	PANEL; ROOF FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>	8-98020-507-5	01	1	1002-1308	●	●
1	PANEL; ROOF FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>	8-98246-479-0	01	1	1309-	●	●
1	PANEL; ROOF	8-98048-093-3	01	1	0803-0808	●
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9>	8-98048-093-3	01	1	0809-0907	●
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9>	8-98048-093-3	01	1	0908-1001	●	●
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC>	8-98048-093-3	01	1	1002-1308	●	●
1	PANEL; ROOF MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC>	8-98246-480-0	01	1	1309-	●	●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0803-0907	●
17	REINFORCEMENT; ROOF PNL CENTER	8-97584-203-5	01	1	0908-	●	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-316-0	01	1	0803-0907	●
23	REINFORCEMENT; ROOF PANEL,FRT	8-98019-316-0	01	1	0908-	●	●
79	REINFORCEMENT; ROOF PANEL,RR	8-97584-200-1	01	1	0803-0907	●
79	REINFORCEMENT; ROOF PANEL,RR	8-97584-200-1	01	1	0908-	●	●
80	PANEL; HEADER,ROOF	8-98047-271-1	01	1	0803-0808	●
80	PANEL; HEADER,ROOF MIRROR O/S UNDER VIEW<RR9>	8-98047-271-1	01	1	0809-0907	●
80	PANEL; HEADER,ROOF MIRROR O/S UNDER VIEW<RR9>	8-98047-271-1	01	1	0908-1308	●	●
80	PANEL; HEADER,ROOF MIRROR O/S UNDER VIEW<RR9>	8-98246-472-0	01	1	1309-	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0803-0907	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98028-744-0	08	1	0908-0910	●	●
81	BOLT; ROOF M8X15.5 HEXALOBULAR	8-98141-874-0	08	1	0911-	●	●
99	SEAL; BODY,METAL 30X30 ID=20 T=0.7	1-61281-380-1	02	1	0803-0808	●
99	SEAL; BODY,METAL MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-1	02	1	0809-0907	●
99	SEAL; BODY,METAL MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7	1-61281-380-2	02	1	0908-	●	●
146	REINFORCEMENT; ROOM LAMP	8-98075-827-0	01	1	0803-0907	●
146	REINFORCEMENT; ROOM LAMP	8-98075-827-0	01	1	0908-	●	●
148	REINFORCEMENT; MIRROR	8-97411-013-0	01	1	0803-0808	●
148	REINFORCEMENT; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-97411-013-0	01	1	0809-0907	●
148	REINFORCEMENT; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-97411-013-0	01	1	0908-	●	●
