Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#68034) — 493 parça

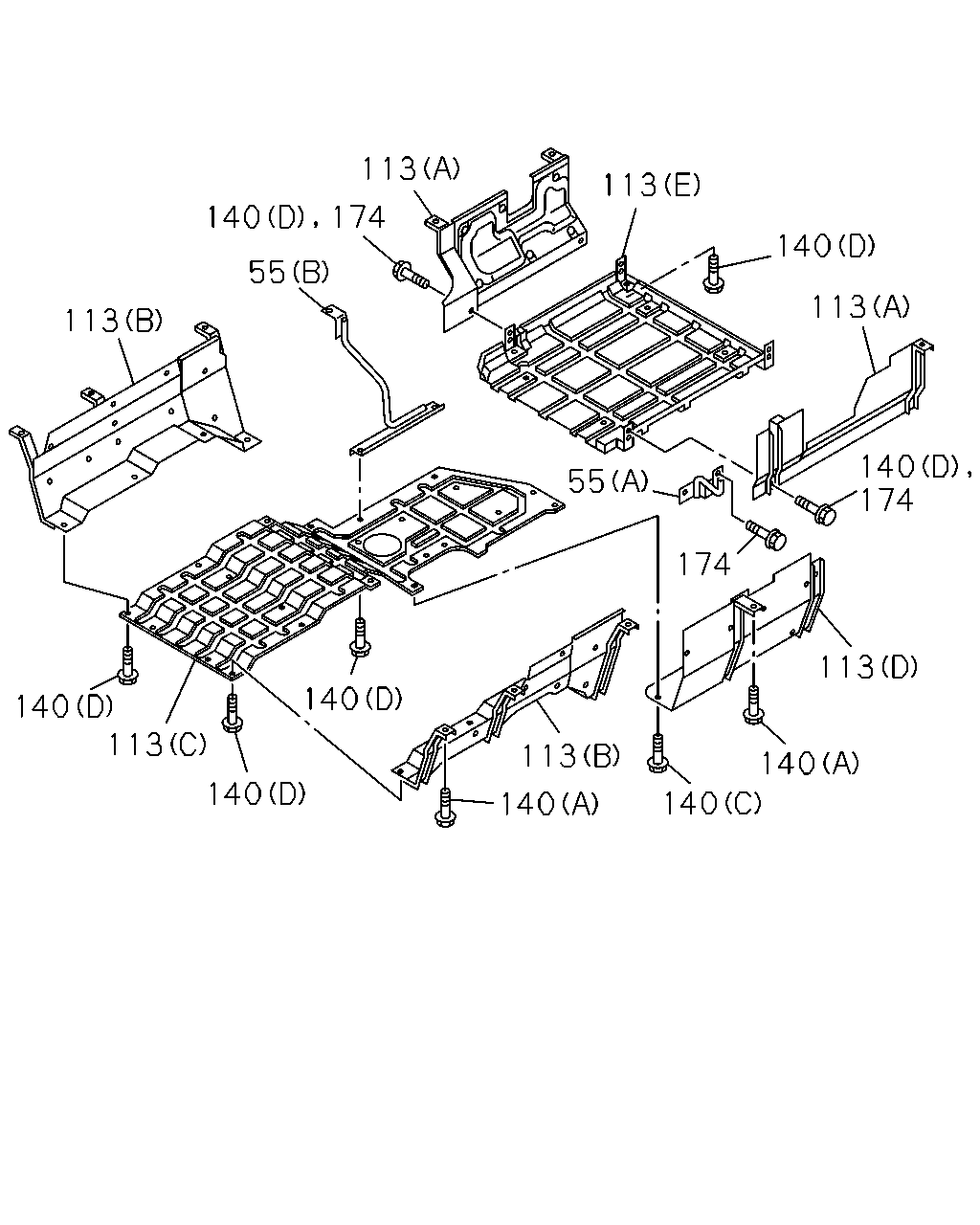

140 113 174 140 113 140 113 113 174 140 113 55 140 113 140 140 140 140 113 55 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98064-086-2	01	1	0809-	●
55	STAY; UNDER COVER,RR 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0803-0808	●
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0809-	●
55	STAY; UNDER COVER,RR 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-756-2	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98017-762-1	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E)	8-98017-772-1	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98078-182-0	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98114-851-0	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0803-0808	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0803-0808	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0809-	●
113	PANEL; SIDE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0907-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0803-0808	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0803-0907	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0908-	●	●
174	BOLT; STAY FIX 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	02	1	0803-0808	●
174	BOLT; STAY FIX 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0803-0808	●
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0809-	●
174	BOLT; STAY FIX 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0809-	●

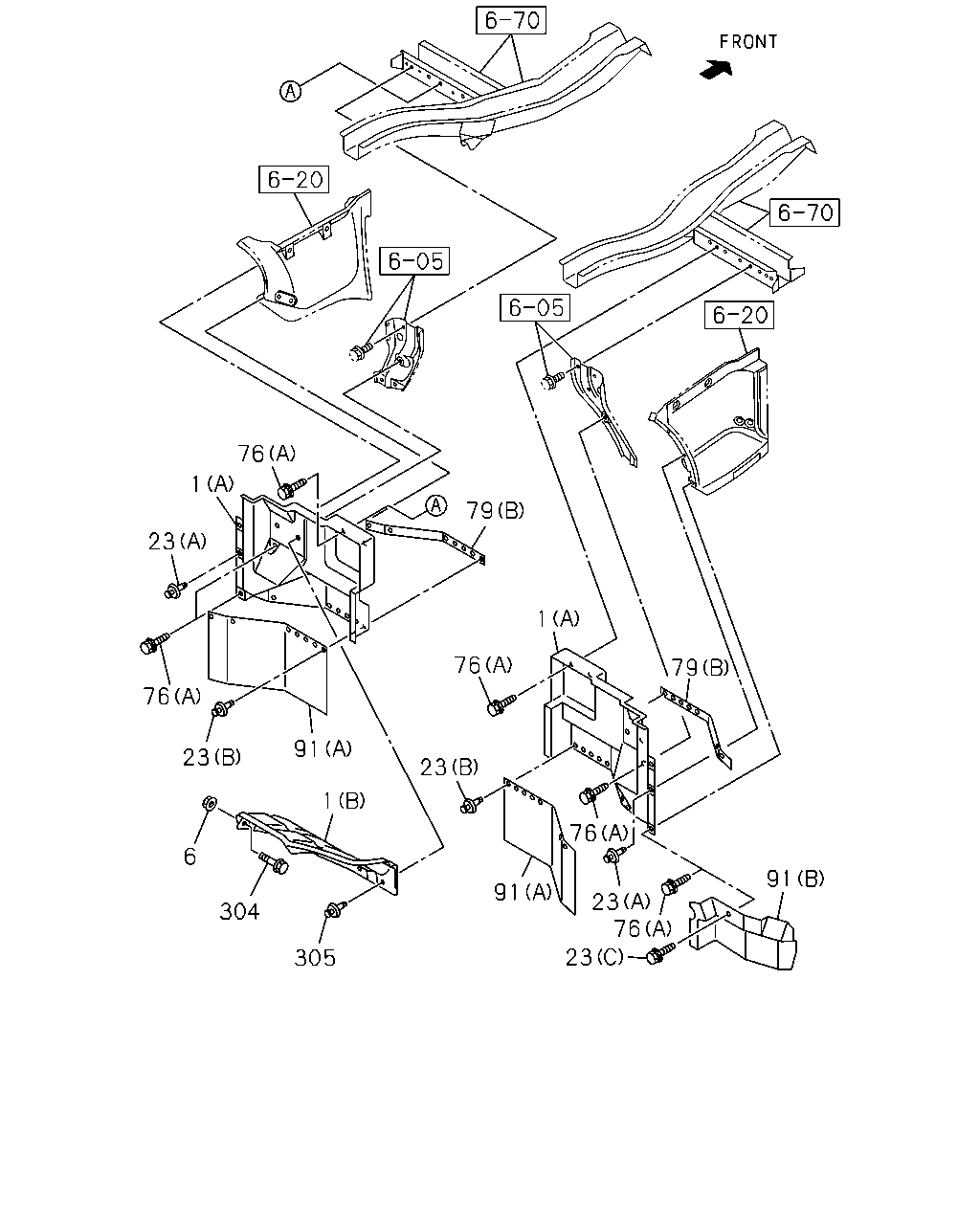

76 1 23 76 23 91 6 304 305 1 23 76 79 1 79 76 91 23 23 76 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> EXC. TAIWAN EQUIPMENT(B04) (B)	8-98158-184-0	01	1	1004-1007	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98158-184-0	01	1	1004-1007		●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> EXC. TAIWAN EQUIPMENT(B04),AUTO CAB TILT<WV2> (B)	8-98158-184-0	01	1	1008-1205	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98158-184-0	01	1	1008-1205		●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> EXC. AUTO CAB TILT<WV2> (B)	8-98158-184-0	01	1	1206-	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98158-184-0	01	1	1206-		●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-272-0	01	1	0803-0907	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-272-0	01	1	0908-1003	●	●
1	GUARD; MUD,FRT TAIWAN EQUIPMENT(B04) DUMP CONTROL LEVER<RC4> (B)	8-98076-272-0	01	1	1004-1007	●
1	GUARD; MUD,FRT TAIWAN EQUIPMENT(B04) DUMP CONTROL LEVER<RC4> EXC. AUTO CAB TILT<WV2> (B)	8-98076-272-0	01	1	1008-1205	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> AUTO CAB TILT<WV2> (B)	8-98076-272-0	01	1	1008-1205	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> AUTO CAB TILT<WV2> (B)	8-98076-272-0	01	1	1206-	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0803-0907	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0908-	●	●
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0803-0907	●
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0908-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0803-0907	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0908-	●	●
23	FASTENER; MUD COVER IRAN EQUIPMENT(D8T) (C) M8X29.5 W/LK+PL WASHER	8-98073-082-0	02	1	1405-	●
23	FASTENER; MUD COVER IRAN EQUIPMENT(D8T) (C) M8X29.5 W/LK+PL WASHER	8-98073-082-0	02	1	1010-1107	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0803-0907	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0908-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0803-0907	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0908-	●	●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1405-	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1405-		●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1405-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1405-		●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1011-1106	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1107-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-1404	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1405-	●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-1107	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-1107		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0803-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-0907	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0908-1009	●	●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1106	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1106		●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0803-0907	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0908-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-1009	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	1010-1107	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1108-1404	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	1405-	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1405-	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1010-1106	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0803-0907	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0908-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1405-		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1405-		●
91	COVER; MUD,FRT IRAN EQUIPMENT(D8T) (B)	8-98118-994-0	01	1	1405-	●
91	COVER; MUD,FRT IRAN EQUIPMENT(D8T) (B)	8-98118-995-0	01	1	1405-	●
91	COVER; MUD,FRT IRAN EQUIPMENT(D8T) (B)	8-98118-994-0	01	1	1010-1107	●
91	COVER; MUD,FRT IRAN EQUIPMENT(D8T) (B)	8-98118-995-0	01	1	1010-1107	●
91	COVER; MUD,FRT (A)	8-98060-067-1	02	1	0803-0907	●
91	COVER; MUD,FRT (A)	8-98060-067-1	02	1	0908-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0803-0907	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0908-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0803-0907	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0908-	●	●

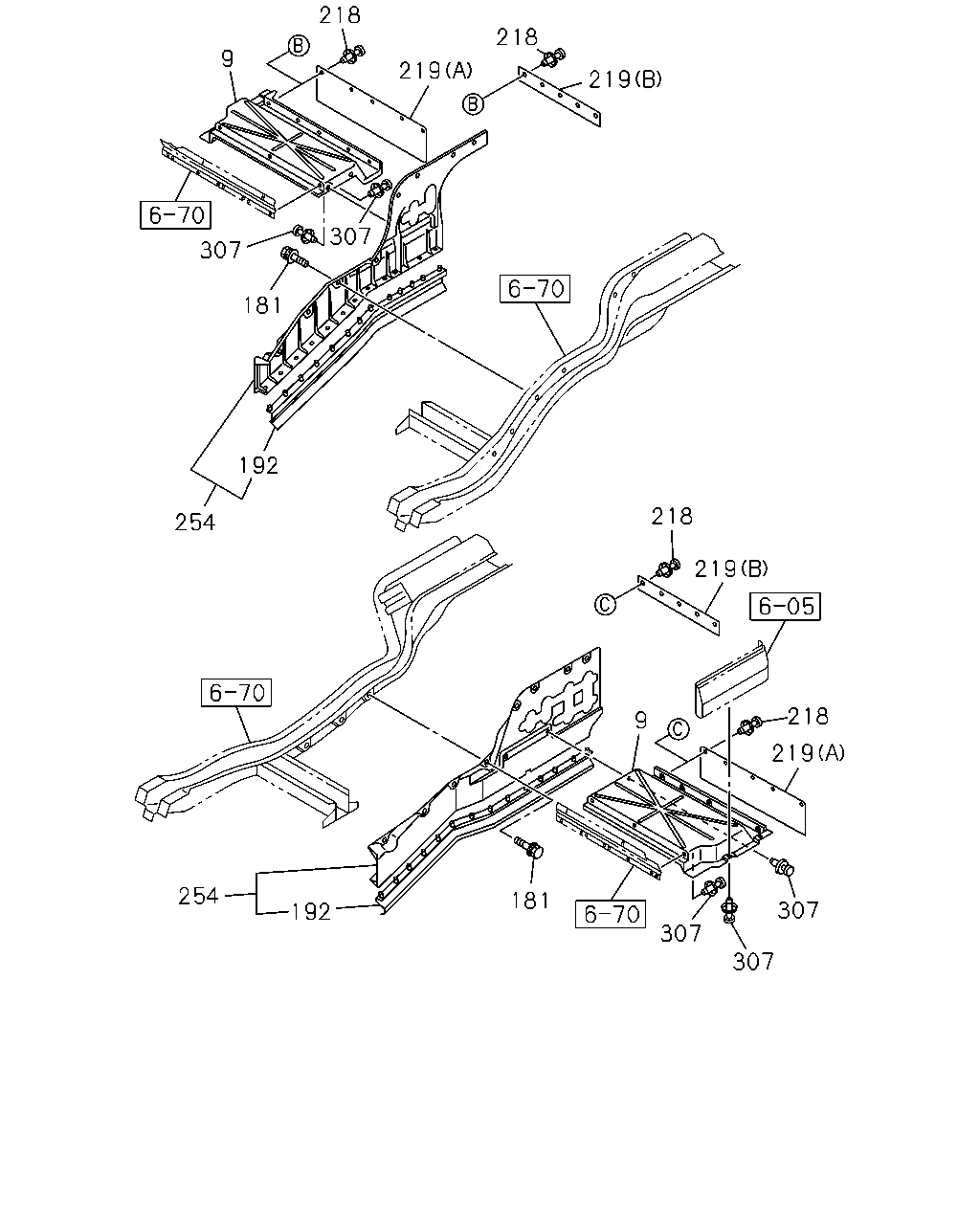

307 307 307 181 192 254 219 9 218 219 218 219 218 219 218 9 307 307 181 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0803-0907	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0908-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0803-0907	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0908-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0803-0907	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0908-	●	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-360-0	01	1	1008-	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-361-0	01	1	1008-	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0803-0907	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	0908-1007	●	●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-158-1	01	1	1008-	●
192	SEAL; MUD COVER	8-98041-158-1	01	1	1008-		●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0803-0907	●
192	SEAL; MUD COVER	8-98041-159-2	01	1	0908-1007	●	●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-159-2	01	1	1008-	●
192	SEAL; MUD COVER	8-98041-159-2	01	1	1008-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0803-0907	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0908-	●	●
219	FLAP; MUD GUARD CAB SUSPENSION FULL FLOATING<W16> (B)	8-98041-151-1	02	1	1008-	●
219	FLAP; MUD GUARD (A)	8-98041-149-1	02	1	0803-0907	●
219	FLAP; MUD GUARD (A)	8-98041-149-1	02	1	0908-1007	●	●
219	FLAP; MUD GUARD EXC. CAB SUSPENSION FULL FLOATING<W16> (A)	8-98041-149-1	02	1	1008-	●
219	FLAP; MUD GUARD (A)	8-98041-149-1	02	1	1008-		●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-927-3	01	1	1008-	●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-928-1	01	1	1008-	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0803-0907	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0908-1007	●	●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-925-2	01	1	1008-	●
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	1008-		●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0803-0907	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0908-1007	●	●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-926-1	01	1	1008-	●
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	1008-		●
307	RETAINER D8X13.5	1-09987-248-1	14	1	0803-0907	●
307	RETAINER D8X13.5	1-09987-248-1	14	1	0908-	●	●

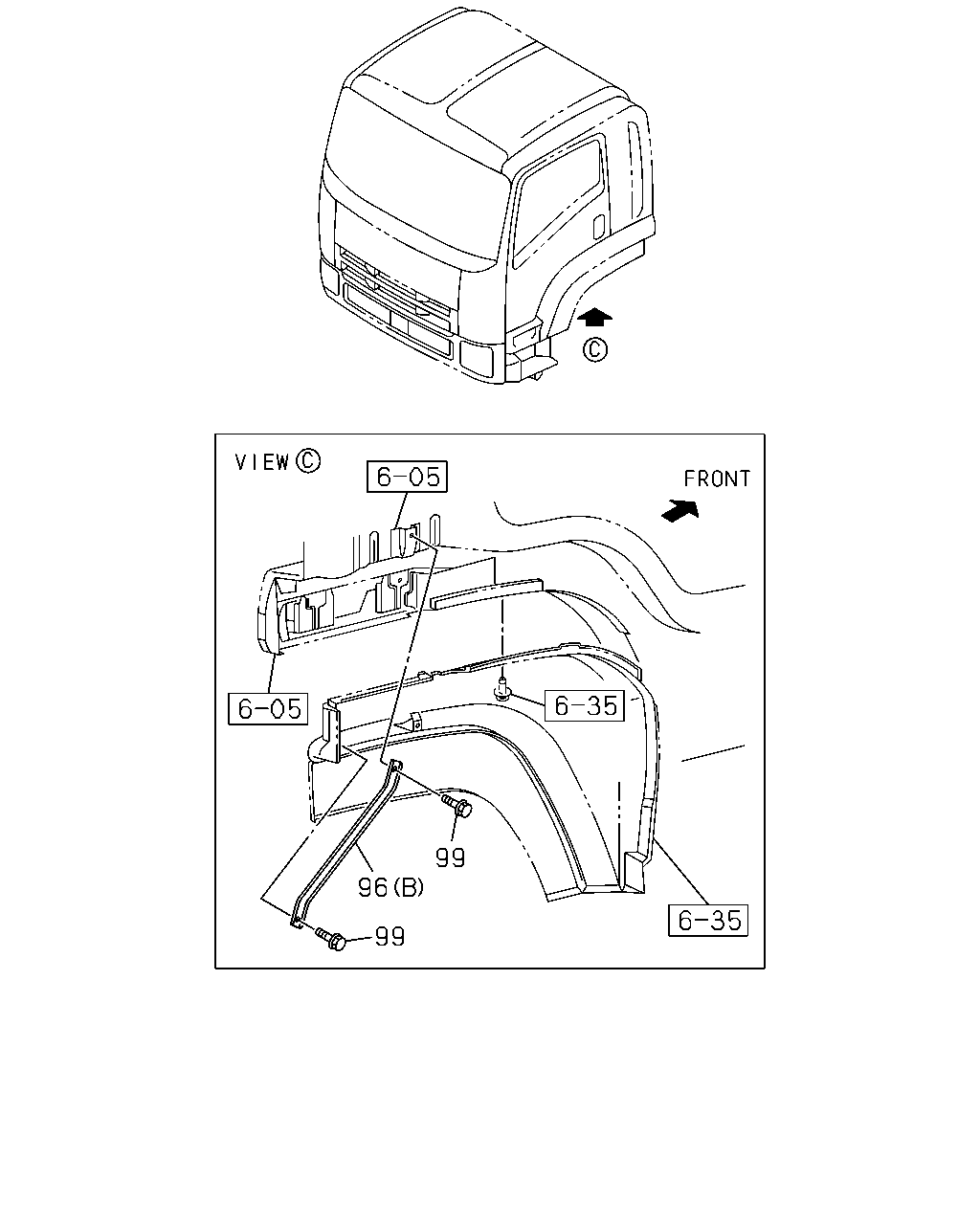

99 96 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1010-1107	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1405-		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1405-		●
99	BOLT; STAY TO MUD GUARD IRAN EQUIPMENT(D8T) M6X16 FLANGE	0-28650-616-0	04	1	1405-	●
99	BOLT; STAY TO MUD GUARD IRAN EQUIPMENT(D8T) M6X16 FLANGE	0-28650-616-0	04	1	1010-1107	●

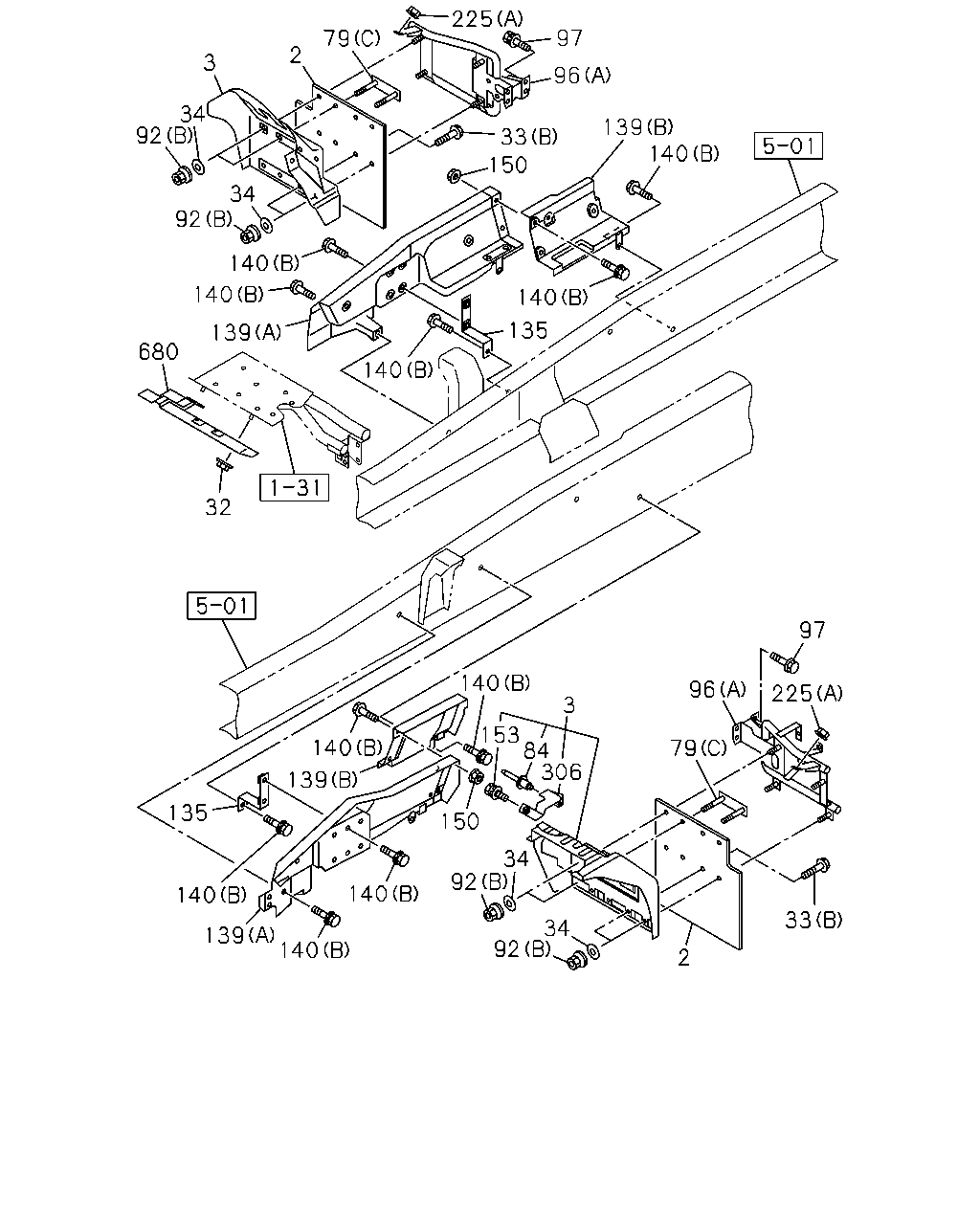

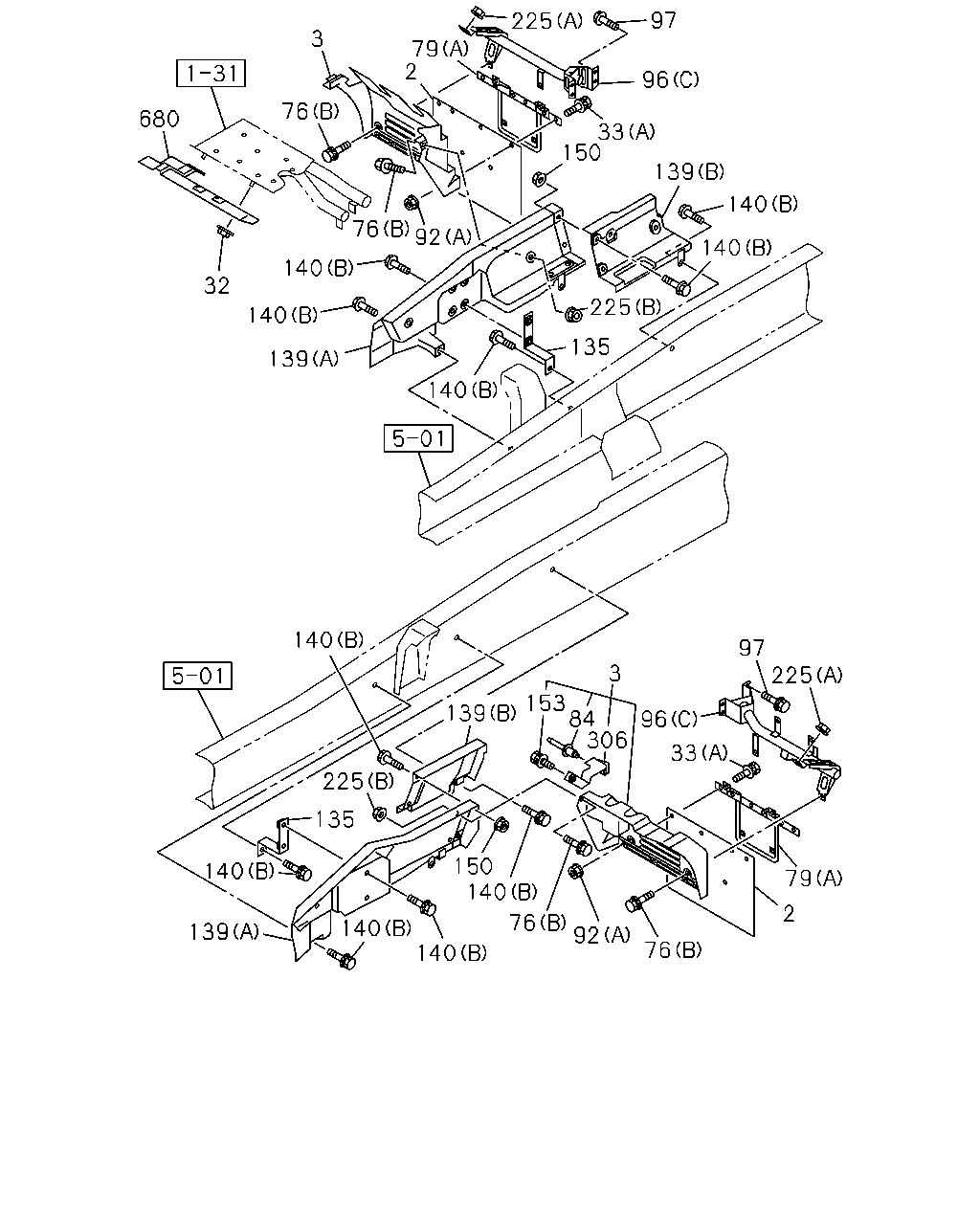

140 92 76 76 140 150 2 79 33 96 97 225 306 84 3 153 139 225 135 140 139 140 140 139 140 135 225 140 140 139 150 33 96 97 225 79 2 3 680 76 32 76 140 140 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98261-623-0	01	1	1405-	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98261-624-0	01	1	1405-	●
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB(5K5) IRAN EQUIPMENT(D8T)	8-98081-675-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB(5K5) IRAN EQUIPMENT(D8T)	8-98081-676-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98136-481-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98136-482-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0803-0907	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0908-1009	●	●
2	COVER; MUD,TIRE RR EXC. IRAN EQUIPMENT(D8T)	1-79931-512-1	02	1	1010-1106	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1010-1106		●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1107-1404	●	●
2	COVER; MUD,TIRE RR EXC. IRAN EQUIPMENT(D8T)	1-79931-512-1	02	1	1405-	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1405-		●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-666-3	01	1	1405-	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-667-3	01	1	1405-	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-666-3	01	1	1010-1106	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-667-3	01	1	1010-1106	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0803-0907	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0908-1009	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	1-79931-473-1	01	1	1010-1106	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	1010-1106		●
3	GUARD; MUD,RR	1-79931-473-1	01	1	1107-1211	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-1404	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98196-109-0	01	1	1405-	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1405-		●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0803-0907	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0908-1009	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98076-257-0	01	1	1010-1106	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	1010-1106		●
3	GUARD; MUD,RR	8-98076-257-0	01	1	1107-1302	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-1404	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98219-767-0	01	1	1405-	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1405-		●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0803-0907	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0908-	●	●
33	BOLT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1010-1010	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0803-0907	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0908-1009	●	●
33	BOLT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1010-1106	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1010-1106		●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1107-1404	●	●
33	BOLT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1405-	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1405-		●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1405-	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1405-		●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1405-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1405-		●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1011-1106	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1107-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-1404	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1405-	●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-1107	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1010-1107		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0803-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-0907	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0908-1009	●	●
76	BOLT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1106	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-1106		●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0803-0907	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0908-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-1009	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	1010-1107	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1108-1404	●	●
76	BOLT; MUD GUARD IRAN EQUIPMENT(D8T) (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	1405-	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1405-	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1010-1106	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0803-0907	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0908-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1405-		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1405-		●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-1404	●	●
84	RIVET; MUD GUARD EXC. IRAN EQUIPMENT(D8T)	5-09734-006-1	02	1	1405-	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1405-		●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1405-	●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	18	1	1010-1010	●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1011-1106	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	0803-0907	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	0908-1009	●	●
92	NUT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6 FLANGE	0-91180-106-0	08	1	1010-1106	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1010-1106		●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1107-1404	●	●
92	NUT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6 FLANGE	0-91180-106-0	08	1	1405-	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1405-		●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1010-1107	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1405-		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1405-		●
97	BOLT; STAY TO FRAME IRAN EQUIPMENT(D8T) M12X35 FLANGE	0-28051-235-0	08	1	1405-	●
97	BOLT; STAY TO FRAME IRAN EQUIPMENT(D8T) M12X35 FLANGE	0-28051-235-0	08	1	1010-1106	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0803-0907	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0908-1009	●	●
97	BOLT; STAY TO FRAME EXC. IRAN EQUIPMENT(D8T) M10X30 FLANGE	0-28651-030-0	08	1	1010-1106	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1010-1106		●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1107-1404	●	●
97	BOLT; STAY TO FRAME EXC. IRAN EQUIPMENT(D8T) M10X30 FLANGE	0-28651-030-0	08	1	1405-	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1405-		●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0803-0907	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0908-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0803-0907	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0908-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0803-0907	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0908-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0803-0907	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0908-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0803-0907	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0908-	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0907-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0803-0808	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0803-0907	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0908-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0803-0907	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0908-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-1404	●	●
153	BOLT; BRKT EXC. IRAN EQUIPMENT(D8T) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1405-	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1405-		●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0803-0907	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0908-1009	●	●
225	NUT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-1010	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-1010		●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1011-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-1404	●	●
306	BRACKET; MUD GUARD EXC. IRAN EQUIPMENT(D8T)	8-98196-125-0	01	1	1405-	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1405-		●
680	GUARD; MUD,UPPER IRAN EQUIPMENT(D8T)	8-98121-838-0	01	1	1405-	●
680	GUARD; MUD,UPPER IRAN EQUIPMENT(D8T)	8-98121-838-0	01	1	1010-1106	●
680	GUARD; MUD,UPPER	1-79931-494-1	01	1	0803-0808	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0809-0907	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0908-1009	●	●
680	GUARD; MUD,UPPER EXC. IRAN EQUIPMENT(D8T)	8-98123-402-0	01	1	1010-1106	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-1106		●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1107-1404	●	●
680	GUARD; MUD,UPPER EXC. IRAN EQUIPMENT(D8T)	8-98123-402-0	01	1	1405-	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1405-		●

225 97 96 139 140 33 150 140 135 140 32 680 139 140 140 92 34 92 34 3 2 79 97 96 225 79 33 2 34 92 92 34 306 3 84 153 140 150 140 139 135 140 140 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98261-623-0	01	1	1405-	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98261-624-0	01	1	1405-	●
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB(5K5) IRAN EQUIPMENT(D8T)	8-98081-675-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB(5K5) IRAN EQUIPMENT(D8T)	8-98081-676-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98136-481-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T)	8-98136-482-0	01	1	1010-1106	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0803-0907	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0908-1009	●	●
2	COVER; MUD,TIRE RR EXC. IRAN EQUIPMENT(D8T)	1-79931-512-1	02	1	1010-1106	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1010-1106		●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1107-1404	●	●
2	COVER; MUD,TIRE RR EXC. IRAN EQUIPMENT(D8T)	1-79931-512-1	02	1	1405-	●
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1405-		●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-666-3	01	1	1405-	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-667-3	01	1	1405-	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-666-3	01	1	1010-1106	●
3	GUARD; MUD,RR IRAN EQUIPMENT(D8T)	8-98070-667-3	01	1	1010-1106	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0803-0907	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0908-1009	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	1-79931-473-1	01	1	1010-1106	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	1010-1106		●
3	GUARD; MUD,RR	1-79931-473-1	01	1	1107-1211	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-1404	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98196-109-0	01	1	1405-	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1405-		●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0803-0907	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0908-1009	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98076-257-0	01	1	1010-1106	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	1010-1106		●
3	GUARD; MUD,RR	8-98076-257-0	01	1	1107-1302	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-1404	●	●
3	GUARD; MUD,RR EXC. IRAN EQUIPMENT(D8T)	8-98219-767-0	01	1	1405-	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1405-		●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0803-0907	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0908-	●	●
33	BOLT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1010-1010	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0803-0907	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0908-1009	●	●
33	BOLT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1010-1106	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1010-1106		●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1107-1404	●	●
33	BOLT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1405-	●
33	BOLT; MUD COVER (A) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1405-		●
34	WASHER; PL,MUD COVER IRAN EQUIPMENT(D8T) ID=8.4 OD=26	0-91614-808-0	16	1	1405-	●
34	WASHER; PL,MUD COVER IRAN EQUIPMENT(D8T) ID=8.4 OD=26	0-91614-808-0	16	1	1010-1106	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1405-	●
79	RETAINER; MUD COVER IRAN EQUIPMENT(D8T) (C)	8-98083-606-1	04	1	1010-1106	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0803-0907	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0908-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-105-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1405-		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0803-0907	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0908-1009	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1010-1106	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1010-1106		●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1107-1404	●	●
79	RETAINER; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A)	8-98102-106-0	01	1	1405-	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1405-		●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-1404	●	●
84	RIVET; MUD GUARD EXC. IRAN EQUIPMENT(D8T)	5-09734-006-1	02	1	1405-	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1405-		●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1405-	●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	18	1	1010-1010	●
92	NUT; MUD COVER IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1011-1106	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	0803-0907	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	0908-1009	●	●
92	NUT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6 FLANGE	0-91180-106-0	08	1	1010-1106	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1010-1106		●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1107-1404	●	●
92	NUT; MUD COVER EXC. IRAN EQUIPMENT(D8T) (A) M6 FLANGE	0-91180-106-0	08	1	1405-	●
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1405-		●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1405-	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-668-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (A)	8-98070-669-1	01	1	1010-1106	●
96	STAY; MUD GUARD IRAN EQUIPMENT(D8T) (B)	8-98082-316-0	02	1	1010-1107	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-519-4	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1405-		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0803-0907	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	0908-1009	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1010-1106	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1010-1106		●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1107-1404	●	●
96	STAY; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (C)	1-79931-540-3	01	1	1405-	●
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1405-		●
97	BOLT; STAY TO FRAME IRAN EQUIPMENT(D8T) M12X35 FLANGE	0-28051-235-0	08	1	1405-	●
97	BOLT; STAY TO FRAME IRAN EQUIPMENT(D8T) M12X35 FLANGE	0-28051-235-0	08	1	1010-1106	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0803-0907	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0908-1009	●	●
97	BOLT; STAY TO FRAME EXC. IRAN EQUIPMENT(D8T) M10X30 FLANGE	0-28651-030-0	08	1	1010-1106	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1010-1106		●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1107-1404	●	●
97	BOLT; STAY TO FRAME EXC. IRAN EQUIPMENT(D8T) M10X30 FLANGE	0-28651-030-0	08	1	1405-	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1405-		●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0803-0907	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0908-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0803-0907	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0908-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0803-0907	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0908-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0803-0907	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0908-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0803-0907	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0908-	●	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-1211	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1212-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0809-0906	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0907-	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0803-0808	●
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	0809-	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0803-0907	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0908-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0803-0907	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0908-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-1404	●	●
153	BOLT; BRKT EXC. IRAN EQUIPMENT(D8T) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1405-	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1405-		●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0803-0907	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0908-1009	●	●
225	NUT; MUD GUARD EXC. IRAN EQUIPMENT(D8T) (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-1010	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1010-1010		●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1011-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-1404	●	●
306	BRACKET; MUD GUARD EXC. IRAN EQUIPMENT(D8T)	8-98196-125-0	01	1	1405-	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1405-		●
680	GUARD; MUD,UPPER IRAN EQUIPMENT(D8T)	8-98121-838-0	01	1	1405-	●
680	GUARD; MUD,UPPER IRAN EQUIPMENT(D8T)	8-98121-838-0	01	1	1010-1106	●
680	GUARD; MUD,UPPER	1-79931-494-1	01	1	0803-0808	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0809-0907	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0908-1009	●	●
680	GUARD; MUD,UPPER EXC. IRAN EQUIPMENT(D8T)	8-98123-402-0	01	1	1010-1106	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1010-1106		●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1107-1404	●	●
680	GUARD; MUD,UPPER EXC. IRAN EQUIPMENT(D8T)	8-98123-402-0	01	1	1405-	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
