◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#68033) — 43 parça

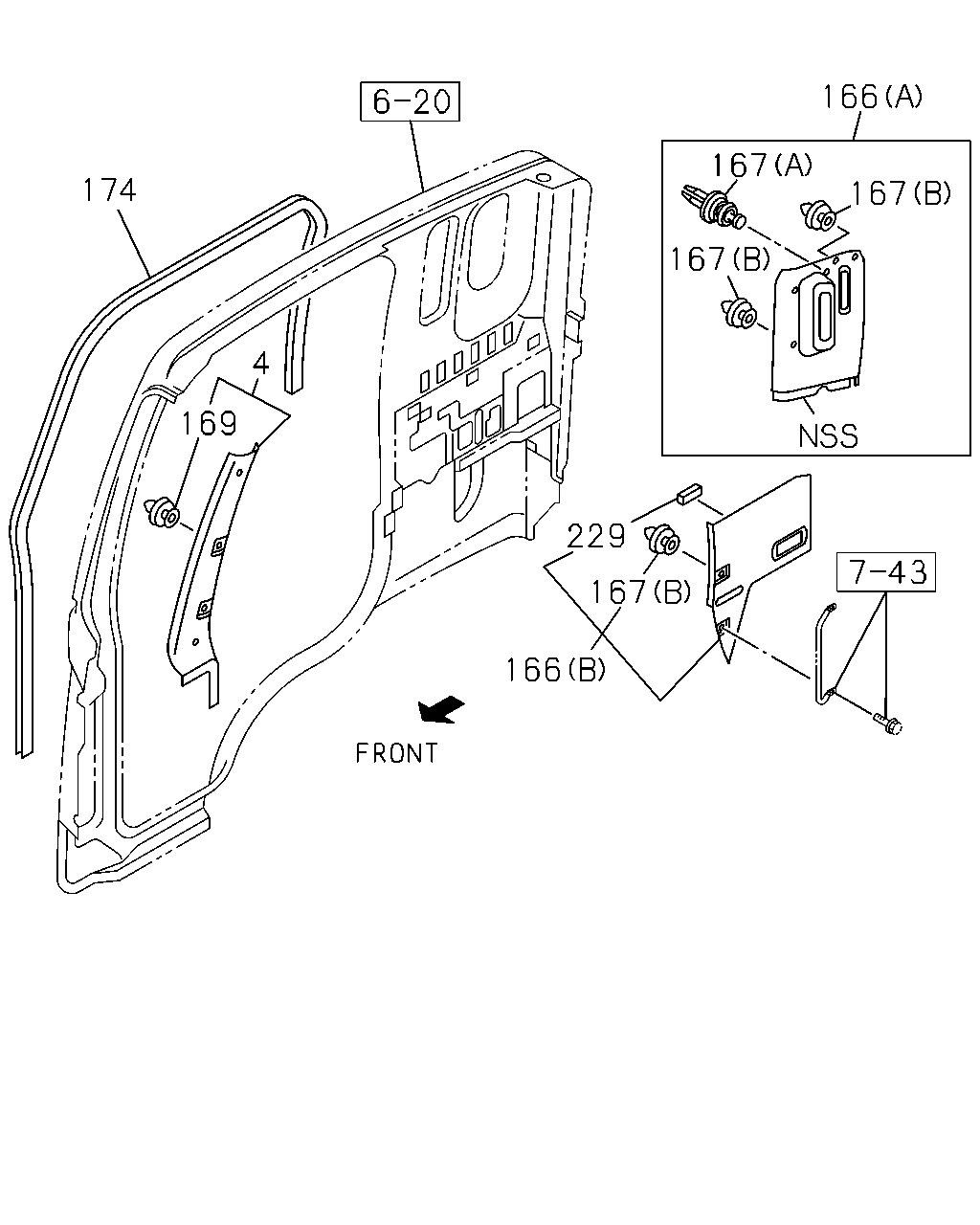

çizim 193673
174 166 167 167 167 229 167 166 4 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0803-0907 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0908- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0803-0907 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0908- ● ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97414-303-0 01 1 1008-1107 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 0803-0907 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 0908- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0803-0907 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0908-1007 ● ●
166 TRIM; RR PILLAR
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) GRAY 		8-97407-460-1 01 1 1008-1107 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1008-1107 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1108- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-462-1 01 1 0803-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0805-0907 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0908- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97409-800-1 01 1 0803-0804 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0805-0907 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0908- ● ●
167 CLIP; TRIM,RR PILLAR
(A) DARK GRAY 		8-97412-726-0 02 1 0803-0804 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 08 1 0803-0907 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0908- ● ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0908- ● ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0803-0907 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 04 1 0803-0907 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 08 1 0908- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0803-0907 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0908- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0803-0907 ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0908-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0803-0907 ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0908-0912 ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001- ● ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98092-662-0 01 1 1008-1107 ●
229 SEAL 8-98080-972-0 02 1 0803-0907 ●
229 SEAL 8-98080-972-0 02 1 0803-0907 ●
229 SEAL 8-98080-972-0 02 1 0908-1007 ● ●
229 SEAL 8-98080-972-0 02 1 0908-1007 ● ●
229 SEAL 8-98080-972-0 02 1 1108- ● ●
229 SEAL 8-98080-972-0 02 1 1108- ● ●
229 SEAL 8-98080-972-0 02 1 1008-1107 ● ●
229 SEAL
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98080-972-0 02 1 1008-1107 ●
229 SEAL 8-98080-972-0 02 1 1008-1107 ●
