◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#68032) — 66 parça

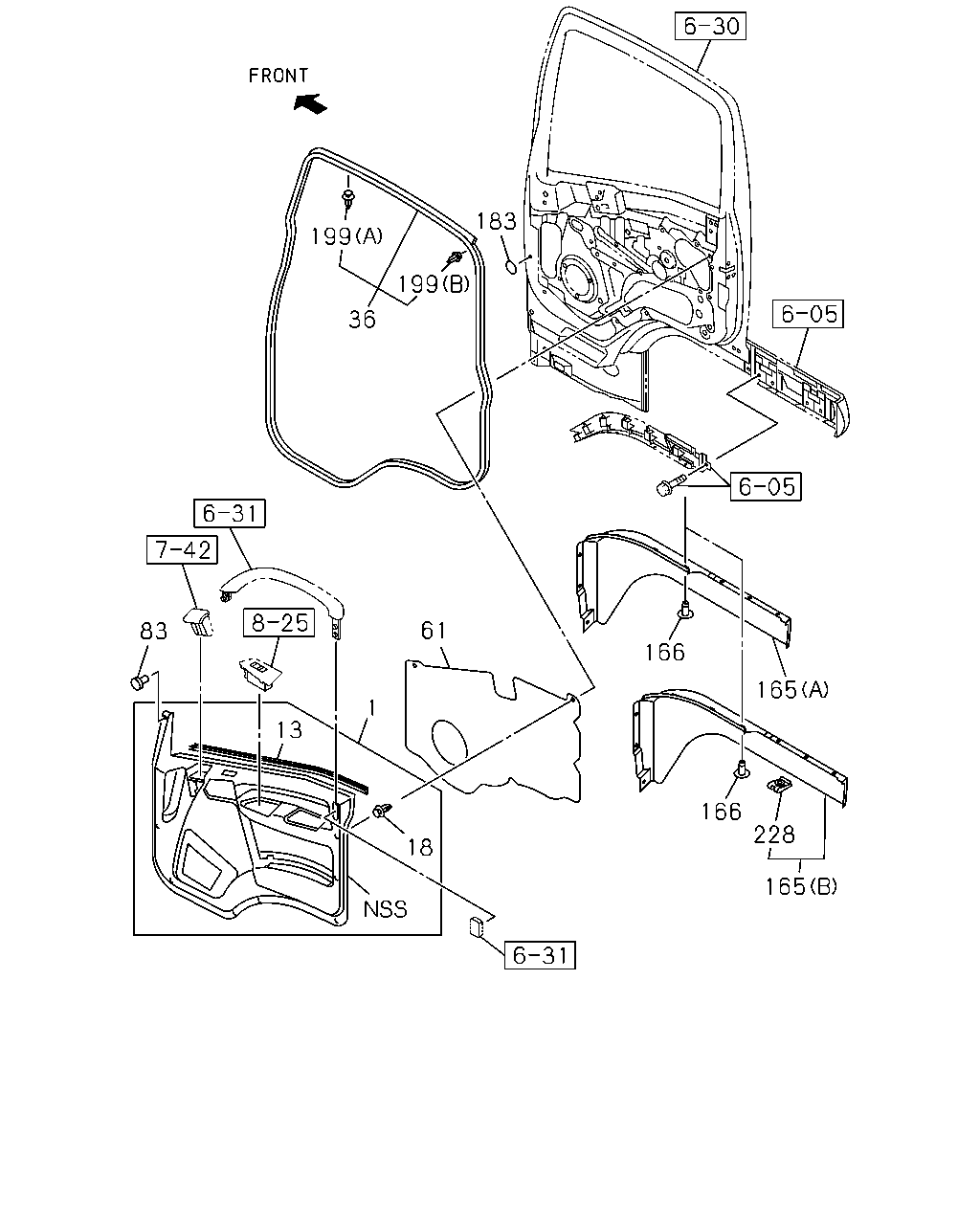

çizim 130726
199 199 36 83 13 18 61 166 165 166 228 165 183 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0809-0907 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0908- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 0809-0907 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 0908- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 0803-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0809-0907 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0908- ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 0803-0808 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0809-0907 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0908- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0803-0907 ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0908- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0803-0907 ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0908- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0803-0907 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0803-0907 ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0908-1005 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 07 1 0908-1005 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1006-1211 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1212- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1212- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0803-0907 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-198-3 01 1 0908-1009 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1010- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0803-0907 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 0908- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 0803-0907 ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 0908- ● ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 0803-0907 ●
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 0908- ● ●
61 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 0803-0907 ●
61 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 0908- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0803-0907 ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0908- ● ●
165 LINER; DOOR LWR
TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T) (B) 		8-98084-036-3 01 1 1405- ●
165 LINER; DOOR LWR
TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T) (A) 		8-98084-037-3 01 1 1405- ●
165 LINER; DOOR LWR
IRAN EQUIPMENT(D8T) (B) 		8-98084-036-3 01 1 1010-1107 ●
165 LINER; DOOR LWR
IRAN EQUIPMENT(D8T) (A) 		8-98084-037-3 01 1 1010-1107 ●
165 LINER; DOOR LWR
(A) 		8-98038-288-1 01 1 0803-0907 ●
165 LINER; DOOR LWR
(A) 		8-98038-288-1 01 1 0908-1009 ● ●
165 LINER; DOOR LWR
EXC. IRAN EQUIPMENT(D8T) (A) 		8-98038-288-1 01 1 1010-1107 ●
165 LINER; DOOR LWR
(A) 		8-98038-288-1 01 1 1010-1107 ●
165 LINER; DOOR LWR
(A) 		8-98038-288-1 01 1 1108-1404 ● ●
165 LINER; DOOR LWR
EXC. IRAN EQUIPMENT(D8T) (A) 		8-98038-288-1 01 1 1405- ●
165 LINER; DOOR LWR
(A) 		8-98038-288-1 01 1 1405- ●
165 LINER; DOOR LWR
(A) 		8-98038-289-1 01 1 0803-0907 ●
165 LINER; DOOR LWR
(A) 		8-98038-289-1 01 1 0908-1009 ● ●
165 LINER; DOOR LWR
EXC. IRAN EQUIPMENT(D8T) (A) 		8-98038-289-1 01 1 1010-1107 ●
165 LINER; DOOR LWR
(A) 		8-98038-289-1 01 1 1010-1107 ●
165 LINER; DOOR LWR
(A) 		8-98038-289-1 01 1 1108-1404 ● ●
165 LINER; DOOR LWR
EXC. IRAN EQUIPMENT(D8T) (A) 		8-98038-289-1 01 1 1405- ●
165 LINER; DOOR LWR
(A) 		8-98038-289-1 01 1 1405- ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 0803-0907 ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 0908- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0803-0907 ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0908- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0908-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 40 1 0908-1009 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1010- ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0908-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 01 1 0908-1009 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1010- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 0803-0907 ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 0803-0907 ●
228 NUT; SPIRE
TIRE 295/80R22.5-152/148M RIB EEC(55P) IRAN EQUIPMENT(D8T) 		8-94334-769-0 02 1 1405- ●
228 NUT; SPIRE
IRAN EQUIPMENT(D8T) 		8-94334-769-0 02 1 1010-1107 ●
