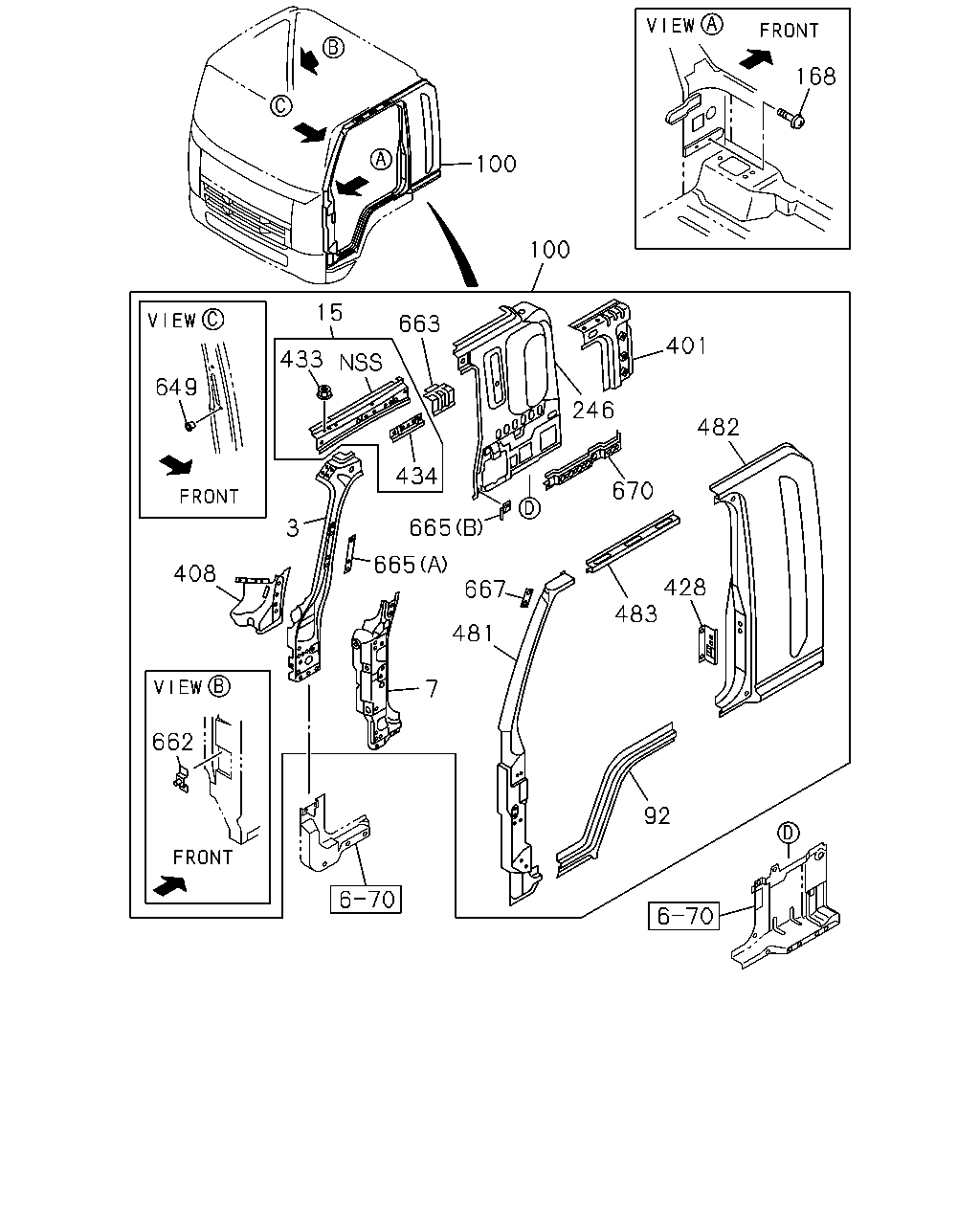

6-20 — SIDE PANEL AND STEP (#68028) — 325 parça

100 100 401 482 670 428 483 92 481 667 665 434 15 663 433 649 3 408 662 7 168 665 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	0803-0907	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	0908-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	0803-0907	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	0908-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-2	01	1	0803-0907	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	0908-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	0803-0907	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	0908-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	0803-0907	●
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	0908-	●	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	0803-0907	●
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	0908-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	0803-0907	●
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	0908-	●	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	0803-0907	●
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	0908-	●	●
100	PANEL ASM; BODY SIDE COUNTRY ALGERIA(D2G) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC>	8-98088-580-5	01	1	1205-	●
100	PANEL ASM; BODY SIDE COUNTRY ALGERIA(D2G) EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-98214-442-0	01	1	1205-	●
100	PANEL ASM; BODY SIDE IRAN EQUIPMENT(D8T) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC>	8-98088-580-5	01	1	1010-1108	●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC> EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)	8-97586-076-5	01	1	0809-0810	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04) LAMPS TWO ROOF MARKER<TEC> KD PREPARATORY PACK<6HF>	8-97586-076-6	01	1	0811-	●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC> EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)	8-97586-076-6	01	1	0811-	●
100	PANEL ASM; BODY SIDE EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3),LAMPS TWO ROOF MARKER<TEC>	8-97586-074-5	01	1	0809-0810	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04) KD PREPARATORY PACK<6HF> EXC. LAMPS TWO ROOF MARKER<TEC>	8-97586-074-6	01	1	0811-0907	●
100	PANEL ASM; BODY SIDE EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3),LAMPS TWO ROOF MARKER<TEC>	8-97586-074-6	01	1	0811-0907	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04) KD PREPARATORY PACK<6HF> EXC. LAMPS TWO ROOF MARKER<TEC>	8-97586-074-6	01	1	0908-	●
100	PANEL ASM; BODY SIDE EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3),LAMPS TWO ROOF MARKER<TEC>	8-97586-074-6	01	1	0908-	●
100	PANEL ASM; BODY SIDE	8-97586-074-6	01	1	0908-		●
100	PANEL ASM; BODY SIDE EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-97586-067-5	01	1	0809-0907	●
100	PANEL ASM; BODY SIDE EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-97586-067-5	01	1	0908-1204	●
100	PANEL ASM; BODY SIDE EXC. MIRROR O/S UNDER VIEW<RR9>	8-97586-067-5	01	1	0908-1204		●
100	PANEL ASM; BODY SIDE EXC. COUNTRY ALGERIA(D2G),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-97586-067-5	01	1	1205-	●
100	PANEL ASM; BODY SIDE EXC. MIRROR O/S UNDER VIEW<RR9>	8-97586-067-5	01	1	1205-		●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC>	8-98020-223-6	01	1	0803-0808	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC>	8-98020-223-7	01	1	0809-1009	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. IRAN EQUIPMENT(D8T)	8-98020-223-7	01	1	1010-1108	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC>	8-98020-223-7	01	1	1109-1204	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. COUNTRY ALGERIA(D2G)	8-98020-223-7	01	1	1205-	●
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC>	8-98088-589-3	01	1	0803-0808	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3) LAMPS TWO ROOF MARKER<TEC>	8-98088-589-3	01	1	0809-0810	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04) LAMPS TWO ROOF MARKER<TEC> EXC. KD PREPARATORY PACK<6HF>	8-98088-589-4	01	1	0811-	●
100	PANEL ASM; BODY SIDE SAUDI ARABIA EQUIPMENT(GH3) LAMPS TWO ROOF MARKER<TEC>	8-98088-589-4	01	1	0811-	●
100	PANEL ASM; BODY SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-98059-479-6	01	1	0803-0808	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98059-479-7	01	1	0809-0907	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98059-479-7	01	1	0908-1204	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9>	8-98059-479-7	01	1	0908-1204		●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9> EXC. COUNTRY ALGERIA(D2G),LAMPS TWO ROOF MARKER<TEC>	8-98059-479-7	01	1	1205-	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9>	8-98059-479-7	01	1	1205-		●
100	PANEL ASM; BODY SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-98088-588-3	01	1	0803-0808	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3) EXC. LAMPS TWO ROOF MARKER<TEC>	8-98088-588-3	01	1	0809-0810	●
100	PANEL ASM; BODY SIDE TAIWAN EQUIPMENT(B04) EXC. LAMPS TWO ROOF MARKER<TEC>,KD PREPARATORY PACK<6HF>	8-98088-588-4	01	1	0811-	●
100	PANEL ASM; BODY SIDE SAUDI ARABIA EQUIPMENT(GH3) EXC. LAMPS TWO ROOF MARKER<TEC>	8-98088-588-4	01	1	0811-	●
168	BOLT; BODY SIDE PANEL SCREW M6X16	0-38050-616-0	08	1	0803-0803	●
168	BOLT; BODY SIDE PANEL SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	0803-0907	●
168	BOLT; BODY SIDE PANEL SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	0908-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	0803-0907	●
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	0908-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	0803-0907	●
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	0908-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	0803-0907	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	0908-	●	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	0803-0907	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	0908-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	0803-0907	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	0908-	●	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	0803-0907	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	0908-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	0803-0907	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	0908-	●	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	0803-0907	●
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	0908-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	0803-0907	●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	0803-0907	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	0908-	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	0908-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	0803-0907	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	0908-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	0803-0907	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	0908-	●	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-98072-787-0	01	1	0809-0907	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>	8-98072-787-0	01	1	0908-	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR O/S UNDER VIEW<RR9>	8-98072-787-0	01	1	0908-		●
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC>	8-98092-911-0	01	1	0803-0808	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC>	8-98092-911-0	01	1	0809-	●
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC>	8-98093-581-0	01	1	0803-	●
481	PANEL; SIDE FRT PILLAR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98072-802-0	01	1	0803-0907	●
481	PANEL; SIDE FRT PILLAR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98072-802-0	01	1	0908-	●
481	PANEL; SIDE FRT PILLAR	8-98072-802-0	01	1	0908-		●
481	PANEL; SIDE FRT PILLAR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98092-912-0	01	1	0803-0808	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98092-912-0	01	1	0809-0907	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98092-912-0	01	1	0908-	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9>	8-98092-912-0	01	1	0908-		●
482	PANEL; SIDE RR PILLAR COUNTRY ALGERIA(D2G)	8-98092-923-0	01	1	1205-	●
482	PANEL; SIDE RR PILLAR IRAN EQUIPMENT(D8T)	8-98092-923-0	01	1	1010-1108	●
482	PANEL; SIDE RR PILLAR EXC. TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)	8-98055-469-0	01	1	0809-0810	●
482	PANEL; SIDE RR PILLAR EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-469-0	01	1	0811-0907	●
482	PANEL; SIDE RR PILLAR EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-469-0	01	1	0908-	●
482	PANEL; SIDE RR PILLAR	8-98055-469-0	01	1	0908-		●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	0803-0907	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	0908-1009	●	●
482	PANEL; SIDE RR PILLAR EXC. IRAN EQUIPMENT(D8T)	8-98055-468-0	01	1	1010-1108	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1010-1108		●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1109-1204	●	●
482	PANEL; SIDE RR PILLAR EXC. COUNTRY ALGERIA(D2G)	8-98055-468-0	01	1	1205-	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1205-		●
482	PANEL; SIDE RR PILLAR	8-98092-925-0	01	1	0803-0808	●
482	PANEL; SIDE RR PILLAR TAIWAN EQUIPMENT(B04),SAUDI ARABIA EQUIPMENT(GH3)	8-98092-925-0	01	1	0809-0810	●
482	PANEL; SIDE RR PILLAR SAUDI ARABIA EQUIPMENT(GH3)	8-98092-925-0	01	1	0811-	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	0803-0907	●
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	0908-	●	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	0803-0907	●
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	0908-	●	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	0803-0907	●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	0908-	●	●
662	BRACKET; DUCT	8-97584-611-1	01	1	0803-0907	●
662	BRACKET; DUCT	8-97584-611-1	01	1	0908-	●	●
663	BRACKET; AIR	8-97585-207-2	01	1	0803-0907	●
663	BRACKET; AIR	8-97585-207-2	01	1	0908-	●	●
663	BRACKET; AIR	8-97585-208-2	01	1	0803-0907	●
663	BRACKET; AIR	8-97585-208-2	01	1	0908-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0803-0907	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0803-0907	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0908-	●	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	0908-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0803-0907	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0803-0907	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0908-	●	●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	0908-	●	●
667	BRACKET; MIRROR LAMPS TWO ROOF MARKER<TEC>	8-98005-264-0	02	1	0803-0806	●
667	BRACKET; MIRROR	8-98109-948-0	01	1	0807-0808	●
667	BRACKET; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98109-948-0	01	1	0809-0907	●
667	BRACKET; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98109-948-0	01	1	0908-	●	●
667	BRACKET; MIRROR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98005-264-0	01	1	0803-0806	●
670	STIFFENER; PANEL,SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-98015-044-1	01	1	0803-0907	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	0803-0907	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	0908-1007	●	●
670	STIFFENER; PANEL,SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-98015-044-1	01	1	0908-1007	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1008-	●	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1008-	●	●

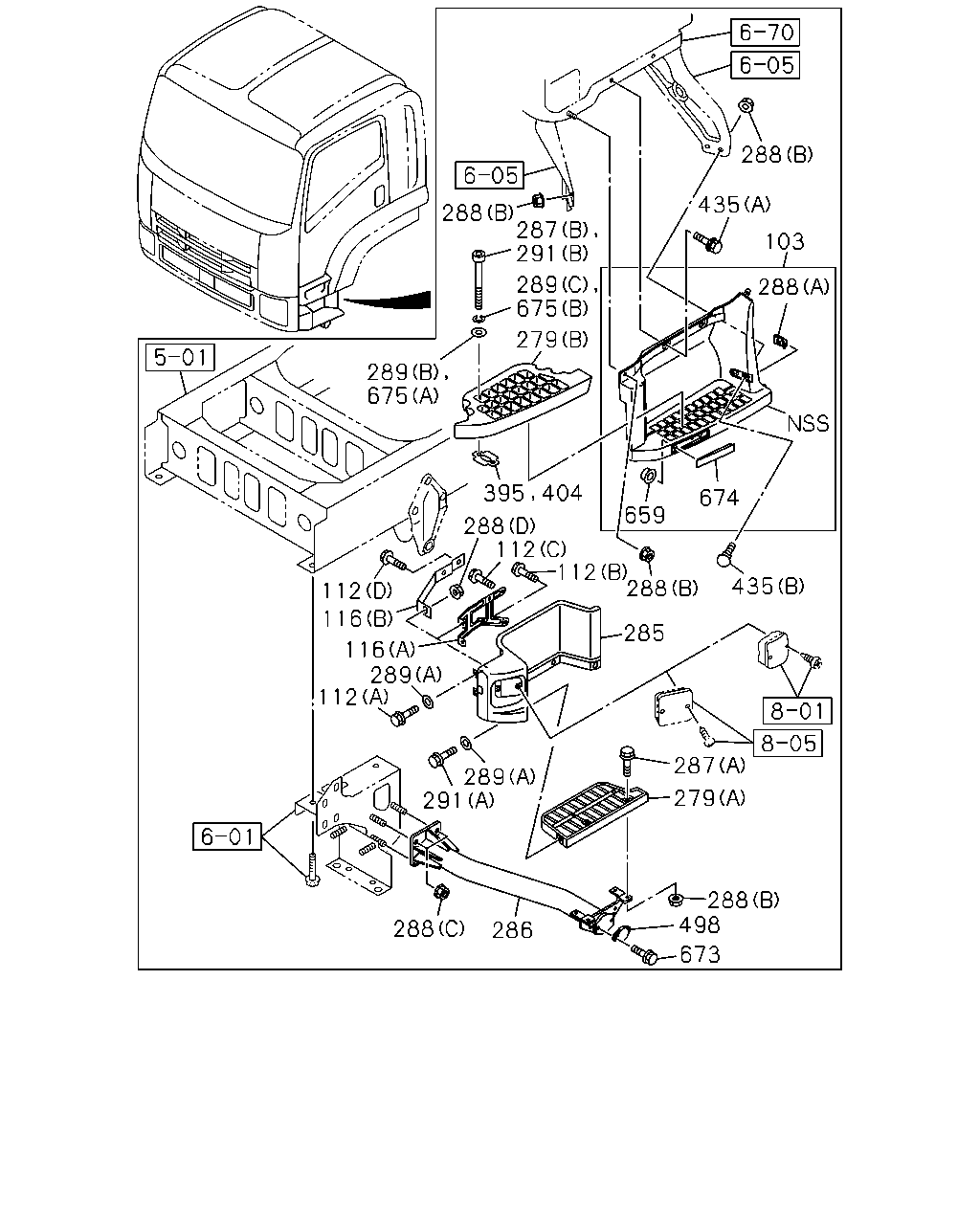

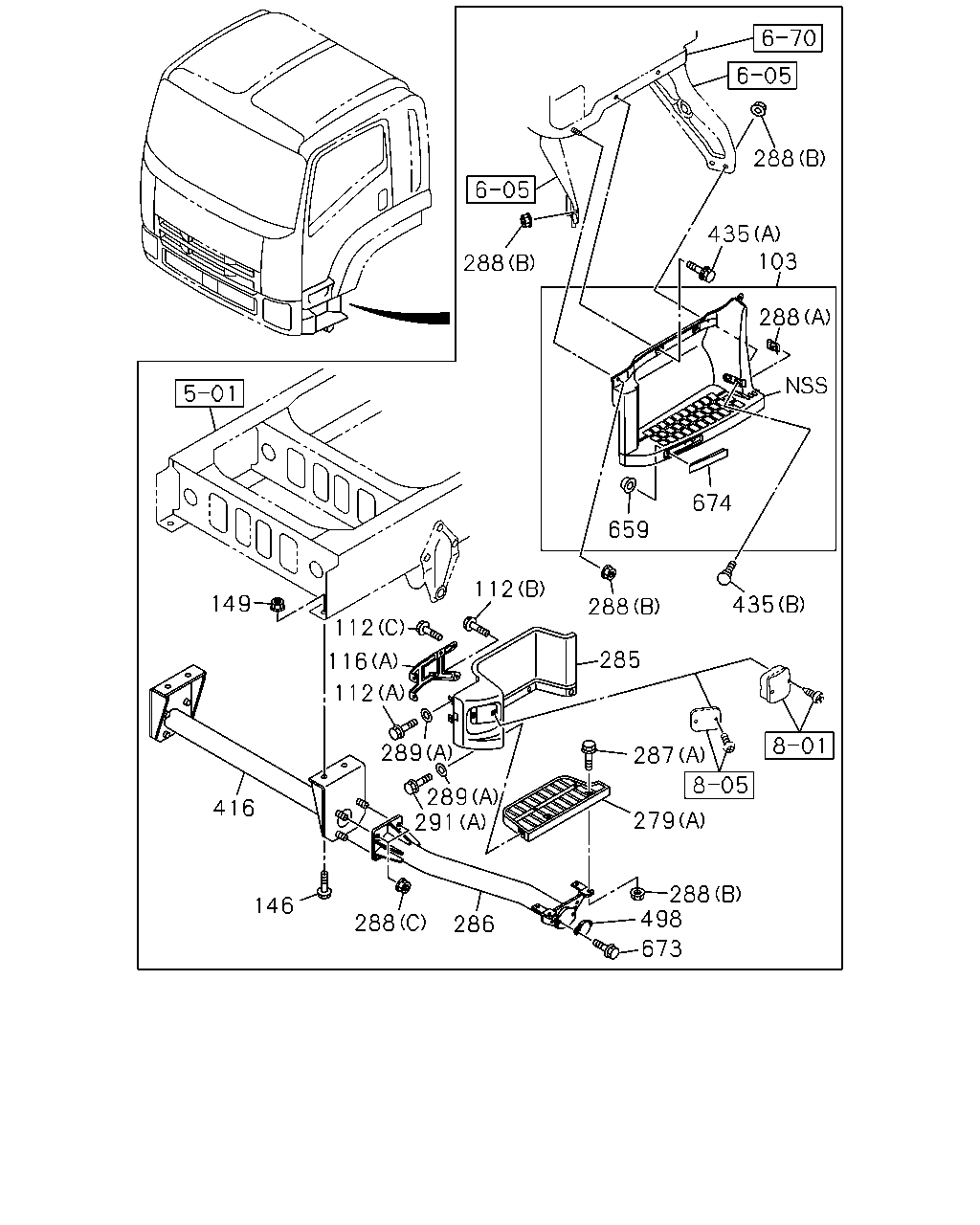

674 288 435 288 288 112 112 659 288 435 287 279 288 498 673 288 286 146 416 149 116 112 289 285 103 291 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP IRAN EQUIPMENT(D8T)	8-98080-624-2	01	1	1010-1010	●
103	PLATE; STEP IRAN EQUIPMENT(D8T)	8-98080-625-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-976-2	01	1	0803-0907	●
103	PLATE; STEP	8-98069-976-2	01	1	0908-1009	●	●
103	PLATE; STEP EXC. IRAN EQUIPMENT(D8T)	8-98069-976-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-976-2	01	1	1010-1010		●
103	PLATE; STEP	8-98069-976-2	01	1	1011-	●	●
103	PLATE; STEP	8-98069-977-2	01	1	0803-0907	●
103	PLATE; STEP	8-98069-977-2	01	1	0908-1009	●	●
103	PLATE; STEP EXC. IRAN EQUIPMENT(D8T)	8-98069-977-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-977-2	01	1	1010-1010		●
103	PLATE; STEP	8-98069-977-2	01	1	1011-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-	●	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	0803-0907	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	04	1	1201-	●	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	0803-0907	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (B) M6X25 FLANGE	0-28050-625-0	02	1	1201-	●	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	0803-0907	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (C) M8X16 FLANGE	0-28050-816-0	04	1	1201-	●	●
116	STAY; 1ST STEP,FRT EXC. CORNERING LAMP<T87> (B)	8-98196-756-0	02	1	1201-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	0803-0907	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	0908-1112	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-133-1	01	1	1201-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	0803-0907	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	0908-1112	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-134-1	01	1	1201-	●	●
146	BOLT; STEP BRKT M14X45 FLANGE	0-28851-445-0	04	1	0803-0907	●
146	BOLT; STEP BRKT M14X45 FLANGE	0-28851-445-0	04	1	0908-1007	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1008-1107	●
146	BOLT; STEP BRKT M14X45 FLANGE	0-28851-445-0	04	1	1008-1107		●
146	BOLT; STEP BRKT M14X45 FLANGE	0-28851-445-0	04	1	1108-	●	●
149	NUT; STEP BRKT M14 FLANGE	0-91180-214-0	04	1	0803-0907	●
149	NUT; STEP BRKT M14 FLANGE	0-91180-214-0	04	1	0908-1007	●	●
149	NUT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1008-1107	●
149	NUT; STEP BRKT M14 FLANGE	0-91180-214-0	04	1	1008-1107		●
149	NUT; STEP BRKT M14 FLANGE	0-91180-214-0	04	1	1108-	●	●
279	BOARD; STEP 1ST IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98080-630-0	01	1	1011-1107	●
279	BOARD; STEP 1ST IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98080-631-0	01	1	1011-1107	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	0803-0907	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	0908-	●	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	0803-0907	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	0908-	●	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	0803-0907	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	0908-	●	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	0803-0907	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	0908-	●	●
286	STEP ASM; 1ST	8-98082-430-1	01	1	0803-0907	●
286	STEP ASM; 1ST	8-98082-430-2	01	1	0908-	●	●
286	STEP ASM; 1ST	8-98082-431-1	01	1	0803-0907	●
286	STEP ASM; 1ST	8-98082-431-2	01	1	0908-	●	●
287	BOLT; BOARD STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98165-009-0	08	1	1011-1107	●
287	BOLT; BOARD STEP (A) M8X40 FLANGE	0-28650-840-0	08	1	0803-0907	●
287	BOLT; BOARD STEP (A) M8X40 FLANGE	0-28650-840-0	08	1	0908-1107	●	●
287	BOLT; BOARD STEP (A) M8X35 FLANGE	0-28650-835-0	08	1	1108-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1201-1211	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1212-	●	●
288	NUT; STEP EXC. CORNERING LAMP<T87> (D) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	18	1	0803-0907	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	18	1	0908-1112	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1201-1211	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1212-	●	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	06	1	0803-0907	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	06	1	0908-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0803-0907	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0908-	●	●
289	WASHER; PL,STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98112-672-1	08	1	1011-1107	●
289	WASHER; PL,STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (C)	8-98112-673-1	08	1	1011-1107	●
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	10	1	0803-0907	●
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	10	1	0908-	●	●
291	BOLT; STEP PLATE IRAN EQUIPMENT(D8T) (B)	8-98165-009-0	08	1	1010-1010	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	0803-0907	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	0908-	●	●
416	BRACKET; ASSIST STEP FIRE TRUCK CHASSIS(V4F)	8-98079-376-3	01	1	0803-1007	●
416	BRACKET; ASSIST STEP FIRE TRUCK CHASSIS(V4F) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98079-376-3	01	1	1008-1107	●
416	BRACKET; ASSIST STEP FIRE TRUCK CHASSIS(V4F)	8-98079-376-3	01	1	1108-	●
416	BRACKET; ASSIST STEP EXC. FIRE TRUCK CHASSIS(V4F)	8-98053-542-4	01	1	0803-0907	●
416	BRACKET; ASSIST STEP EXC. FIRE TRUCK CHASSIS(V4F)	8-98053-542-4	01	1	0908-1007	●
416	BRACKET; ASSIST STEP	8-98053-542-4	01	1	0908-1007		●
416	BRACKET; ASSIST STEP EXC. FRONT UNDER RUN PROTECTOR<EBE>,FIRE TRUCK CHASSIS(V4F)	8-98053-542-4	01	1	1008-1107	●
416	BRACKET; ASSIST STEP	8-98053-542-4	01	1	1008-1107		●
416	BRACKET; ASSIST STEP EXC. FIRE TRUCK CHASSIS(V4F)	8-98053-542-4	01	1	1108-	●
416	BRACKET; ASSIST STEP	8-98053-542-4	01	1	1108-		●
435	BOLT; RR STEP (B) M8X16	8-98049-538-1	08	1	0803-0907	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	0908-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0803-0907	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0908-	●	●
498	REFLECTOR	1-82290-011-1	02	1	0803-0907	●
498	REFLECTOR	1-82290-011-1	02	1	0908-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0803-0907	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0908-	●	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	0803-0907	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	0908-	●	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	0803-0907	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	0908-	●	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	0803-0907	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	0908-	●	●

288 435 288 674 435 287 279 288 498 673 286 288 291 289 285 288 112 112 659 404 395 288 112 116 116 289 112 675 289 279 675 289 291 287 288 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP IRAN EQUIPMENT(D8T)	8-98080-624-2	01	1	1010-1010	●
103	PLATE; STEP IRAN EQUIPMENT(D8T)	8-98080-625-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-976-2	01	1	0803-0907	●
103	PLATE; STEP	8-98069-976-2	01	1	0908-1009	●	●
103	PLATE; STEP EXC. IRAN EQUIPMENT(D8T)	8-98069-976-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-976-2	01	1	1010-1010		●
103	PLATE; STEP	8-98069-976-2	01	1	1011-	●	●
103	PLATE; STEP	8-98069-977-2	01	1	0803-0907	●
103	PLATE; STEP	8-98069-977-2	01	1	0908-1009	●	●
103	PLATE; STEP EXC. IRAN EQUIPMENT(D8T)	8-98069-977-2	01	1	1010-1010	●
103	PLATE; STEP	8-98069-977-2	01	1	1010-1010		●
103	PLATE; STEP	8-98069-977-2	01	1	1011-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-	●	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	0803-0907	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	04	1	1201-	●	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	0803-0907	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (B) M6X25 FLANGE	0-28050-625-0	02	1	1201-	●	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	0803-0907	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	0908-1112	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (C) M8X16 FLANGE	0-28050-816-0	04	1	1201-	●	●
116	STAY; 1ST STEP,FRT EXC. CORNERING LAMP<T87> (B)	8-98196-756-0	02	1	1201-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	0803-0907	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	0908-1112	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-133-1	01	1	1201-	●	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	0803-0907	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	0908-1112	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-134-1	01	1	1201-	●	●
279	BOARD; STEP 1ST IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98080-630-0	01	1	1011-1107	●
279	BOARD; STEP 1ST IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98080-631-0	01	1	1011-1107	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	0803-0907	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	0908-	●	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	0803-0907	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	0908-	●	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	0803-0907	●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	0908-	●	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	0803-0907	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	0908-	●	●
286	STEP ASM; 1ST	8-98082-430-1	01	1	0803-0907	●
286	STEP ASM; 1ST	8-98082-430-2	01	1	0908-	●	●
286	STEP ASM; 1ST	8-98082-431-1	01	1	0803-0907	●
286	STEP ASM; 1ST	8-98082-431-2	01	1	0908-	●	●
287	BOLT; BOARD STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98165-009-0	08	1	1011-1107	●
287	BOLT; BOARD STEP (A) M8X40 FLANGE	0-28650-840-0	08	1	0803-0907	●
287	BOLT; BOARD STEP (A) M8X40 FLANGE	0-28650-840-0	08	1	0908-1107	●	●
287	BOLT; BOARD STEP (A) M8X35 FLANGE	0-28650-835-0	08	1	1108-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1201-1211	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1212-	●	●
288	NUT; STEP EXC. CORNERING LAMP<T87> (D) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	18	1	0803-0907	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	18	1	0908-1112	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1201-1211	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1212-	●	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	06	1	0803-0907	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	06	1	0908-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0803-0907	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	0908-	●	●
289	WASHER; PL,STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B)	8-98112-672-1	08	1	1011-1107	●
289	WASHER; PL,STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (C)	8-98112-673-1	08	1	1011-1107	●
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	10	1	0803-0907	●
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	10	1	0908-	●	●
291	BOLT; STEP PLATE IRAN EQUIPMENT(D8T) (B)	8-98165-009-0	08	1	1010-1010	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	0803-0907	●
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	0908-	●	●
395	BRACKET; SIDE STEP IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF>	8-98080-646-1	04	1	1011-1107	●
404	BRACKET IRAN EQUIPMENT(D8T)	8-98080-646-1	04	1	1010-1010	●
435	BOLT; RR STEP (B) M8X16	8-98049-538-1	08	1	0803-0907	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	0908-	●	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0803-0907	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0908-	●	●
498	REFLECTOR	1-82290-011-1	02	1	0803-0907	●
498	REFLECTOR	1-82290-011-1	02	1	0908-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0803-0907	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	0908-	●	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	0803-0907	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	0908-	●	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	0803-0907	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	0908-	●	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	0803-0907	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	0908-	●	●
675	WASHER; STEP PLATE IRAN EQUIPMENT(D8T) (A)	8-98112-672-1	08	1	1010-1010	●
675	WASHER; STEP PLATE IRAN EQUIPMENT(D8T) (B)	8-98112-673-1	08	1	1010-1010	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
