Sayfa 6-04 - Isuzu EPC

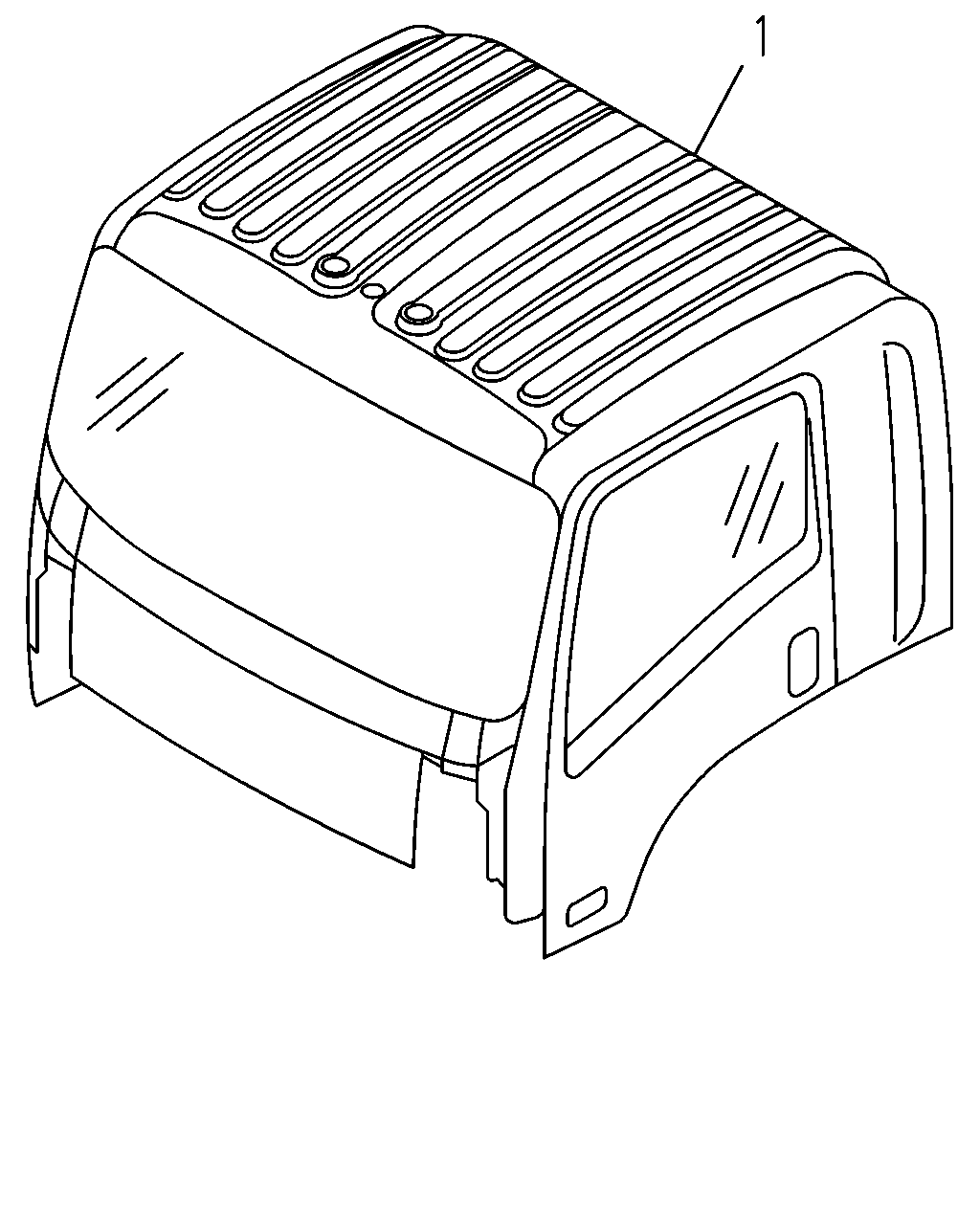

6-04 — CAB ASM (#68025) — 3 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) TAIWAN EQUIPMENT(B04) INTERIOR FULL TRIM<WM3> FUEL TANK 200L FRAME SIDE<N20> POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> MZX6P M/T(RSW) MIRROR O/S UNDER VIEW<RR9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,2-SPEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX>	1-61087-474-0	01	1	0803-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) FULLER FS8209HD DD M/T(Y3A) FUEL TANK 400L<SDH> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,ASH TRAY PASSENGERDOOR<8LX>	1-61088-114-0	01	1	0908-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) FULLER FS8209HD DD M/T(Y3A) FUEL TANK 400L<SDH> POWER WINDOW FRT DOOR<A32> AUTO DOOR LOCK<AU4> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEMBASE<U95>,ASH TRAY PASSENGER DOOR<8LX>	1-61088-115-0	01	1	0908-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
