6-01 — FRONT BUMPER (#68023) — 245 parça

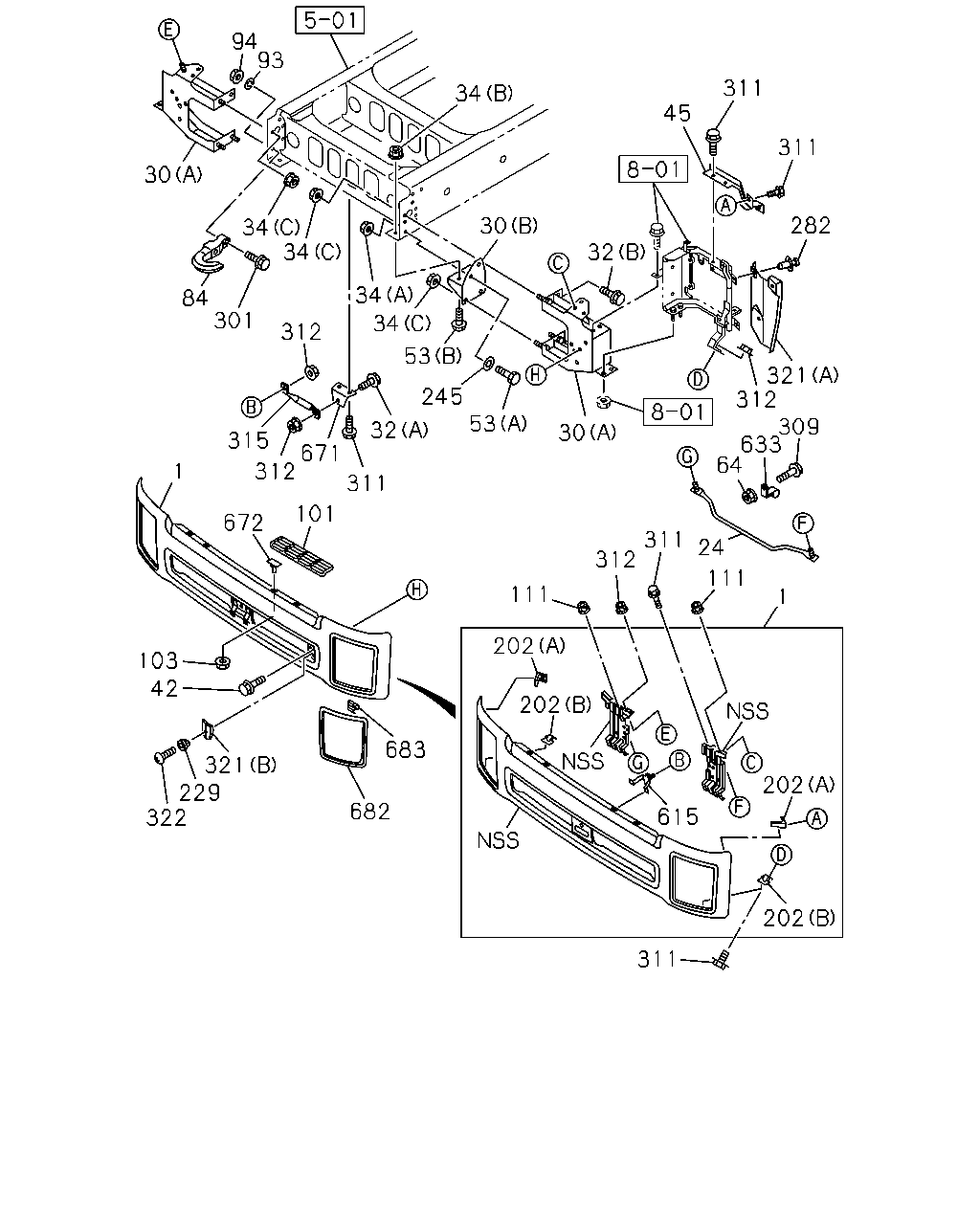

çizim 193676
202 202 615 202 202 683 682 321 229 322 42 672 103 1 101 315 301 312 671 32 311 245 53 34 111 311 312 111 1 21 64 309 312 321 633 282 311 311 45 32 30 34 312 34 84 30 94 34 93 34 53 30 311
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0803-0907 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0908- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0908- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0908- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0908-1007 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98053-546-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1108- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0908-1007 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98053-547-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1108- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0803-0907 ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0908- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0803-0907 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0908- ● ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0908-1007 ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16 		0-91110-516-0 02 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 1108- ● ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0908- ● ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 0908-1007 ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE 		0-91180-214-0 04 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 1108- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0803-0907 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0908- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0803-0907 ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0908- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0803-0907 ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0908- ● ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 0803-0907 ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 0908-1007 ● ●
53 BOLT; BRKT TO FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40 		0-20851-640-0 02 1 1008-1107 ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 1008-1107 ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 1108- ● ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 0803-0907 ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 0908-1007 ● ●
53 BOLT; BRKT TO FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE 		0-28851-445-0 04 1 1008-1107 ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 1008-1107 ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 1108- ● ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
84 HOOK 1-57181-027-1 01 1 0803-0907 ●
84 HOOK 1-57181-027-1 01 1 0908- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0803-0907 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0908- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0803-0907 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0908- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 0803-0907 ●
101 STEP; BUMPER 8-97611-542-0 01 1 0908- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 0803-0907 ●
101 STEP; BUMPER 8-97611-543-0 01 1 0908- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0803-0907 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0908- ● ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0908- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0803-0907 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0908- ● ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 0803-0907 ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 0908-1007 ● ●
245 WASHER; PL,BRKT TO FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30 		0-91610-516-0 02 1 1008-1107 ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 1008-1107 ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 1108- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0803-0907 ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0908- ● ●
301 BOLT; HOOK TO FRAME
FRONT UNDER RUN PROTECTOR<EBE> M16X80 		0-10961-680-0 01 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> M16X70 		0-10861-670-0 02 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1108- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0803-0907 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0908-1010 ● ●
301 BOLT; HOOK TO FRAME
FRONT UNDER RUN PROTECTOR<EBE> M16X70 		0-10861-670-0 01 1 1011-1107 ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0803-0907 ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0908- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0803-0907 ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0908- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0803-0907 ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0908- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 0803-0803 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0803-0907 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0908- ● ●
315 STAY; BUMPER 8-97613-645-1 01 1 0803-0907 ●
315 STAY; BUMPER 8-97613-645-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0908- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0907 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0908- ● ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0803-0907 ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0908- ● ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0803-0907 ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0908- ● ●
671 BRACKET; STAY 8-97620-889-0 01 1 0803-0907 ●
671 BRACKET; STAY 8-97620-889-0 01 1 0908- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0803-0907 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0908- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0803-0907 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0908- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0803-0907 ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0908- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0803-0907 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0908- ● ●

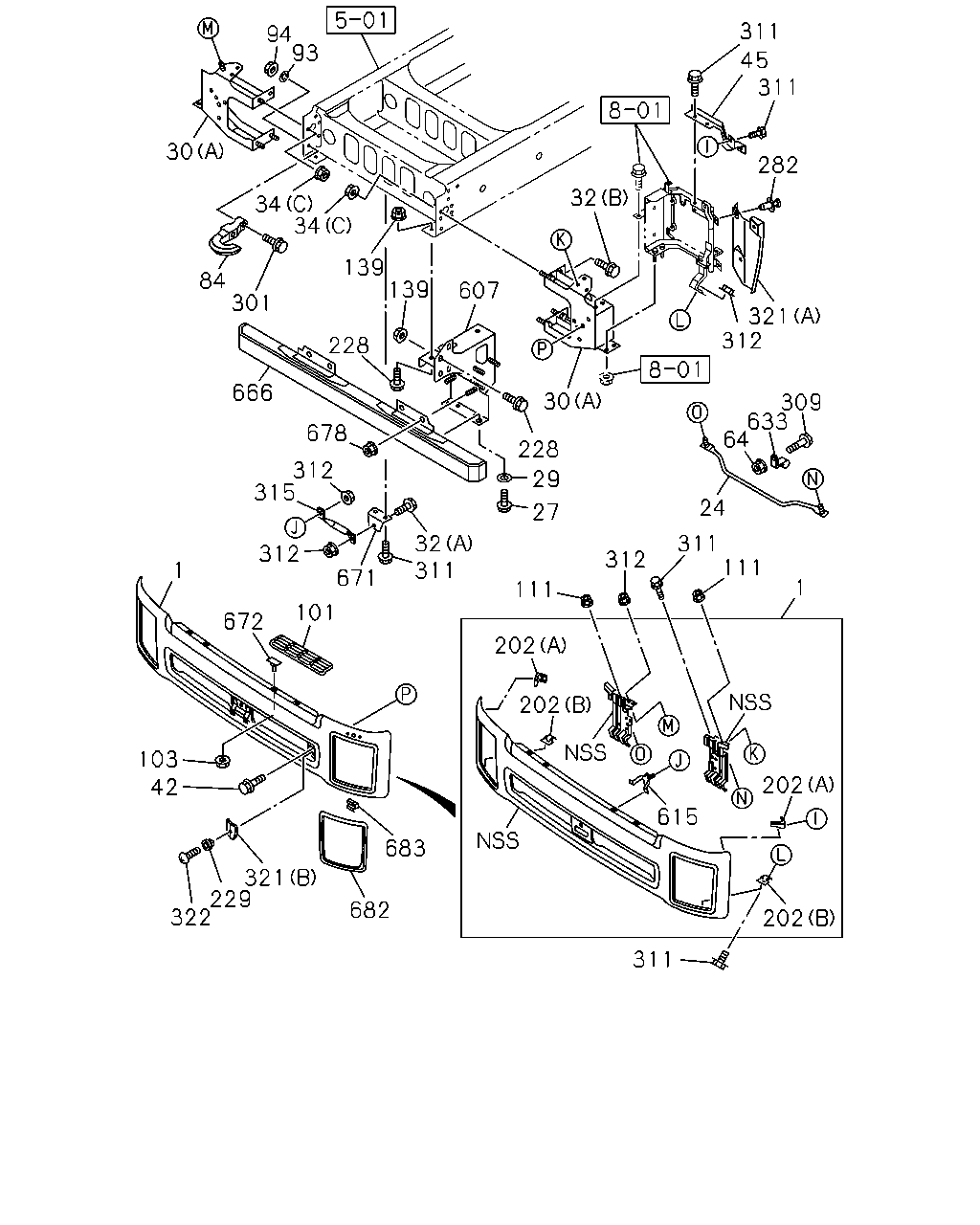

çizim 193796
311 202 615 202 202 202 312 111 311 111 1 24 64 633 309 312 321 282 311 45 311 32 30 228 29 27 32 311 683 682 321 229 322 42 103 1 672 101 312 671 315 312 678 666 228 301 84 34 34 139 139 607 30 94 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0803-0907 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 0908- ● ●
24 BAR; FRT BUMPER 8-97625-359-0 01 1 0803-0907 ●
24 BAR; FRT BUMPER 8-97625-359-0 01 1 0908- ● ●
27 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> M12X30 FLANGE 		0-28051-230-0 04 1 1008-1009 ●
27 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE 		0-28651-235-0 04 1 1010-1107 ●
29 WASHER; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32 		0-91614-712-0 04 1 1010-1107 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0908- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0908- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0908-1007 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98053-546-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1108- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0803-0907 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0908-1007 ● ●
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98053-547-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1008-1107 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1108- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0803-0907 ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0908- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0803-0907 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0908- ● ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0908-1007 ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16 		0-91110-516-0 02 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 1108- ● ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0908- ● ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 0803-0907 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 0908-1007 ● ●
34 NUT; BRKT,BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE 		0-91180-214-0 04 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 1008-1107 ●
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 1108- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0803-0907 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0908- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0803-0907 ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0908- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0803-0907 ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0908- ● ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
84 HOOK 1-57181-027-1 01 1 0803-0907 ●
84 HOOK 1-57181-027-1 01 1 0908- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0803-0907 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0908- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0803-0907 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0908- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 0803-0907 ●
101 STEP; BUMPER 8-97611-542-0 01 1 0908- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 0803-0907 ●
101 STEP; BUMPER 8-97611-543-0 01 1 0908- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0803-0907 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0908- ● ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
139 NUT; BRKT FIX
FRONT UNDER RUN PROTECTOR<EBE> M16 		0-91110-516-0 02 1 1008-1107 ●
139 NUT; BRKT FIX
FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE 		0-91180-214-0 06 1 1008-1107 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0908- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0803-0907 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0908- ● ●
228 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> M16X40 		0-20851-640-0 02 1 1008-1107 ●
228 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE 		0-28851-445-0 06 1 1008-1107 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0803-0907 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0908- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0803-0907 ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0908- ● ●
301 BOLT; HOOK TO FRAME
FRONT UNDER RUN PROTECTOR<EBE> M16X80 		0-10961-680-0 01 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> M16X70 		0-10861-670-0 02 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1011-1107 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1108- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0803-0907 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0908-1010 ● ●
301 BOLT; HOOK TO FRAME
FRONT UNDER RUN PROTECTOR<EBE> M16X70 		0-10861-670-0 01 1 1011-1107 ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0803-0907 ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0908- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0803-0907 ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0908- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0803-0907 ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0908- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 0803-0803 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0803-0907 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0908- ● ●
315 STAY; BUMPER 8-97613-645-1 01 1 0803-0907 ●
315 STAY; BUMPER 8-97613-645-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0908- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0803-0907 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0908- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0803-0907 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0908- ● ●
607 BRACKET
TIRE 12R22.5-152/148K RIB(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) FRONT UNDER RUN PROTECTOR<EBE> 		8-98045-753-1 01 1 1008-1107 ●
607 BRACKET
TIRE 12R22.5-152/148K RIB(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) FRONT UNDER RUN PROTECTOR<EBE> 		8-98045-754-1 01 1 1008-1107 ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0803-0907 ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0908- ● ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0803-0907 ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0908- ● ●
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> 		8-98045-820-2 01 1 1008-1105 ●
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> 		8-98196-475-0 01 1 1106-1107 ●
671 BRACKET; STAY 8-97620-889-0 01 1 0803-0907 ●
671 BRACKET; STAY 8-97620-889-0 01 1 0908- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0803-0907 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0908- ● ●
678 NUT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE 		0-91180-212-0 04 1 1008-1107 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0803-0907 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0908- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0803-0907 ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0908- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0803-0907 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
