Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#6802) — 204 parça

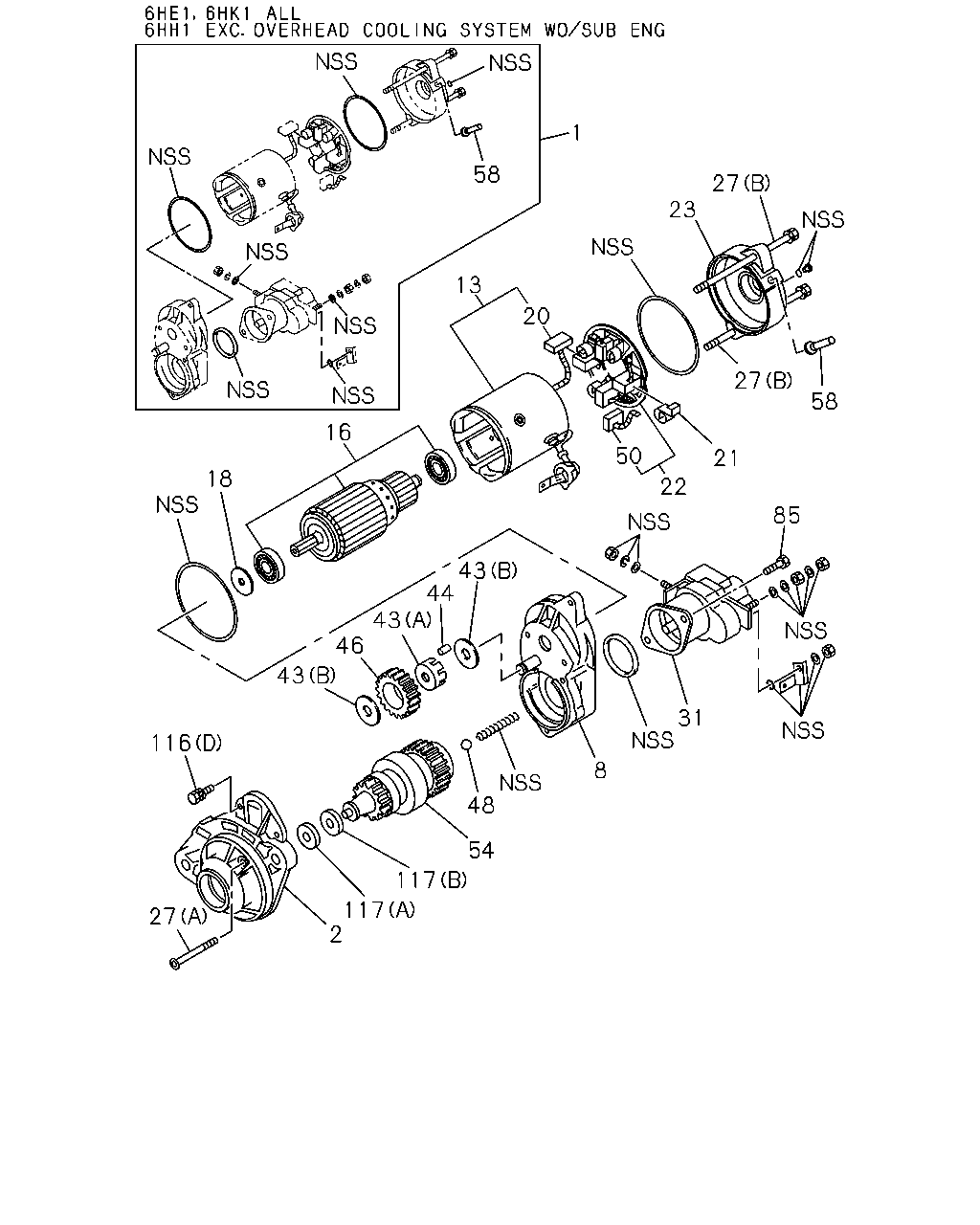

1 58 27 23 13 20 27 58 16 50 21 18 22 85 43 44 43 46 43 31 116 8 48 54 117 117 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-716-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-778-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2	1-81129-697-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81118-059-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: E = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: D = 8-94394-151-2	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-705-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: F = 8-94399-896-2	9-82215-101-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	8-94171-853-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81118-056-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-324-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-109-0	01	1	9810-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-111-0	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-134-0	01	1	0307-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81123-018-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-092-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81116-061-0	02	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81116-061-0	02	1	-1105
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-636-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-773-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	8-98146-942-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-757-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-722-0	02	1	-
116	BOLT; BRKT (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-603-0	02	1	-
116	BOLT; BRKT (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-604-0	01	1	-
116	BOLT; BRKT (C) NIKKO ASM PART: F = 8-94399-896-2	1-81129-605-0	01	1	-
116	BOLT; BRKT (D) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-711-0	01	1	-

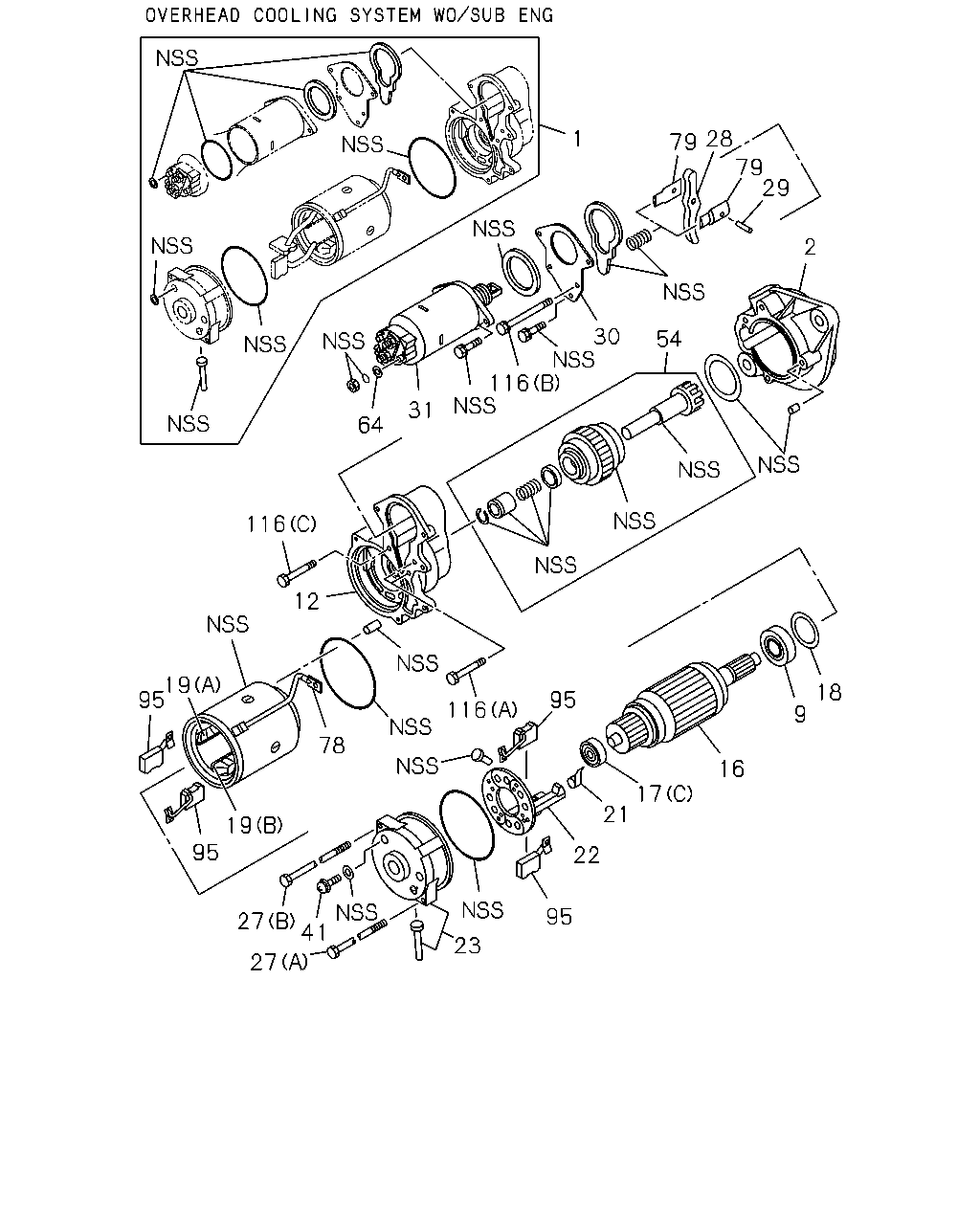

79 28 1 79 29 2 30 116 54 31 64 116 12 19 95 18 95 116 9 78 16 17 21 19 95 22 95 27 41 23 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-642-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-716-0	01	1	-
1	SEAL KIT; STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-778-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2	1-81129-697-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: F = 8-94399-896-2	5-81129-161-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81118-055-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: F = 8-94399-896-2	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-09800-081-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	5-81129-156-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: F = 8-94399-896-2	9-82215-101-0	01	1	-
19	COIL; FIELD,STARTER (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-633-0	01	1	-
19	COIL; FIELD,STARTER (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-643-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81118-056-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2	8-94167-434-0	03	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81127-038-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: F = 8-94399-896-2	8-94340-471-0	01	1	-
30	PLATE; ENGAGE SW STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-637-0	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-324-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-109-0	01	1	9810-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-111-0	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-134-0	01	1	0307-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-641-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: D = 8-94394-151-2	5-81129-130-0	02	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-636-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-773-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	8-98146-942-0	01	1	0307-
64	WASHER; INSULATION ENGAGE SW STARTER NIKKO ASM PART: F = 8-94399-896-2	5-81129-151-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-634-0	01	1	-
79	HOLDER; SHIFT LEVER NIKKO ASM PART: F = 8-94399-896-2	1-81118-051-0	02	1	-
95	BRUSH ASM; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81116-059-0	04	1	-
116	BOLT; BRKT (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-603-0	02	1	-
116	BOLT; BRKT (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-604-0	01	1	-
116	BOLT; BRKT (C) NIKKO ASM PART: F = 8-94399-896-2	1-81129-605-0	01	1	-
116	BOLT; BRKT (D) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-722-0	02	1	-

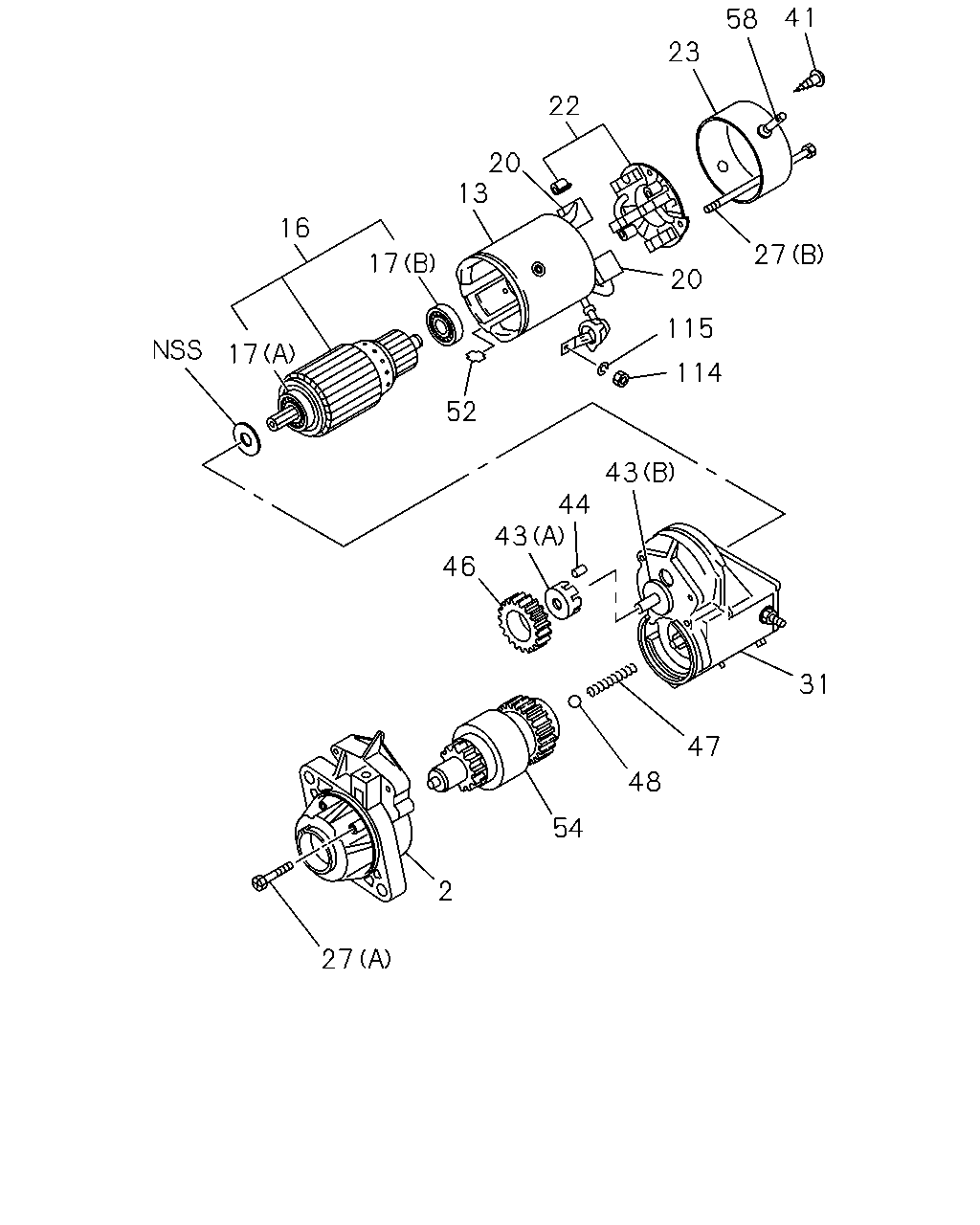

41 58 23 22 20 13 16 27 17 20 115 17 114 52 43 44 43 46 31 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81123-044-1	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81123-049-0	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81123-050-0	01	1	-
2	CASE; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2	1-81129-697-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: E = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: D = 8-94394-151-2	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-705-0	01	1	-1105
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-705-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81121-058-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) NIKKO ASM PART: F = 8-94399-896-2	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81116-060-0	02	1	-1105
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	8-94171-853-0	02	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81118-056-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81118-061-0	01	1	-1105
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO, DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81115-215-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2	1-81115-220-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: B = 1-81100-324-0, C = 1-81100-329-2	1-81115-222-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: E = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: F = 8-94399-896-2	1-81129-639-0	01	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: F = 8-94399-896-2	1-81129-640-0	01	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-708-0	02	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: D = 8-94394-151-2	8-94167-434-0	03	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: E = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-093-1	01	1	-9809
31	SWITCH; ENGAGE STARTER DENSO ASM PART: D = 8-94394-151-2	1-81151-099-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: B = 1-81100-324-0	1-81151-103-1	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81151-109-0	01	1	9810-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-111-0	01	1	-0306
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81151-134-0	01	1	0307-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-641-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: E = 8-94399-159-4	1-81129-703-0	02	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: D = 8-94394-151-2	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0, C = 1-81100-329-2	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: F = 8-94399-896-2	1-81129-636-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-712-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	1-81129-773-0	01	1	-0306
54	CLUTCH; PINION,STARTER NIKKO ASM PART: C = 1-81100-329-2	8-98146-942-0	01	1	0307-
58	PIPE; DRAIN RR COVER STARTER DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	1-81129-677-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0, B = 1-81100-324-0	1-81129-757-0	01	1	-
114	NUT; TERMINAL DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-126-0	01	1	-
115	WASHER; TERMINAL DENSO ASM PART: D = 8-94394-151-2, E = 8-94399-159-4	5-81129-134-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
