Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#68017) — 281 parça

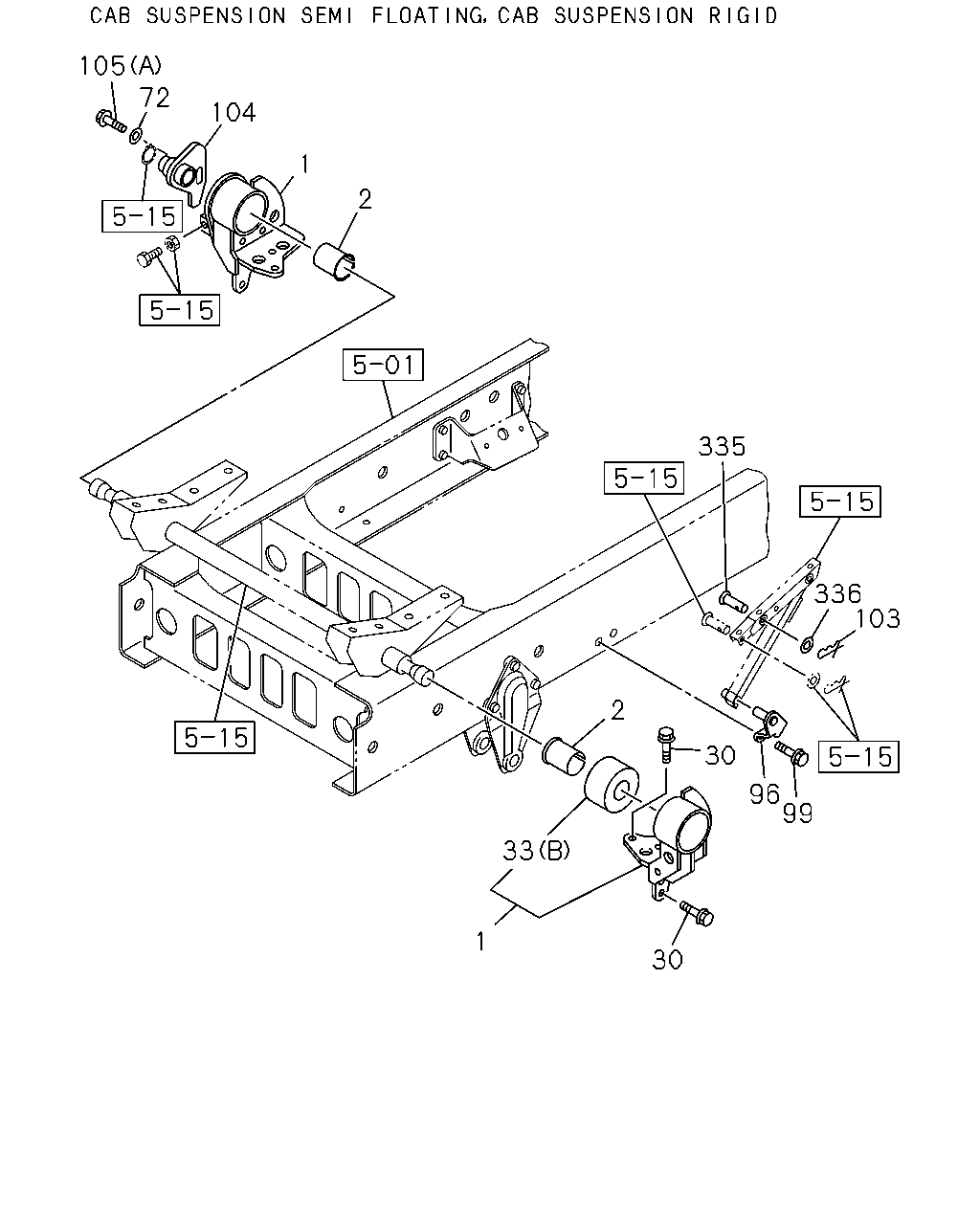

105 72 104 1 2 335 336 96 99 30 2 33 1 30 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-661-2	01	1	0809-0907	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-661-2	01	1	0908-0910	●	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-661-2	01	1	0911-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-664-2	01	1	0809-0907	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-664-2	01	1	0908-0910	●	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71>	8-98017-664-2	01	1	0911-	●
1	BRACKET; CAB MTG	8-98017-662-1	01	1	0803-0808	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	0809-0907	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	0908-0910	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-662-1	01	1	0911-	●
1	BRACKET; CAB MTG	8-98017-662-1	01	1	0911-		●
1	BRACKET; CAB MTG	8-98017-663-1	01	1	0803-0808	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	0809-0907	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	0908-0910	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-663-1	01	1	0911-	●
1	BRACKET; CAB MTG	8-98017-663-1	01	1	0911-		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0809-0907	●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0908-0910	●	●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0911-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1008-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0803-0907	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0908-0910	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X45 FLANGE	0-28861-445-0	10	1	0911-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0911-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1008-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0911-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0911-		●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0803-0907	●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0908-0910	●	●
72	WASHER; PL,BRKT TO FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=15 OD=36	0-91614-714-0	01	1	0911-	●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0911-		●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0803-0907	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0908-0910	●	●
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-628-0	01	1	0911-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	0911-		●
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	0803-0907	●
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	0908-0910	●	●
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M10X30 FLANGE	0-28661-030-0	02	1	0911-	●
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	0911-		●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	0803-0907	●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	0908-0910	●	●
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=32.6	8-98062-280-0	01	1	0911-	●
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	0911-		●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-420-2	01	1	1008-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	8-98084-173-0	01	1	1008-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0803-0907	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0908-0910	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98017-610-3	01	1	0911-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0911-		●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1008-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1008-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0803-0907	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0908-0910	●	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X35 FLANGE	0-28661-435-0	01	1	0911-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0911-		●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0803-0907	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0908-0910	●	●
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=48	1-09744-107-0	01	1	0911-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	0911-		●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0803-0907	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0908-0910	●	●
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	0911-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	0911-		●

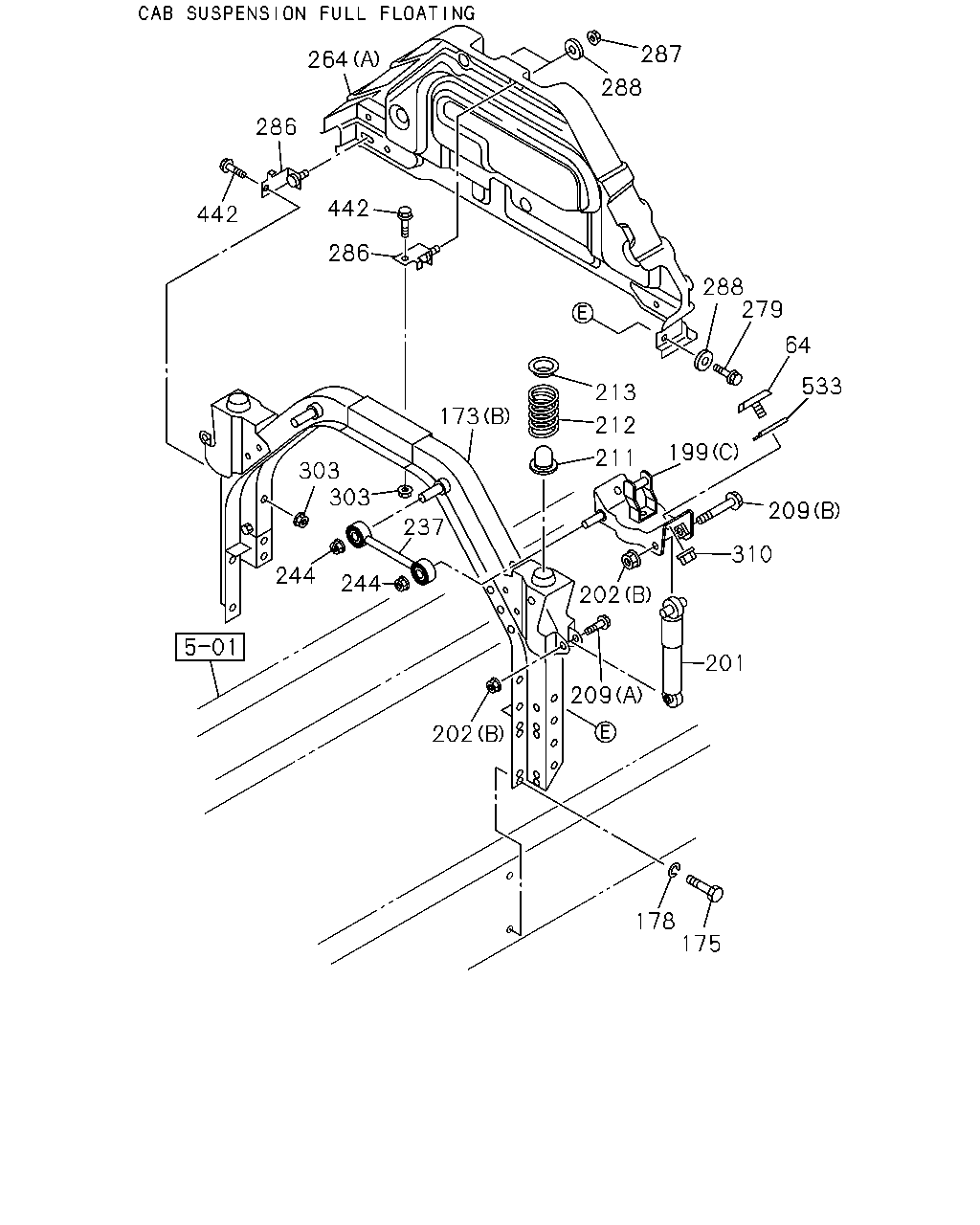

264 286 442 442 286 287 288 288 279 64 533 209 310 201 178 175 202 209 202 211 212 213 199 173 237 303 303 244 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION	8-97113-340-0	04	1	0803-0907	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0908-0910	●	●
64	RUBBER; CUSHION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-97113-340-0	04	1	0911-1007	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0911-1007		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	1008-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-592-8	01	1	1008-	●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0803-0907	●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0908-0910	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	0911-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0803-0907	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0908-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0803-0907	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0908-	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1008-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1008-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0809-0907	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0911-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0803-0907	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	0911-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0911-		●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	0803-0808	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0809-0907	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0911-	●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	0911-		●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	1008-1401	●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1008-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1008-	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	1008-	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	1008-	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1008-	●
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	1008-	●
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	1008-	●
237	ROD ASM; LATERAL CAB SUSPENSION FULL FLOATING<W16>	1-53459-585-2	02	1	1008-	●
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	1008-	●
264	PANEL; BACK ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	1-53194-610-2	01	1	0803-	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	1-53194-609-2	01	1	0803-	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0803-	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0803-	●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0803-	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0803-	●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0803-	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0803-0907	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0908-0910	●	●
310	NUT; CUSHION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M8 FLANGE	0-91180-108-0	04	1	0911-1007	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0911-1007		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0803-	●
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	1008-	●

287 288 264 442 286 173 442 286 199 150 64 288 279 33 310 287 199 178 175 192 303 303 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1008-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0911-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0911-		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0803-0907	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0908-0910	●	●
64	RUBBER; CUSHION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-97113-340-0	04	1	0911-1007	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0911-1007		●
64	RUBBER; CUSHION	8-97113-340-0	04	1	1008-	●	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0803-0907	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0908-0910	●	●
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X100	0-10956-400-0	02	1	0911-	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0911-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (B)	8-98022-592-8	01	1	1008-	●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0803-0907	●
173	MEMBER; CAB MTG RR (A)	8-98013-041-3	01	1	0908-0910	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	0911-		●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0803-0907	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0908-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0803-0907	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0908-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0803-0907	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0908-0910	●	●
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	0911-	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0911-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1008-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1008-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0809-0907	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0911-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0803-0907	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	0911-	●
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	0911-		●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	0803-0808	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0809-0907	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0908-0910	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0911-	●
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	0911-		●
264	PANEL; BACK ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	1-53194-610-2	01	1	0803-	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	1-53194-609-2	01	1	0803-	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0803-	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0803-	●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0803-	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0803-	●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0803-	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0803-0907	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0908-0910	●	●
310	NUT; CUSHION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M8 FLANGE	0-91180-108-0	04	1	0911-1007	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0911-1007		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0803-	●

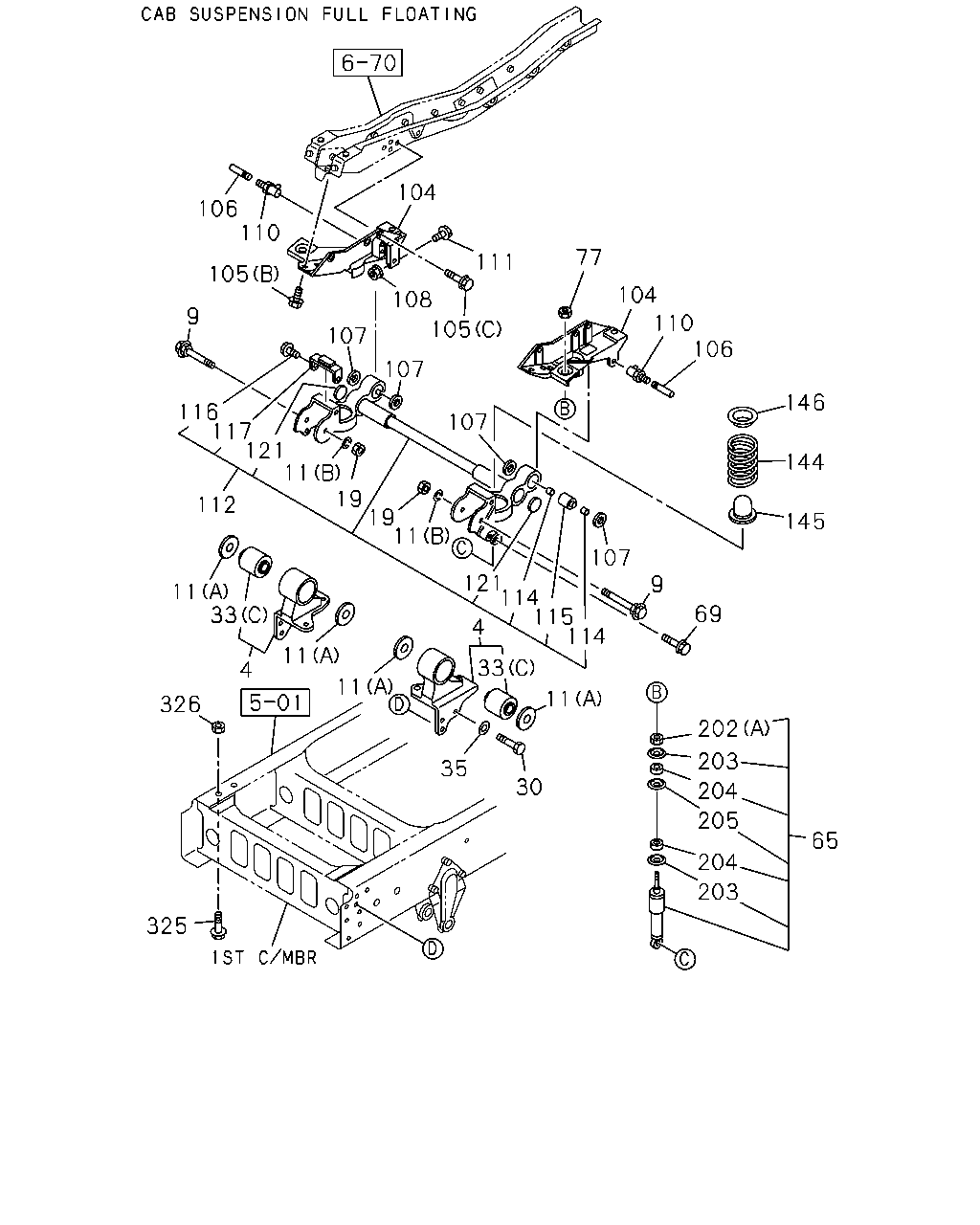

104 111 77 104 110 106 146 144 145 65 202 203 204 205 204 203 30 35 11 11 4 326 325 33 11 112 4 33 11 114 115 114 121 11 19 19 11 121 117 116 9 105 110 106 107 107 107 105 108 107 9 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	1008-	●
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	1008-	●
9	BOLT CAB SUSPENSION FULL FLOATING<W16> M16X125	1-51361-023-0	02	1	1008-	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (B) ID=16.2	0-91510-816-0	02	1	1008-	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (A) ID=34.5	1-53458-281-1	04	1	1008-	●
19	NUT CAB SUSPENSION FULL FLOATING<W16> M16	0-91110-516-0	02	1	1008-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> M14X50	0-20951-450-0	10	1	1008-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0803-0907	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0908-0910	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X45 FLANGE	0-28861-445-0	10	1	0911-	●
30	BOLT; CAB FRT FOOT M14X45 FLANGE	0-28861-445-0	10	1	0911-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	1008-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	0911-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0803-0808	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0809-0907	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0908-0910	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0911-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	0911-		●
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	9-09651-069-0	10	1	1008-1201	●
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	1202-	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	1008-	●
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	1008-	●
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	1008-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-420-2	01	1	1008-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	8-98084-173-0	01	1	1008-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0803-0907	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0908-0910	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98017-610-3	01	1	0911-	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98017-610-3	01	1	0911-		●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	1008-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (C) M10X30 FLANGE	0-28661-030-0	08	1	1008-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0803-0907	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0908-0910	●	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X35 FLANGE	0-28661-435-0	01	1	0911-	●
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	0911-		●
106	PIN; BRKT TO LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-642-1	02	1	1008-	●
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO CAB SUSPENSION FULL FLOATING<W16>	1-53459-643-2	04	1	1008-	●
108	NUT; PIN LOCK BOLT CAB SUSPENSION FULL FLOATING<W16> M8 FLANGE	0-91180-108-0	02	1	1008-	●
110	NIPPLE; GREASE,LINK ARM PIN CAB SUSPENSION FULL FLOATING<W16> PT1/8 ELBOW	0-90301-610-0	02	1	1008-	●
111	BOLT; PIN LOCK,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X50 FLANGE	0-28050-850-0	02	1	1008-	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98148-517-0	01	1	1008-	●
114	BUSHING; FLOATING LINK PIN CAB SUSPENSION FULL FLOATING<W16>	1-09330-068-0	04	1	1008-	●
115	BUSHING; RUBBER,FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-315-2	02	1	1008-	●
116	BOLT; STOPPER RUBBER,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28050-820-0	04	1	1008-	●
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53458-321-1	02	1	1008-	●
121	PLUG; FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	9-09860-031-0	02	1	1008-	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	1008-	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1008-	●
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	1008-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1008-	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1008-	●
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	1008-	●
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO	9-51631-603-0	04	1	1008-	●
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	1008-	●
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	1008-	●
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	1008-	●

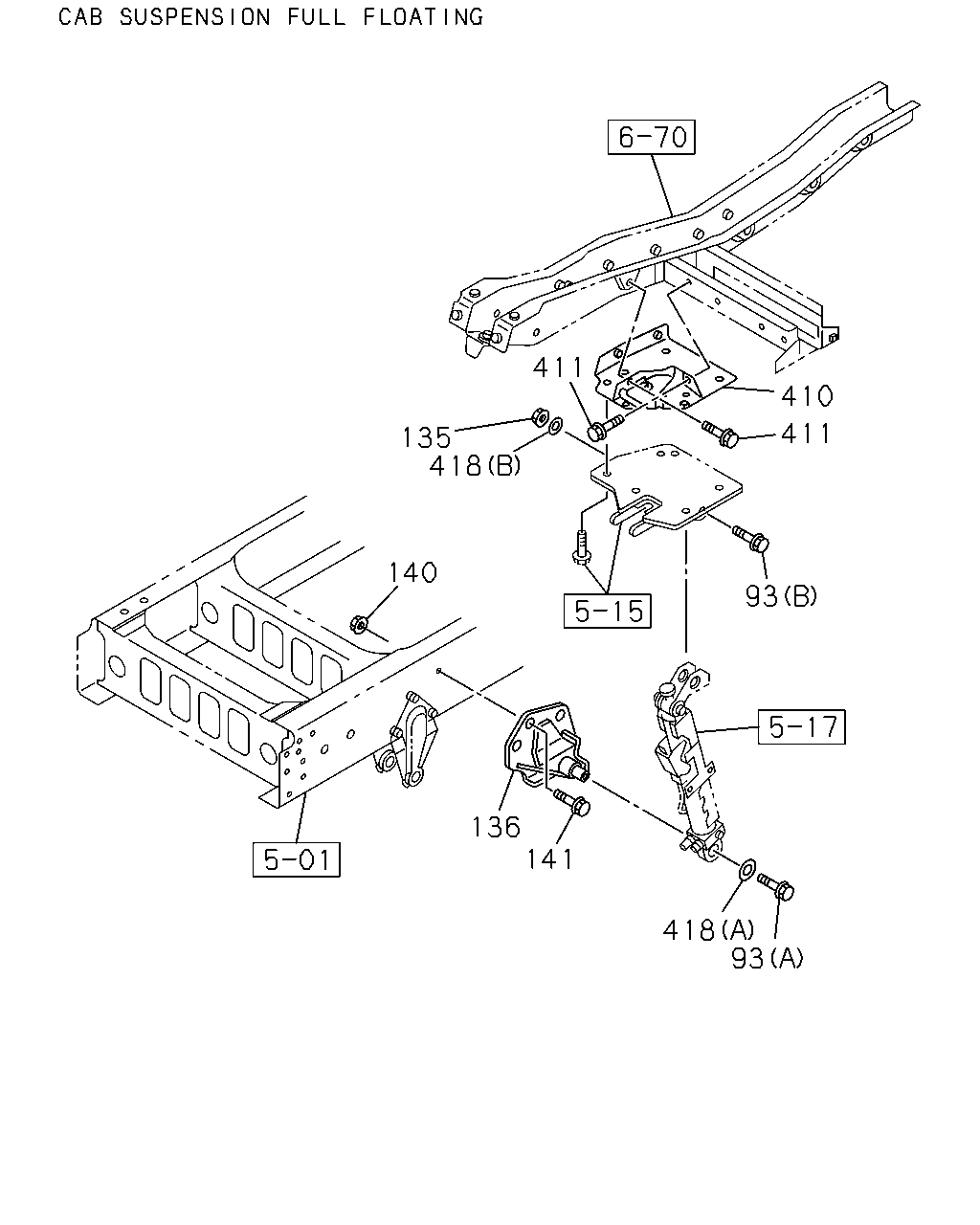

93 410 411 418 135 411 136 141 418 93 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	1008-	●
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	1008-	●
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1008-	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	1008-	●
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	1008-	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	1008-	●
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	1008-	●
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	1008-	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	1008-	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
