5-01 — FRAME AND OTHER PARTS (#68016) — 872 parça

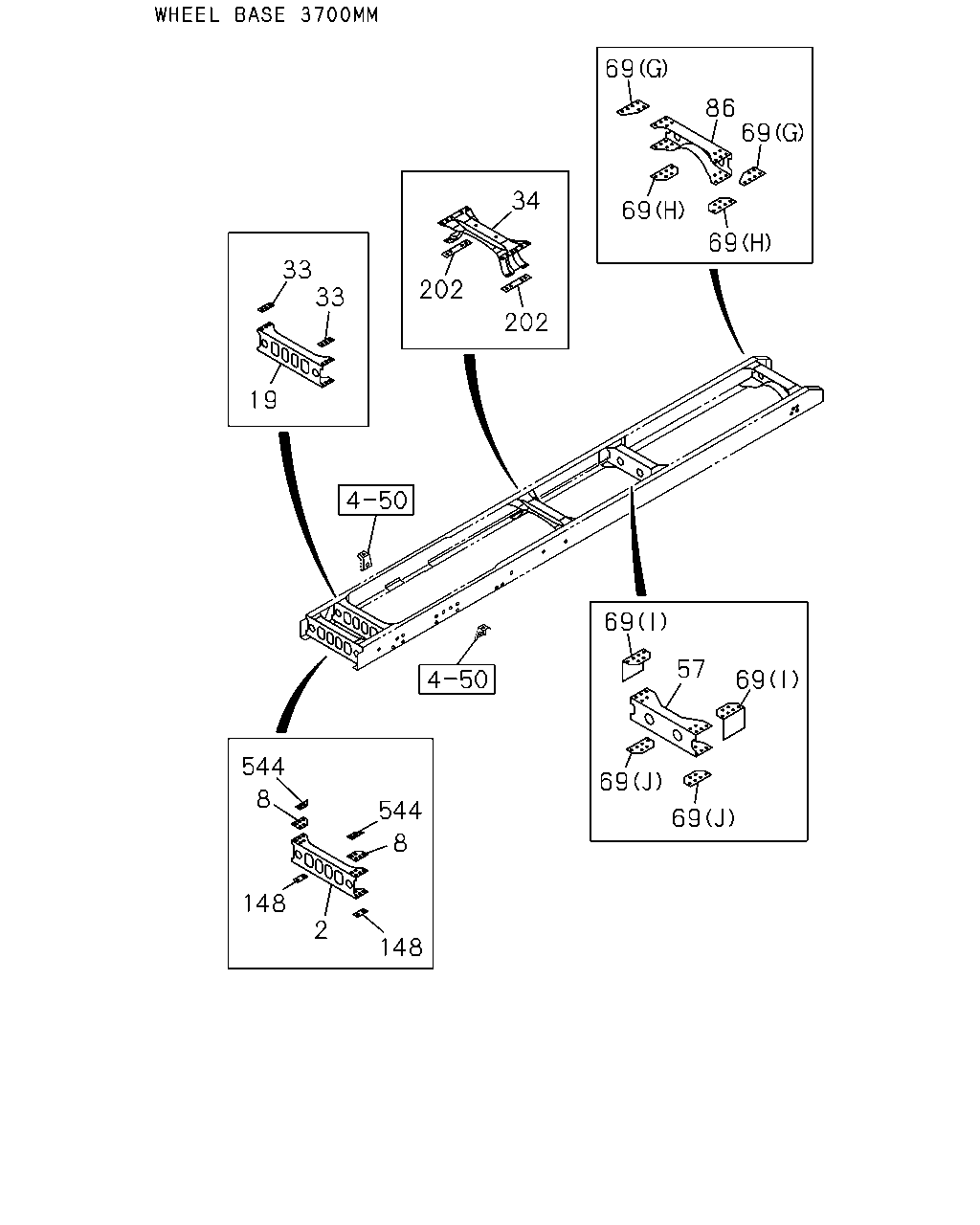

çizim 125172
69 86 69 69 69 34 202 202 33 19 33 69 57 69 69 69 544 544 8 148 8 2 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0803-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0809-0906 ● ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0907- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0803-0808 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809-0906 ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0907- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0803-0807 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0808-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0809-0906 ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 0907- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0803-0808 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809-0906 ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0907- ● ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0803-0808 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809-0906 ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0907- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 0908- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0803-0808 ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0803-0808 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0809-0905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 0906- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97610-865-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-866-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-800-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-801-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-802-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-803-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0906- ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0906- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 0908- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0803-0808 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0803-0808 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0809-0905 ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 0906- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0803-0808 ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809-0906 ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0907- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 0908- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0803-0808 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0803-0808 ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 0809- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0803-0808 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0809-0907 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0809-0907 ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0908- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0908- ● ● ●

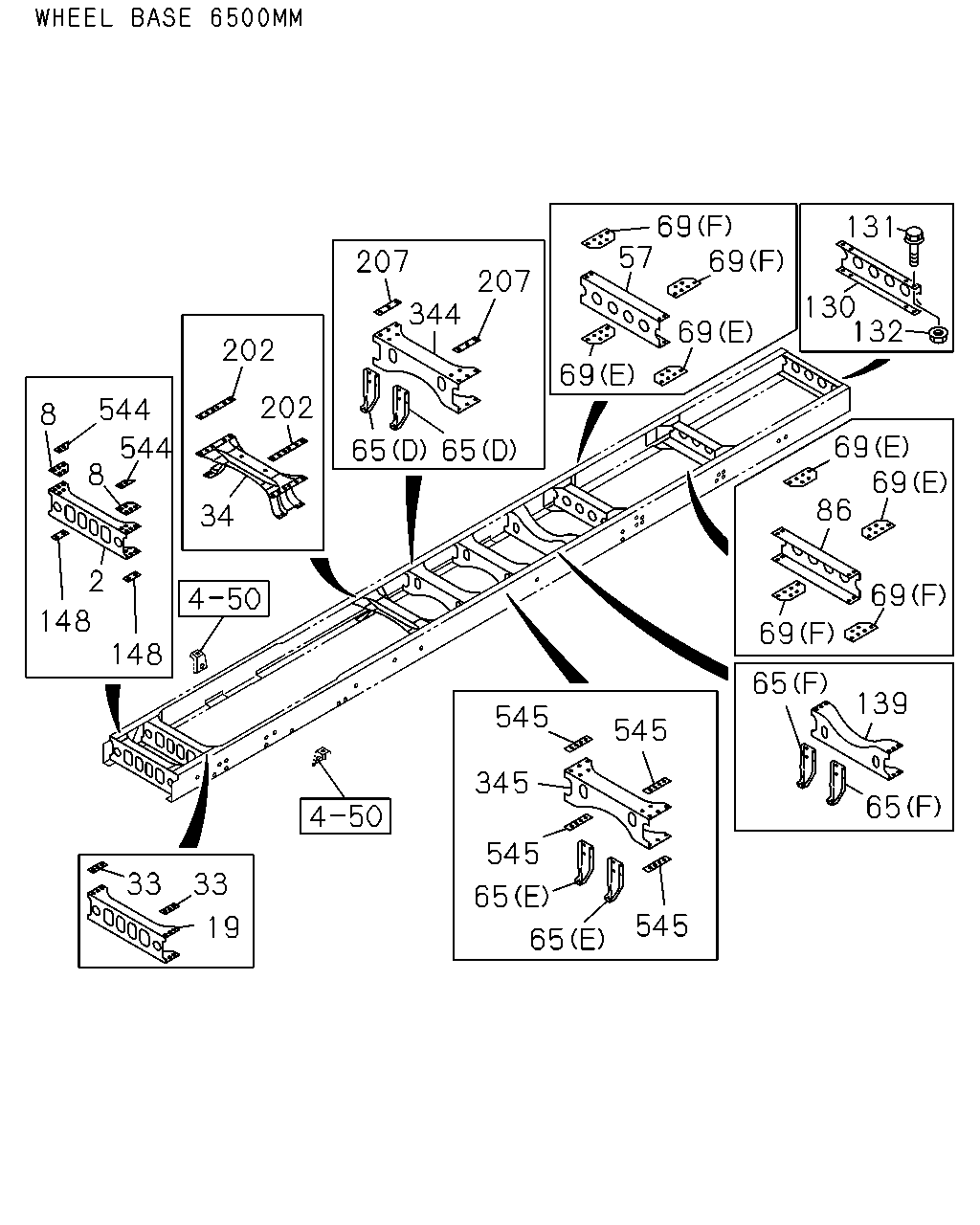

çizim 125360
8 544 8 544 2 148 34 202 202 207 344 207 65 65 69 69 69 69 57 131 130 132 69 86 69 69 69 139 65 65 545 545 345 545 65 65 545 33 33 19 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0803-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0809-0906 ● ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0907- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0803-0808 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809-0906 ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0907- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0803-0807 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0808-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0809-0906 ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 0907- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0803-0808 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809-0906 ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0907- ● ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0803-0808 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809-0906 ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0907- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 0908- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0803-0808 ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0803-0808 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0809-0905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 0906- ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-98103-401-0 02 1 1101- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97611-328-0 02 1 1011-1107 ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 1008- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97614-150-0 02 1 1008-1107 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 1108- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 0809- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 0809- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 0809- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-136-0 02 1 0803-0808 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
(C) 		8-97614-127-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-129-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0806-0909 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97610-865-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-866-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-800-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-801-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-802-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-803-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0906- ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0906- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 0908- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0803-0808 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0803-0808 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0809-0905 ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 0906- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0803-0808 ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0803-0808 ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0803-0808 ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809- ● ● ● ● ● ● ●
139 MEMBER; CROSS,6TH 8-97611-238-1 01 1 0803- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0803-0808 ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809-0906 ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0907- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 0908- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0803-0808 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0809-0910 ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911-1110 ● ● ●
207 SPACER; 4TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 1111- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1111- ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1111- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0803-0808 ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0803-0808 ● ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) 		8-97611-238-1 01 1 0809-0909 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 0809-0909 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0809-0909 ● ● ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0911-1109 ● ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 1110- ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 1110- ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1110- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0803-0808 ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 0809- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0803-0808 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0809-0907 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0809-0907 ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0908- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0908- ● ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0810-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0810-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0803-0808 ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0809-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0809-0906 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0809-0906 ● ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0907-0909 ● ●
545 SPACER; 5TH C/MBR
EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1506- ● ●

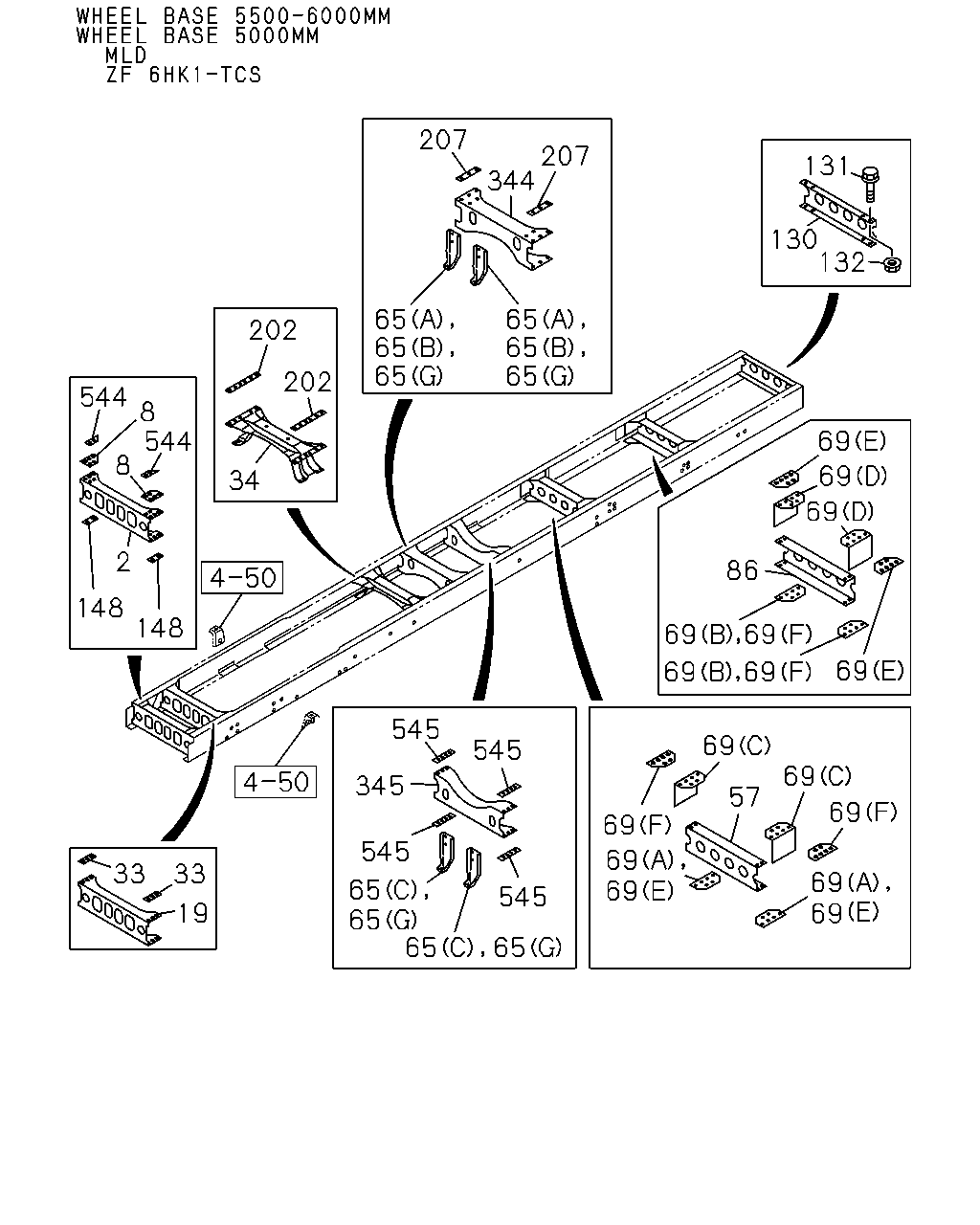

çizim 193656
544 544 8 8 2 148 148 34 202 202 65 65 65 65 65 65 207 344 207 131 130 132 69 69 69 86 69 69 69 69 69 69 57 69 69 69 69 69 69 69 65 545 65 65 545 65 345 545 545 33 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H

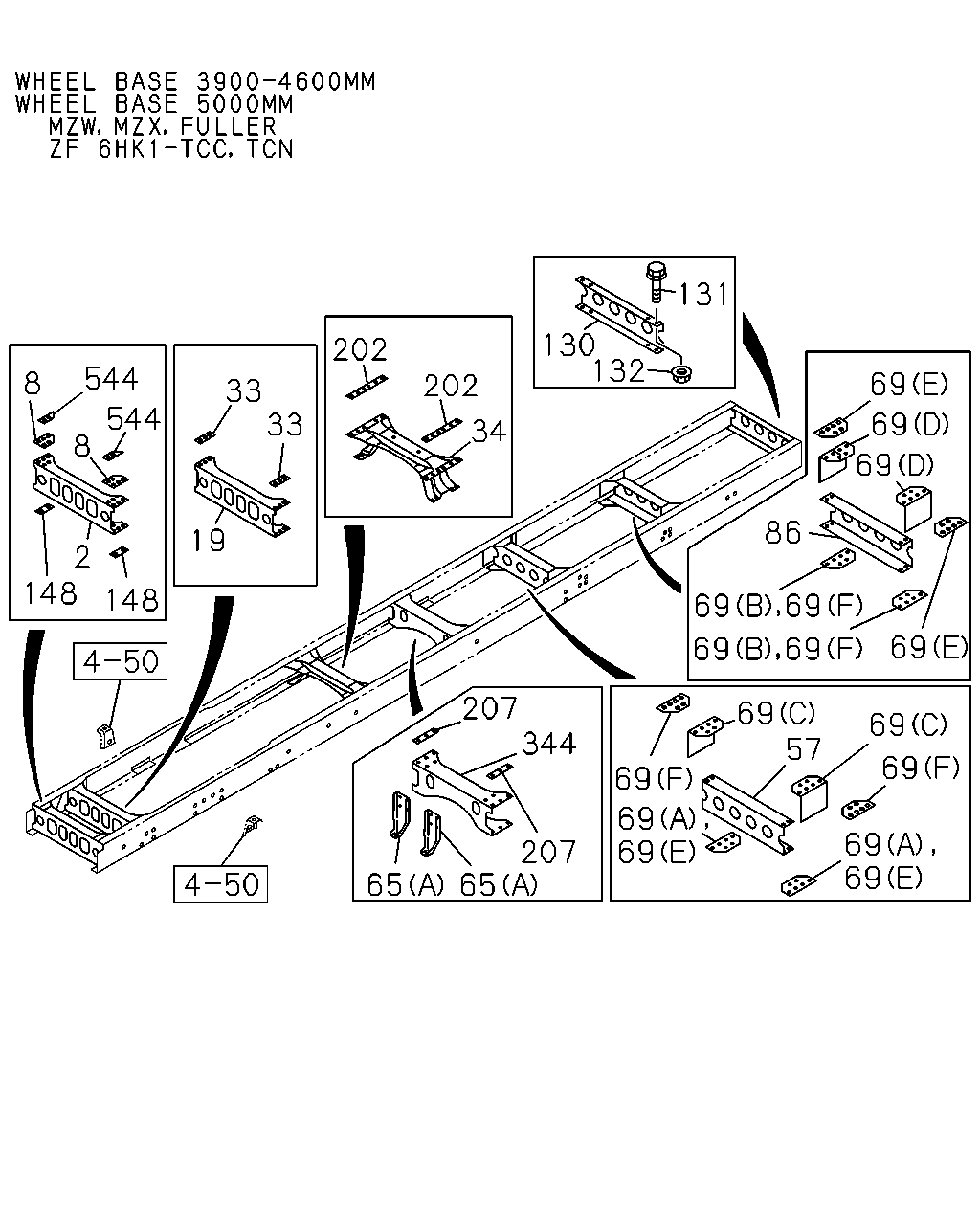

2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0803-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0809-0906 ● ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0907- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0803-0808 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809-0906 ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0907- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0803-0807 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0808-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0809-0906 ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 0907- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0803-0808 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809-0906 ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0907- ● ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0803-0808 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809-0906 ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0907- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 0908- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0803-0808 ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0803-0808 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0809-0905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 0906- ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-98103-401-0 02 1 1101- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97611-328-0 02 1 1011-1107 ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 1008- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97614-150-0 02 1 1008-1107 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 1108- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 0809- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 0809- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 0809- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-136-0 02 1 0803-0808 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
(C) 		8-97614-127-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-129-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0806-0909 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97610-865-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-866-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-800-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-801-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-802-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-803-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0906- ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0906- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 0908- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0803-0808 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0803-0808 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0809-0905 ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 0906- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0803-0808 ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0803-0808 ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0803-0808 ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809- ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0803-0808 ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809-0906 ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0907- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 0908- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0803-0808 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0809-0910 ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911-1110 ● ● ●
207 SPACER; 4TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 1111- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1111- ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1111- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0803-0808 ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809- ● ● ● ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0803-0808 ● ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) 		8-97611-238-1 01 1 0809-0909 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 0809-0909 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0809-0909 ● ● ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97611-238-1 01 1 0910-0910 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 0911-1109 ● ●
345 MEMBER; CROSS,5TH
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97611-238-1 01 1 0911-1109 ●
345 MEMBER; CROSS,5TH
6HK1-TCS ENG(80L) 		8-97611-238-1 01 1 1110- ●
345 MEMBER; CROSS,5TH
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-238-1 01 1 1110- ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1110- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0803-0808 ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 0809- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0803-0808 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0809-0907 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0809-0907 ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0908- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0908- ● ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0810-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0810-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0907-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 0911-1012 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> 0.25KG 		8-97611-244-0 02 1 1101- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0803-0808 ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0809-0906 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0809-0906 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0809-0906 ● ● ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0907-0909 ● ●
545 SPACER; 5TH C/MBR
EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0907-0909 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0910-0910 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0911-0911 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 0911-1110 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.24KG 		8-97611-245-0 02 1 1111-1505 ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 0.24KG 		8-97611-245-0 02 1 1506- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1506- ● ●
çizim 193660
8 544 544 33 8 2 148 19 148 33 202 202 34 130 131 132 207 207 344 65 65 69 69 69 69 69 69 69 69 69 69 69 69 86 69 69 69 57 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0803-0808 ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-5 01 1 0809-0906 ● ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 0907- ● ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0803-0808 ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0809-0906 ● ● ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 0907- ● ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-3 01 1 0803-0807 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0808-0808 ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-1 01 1 0809-0906 ● ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 0907- ● ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0803-0808 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0809-0906 ● ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 0907- ● ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0803-0808 ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0809-0906 ● ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 0907- ● ● ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97611-239-2 01 1 0908- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 0803-0808 ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0803-0808 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-2 01 1 0809-0905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 0906- ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-98103-401-0 02 1 1101- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97611-328-0 02 1 1011-1107 ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97623-229-0 02 1 1008- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 0809-1007 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-97614-150-0 02 1 1008-1107 ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-150-0 02 1 1108- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C) 		8-97612-486-0 02 1 0809- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		8-97614-132-0 02 1 0809- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (G) 		8-97614-139-0 04 1 0809- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-137-0 02 1 0809- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-136-0 02 1 0803-0808 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0809-0909 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-136-0 02 1 0910- ●
65 BRACKET; CENTER BRG
(C) 		8-97614-127-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-129-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (B) 		8-97614-133-0 02 1 1111- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 0810-1110 ●
65 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> (C) 		8-97621-881-0 02 1 1111- ●
65 BRACKET; CENTER BRG
(D) 		8-97614-126-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(E) 		8-97623-367-0 02 1 0803- ●
65 BRACKET; CENTER BRG
(F) 		8-97614-140-0 02 1 0803- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97614-133-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (C) 		8-97621-881-0 02 1 0809-0809 ●
65 BRACKET; CENTER BRG
MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-136-0 02 1 0806-0909 ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-907-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97611-908-1 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-910-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97611-911-0 01 1 0911- ●
69 GUSSET; RR SUSP,UPR
(G) 		8-97611-280-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(H) 		8-97611-314-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-451-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(I) 		8-97618-452-0 01 1 0908- ●
69 GUSSET; RR SUSP,UPR
(J) 		8-97618-453-0 02 1 0908- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97610-865-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-865-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-866-0 02 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0809-0910 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-866-0 02 1 0911- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-800-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-800-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-801-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-801-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-802-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-802-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-803-0 01 1 0803-0808 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-803-0 01 1 0809- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 0906- ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0803-0808 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0809-0905 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0809-0905 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 0906- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 0906- ●
86 MEMBER; CROSS,RR SUSP RR 8-97611-312-1 01 1 0908- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 0803-0808 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0809-0910 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 0911- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0803-0808 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-2 01 1 0809-0905 ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-2 01 1 0809-0905 ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 0906- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 0906- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0803-0808 ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 0809- ● ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0803-0808 ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0809- ● ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0803-0808 ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 0809- ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0803-0808 ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0809-0906 ● ● ● ● ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 0907- ● ● ● ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-873-0 02 1 0908- ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0803-0808 ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 0809- ● ● ● ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 0809-1107 ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
P46 PROP SHAFT(C4Z) 0.24KG 		8-97611-245-0 02 1 1108- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0803-0808 ● ●
207 SPACER; 4TH C/MBR
EURO2 SPECIFICATION<NT2> 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0809-0910 ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 0809-0910 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 0911-1110 ● ● ●
207 SPACER; 4TH C/MBR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 0.25KG 		8-97611-244-0 02 1 0911-1110 ●
207 SPACER; 4TH C/MBR
6HK1-TCS ENG(80L) 0.25KG 		8-97611-244-0 02 1 1111- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1111- ● ● ● ●
207 SPACER; 4TH C/MBR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 0.25KG 		8-97611-244-0 02 1 1111- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0803-0808 ● ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 0809- ● ● ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 0803-0808 ●
544 PLATE; CAB FRT MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 0809- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0803-0808 ● ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0809-0907 ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0809-0907 ● ●
544 PLATE; CAB FRT MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 0908- ● ● ● ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 0908- ● ● ●
çizim 193774
101 118 282 103 117 82 255 255 106 18 13 11 25 25 23 23 25 25 25 25 26 26 24 46 46 25 25 26 25 25 26 39 82 255 106 112 255 111 89 281 105 28 110 96 129 128 129 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0803-0808 ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 0809- ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0803-0808 ● ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 0809-0907 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0809-0907 ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 0908- ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0908- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0908- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0803-0808 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0803-0808 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809-0906 ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0907- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0803-0808 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0809-0906 ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0907- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0803-0808 ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0809-0906 ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0907- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0803-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0809-0906 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1506- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0803-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0809-0906 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1506- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=14.2 		0-91510-814-0 16 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0911-1005 ● ● ● ● ● ●
25 WASHER; PL,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 44 1 0908- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0803-0808 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0809-0906 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0907- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0803-0808 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0809-0910 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=15 		8-98010-627-0 12 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1006- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0803-0808 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0809-0906 ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0907- ● ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0803-0808 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0809-0906 ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0907- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0803-0808 ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0809-0906 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1506- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0803-0808 ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0809-0906 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1506- ● ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0803-0808 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0809-0906 ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0907- ● ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0803-0808 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0809-0906 ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0907- ● ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0803-0907 ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0908- ● ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 0803-0907 ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 0908- ● ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0803-0907 ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0908- ● ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 0908- ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0803-0808 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0809- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0803-0808 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0809-0906 ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0907- ● ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-073-1 02 1 0908- ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 0803-0808 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 0809- ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0803-0808 ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0809-0906 ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0907- ● ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0803-0907 ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0908- ● ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0803-0907 ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0908- ● ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0803-0907 ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0908- ● ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0803-0808 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809-0906 ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0907- ● ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0803-0808 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809-0906 ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0907- ● ● ● ● ● ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 0803-0907 ● ● ● ● ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 0908- ● ● ● ● ● ● ●
128 COLLAR; RUBBER 1-53359-004-0 02 1 0908- ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0803-0907 ● ● ● ● ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0908- ● ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0803-0907 ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0908- ● ● ● ● ● ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 0908- ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0803-0907 ● ● ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0908- ● ● ● ● ● ● ● ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 0908- ●
çizim 193779
101 118 98 103 117 82 138 106 18 13 11 23 23 25 25 26 25 25 26 24 25 25 25 25 26 46 46 25 25 25 25 26 39 82 111 281 106 96 129 128 129 105 110 281 97 112 138 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 BRACKET; ENG MTG 8-97619-549-0 02 1 0803-0808 ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 0809- ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0803-0808 ● ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 0809-0907 ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0809-0907 ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 0908- ● ● ● ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 0908- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0908- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0803-0808 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0803-0808 ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809-0906 ● ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0907- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0803-0808 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0809-0906 ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 0907- ● ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0803-0808 ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0809-0906 ● ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 0907- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0803-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0809-0906 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1506- ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0803-0808 ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0809-0906 ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1506- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=14.2 		0-91510-814-0 16 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0911-1005 ● ● ● ● ● ●
25 WASHER; PL,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> (A) ID=15 		8-98010-627-0 28 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 44 1 0908- ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0803-0808 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0809-0906 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 0907- ● ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0803-0808 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-0 28 1 0809-0910 ● ● ● ● ● ● ●
25 WASHER; PL,BRKT
BUMPER REAR<7HZ> STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=15 		8-98010-627-0 12 1 0911-1005 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1006- ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0803-0808 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0809-0906 ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0907- ● ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0803-0808 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0809-0906 ● ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0907- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0803-0808 ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0809-0906 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1506- ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0803-0808 ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0809-0906 ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 0907-1505 ● ● ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1506- ● ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0803-0808 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0809-0906 ● ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 0907- ● ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0803-0808 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0809-0906 ● ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0907- ● ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0803-0907 ● ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0908- ● ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 0803-0907 ● ● ● ● ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 0908- ● ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0803-0907 ● ● ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0908- ● ● ● ● ● ● ● ●
98 WASHER; LK,STOPPER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-0 16 1 0809-0909 ● ● ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
ZF9S1110 M/T(Y5E) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
BUMPER REAR<7HZ> STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-0 16 1 0911-1005 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0803-0808 ● ● ● ●
98 WASHER; LK,STOPPER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0809-0809 ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-814-0 16 1 0809-0809 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0809-0809 ● ● ● ●
98 WASHER; LK,STOPPER
EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0810-0909 ● ● ●
98 WASHER; LK,STOPPER
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-814-0 16 1 0810-0909 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0810-0909 ● ● ● ●
98 WASHER; LK,STOPPER
EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-814-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0910-0910 ● ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2 		0-91510-814-0 16 1 0910-0910 ● ●
98 WASHER; LK,STOPPER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ID=14.2 		0-91510-814-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
6HK1-TCS ENG(80L) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0910-0910 ● ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) ID=14.2 		0-91510-814-0 16 1 0910-0910 ●
98 WASHER; LK,STOPPER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,ZF9S1110 M/T(Y5E) ID=14.2 		0-91510-814-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-814-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0911-0911 ● ● ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2 		0-91510-814-0 16 1 0911-0911 ● ●
98 WASHER; LK,STOPPER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0911-0911 ● ●
98 WASHER; LK,STOPPER
FULLER FSO5206B OD M/T(Y4V) ID=14.2 		0-91510-814-0 16 1 0911-0911 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0911-1005 ● ● ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2 		0-91510-814-0 16 1 0911-1005 ●
98 WASHER; LK,STOPPER
BUMPER REAR<7HZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2 		0-91510-814-0 16 1 0911-1005 ●
98 WASHER; LK,STOPPER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BUMPER REAR<7HZ> ID=14.2 		0-91510-814-0 16 1 0911-1005 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1006- ● ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-081-2 02 1 0908- ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0803-0808 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0809- ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0803-0808 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0809-0906 ● ● ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0907- ● ● ● ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-073-1 02 1 0908- ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 0803-0808 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 0809- ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0803-0808 ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0809-0906 ● ● ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 0907- ● ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0803-0907 ● ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0908- ● ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0803-0907 ● ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0908- ● ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0803-0907 ● ● ● ● ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0908- ● ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0803-0808 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809-0906 ● ● ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0907- ● ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0803-0808 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809-0906 ● ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0907- ● ● ● ● ● ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 0803-0907 ● ● ● ● ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 0908- ● ● ● ● ● ● ●
128 COLLAR; RUBBER 1-53359-004-0 02 1 0908- ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0803-0907 ● ● ● ● ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0908- ● ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0803-0907 ● ● ● ● ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0908- ● ● ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 0803-0808 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 0809- ● ● ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0803-0907 ● ● ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0908- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
