Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

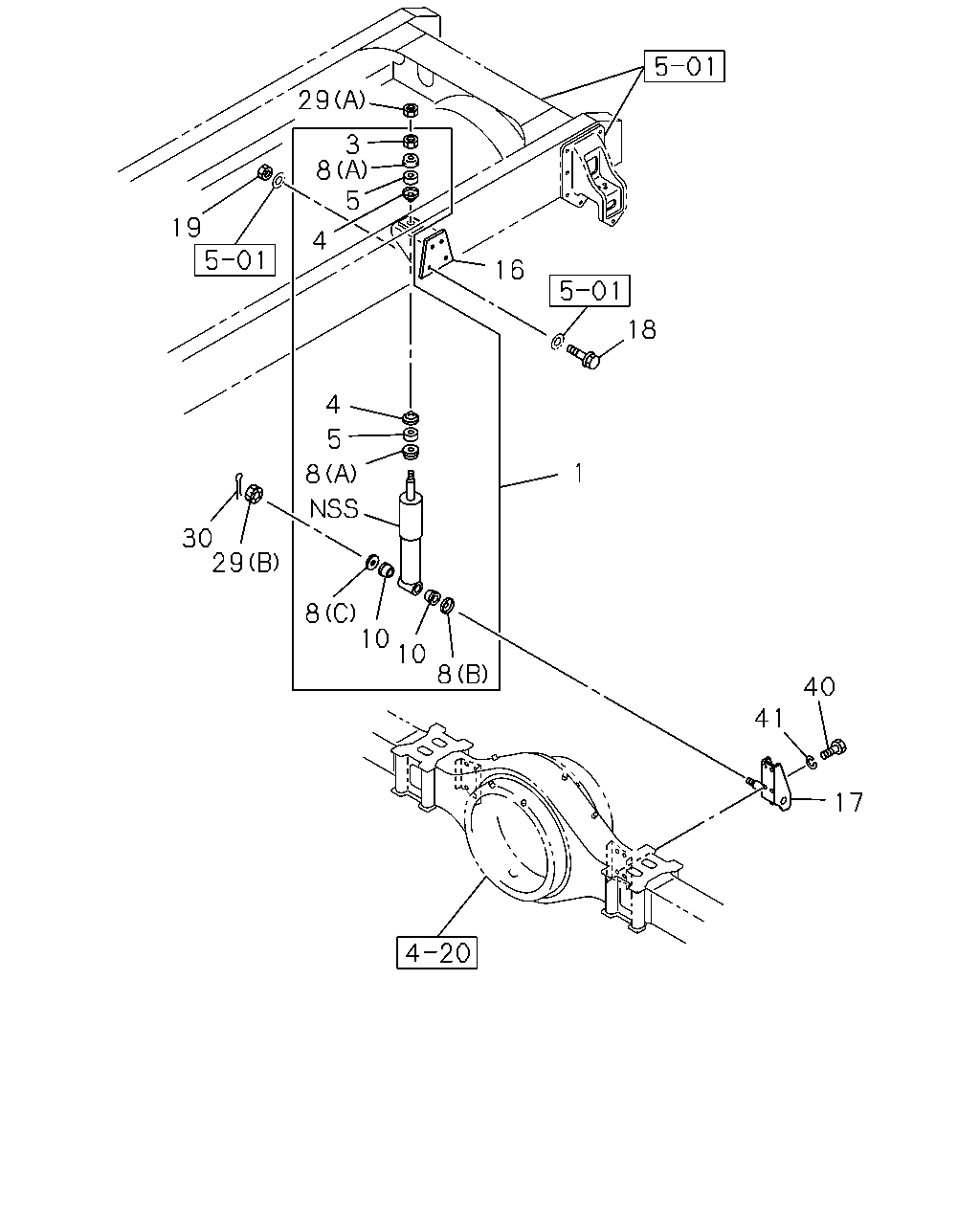

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#68013) — 18 parça
29
3
8
5
4
19
4
5
8
30
29
8
10
10
8
17
41
40
1
18
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-602-0
02
1
0908-
3
NUT; S/ABS
M18
9-99111-418-0
02
1
0908-
4
WASHER; CENTER,S/ABS
1-51631-072-0
04
1
0908-
5
BUSHING; RUBBER,S/ABS,UPR
1-51631-073-0
04
1
0908-
8
WASHER; S/ABS
(A)
1-51631-071-0
04
1
0908-
8
WASHER; S/ABS
(B)
1-51631-074-0
02
1
0908-
8
WASHER; S/ABS
(C)
1-51631-075-0
02
1
0908-
10
BUSHING; RUBBER,S/ABS
1-51631-076-0
04
1
0908-
16
BRACKET; S/ABS,RR
1-51681-372-2
02
1
0908-
17
BRACKET; S/ABS LWR
1-51681-716-0
01
1
0908-
17
BRACKET; S/ABS LWR
1-51681-717-0
01
1
0908-
18
BOLT; S/ABS BRKT
M14X40
0-20951-440-0
08
1
0908-
19
NUT; S/ABS BRKT
M14
0-91110-514-0
08
1
0908-
29
NUT; LK,S/ABS,RR SUSP
(A) M18
0-91111-518-0
02
1
0908-
29
NUT; LK,S/ABS,RR SUSP
(B) M24
9-99116-424-0
02
1
0908-
30
PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45
0-81125-045-0
02
1
0908-
40
BOLT; LWR BRKT
M14X30
0-20851-430-0
08
1
0908-
41
WASHER; LK
ID=14.2
0-91510-614-0
08
1
0908-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
