◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#68012) — 95 parça

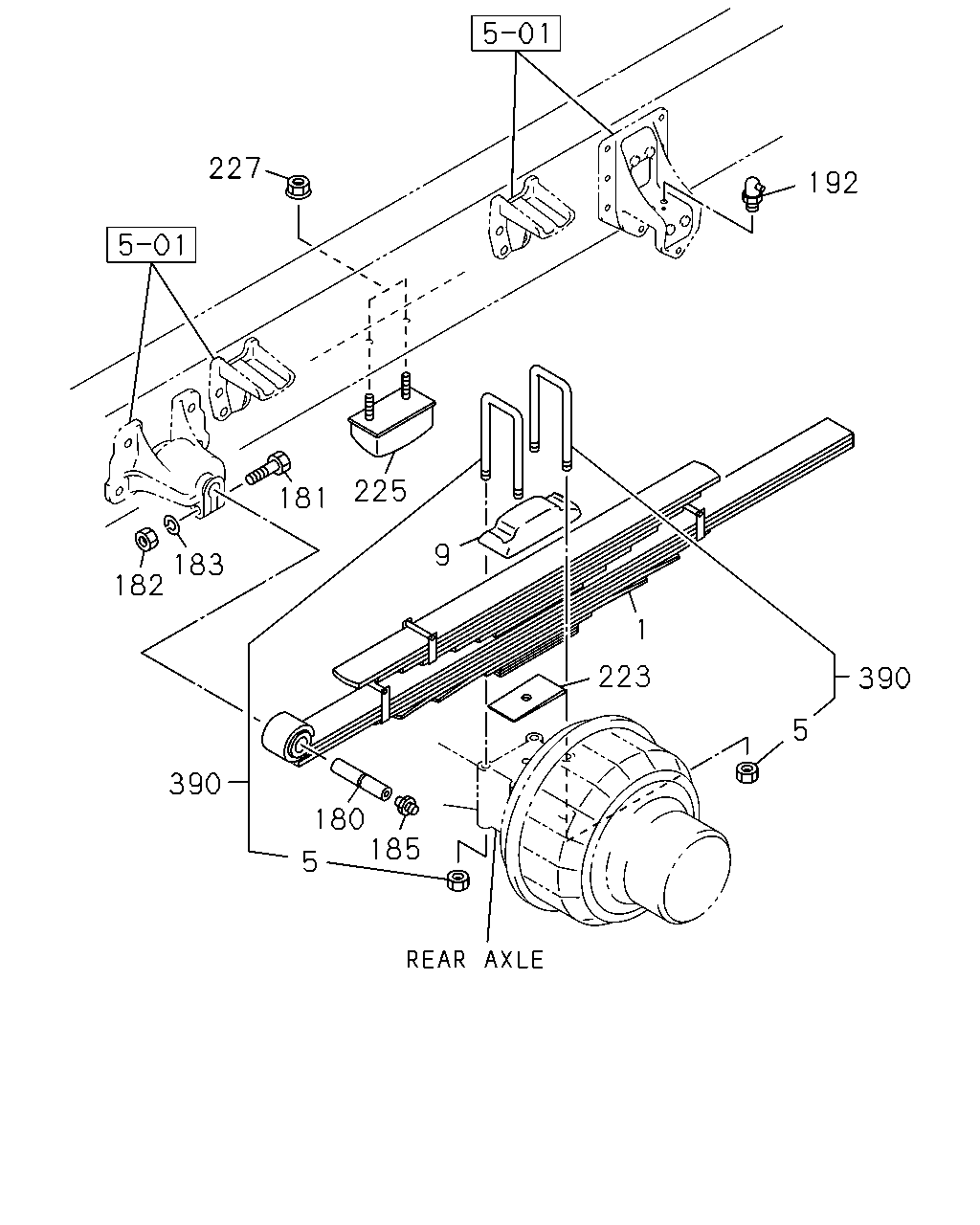

çizim 124670
227 182 183 181 225 9 390 180 5 185 223 1 5 390 192
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 14-LEAF 		8-98017-565-0 02 1 1404- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-532-0 02 1 0908-1403 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 14-LEAF 		1-51300-532-0 02 1 1404- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 14-LEAF 		8-98017-566-1 02 1 0803-1403 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		8-98017-566-1 02 1 1404-1404 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 14-LEAF 		8-98017-566-1 02 1 1404- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 14-LEAF 		8-98017-565-0 02 1 0803-1403 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> 12-LEAF 		8-98272-220-0 02 1 1404- ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0803-0907 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0908- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0803-0907 ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0908- ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 0803-0907 ●
180 PIN; RR SPR 1-51361-020-0 02 1 0908- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0803-0907 ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0908- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0803-0907 ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0908- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0803-0907 ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0908- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0803-0907 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0908- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0803-0907 ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ●
223 SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		1-51377-385-0 02 1 1006-1007 ●
223 SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. IRAN EQUIPMENT(D8T) 		1-51377-385-0 02 1 1008- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-369-1 02 1 0809-1312 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 0809-0907 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 0908-1005 ●
223 SPACER; U BOLT,RR SPR 8-98091-873-0 02 1 0908-1005 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W) 		8-98091-873-0 02 1 1006-1211 ●
223 SPACER; U BOLT,RR SPR 8-98091-873-0 02 1 1006-1211 ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. IRAN EQUIPMENT(D8T) 		8-98091-873-0 02 1 1212- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1212- ●
223 SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1212- ●
223 SPACER; U BOLT,RR SPR
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) WHEEL BASE 3700MM(37W) P90 PROP SHAFT(C5T) 		8-98091-873-0 02 1 1212- ●
223 SPACER; U BOLT,RR SPR 1-51377-371-1 02 1 0803-0808 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51377-371-1 02 1 0809-1005 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) 		1-51377-371-1 02 1 1006- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 0803- ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 0803-0907 ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 0908- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 0908- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0803-0907 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0908- ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-299-1 04 1 0908-1403 ●
390 U-BOLT SET; RR SPRING
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> L=490 		1-87870-299-1 04 1 1404- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0803-1403 ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1404- ●
390 U-BOLT SET; RR SPRING
SOFT RIDE SUSPENSION SYSTEM<FE1> L=490 		1-87870-036-4 04 1 1404- ●

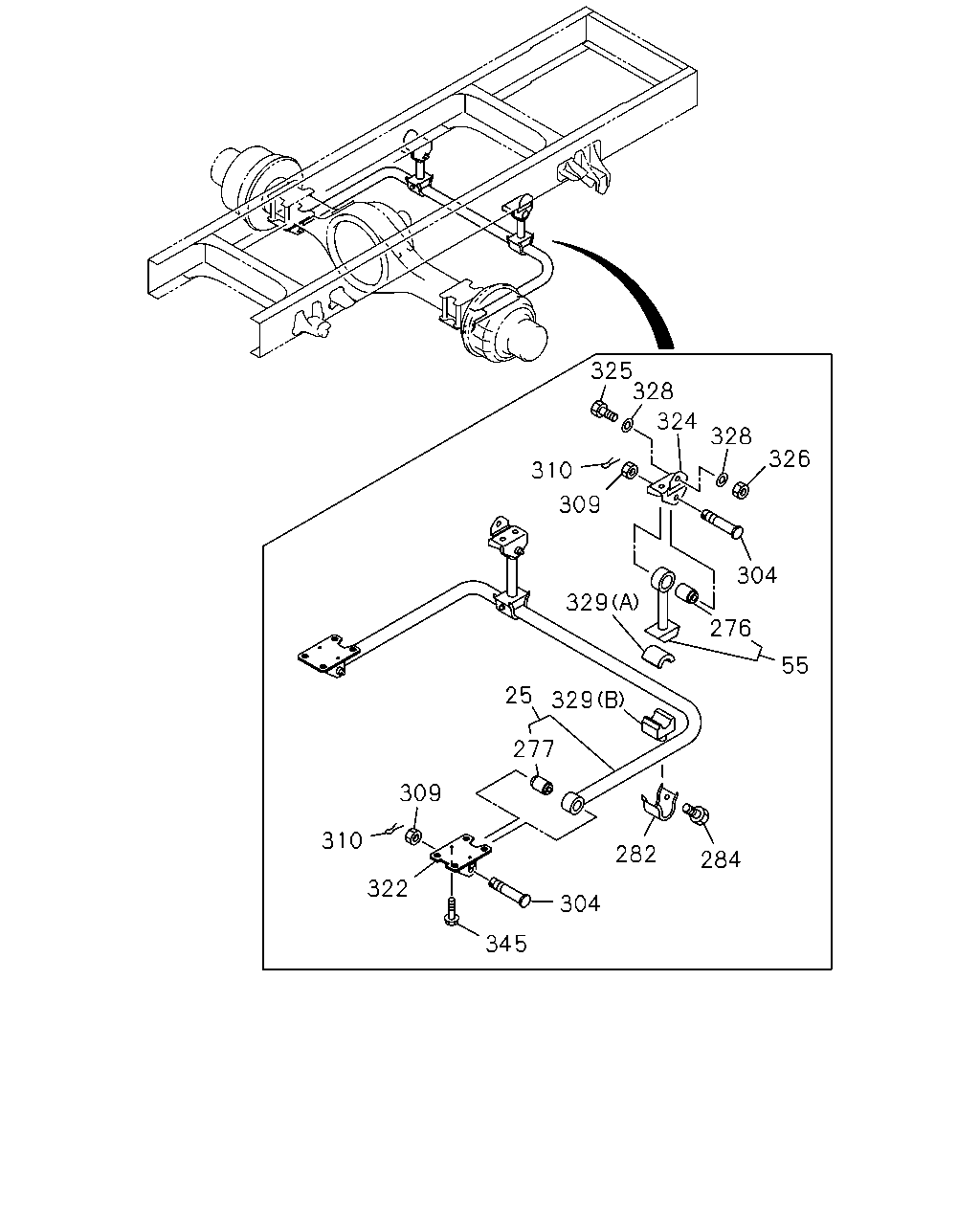

çizim 124768
325 328 324 328 326 310 309 304 276 55 329 25 329 277 309 310 322 345 304 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 0809-0907 ●
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 0908- ● ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 0809-0907 ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 0908- ● ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 0809-0907 ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 0908- ● ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 0809-0907 ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 0908- ● ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 0809-0907 ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 0908- ● ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 0809-0907 ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 0908- ● ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 0809-0907 ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 0908- ● ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 0809-0907 ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 0908- ● ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 0809-0907 ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 0908- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 0809-0907 ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 0908- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 0809-0907 ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 0908- ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 0809-0907 ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 0908- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 0809-0907 ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 0908- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 0809-0907 ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 0908- ● ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 04 1 0908- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0809-0907 ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0908-0908 ● ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 06 1 0908- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0908- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 10 1 0908- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-0 12 1 0809-0907 ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-0 12 1 0908-0908 ● ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 12 1 0908- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-1 12 1 0908- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 0809-0907 ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 0908- ● ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 0809-0907 ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 0908- ● ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 0809-0907 ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
