◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#68010) — 124 parça
çizim 124082
138 377 140 377 137 377 140 377 138 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0803-0907 ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98012-957-0 02 1 0908-0912 ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1001- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0803-0907 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 0908- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0803-0907 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 0908- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 12 1 0803-0907 ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 12 1 0908-0910 ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 0911- ● ●

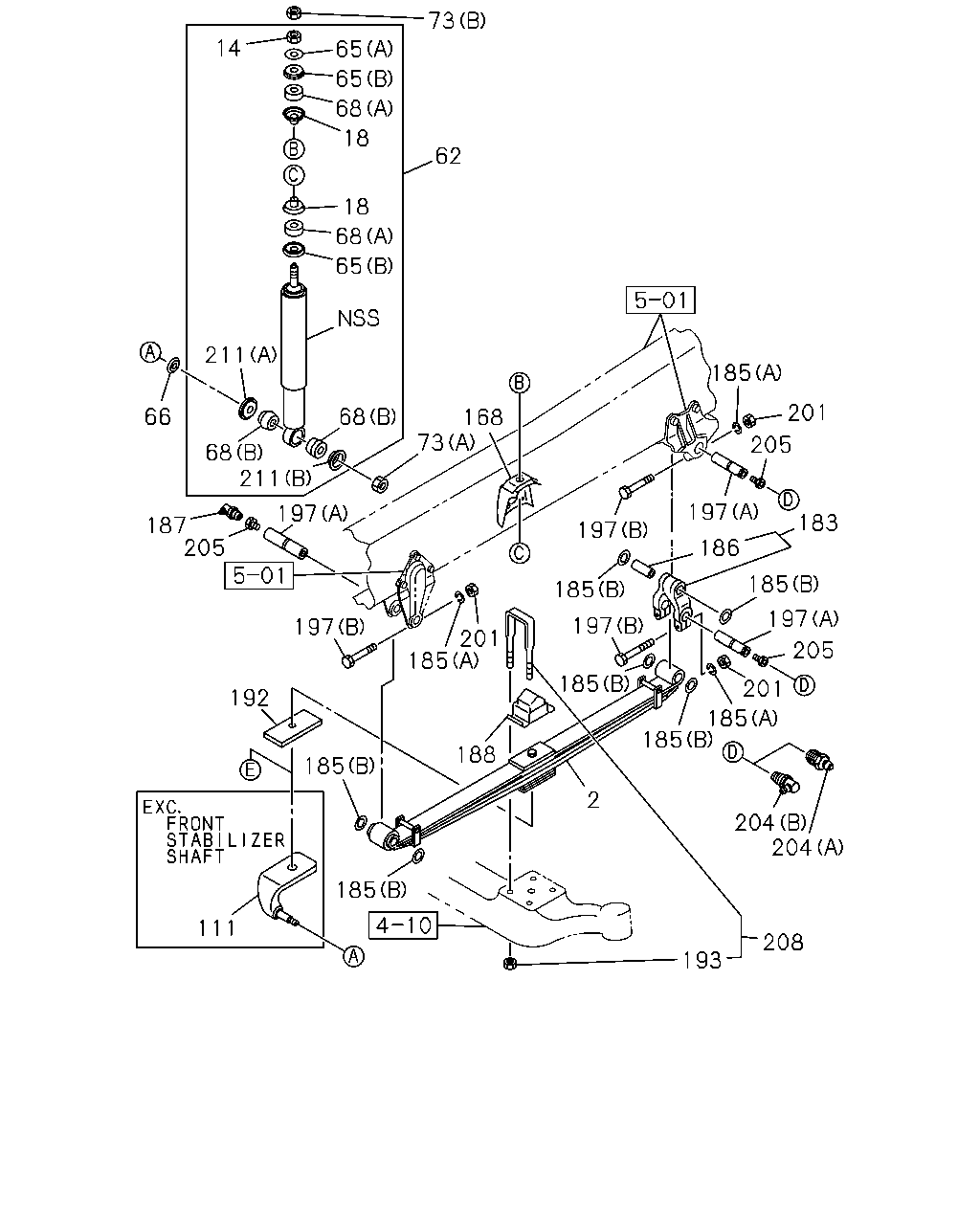

çizim 193655
14 65 73 65 68 18 18 62 68 68 68 168 211 66 211 187 197 205 73 197 192 185 111 185 188 185 201 2 197 185 197 185 193 208 204 204 185 185 201 205 197 185 186 197 183 205 201 185 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98069-483-0 02 1 1008-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 0803-0907 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 0908-1007 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98010-512-0 02 1 0908-1007 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1008-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98010-512-0 02 1 1008-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98010-512-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98010-512-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 0803-1007 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 0803-1007 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1008-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1008-1302 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 7-LEAF 		8-98029-096-0 02 1 1303- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1303- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0803-0907 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0908- ● ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 1008- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0803-0907 ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0908-1007 ● ●
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> ID=20.8 		9-51631-041-0 04 1 1008- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> 		8-98029-369-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 0803-0907 ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 0908-1007 ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> 		8-98029-372-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 0803-0907 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 0908-1007 ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0810-0907 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 0908-1007 ● ●
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1008- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1008- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 1008- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 1008- ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0803-0907 ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 0908-1007 ● ●
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=16.5 		9-51631-040-0 04 1 1008- ●
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 1008- ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 0803-0907 ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 0908- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 1008- ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0803-0907 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0908- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0803-0907 ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0908-1007 ● ●
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> (A) 		9-51631-039-0 04 1 1008- ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1008- ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 0803-0907 ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 0908- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 0803-0907 ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 0908- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0803-0907 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0908-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0803-0907 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0908-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0803-0907 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0908- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0803-0907 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0908- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0803-0907 ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0908- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0803-0907 ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0908- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0803-0902 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-0907 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0908- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0803-0907 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 0803-1007 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 1008- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-125-1 02 1 1008- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 0803-0907 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 0908-1007 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 0908-1007 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1008- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1008- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 0803-0907 ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 0908- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0803-0907 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0908-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0803-0907 ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0908- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0803-0907 ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0908- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0803-0907 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0908- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0803-0907 ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0908- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0803-0907 ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0803-0907 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0908- ● ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-380-1 04 1 1008-1206 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0803-0907 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0908-1007 ● ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-269-2 04 1 1008-1206 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 1008-1206 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1207-1302 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-1302 ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1303- ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1303- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0803-0907 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0908- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0803-0907 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0908- ● ●
