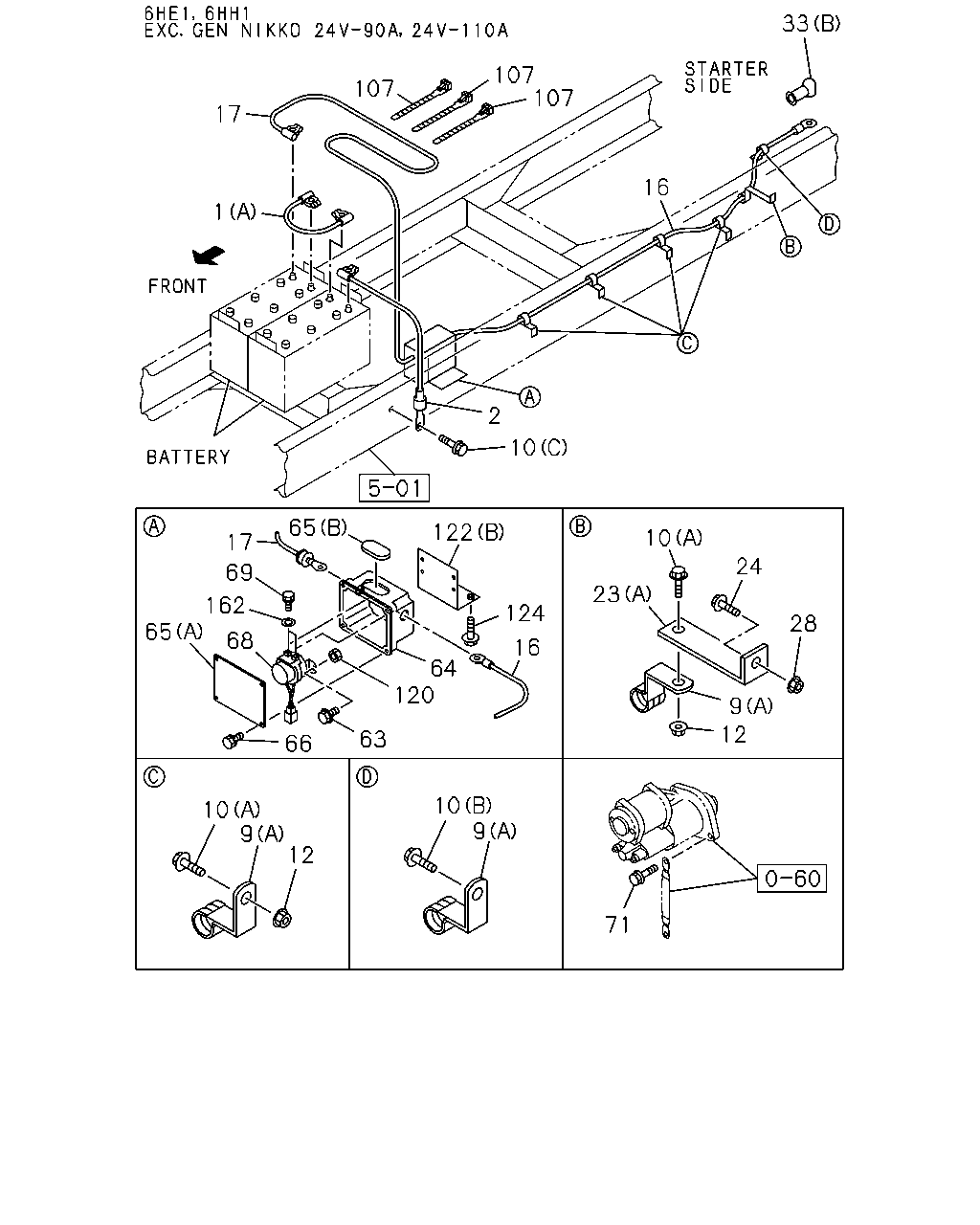

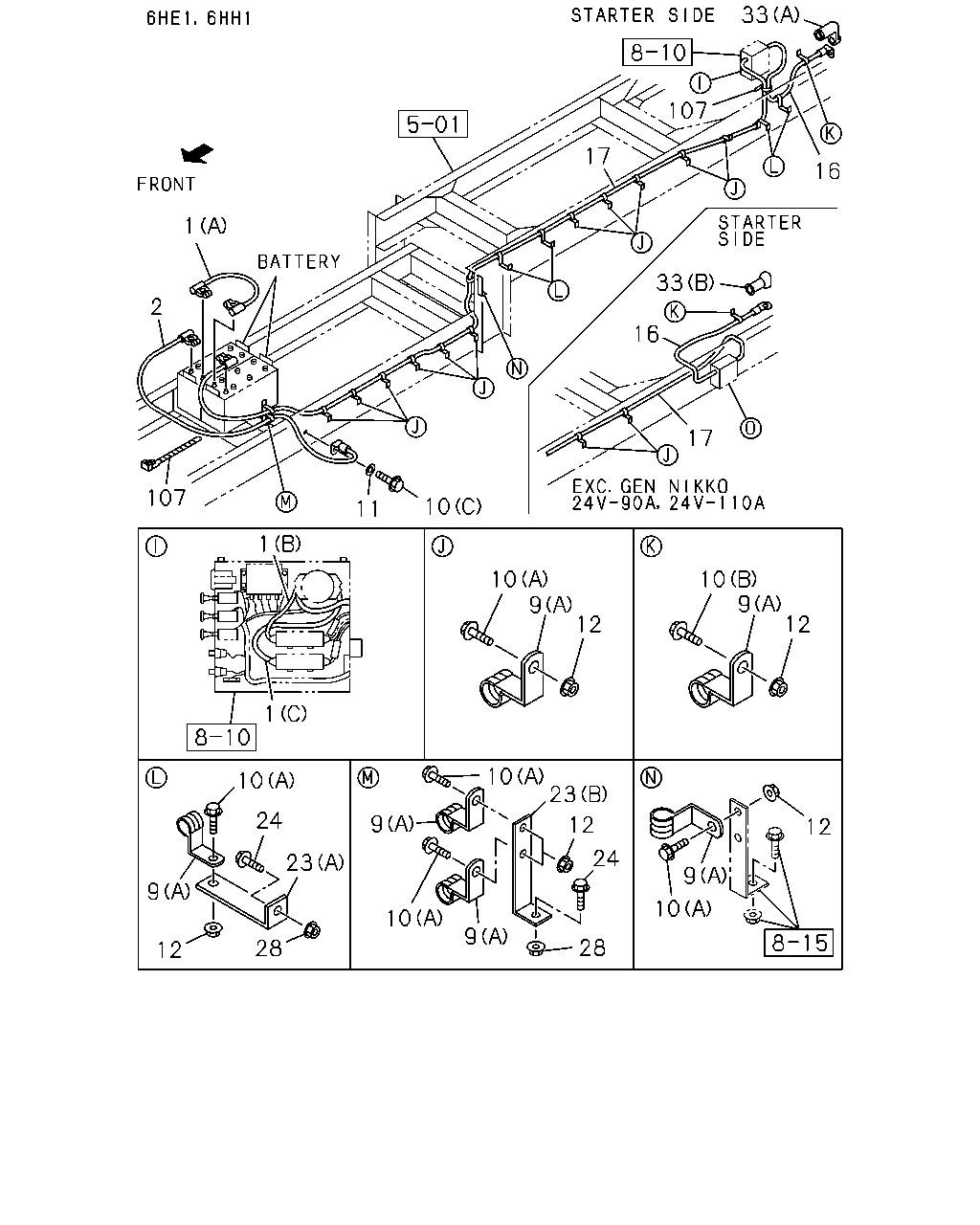

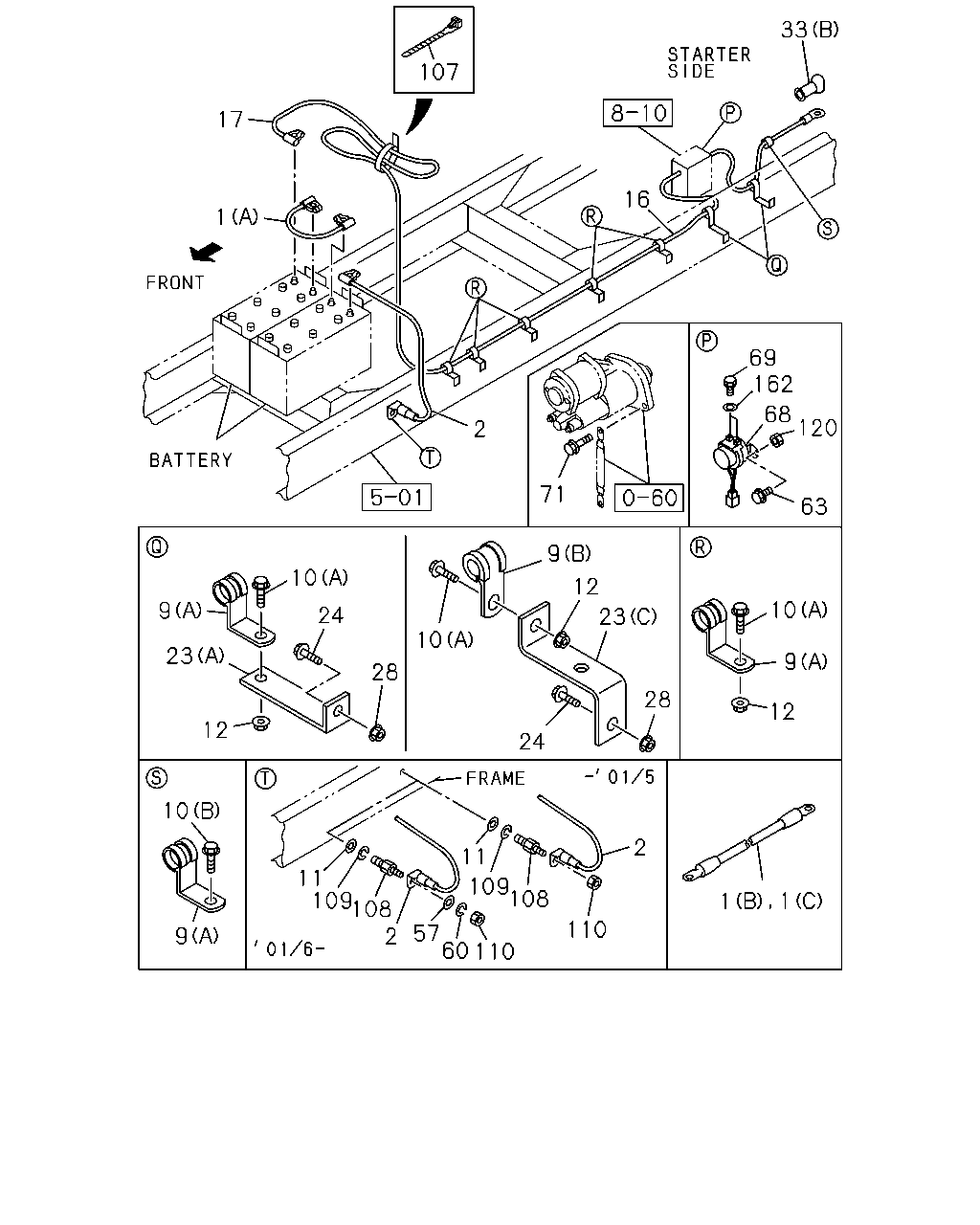

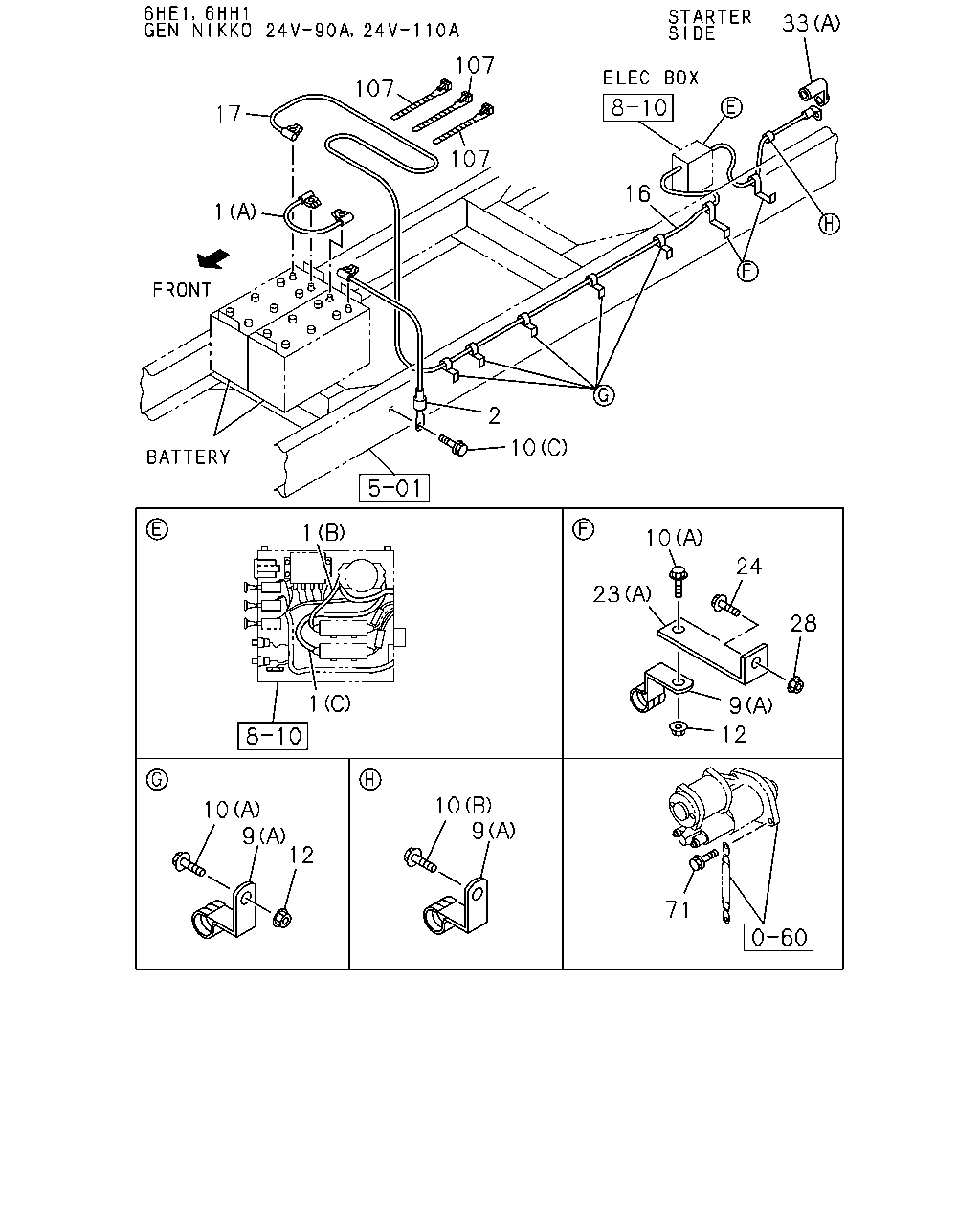

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#6801) — 358 parça

65 122 17 69 162 124 16 65 68 64 120 149 63 66 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CABLE; STARTER TO RELAY STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808	●
16	CABLE; STARTER TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - RELAY L=2400	1-82650-274-2	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - RELAY L=2400	1-82650-274-2	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY STARTER - RELAY L=2500	8-97530-958-0	01	1	9912-			●
17	CABLE; BATTERY (+) TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=2600	1-82650-271-1	01	1	9806-9911	●	●
17	CABLE; BATTERY (+) TO RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-312-0	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-272-1	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY L=6000	8-97530-250-0	01	1	9912-			●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9806-9911	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9912-			●
64	BOX; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82699-947-0	01	1	9806-9911	●	●
64	BOX; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK>	1-82699-947-0	01	1	9806-9911		●
65	COVER; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A)	1-82699-353-1	01	1	9806-9911	●	●
65	COVER; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (A)	1-82699-353-1	01	1	9806-9911		●
65	COVER; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (B)	1-82699-980-0	01	1	9806-9911	●	●
65	COVER; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (B)	1-82699-980-0	01	1	9806-9911		●
66	BOLT; COVER,BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9806-9911	●	●
66	BOLT; COVER,BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9806-9911		●
68	RELAY; BATTERY	1-82550-282-0	01	1	9806-9911	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9912-			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9806-9911	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9912-0512			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9806-9911	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9912-0512			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-			●
120	NUT; RELAY BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-			●
122	BRACKET; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (B)	1-53618-029-0	01	1	9806-9911	●	●
122	BRACKET; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (A)	1-82699-999-0	01	1	9806-9911		●
124	BOLT; RELAY,BATTERY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M10X45 FLANGE	0-28081-045-0	02	1	9806-9911	●	●
124	BOLT; RELAY,BATTERY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
149	NUT; BRKT BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9806-9911	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9912-0605			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-			●

33 107 107 17 107 16 1 2 10 1 10 24 23 28 1 9 12 10 9 10 9 12 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (A) <+> - <-> L=500	1-82650-130-0	01	1	9806-9911	●	●
1	CABLE; BATTERY (B) RED <+> - FUSE L=350	8-97530-251-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) RED <+> - FUSE L=350	1-82650-275-1	01	1	9806-9911		●
1	CABLE; BATTERY (C) WHITE <+> - FUSE L=550	8-97530-252-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (C) WHITE <+> - FUSE L=550	1-82650-276-1	01	1	9806-9911		●
1	CABLE; BATTERY (A) <+> - <-> C L=500	8-97530-257-0	01	1	9912-			●
2	CABLE; BATTERY <+> - FRAME L=1400	1-82650-273-0	01	1	9806-9911	●	●
2	CABLE; BATTERY <+> - FRAME L=1400	8-97530-253-0	01	1	9912-			●
9	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	01	1	0002-			●
9	CLIP; BATTERY CABLE EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	06	1	9806-9911	●	●
9	CLIP; BATTERY CABLE CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	19	1	9806-9911		●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9912-0001			●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	07	1	0002-			●
9	CLIP; BATTERY CABLE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
10	BOLT; BATTERY CABLE CLIP EXC. CTR SPLIT FRAME<TLW> (C) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	18	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28650-830-0	07	1	0601-			●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (C) M10X30 W/LK&PL WASHER	8-97087-206-0	01	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	07	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●
12	NUT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	19	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	07	1	9912-0602			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
12	NUT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	07	1	9806-9911		●
16	CABLE; STARTER TO RELAY STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808	●
16	CABLE; STARTER TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - RELAY L=2400	1-82650-274-2	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - RELAY L=2400	1-82650-274-2	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY STARTER - RELAY L=2500	8-97530-958-0	01	1	9912-			●
17	CABLE; BATTERY (+) TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=2600	1-82650-271-1	01	1	9806-9911	●	●
17	CABLE; BATTERY (+) TO RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-312-0	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-272-1	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY L=6000	8-97530-250-0	01	1	9912-			●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-38329-071-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	01	1	9806-9911	●	●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	04	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	02	1	9912-0001			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (B) L=120	1-82699-465-0	01	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	02	1	9806-9911		●
24	BOLT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●
24	BOLT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9912-0512			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
24	BOLT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
28	NUT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●
28	NUT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	NUT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
33	CAP; INSULATOR EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B)	1-82699-431-0	01	1	9806-9808	●	●
33	CAP; INSULATOR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	1-82699-431-0	01	1	9809-9911	●	●
33	CAP; INSULATOR (B)	1-82699-431-0	01	1	9912-			●
33	CAP; INSULATOR GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A)	1-82699-206-0	01	1	9806-9808		●
33	CAP; INSULATOR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	1-82699-206-0	01	1	9809-9911	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9806-9911	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9912-0512			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-			●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9806-9911	●	●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9912-			●
107	CLIP; BAND CTR SPLIT FRAME<TLW> L=140	5-09707-031-1	02	1	9806-9911		●

33 107 107 107 17 16 1 2 10 65 122 10 17 24 69 23 162 124 28 65 68 16 64 120 9 12 63 66 10 9 10 9 12 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (A) <+> - <-> L=500	1-82650-130-0	01	1	9806-9911	●	●
1	CABLE; BATTERY (B) RED <+> - FUSE L=350	8-97530-251-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) RED <+> - FUSE L=350	1-82650-275-1	01	1	9806-9911		●
1	CABLE; BATTERY (C) WHITE <+> - FUSE L=550	8-97530-252-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (C) WHITE <+> - FUSE L=550	1-82650-276-1	01	1	9806-9911		●
1	CABLE; BATTERY (A) <+> - <-> C L=500	8-97530-257-0	01	1	9912-			●
2	CABLE; BATTERY <+> - FRAME L=1400	1-82650-273-0	01	1	9806-9911	●	●
2	CABLE; BATTERY <+> - FRAME L=1400	8-97530-253-0	01	1	9912-			●
9	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	01	1	0002-			●
9	CLIP; BATTERY CABLE EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	06	1	9806-9911	●	●
9	CLIP; BATTERY CABLE CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	19	1	9806-9911		●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9912-0001			●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	07	1	0002-			●
9	CLIP; BATTERY CABLE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
10	BOLT; BATTERY CABLE CLIP EXC. CTR SPLIT FRAME<TLW> (C) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	18	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28650-830-0	07	1	0601-			●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (C) M10X30 W/LK&PL WASHER	8-97087-206-0	01	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	07	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●
12	NUT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	19	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	07	1	9912-0602			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
12	NUT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	07	1	9806-9911		●
16	CABLE; STARTER TO RELAY STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808	●
16	CABLE; STARTER TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - RELAY L=2400	1-82650-274-2	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - RELAY L=2400	1-82650-274-2	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY STARTER - RELAY L=2500	8-97530-958-0	01	1	9912-			●
17	CABLE; BATTERY (+) TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=2600	1-82650-271-1	01	1	9806-9911	●	●
17	CABLE; BATTERY (+) TO RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-312-0	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-272-1	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY L=6000	8-97530-250-0	01	1	9912-			●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-38329-071-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	01	1	9806-9911	●	●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	04	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	02	1	9912-0001			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (B) L=120	1-82699-465-0	01	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	02	1	9806-9911		●
24	BOLT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●
24	BOLT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9912-0512			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
24	BOLT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
28	NUT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●
28	NUT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	NUT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
33	CAP; INSULATOR EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B)	1-82699-431-0	01	1	9806-9808	●	●
33	CAP; INSULATOR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	1-82699-431-0	01	1	9809-9911	●	●
33	CAP; INSULATOR (B)	1-82699-431-0	01	1	9912-			●
33	CAP; INSULATOR GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A)	1-82699-206-0	01	1	9806-9808		●
33	CAP; INSULATOR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	1-82699-206-0	01	1	9809-9911	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9806-9911	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9912-			●
64	BOX; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82699-947-0	01	1	9806-9911	●	●
64	BOX; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK>	1-82699-947-0	01	1	9806-9911		●
65	COVER; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A)	1-82699-353-1	01	1	9806-9911	●	●
65	COVER; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (A)	1-82699-353-1	01	1	9806-9911		●
65	COVER; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (B)	1-82699-980-0	01	1	9806-9911	●	●
65	COVER; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (B)	1-82699-980-0	01	1	9806-9911		●
66	BOLT; COVER,BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9806-9911	●	●
66	BOLT; COVER,BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9806-9911		●
68	RELAY; BATTERY	1-82550-282-0	01	1	9806-9911	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9912-			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9806-9911	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9912-0512			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9806-9911	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9912-0512			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-			●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9806-9911	●	●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9912-			●
107	CLIP; BAND CTR SPLIT FRAME<TLW> L=140	5-09707-031-1	02	1	9806-9911		●
120	NUT; RELAY BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-			●
122	BRACKET; BATTERY RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (B)	1-53618-029-0	01	1	9806-9911	●	●
122	BRACKET; BATTERY RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (A)	1-82699-999-0	01	1	9806-9911		●
124	BOLT; RELAY,BATTERY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M10X45 FLANGE	0-28081-045-0	02	1	9806-9911	●	●
124	BOLT; RELAY,BATTERY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9806-9911	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9912-0605			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-			●

33 107 17 16 1 69 162 68 120 2 71 63 9 10 12 10 9 24 23 10 23 9 28 28 12 12 24 10 2 11 11 109 108 2 109 108 1 1 110 57 9 60 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (A) <+> - <-> L=500	1-82650-130-0	01	1	9806-9911	●	●
1	CABLE; BATTERY (B) RED <+> - FUSE L=350	8-97530-251-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) RED <+> - FUSE L=350	1-82650-275-1	01	1	9806-9911		●
1	CABLE; BATTERY (C) WHITE <+> - FUSE L=550	8-97530-252-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (C) WHITE <+> - FUSE L=550	1-82650-276-1	01	1	9806-9911		●
1	CABLE; BATTERY (A) <+> - <-> C L=500	8-97530-257-0	01	1	9912-			●
2	CABLE; BATTERY <+> - FRAME L=1400	1-82650-273-0	01	1	9806-9911	●	●
2	CABLE; BATTERY <+> - FRAME L=1400	8-97530-253-0	01	1	9912-			●
9	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	01	1	0002-			●
9	CLIP; BATTERY CABLE EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	06	1	9806-9911	●	●
9	CLIP; BATTERY CABLE CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	19	1	9806-9911		●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9912-0001			●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	07	1	0002-			●
9	CLIP; BATTERY CABLE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
10	BOLT; BATTERY CABLE CLIP EXC. CTR SPLIT FRAME<TLW> (C) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	18	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28650-830-0	07	1	0601-			●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (C) M10X30 W/LK&PL WASHER	8-97087-206-0	01	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	07	1	9806-9911		●
11	WASHER; BATTERY CABLE EARTH CTR SPLIT FRAME<TLW> ID=10.5 OD=22	9-09160-610-0	01	1	9806-9911		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9912-0605			●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-			●
12	NUT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●
12	NUT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	19	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	07	1	9912-0602			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
12	NUT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	07	1	9806-9911		●
16	CABLE; STARTER TO RELAY STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808	●
16	CABLE; STARTER TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - RELAY L=2400	1-82650-274-2	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - RELAY L=2400	1-82650-274-2	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY STARTER - RELAY L=2500	8-97530-958-0	01	1	9912-			●
17	CABLE; BATTERY (+) TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=2600	1-82650-271-1	01	1	9806-9911	●	●
17	CABLE; BATTERY (+) TO RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-312-0	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-272-1	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY L=6000	8-97530-250-0	01	1	9912-			●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-38329-071-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	01	1	9806-9911	●	●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	04	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	02	1	9912-0001			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (B) L=120	1-82699-465-0	01	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	02	1	9806-9911		●
24	BOLT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●
24	BOLT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9912-0512			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
24	BOLT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
28	NUT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●
28	NUT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	NUT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
33	CAP; INSULATOR EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B)	1-82699-431-0	01	1	9806-9808	●	●
33	CAP; INSULATOR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	1-82699-431-0	01	1	9809-9911	●	●
33	CAP; INSULATOR (B)	1-82699-431-0	01	1	9912-			●
33	CAP; INSULATOR GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A)	1-82699-206-0	01	1	9806-9808		●
33	CAP; INSULATOR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	1-82699-206-0	01	1	9809-9911	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0106-			●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0106-0603			●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-			●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9806-9911	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9912-			●
68	RELAY; BATTERY	1-82550-282-0	01	1	9806-9911	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9912-			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9806-9911	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9912-0512			●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9806-9911	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9912-0512			●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-			●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9806-9911	●	●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9912-			●
107	CLIP; BAND CTR SPLIT FRAME<TLW> L=140	5-09707-031-1	02	1	9806-9911		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9912-			●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9912-0603			●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-			●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9912-			●
120	NUT; RELAY BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9806-9911	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9912-0605			●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-			●

33 107 17 16 1 33 2 16 17 107 10 11 1 10 9 10 9 12 12 1 10 23 10 24 9 12 12 24 23 9 9 10 10 9 28 28 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY (A) <+> - <-> L=500	1-82650-130-0	01	1	9806-9911	●	●
1	CABLE; BATTERY (B) RED <+> - FUSE L=350	8-97530-251-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) RED <+> - FUSE L=350	1-82650-275-1	01	1	9806-9911		●
1	CABLE; BATTERY (C) WHITE <+> - FUSE L=550	8-97530-252-0	01	1	9912-			●
1	CABLE; BATTERY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (C) WHITE <+> - FUSE L=550	1-82650-276-1	01	1	9806-9911		●
1	CABLE; BATTERY (A) <+> - <-> C L=500	8-97530-257-0	01	1	9912-			●
2	CABLE; BATTERY <+> - FRAME L=1400	1-82650-273-0	01	1	9806-9911	●	●
2	CABLE; BATTERY <+> - FRAME L=1400	8-97530-253-0	01	1	9912-			●
9	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	01	1	0002-			●
9	CLIP; BATTERY CABLE EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	06	1	9806-9911	●	●
9	CLIP; BATTERY CABLE CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	19	1	9806-9911		●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9912-0001			●
9	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	07	1	0002-			●
9	CLIP; BATTERY CABLE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) ID=18 H=23 L=28	1-09701-070-0	08	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28080-816-0	01	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
10	BOLT; BATTERY CABLE CLIP EXC. CTR SPLIT FRAME<TLW> (C) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	05	1	9806-9911	●	●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	18	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28680-830-0	07	1	9912-0512			●
10	BOLT; BATTERY CABLE CLIP (A) M8X30 FLANGE	0-28650-830-0	07	1	0601-			●
10	BOLT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> (C) M10X30 W/LK&PL WASHER	8-97087-206-0	01	1	9806-9911		●
10	BOLT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	07	1	9806-9911		●
11	WASHER; BATTERY CABLE EARTH CTR SPLIT FRAME<TLW> ID=10.5 OD=22	9-09160-610-0	01	1	9806-9911		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9912-0605			●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-			●
12	NUT; BATTERY CABLE CLIP EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911	●	●
12	NUT; BATTERY CABLE CLIP CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	19	1	9806-9911		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	07	1	9912-0602			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
12	NUT; BATTERY CABLE CLIP GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	07	1	9806-9911		●
16	CABLE; STARTER TO RELAY STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808	●
16	CABLE; STARTER TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - ELEC BOX L=2300	1-82650-270-3	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) STARTER - RELAY L=2400	1-82650-274-2	01	1	9806-9808		●
16	CABLE; STARTER TO RELAY OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> STARTER - RELAY L=2400	1-82650-274-2	01	1	9809-9911	●	●
16	CABLE; STARTER TO RELAY STARTER - RELAY L=2500	8-97530-958-0	01	1	9912-			●
17	CABLE; BATTERY (+) TO RELAY EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=2600	1-82650-271-1	01	1	9806-9911	●	●
17	CABLE; BATTERY (+) TO RELAY CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-312-0	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=6000	1-82650-272-1	01	1	9806-9911		●
17	CABLE; BATTERY (+) TO RELAY L=6000	8-97530-250-0	01	1	9912-			●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-38329-071-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	01	1	9806-9911	●	●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	04	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	02	1	9912-0001			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0002-			●
23	BRACKET; CABLE CLIP TO FRAME CTR SPLIT FRAME<TLW> (B) L=120	1-82699-465-0	01	1	9806-9911		●
23	BRACKET; CABLE CLIP TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> (A) L=95	1-82699-085-0	02	1	9806-9911		●
24	BOLT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●	●
24	BOLT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	05	1	9806-9911		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9912-0512			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
24	BOLT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911		●
28	NUT; BRKT TO FRAME EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	01	1	9806-9911	●	●
28	NUT; BRKT TO FRAME CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	05	1	9806-9911		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9912-0602			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-			●
28	NUT; BRKT TO FRAME GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911		●
33	CAP; INSULATOR EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B)	1-82699-431-0	01	1	9806-9808	●	●
33	CAP; INSULATOR EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	1-82699-431-0	01	1	9809-9911	●	●
33	CAP; INSULATOR (B)	1-82699-431-0	01	1	9912-			●
33	CAP; INSULATOR GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A)	1-82699-206-0	01	1	9806-9808		●
33	CAP; INSULATOR OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	1-82699-206-0	01	1	9809-9911	●	●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9806-9911	●	●
107	CLIP; BAND L=250	5-09707-030-1	03	1	9912-			●
107	CLIP; BAND CTR SPLIT FRAME<TLW> L=140	5-09707-031-1	02	1	9806-9911		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
