4-42 — POWER STEERING OIL PUMP (#68009) — 49 parça

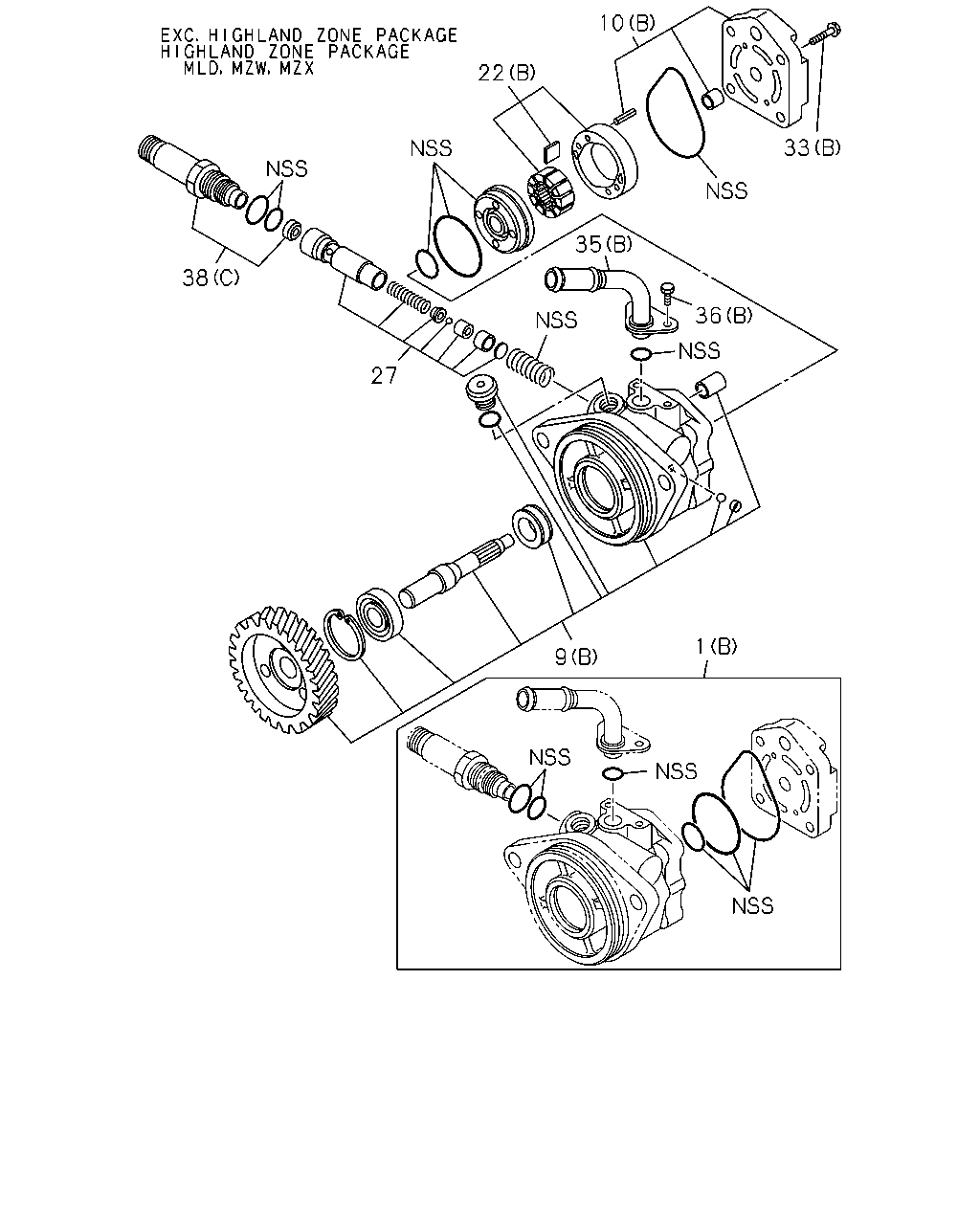

çizim 124208
1 9 36 33 10 22 38 27 35
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-85574-073-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-484-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		8-98073-203-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-485-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19511-160-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-477-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-341-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-476-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 1-19500-629-1 		8-98077-479-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-627-1 		1-19519-346-1 04 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-629-1 		8-98077-478-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-482-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		8-98080-055-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: A = 1-19500-627-1 		1-19519-124-1 02 1 -
36 BOLT; CONN,PIPE
(B) ASM PART: B = 1-19500-629-1 		8-97184-763-0 02 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-627-1 		1-19519-307-1 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-343-1 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 1-19500-629-1 		8-98077-481-0 01 1 -

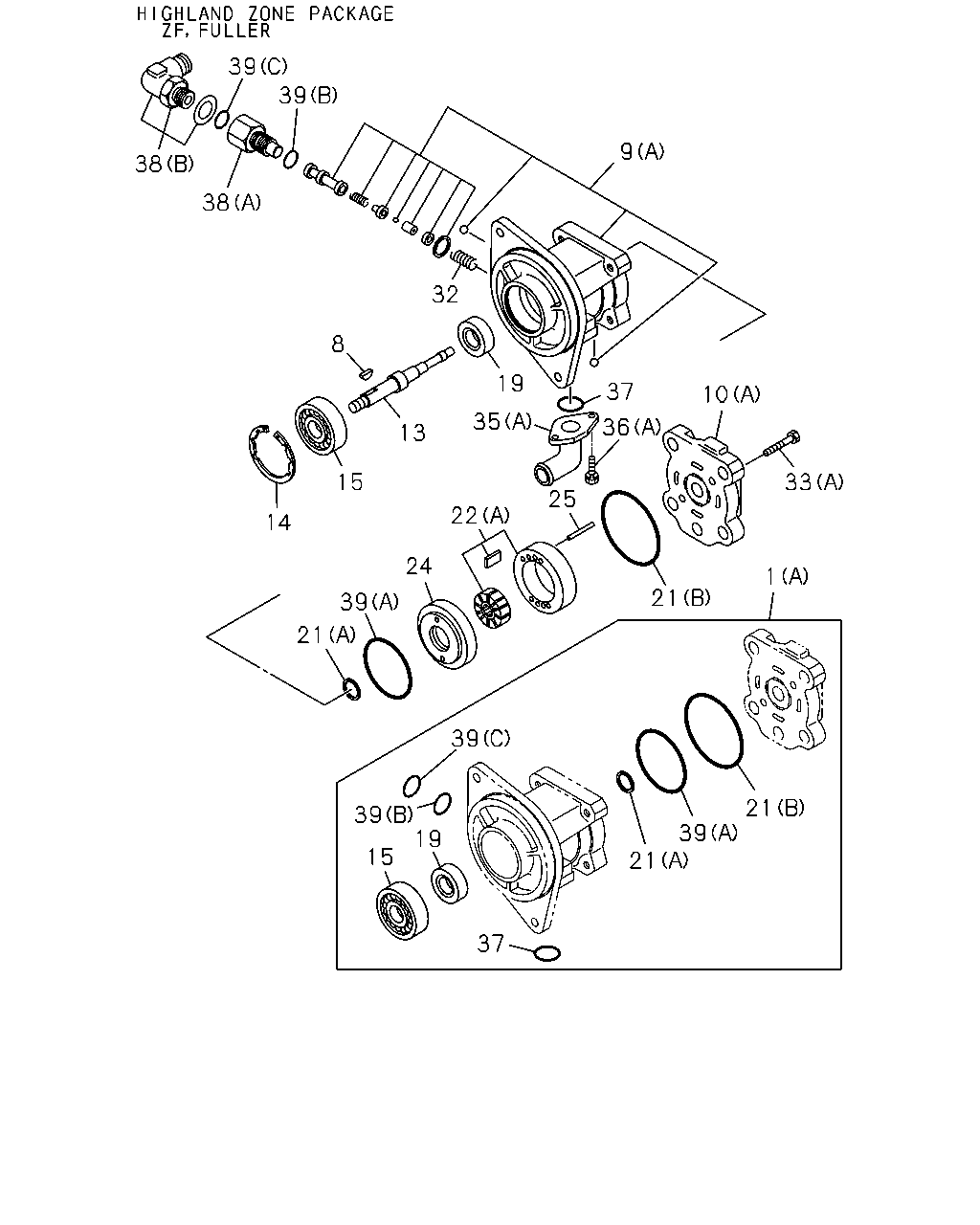

çizim 124278
39 39 15 19 37 21 39 21 1 24 33 10 37 36 25 21 39 24 22 14 15 13 35 19 32 8 9 39 39 38 38
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-85574-073-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-484-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-627-1 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		8-98073-203-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-485-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19511-160-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-477-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-627-1 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-264-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-627-1 		1-19519-345-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-627-1 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-341-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-476-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-627-1 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-627-1 		1-33739-271-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-627-1 		8-94475-376-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-627-1 		1-19519-346-1 04 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-629-1 		8-98077-478-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 1-19500-629-1 		8-98077-482-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		8-98080-055-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: A = 1-19500-627-1 		1-19519-124-1 02 1 -
36 BOLT; CONN,PIPE
(B) ASM PART: B = 1-19500-629-1 		8-97184-763-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-627-1 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-627-1 		1-19519-307-1 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-343-1 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 1-19500-629-1 		8-98077-481-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-627-1 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-627-1 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-627-1 		9-48429-028-0 01 1 -
