4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#68006) — 112 parça

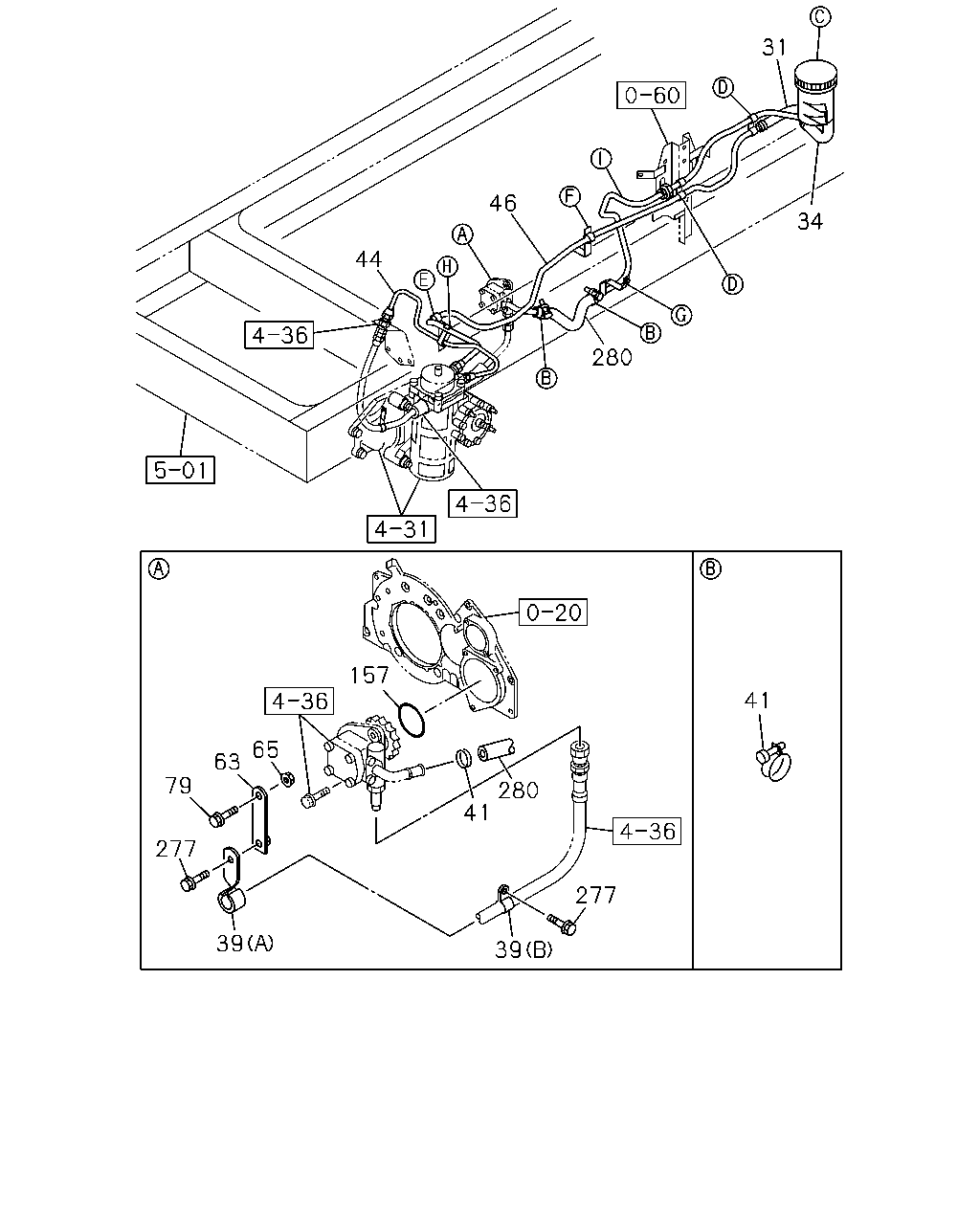

31 34 280 46 44 41 277 39 280 41 157 65 63 79 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0803-0907	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0908-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0803-0907	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0908-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0803-0907	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	0908-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0803-0907	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	0908-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0803-0907	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0908-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98079-653-1	01	1	0803-0907	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98079-653-1	01	1	0908-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1880	8-98094-859-0	01	1	1008-1009	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1853	8-98151-041-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1940	8-98092-729-0	01	1	0803-0806	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0807-0907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0908-1007	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=1874	8-98126-456-0	01	1	1008-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	1008-		●
63	BRACKET; CLIP,P/S BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47476-396-1	01	1	0804-	●
65	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
79	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	01	1	0803-0803	●
79	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0803-1107	●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0803-0907	●
79	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0908-1107	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-1107		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0803-0907	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0908-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-0907	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0908-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0803-0907	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	0908-	●	●

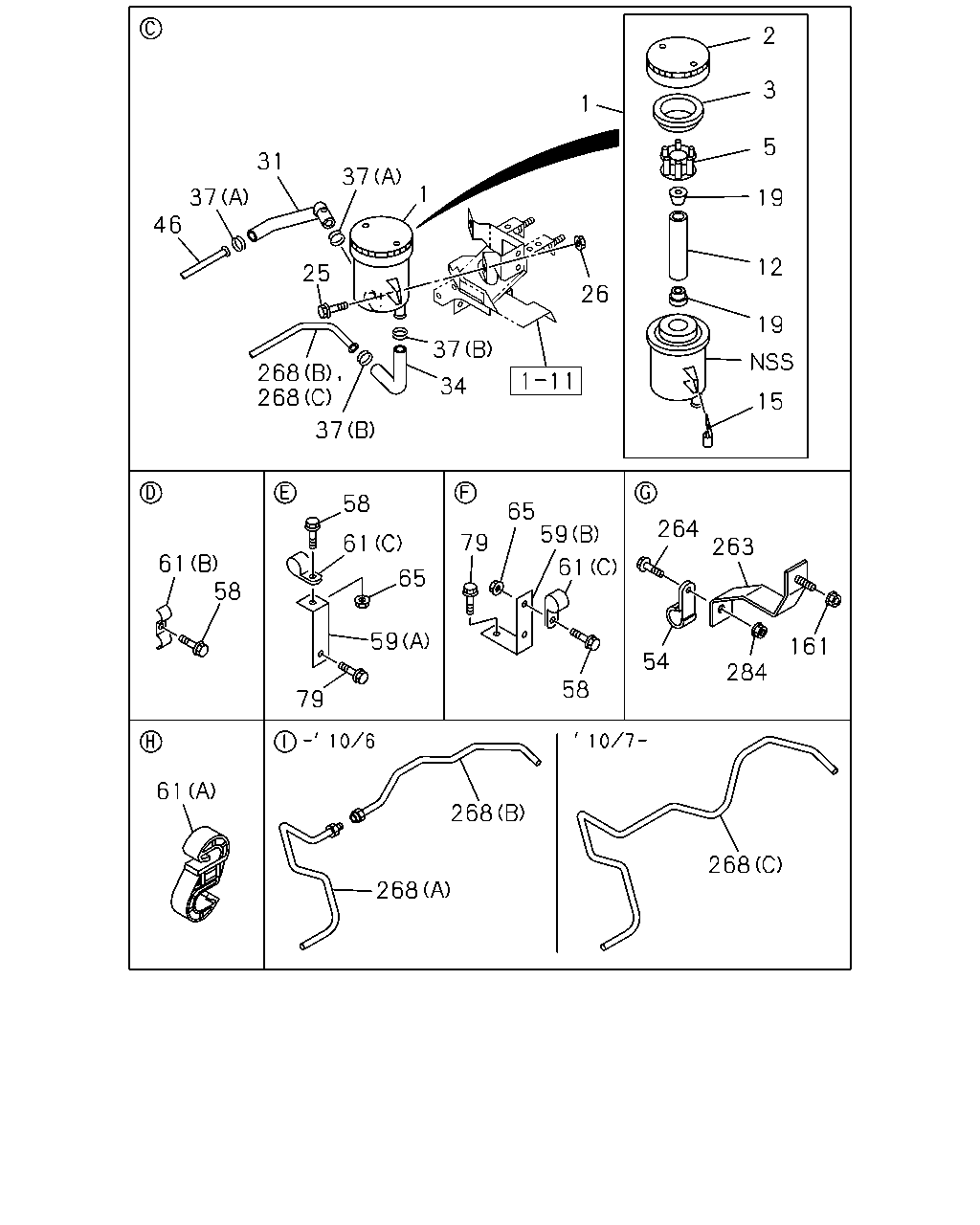

46 37 31 37 1 25 37 34 268 268 37 58 61 65 59 79 61 58 65 79 61 59 58 284 263 264 15 19 12 19 5 3 2 1 26 268 268 268 61 54 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0803-0907	●
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0908-1006	●	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0803-0907	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0908-1006	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0803-0907	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0908-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0803-0907	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0908-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0803-0907	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0908-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0803-0907	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0908-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0803-0907	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0908-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0907	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0803-0907	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0908-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0803-0907	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0908-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0803-0907	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0908-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0803-0907	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0908-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1880	8-98094-859-0	01	1	1008-1009	●
46	PIPE; OIL,P/S UNIT TO OIL TANK CAB SUSPENSION FULL FLOATING<W16> L=1853	8-98151-041-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1940	8-98092-729-0	01	1	0803-0806	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0807-0907	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	0908-1007	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. CAB SUSPENSION FULL FLOATING<W16> L=1874	8-98126-456-0	01	1	1008-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	1008-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0803-0907	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0908-	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-0907	●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0908-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-0907	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0908-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-0907	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0908-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	0803-0907	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	0908-	●	●
61	CLIP; OIL PIPE CAB SUSPENSION FULL FLOATING<W16> (A) ID=12 & 15	1-09709-281-1	01	1	1009-	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0803-0907	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0908-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-0907	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0908-	●	●
61	CLIP; OIL PIPE (A) ID=12 & 15	1-09709-281-1	01	1	0803-0905	●
65	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0804-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
79	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
79	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	01	1	0803-0803	●
79	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0803-1107	●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1108-	●	●
79	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0803-0907	●
79	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0908-1107	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-1107		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	0908-	●	●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0803-0907	●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	0908-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-0907	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0803-0907	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0908-1006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-047-0	01	1	1007-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0803-0907	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98097-499-0	01	1	0908-1006	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0908-	●	●
