4-30 — STEERING WHEEL AND COWL (#68003) — 118 parça

30 33 106 26 6 5 20 81 1 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1008-1206	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1207-1210	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1211-1211	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1212-	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1212-		●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0803-0907	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0908-1007	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1008-1206	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1008-1206		●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1207-1211	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1207-1211		●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1212-	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1212-		●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0803-0907	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0908-	●	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0803-0907	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0908-1007	●	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1008-1206	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1008-1206		●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1207-1211	●
6	SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1207-1211		●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1212-	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1212-		●
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0803-0907	●
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	0908-1007	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-985-1	01	1	1008-1206	●
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1008-1206		●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-985-1	01	1	1207-1211	●
20	SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1207-1211		●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-985-1	01	1	1212-	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-985-1	01	1	1212-		●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1008-1206	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1207-1210	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1211-1211	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1212-	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1212-		●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0803-0907	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0908-1007	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1008-1206	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1008-1206		●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1207-1211	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1207-1211		●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1212-	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1212-		●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	1008-	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0803-0907	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0908-1007	●	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1008-	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1008-		●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0803-0907	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0908-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0803-0907	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0908-	●	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> DARK GRAY	8-97405-987-0	01	1	0809-0907	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> DARK GRAY	8-97405-987-0	01	1	0908-1007	●	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-987-0	01	1	1008-1206	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> DARK GRAY	8-97405-987-0	01	1	1008-1206		●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-987-0	01	1	1207-1211	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> DARK GRAY	8-97405-987-0	01	1	1207-1211		●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97405-987-0	01	1	1212-	●
81	EMBLEM; STRG WHEEL CHEVROLET BRAND<RWE> EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-987-0	01	1	1212-		●
81	EMBLEM; STRG WHEEL DARK GRAY	8-97405-986-0	01	1	0803-0808	●
81	EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	0809-0907	●
81	EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	0908-1007	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER & PASSENGER(AK5),CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1008-1206	●
81	EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1008-1206		●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1207-1211	●
81	EMBLEM; STRG WHEEL EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1207-1211		●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1212-	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3),CHEVROLET BRAND<RWE> DARK GRAY	8-97405-986-0	01	1	1212-		●
106	BOLT; TORX	8-98231-397-0	02	1	0810-0907	●
106	BOLT; TORX	8-98231-397-0	02	1	0908-	●	●

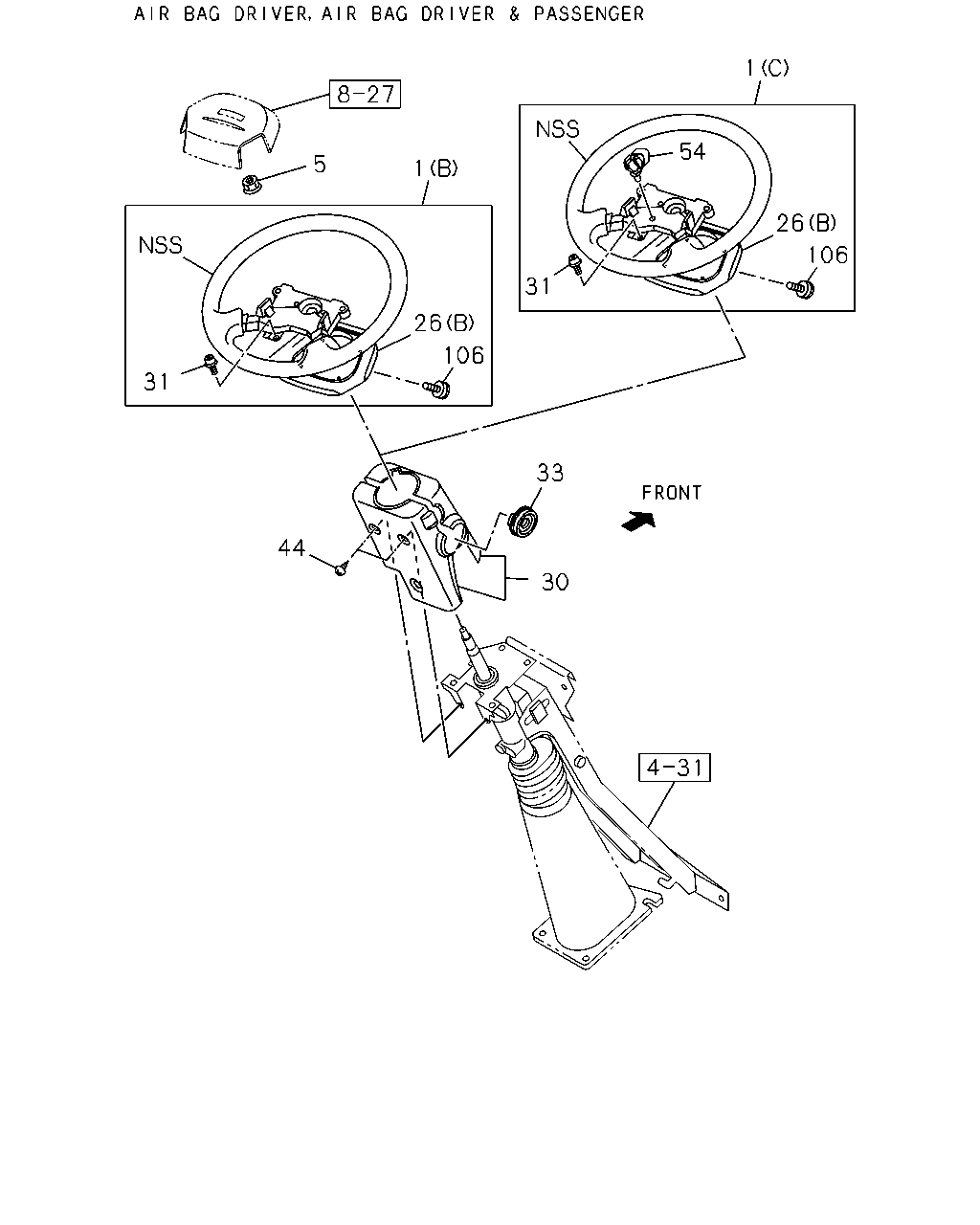

5 1 31 26 106 54 31 26 106 33 30 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1008-1206	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97407-720-0	01	1	1207-1210	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1211-1211	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) DARK GRAY	8-97423-998-0	01	1	1212-	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1212-		●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0803-0907	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	0908-1007	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1008-1206	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1008-1206		●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1207-1211	●
1	WHEEL; STRG (A) DARK GRAY	8-97412-555-1	01	1	1207-1211		●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97412-555-1	01	1	1212-	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1212-		●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0803-0907	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0908-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1008-1206	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97405-841-0	01	1	1207-1210	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1211-1211	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY	8-97421-978-0	01	1	1212-	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1212-		●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0803-0907	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	0908-1007	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1008-1206	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1008-1206		●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1207-1211	●
26	COVER; STRG WHEEL,LWR (A) DARK GRAY	8-97409-275-2	01	1	1207-1211		●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY	8-97409-275-2	01	1	1212-	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1212-		●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97411-503-1	01	1	1008-	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0803-0907	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0908-1007	●	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1008-	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1008-		●
31	SCREW; BOSS TO COVER AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1008-1206	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1207-1211	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12	8-97167-588-0	04	1	1212-	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1212-		●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0803-0907	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0908-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0803-0907	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0908-	●	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98165-703-0	01	1	1211-1211	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98165-703-0	01	1	1212-	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3)	8-98165-703-0	01	1	1212-		●
106	BOLT; TORX	8-98231-397-0	02	1	0810-0907	●
106	BOLT; TORX	8-98231-397-0	02	1	0908-	●	●
