◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#68002) — 53 parça

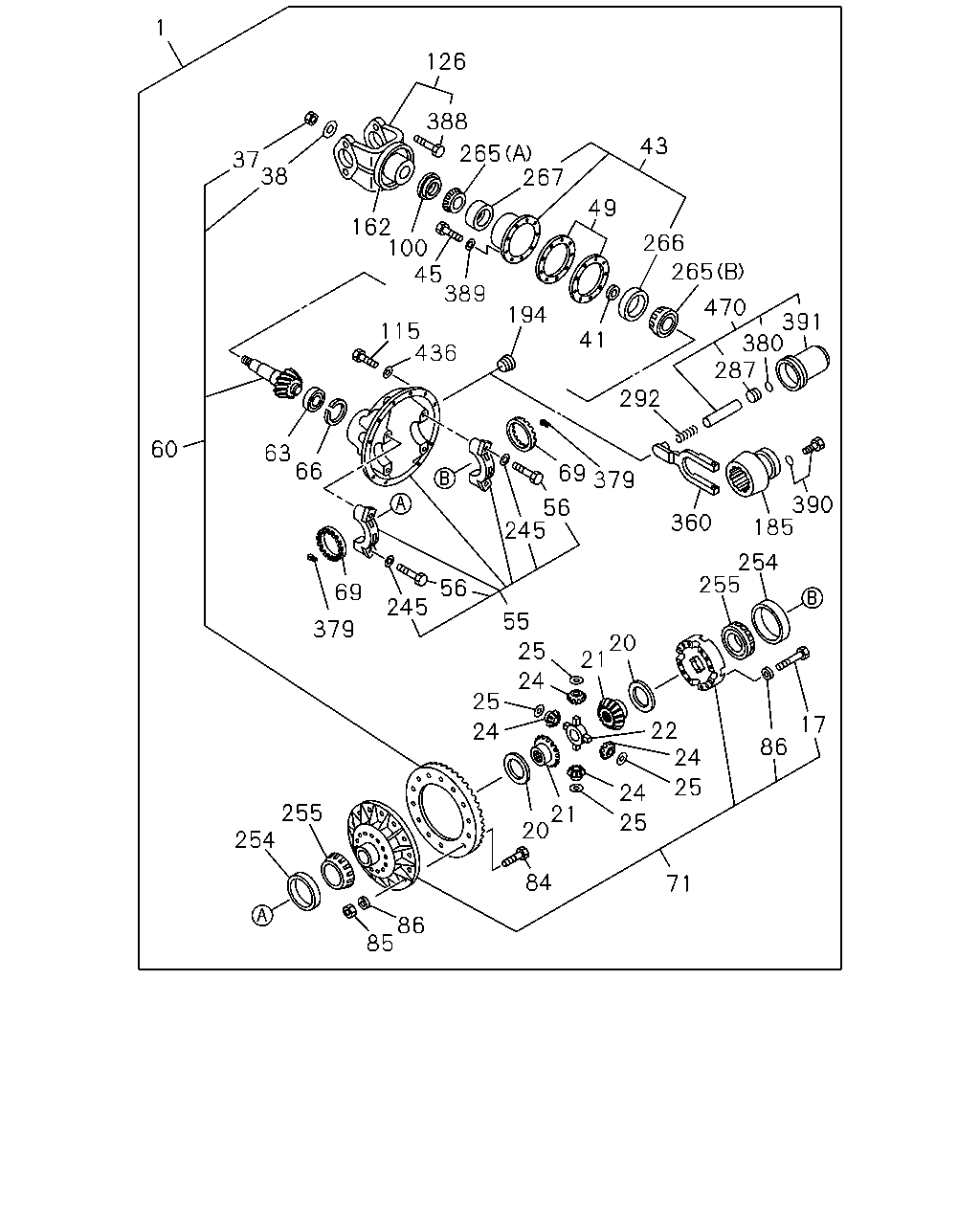

çizim 193793
1 37 38 126 388 265 267 43 49 266 265 470 391 380 287 292 41 194 389 45 100 162 115 436 60 63 66 69 379 245 56 245 56 69 379 360 185 390 254 255 20 21 25 55 24 25 24 84 20 21 25 24 25 24 22 86 17 71 86 85 255 254
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-742-0 01 1 1010-1107 ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-900-0 01 1 1010-1107 ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1010-1107 ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1010-1107 ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 1010-1107 ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1010-1107 ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1010-1107 ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1010-1107 ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1010-1107 ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 1010-1107 ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 1010-1107 ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 1010-1107 ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 1010-1107 ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 1010-1107 ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 1010-1107 ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1010-1107 ● ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-649-0 01 1 1010-1107 ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-661-0 01 1 1010-1107 ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 1010-1107 ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 1010-1107 ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 1010-1107 ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 1010-1107 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 1010-1107 ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 1010-1107 ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1010-1107 ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 1010-1107 ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1010-1107 ● ●
115 BOLT; DIFF CARRIER
EXC. DIFF LOCK<C3N> 		1-41119-072-0 01 1 1010-1107 ● ●
126 COUPLING; DRIVING PINION 1-37245-364-0 01 1 1010-1107 ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1010-1107 ● ●
185 COLLAR; SHIFT FORK
DIFF LOCK<C3N> 		1-41379-004-0 01 1 1010-1107 ● ●
194 PLUG
EXC. DIFF LOCK<C3N> 		1-41119-077-0 01 1 1010-1107 ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1010-1107 ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 1010-1107 ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 1010-1107 ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 1010-1107 ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 1010-1107 ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1010-1107 ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 1010-1107 ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 1010-1107 ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 1010-1107 ● ●
287 PISTON; SHIFT UNIT
DIFF LOCK<C3N> 		1-48262-013-0 01 1 1010-1107 ● ●
292 SPRING; PISTON
DIFF LOCK<C3N> 		1-48265-008-0 01 1 1010-1107 ● ●
360 FORK; SHIFT
DIFF LOCK<C3N> 		1-41371-008-0 01 1 1010-1107 ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 1010-1107 ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 1010-1107 ● ●
380 GASKET; PISTON
DIFF LOCK<C3N> 		1-48269-075-0 01 1 1010-1107 ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 1010-1107 ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 1010-1107 ● ●
390 BOLT; CAGING
DIFF LOCK<C3N> 		1-48269-071-0 01 1 1010-1107 ● ●
391 CYLINDER; SHIFT
DIFF LOCK<C3N> 		1-48269-070-0 01 1 1010-1107 ● ●
436 WASHER; PL,DIFF CARRIER
EXC. DIFF LOCK<C3N> 		1-41229-168-0 12 1 1010-1107 ● ●
470 SHIFT KIT
DIFF LOCK<C3N> 		1-48269-258-0 01 1 1010-1107 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
