◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25A - REAR FINAL DRIVE ▶

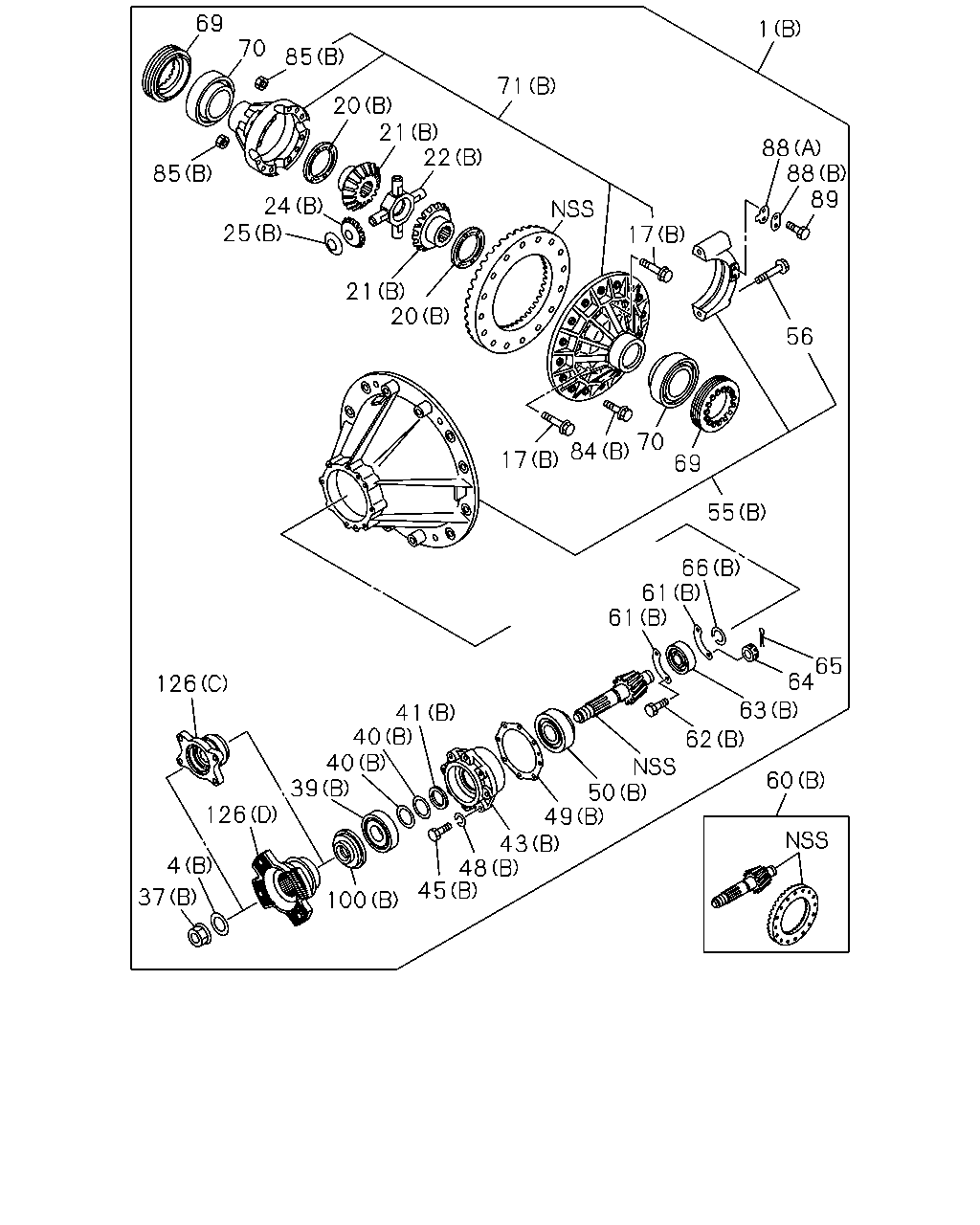

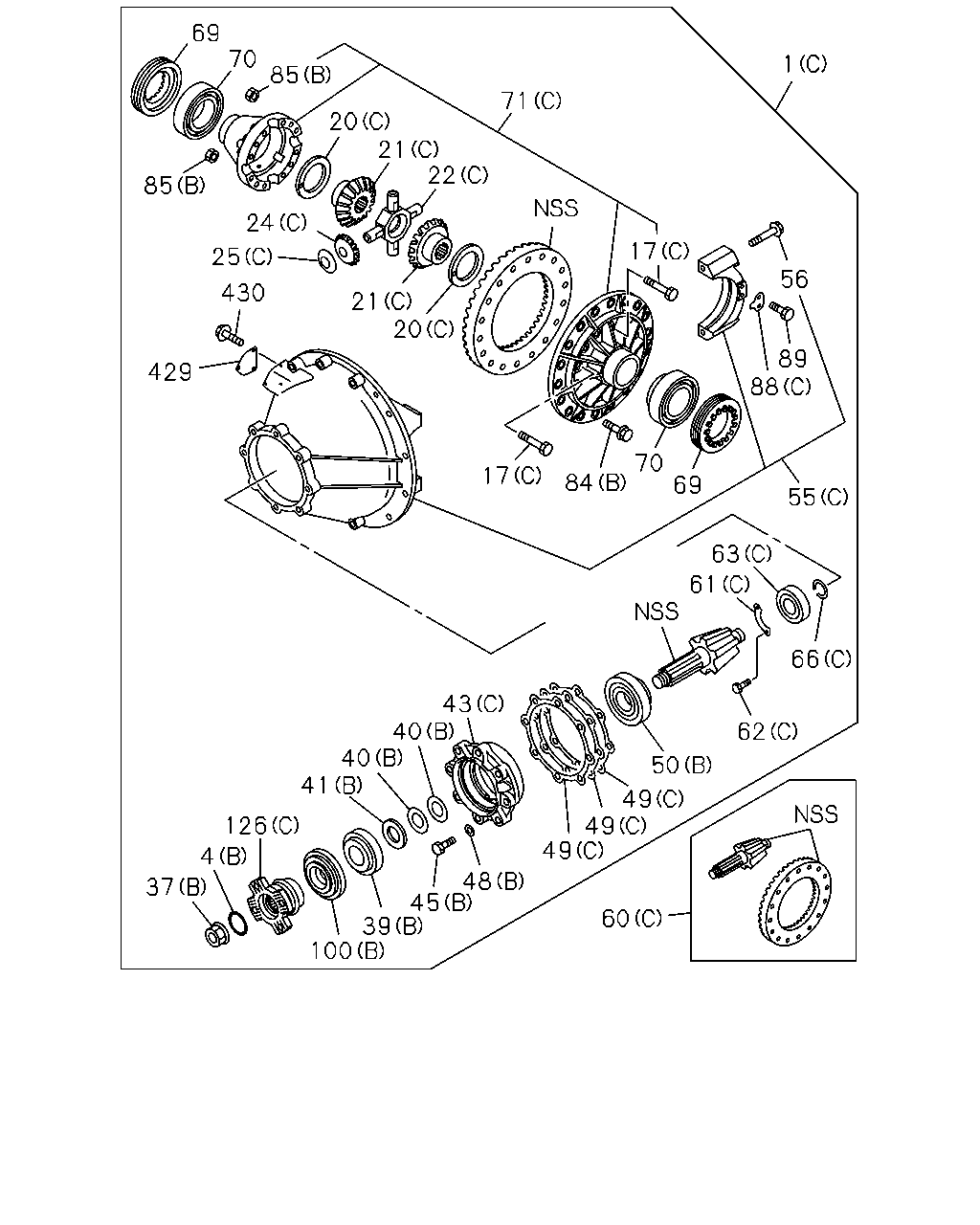

4-25A — REAR FINAL DRIVE (#68001) — 1261 parça

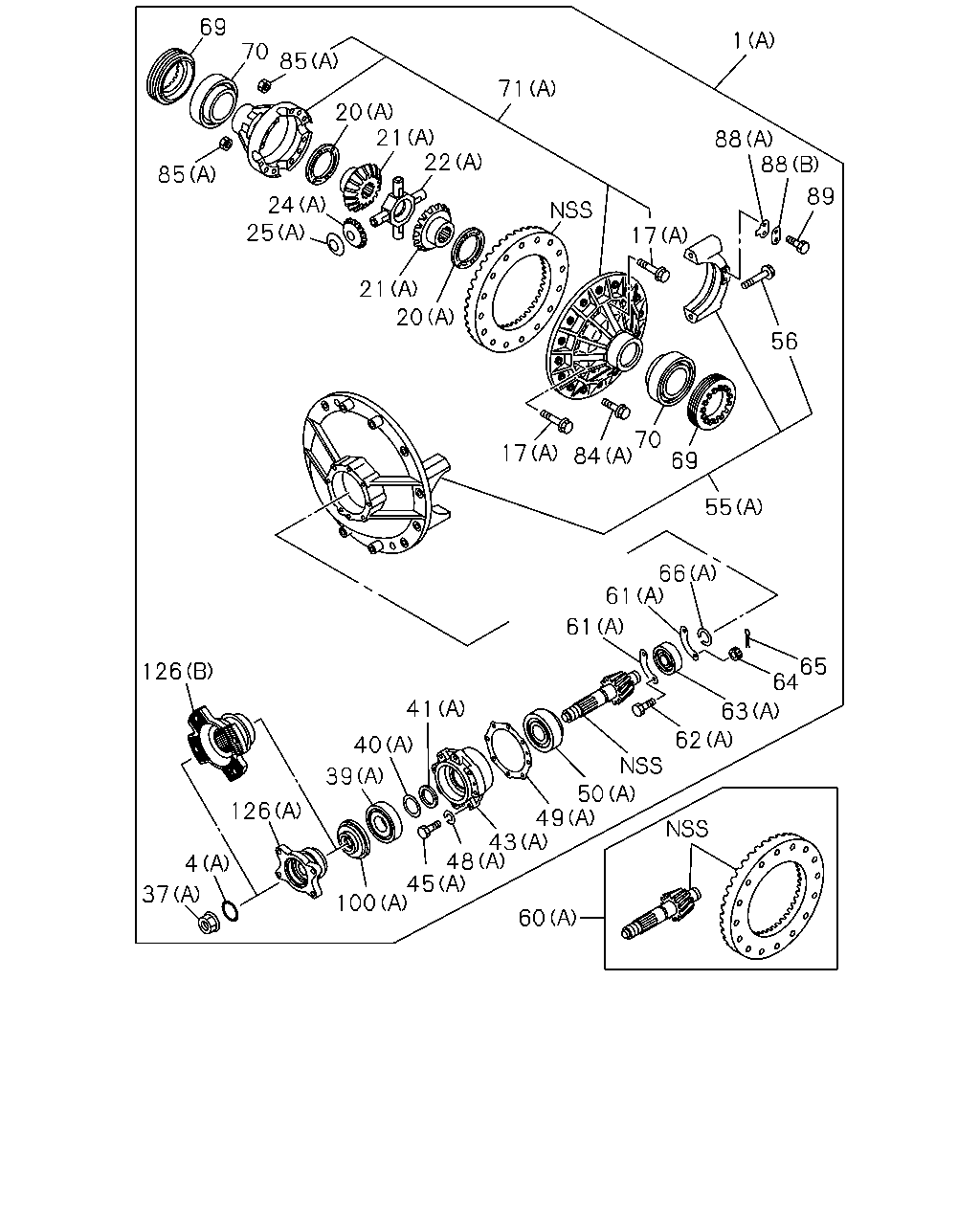

çizim 193658
1 71 69 70 85 20 21 22 17 88 88 89 56 55 69 70 84 17 20 21 25 24 85 66 61 61 65 64 63 62 50 49 43 60 48 45 100 37 4 126 39 40 41 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
(C) 39/8 		1-41003-391-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
(C) 41/8 		1-41003-390-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/6 		1-41002-771-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
(A) 39/6 		1-41002-771-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/6 		1-41001-060-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
EXC. ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41001-381-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41002-601-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/7 		1-41002-545-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (A) 43/7 		1-41002-544-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 43/7 		1-41002-375-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41001-031-0 01 1 0805-0808 ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/7 		1-41001-031-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 43/7 		1-41000-923-0 01 1 0803- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41001-382-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0803-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 43/7 		1-41001-356-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 39/7 		1-41002-376-0 01 1 0803- ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0803-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0809-0907 ● ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0908- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0803-0804 ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0805-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X141 FLANGE 		1-09070-013-0 08 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X105 FLANGE 		1-09070-014-0 04 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-270-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-271-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-272-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-273-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-274-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-275-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-276-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0809- ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-167-0 02 1 0908- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0803-0808 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0809-0905 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0803-0804 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0805-0808 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0809-0911 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-052-0 01 1 0908- ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0803-0808 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0809- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0803-0804 ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0805-0808 ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0809- ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-054-0 04 1 0908- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0803-0808 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0809-0905 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0803-0804 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0805-0808 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0809-0911 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-003-0 04 1 0908- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0803-0808 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0809- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0803-0804 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0805-0808 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0809- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0803-0808 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0809-0907 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0908- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0803-0804 ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0805-0808 ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0809- ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0805-0805 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0806-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0809- ● ● ●
43 CAGE; FINAL PINION
(C) T=82 		1-41151-057-0 01 1 0908- ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0803-0808 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0809- ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0803-0804 ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0805-0808 ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0809- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0803-0808 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0809-0907 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0908- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0803-0804 ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0805-0808 ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0809- ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0803-0808 ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0809-0907 ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0908- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0803-0804 ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0805-0808 ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-077-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-078-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-079-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-080-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0805-0805 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0806-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0809- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0809- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0809- ● ● ●
55 CARRIER; DIFF
(C) 		1-41110-117-1 01 1 0908- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0803-0808 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0809- ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0803-0804 ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0805-0808 ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0809- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0908- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0803-0804 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0805-0808 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0809- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(C) 39/8 		1-41210-618-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 41/8 		1-41210-617-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/6 		1-41210-371-2 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-602-0 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-517-0 01 1 0805- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-604-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-549-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-603-0 01 1 0803- ●
61 RETAINER; PILOT BRG,PINION
(C) T=3.2 		1-41227-008-0 01 1 0908- ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0803-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0809- ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0803-0804 ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0805-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0809- ● ● ●
62 BOLT; RET
(C) M8X16 		0-20850-816-0 02 1 0908- ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0803-0808 ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0809- ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0803-0804 ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0805-0805 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0806-0808 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0809- ● ● ●
63 BEARING; PINION PILOT
(C) NSK 		1-09810-152-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(C) JTEKT 		1-09810-153-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0809- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0803-0804 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0805-0808 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0809- ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0803-0804 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0805-0805 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0805-0808 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0809- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
(C) OD=45.9 		1-09588-061-0 01 1 0908- ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-1 01 1 0803-0808 ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-2 01 1 0809- ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0803-0804 ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0805-0808 ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0809- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0809- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0809- ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0908- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0803-0804 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0805-0808 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0809- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(C) 		1-41510-253-0 01 1 0908- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0803-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0809- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0803-0804 ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0805-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 18 1 0908- ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0803-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0803-0804 ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0805-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0809- ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0803-0808 ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0809-0907 ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0908- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0803-0804 ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0805-0808 ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0809- ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=3.2 		1-41124-026-0 02 1 0908- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0809- ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0809- ● ● ● ● ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0908- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0803-0804 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0805-0808 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0809- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0803-0808 ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0809-0907 ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0908- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0803-0804 ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0805-0808 ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0809- ● ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0803-0804 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0809-0809 ● ● ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0810- ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0809-0906 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0907-0907 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0907-0907 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0908- ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0809- ● ●
126 COUPLING; DRIVING PINION
ANTI LOCK BRAKE<JE5> (D) 		1-37245-343-0 01 1 0809- ●
çizim 193671
1 69 70 85 20 21 22 71 17 88 88 89 56 69 70 84 17 20 21 25 24 85 55 66 61 61 65 64 63 62 50 49 43 48 45 100 37 4 126 39 40 40 41 126 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
(C) 39/8 		1-41003-391-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
(C) 41/8 		1-41003-390-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/6 		1-41002-771-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
(A) 39/6 		1-41002-771-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/6 		1-41001-060-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
EXC. ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41001-381-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41002-601-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/7 		1-41002-545-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (A) 43/7 		1-41002-544-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 43/7 		1-41002-375-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41001-031-0 01 1 0805-0808 ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/7 		1-41001-031-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 43/7 		1-41000-923-0 01 1 0803- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41001-382-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0803-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 43/7 		1-41001-356-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 39/7 		1-41002-376-0 01 1 0803- ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0803-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0809-0907 ● ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0908- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0803-0804 ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0805-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X141 FLANGE 		1-09070-013-0 08 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X105 FLANGE 		1-09070-014-0 04 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-270-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-271-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-272-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-273-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-274-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-275-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-276-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0809- ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-167-0 02 1 0908- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0803-0808 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0809-0905 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0803-0804 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0805-0808 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0809-0911 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-052-0 01 1 0908- ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0803-0808 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0809- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0803-0804 ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0805-0808 ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0809- ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-054-0 04 1 0908- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0803-0808 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0809-0905 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0803-0804 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0805-0808 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0809-0911 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-003-0 04 1 0908- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0803-0808 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0809- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0803-0804 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0805-0808 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0809- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0803-0808 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0809-0907 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0908- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0803-0804 ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0805-0808 ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0809- ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0805-0805 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0806-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0809- ● ● ●
43 CAGE; FINAL PINION
(C) T=82 		1-41151-057-0 01 1 0908- ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0803-0808 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0809- ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0803-0804 ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0805-0808 ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0809- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0803-0808 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0809-0907 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0908- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0803-0804 ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0805-0808 ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0809- ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0803-0808 ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0809-0907 ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0908- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0803-0804 ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0805-0808 ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-077-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-078-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-079-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-080-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0805-0805 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0806-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0809- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0809- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0809- ● ● ●
55 CARRIER; DIFF
(C) 		1-41110-117-1 01 1 0908- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0803-0808 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0809- ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0803-0804 ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0805-0808 ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0809- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0908- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0803-0804 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0805-0808 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0809- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(C) 39/8 		1-41210-618-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 41/8 		1-41210-617-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/6 		1-41210-371-2 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-602-0 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-517-0 01 1 0805- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-604-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-549-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-603-0 01 1 0803- ●
61 RETAINER; PILOT BRG,PINION
(C) T=3.2 		1-41227-008-0 01 1 0908- ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0803-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0809- ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0803-0804 ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0805-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0809- ● ● ●
62 BOLT; RET
(C) M8X16 		0-20850-816-0 02 1 0908- ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0803-0808 ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0809- ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0803-0804 ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0805-0805 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0806-0808 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0809- ● ● ●
63 BEARING; PINION PILOT
(C) NSK 		1-09810-152-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(C) JTEKT 		1-09810-153-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0809- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0803-0804 ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0805-0808 ● ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0809- ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0803-0804 ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0805-0805 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0805-0808 ● ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0809- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
(C) OD=45.9 		1-09588-061-0 01 1 0908- ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-1 01 1 0803-0808 ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-2 01 1 0809- ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0803-0804 ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0805-0808 ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0809- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0809- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0809- ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0908- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0803-0804 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0805-0808 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0809- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(C) 		1-41510-253-0 01 1 0908- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0803-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0809- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0803-0804 ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0805-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 18 1 0908- ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0803-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0803-0804 ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0805-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0809- ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0803-0808 ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0809-0907 ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0908- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0803-0804 ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0805-0808 ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0809- ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=3.2 		1-41124-026-0 02 1 0908- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0809- ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0809- ● ● ● ● ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0908- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0803-0804 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0805-0808 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0809- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0803-0808 ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0809-0907 ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0908- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0803-0804 ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0805-0808 ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0809- ● ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0803-0804 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0809-0809 ● ● ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0810- ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0809-0906 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0907-0907 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0907-0907 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0908- ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0809- ● ●
126 COUPLING; DRIVING PINION
ANTI LOCK BRAKE<JE5> (D) 		1-37245-343-0 01 1 0809- ●
çizim 193773
1 71 69 70 85 20 21 22 85 24 25 430 429 21 20 17 84 70 69 88 89 56 17 55 63 61 66 62 50 49 49 49 60 48 45 39 100 37 4 126 41 40 40 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRIVE ASM; FINAL,RR
(C) 39/8 		1-41003-391-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
(C) 41/8 		1-41003-390-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/6 		1-41002-771-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
(A) 39/6 		1-41002-771-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/6 		1-41001-060-0 01 1 0809-0809 ●
1 DRIVE ASM; FINAL,RR
EXC. ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41001-381-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ANTI LOCK BRAKE<JE5> (B) 45/7 		1-41002-601-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 39/7 		1-41002-545-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (A) 43/7 		1-41002-544-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 43/7 		1-41002-375-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 		1-41001-031-0 01 1 0805-0808 ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 39/7 		1-41001-031-0 01 1 0809- ●
1 DRIVE ASM; FINAL,RR
P46 PROP SHAFT(C4Z) (A) 43/7 		1-41000-923-0 01 1 0803- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41001-382-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 43/7 		1-41001-382-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0803-0805 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0806-0906 ●
1 DRIVE ASM; FINAL,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (B) 39/7 		1-41001-383-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 43/7 		1-41001-356-0 01 1 0803-0808 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0809-0906 ●
1 DRIVE ASM; FINAL,RR
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 43/7 		1-41001-356-0 01 1 0907- ●
1 DRIVE ASM; FINAL,RR
ZF9S1110 M/T(Y5E) (B) 39/7 		1-41002-376-0 01 1 0803- ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0803-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0809-0907 ● ● ●
4 GASKET; FLANGE,FINAL PINION
(B) ID=57 		1-09623-386-0 01 1 0908- ● ● ● ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0803-0804 ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0805-0808 ● ●
4 GASKET; FLANGE,FINAL PINION
(A) ID=42 		9-09921-116-0 01 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X141 FLANGE 		1-09070-013-0 08 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(C) M16X105 FLANGE 		1-09070-014-0 04 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 04 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0803-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X113 		1-09070-018-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE 		1-09044-006-0 08 1 0809- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0803-0804 ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0805-0808 ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X95 FLANGE 		1-09044-007-0 04 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.8 		1-41562-270-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=2.9 		1-41562-271-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.0 		1-41562-272-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.1 		1-41562-273-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.2 		1-41562-274-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.3 		1-41562-275-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(C) T=3.4 		1-41562-276-1 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.8 		1-41562-112-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=2.9 		1-41562-113-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.0 		1-41562-114-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.1 		1-41562-115-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.2 		1-41562-116-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.3 		1-41562-117-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0803-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(B) T=3.4 		1-41562-118-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.80 		1-41562-169-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=2.90 		1-41562-170-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.00 		1-41562-171-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.10 		1-41562-172-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.20 		1-41562-173-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.30 		1-41562-174-0 AR 1 0809- ● ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0803-0804 ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0805-0808 ● ●
20 WASHER; THRUST,SIDE GEAR
(A) T=3.40 		1-41562-175-0 AR 1 0809- ● ● ●
21 GEAR; SIDE,DIFF
(C) Z=16 		1-41561-167-0 02 1 0908- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0803-0808 ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-139-0 02 1 0809-0905 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-151-0 02 1 0906- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0803-0804 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0805-0808 ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-123-0 02 1 0809-0911 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-162-0 02 1 0912- ● ● ●
22 SPIDER; DIFF PINION
(C) OD=35 		1-41521-052-0 01 1 0908- ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0803-0808 ● ●
22 SPIDER; DIFF PINION
(B) OD=35 		1-41521-037-2 01 1 0809- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0803-0804 ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0805-0808 ● ●
22 SPIDER; DIFF PINION
(A) OD=32 		1-41521-002-1 01 1 0809- ● ● ●
24 GEAR; PINION,DIFF
(C) Z=10 		1-41551-054-0 04 1 0908- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0803-0808 ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-044-0 04 1 0809-0905 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-053-0 04 1 0906- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0803-0804 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0805-0808 ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-040-0 04 1 0809-0911 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-052-0 04 1 0912- ● ● ●
25 WASHER; THRUST,PINION
(C) T=1.6 		1-41552-003-0 04 1 0908- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0803-0808 ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-017-0 04 1 0809- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0803-0804 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0805-0808 ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-001-0 04 1 0809- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0803-0808 ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0809-0907 ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0908- ● ● ● ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0803-0804 ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0805-0808 ● ●
37 NUT; DRIVING PINION
(A) M39 FLANGE 		1-09449-056-2 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0803-0808 ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0809-0907 ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0908- ● ● ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-086-0 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) NTN 		9-00093-072-1 01 1 0809- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0803-0804 ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0805-0808 ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		9-00093-206-2 01 1 0809- ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.25 		1-41229-245-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.26 		1-41229-246-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.27 		1-41229-247-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.28 		1-41229-248-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.29 		1-41229-249-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.30 		1-41229-250-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.31 		1-41229-251-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.32 		1-41229-252-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.33 		1-41229-253-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.34 		1-41229-254-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0803-0808 ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0809-0907 ● ● ●
40 SHIM; FINAL PINION
(B) T=3.35 		1-41229-255-0 AR 1 0908- ● ● ● ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.50 		1-41229-106-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.51 		1-41229-107-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.52 		1-41229-108-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.53 		1-41229-109-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.54 		1-41229-110-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.55 		1-41229-111-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.56 		1-41229-112-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0805-0805 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0806-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.57 		1-41229-113-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.58 		1-41229-114-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.59 		1-41229-115-0 AR 1 0809- ● ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0803-0804 ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0805-0808 ● ●
40 SHIM; FINAL PINION
(A) T=3.60 		1-41229-116-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.60 		1-41229-237-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=7.80 		1-41229-238-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.00 		1-41229-239-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.20 		1-41229-240-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.40 		1-41229-241-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.60 		1-41229-242-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=8.80 		1-41229-243-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0803-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0809-0907 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(B) T=9.00 		1-41229-244-0 AR 1 0908- ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.600 		1-41229-101-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=7.800 		1-41229-102-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.000 		1-41229-103-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.200 		1-41229-104-0 AR 1 0809- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0803-0804 ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0805-0808 ● ●
41 SPACER; FINAL DRIVE PINION BRG
(A) T=8.400 		1-41229-105-0 AR 1 0809- ● ● ●
43 CAGE; FINAL PINION
(C) T=82 		1-41151-057-0 01 1 0908- ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0803-0808 ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0809- ● ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0803-0804 ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0805-0808 ● ●
43 CAGE; FINAL PINION
(A) T=75 		1-41151-005-0 01 1 0809- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0803-0808 ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0809-0907 ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0908- ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0803-0804 ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0805-0808 ● ●
45 BOLT; FINAL PINION CAGE
(A) M14X50 		0-16806-450-0 08 1 0809- ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0803-0808 ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0809-0907 ● ● ●
48 WASHER; LK,FINAL PINION
(B) ID=16.2 		0-91510-516-0 08 1 0908- ● ● ● ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0803-0804 ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0805-0808 ● ●
48 WASHER; LK,FINAL PINION
(A) ID=14.2 		0-91510-514-0 08 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.50 		1-41154-077-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=1.000 		1-41154-078-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.30 		1-41154-079-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(C) T=0.40 		1-41154-080-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0803-0808 ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-009-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0805-0805 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0806-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.500 		1-41154-010-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.300 		1-41154-104-0 AR 1 0809- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0803-0804 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0805-0808 ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.400 		1-41154-105-0 AR 1 0809- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0803-0808 ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0809-0907 ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0908- ● ● ● ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) NTN 		1-09812-013-0 01 1 0809- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0803-0804 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0805-0808 ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-070-1 01 1 0809- ● ● ●
55 CARRIER; DIFF
(C) 		1-41110-117-1 01 1 0908- ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0803-0808 ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0809- ● ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0803-0804 ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0805-0808 ● ●
55 CARRIER; DIFF
(A) 		1-41110-120-1 01 1 0809- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0908- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0803-0804 ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0805-0808 ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 0809- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(C) 39/8 		1-41210-618-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 41/8 		1-41210-617-0 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/6 		1-41210-371-2 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 45/7 		1-41210-602-0 01 1 0809- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 		1-41210-517-0 01 1 0805- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 		1-41210-604-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-549-0 01 1 0803- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-603-0 01 1 0803- ●
61 RETAINER; PILOT BRG,PINION
(C) T=3.2 		1-41227-008-0 01 1 0908- ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0803-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(B) T=3.2 		1-41227-012-0 02 1 0809- ● ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0803-0804 ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0805-0808 ● ●
61 RETAINER; PILOT BRG,PINION
(A) T=3.2 		1-41227-015-0 02 1 0809- ● ● ●
62 BOLT; RET
(C) M8X16 		0-20850-816-0 02 1 0908- ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0803-0808 ● ●
62 BOLT; RET
(B) M8X40 W/PIN HOLE 		1-09042-038-1 02 1 0809- ● ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0803-0804 ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0805-0805 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0806-0808 ● ●
62 BOLT; RET
(A) M8X38 W/PIN HOLE 		1-09042-036-0 02 1 0809- ● ● ●
63 BEARING; PINION PILOT
(C) NSK 		1-09810-152-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(C) JTEKT 		1-09810-153-0 01 1 0908- ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) JTEKT 		1-09810-182-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0803-0808 ● ●
63 BEARING; PINION PILOT
(B) NSK 		1-09810-183-0 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) JTEKT 		1-09810-229-2 01 1 0809- ● ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0803-0804 ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0805-0808 ● ●
63 BEARING; PINION PILOT
(A) NSK 		1-09810-230-1 01 1 0809- ● ● ●
66 RING; SNAP,PILOT BRG
(C) OD=45.9 		1-09588-061-0 01 1 0908- ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-1 01 1 0803-0808 ● ●
66 RING; SNAP,PILOT BRG
(B) OD=37.2 		1-09588-086-2 01 1 0809- ● ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0803-0804 ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0805-0808 ● ●
66 RING; SNAP,PILOT BRG
(A) OD=42 		9-09950-179-0 01 1 0809- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 0809- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0803-0804 ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0805-0808 ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 0809- ● ● ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0908- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0803-0804 ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0805-0808 ● ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 0809- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(C) 		1-41510-253-0 01 1 0908- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0803-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(B) 		1-41510-141-0 01 1 0809- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0803-0804 ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0805-0808 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
(A) 		1-41510-270-0 01 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 18 1 0908- ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0803-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(B) M18X38 FLANGE 		1-09009-049-1 16 1 0809- ● ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0803-0804 ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0805-0808 ● ●
84 BOLT; FINAL DRIVE GEAR
(A) M16X37.5 FLANGE 		1-09020-167-0 16 1 0809- ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0803-0808 ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0809-0907 ● ● ●
85 NUT; DIFF CAGE SETTING
(B) M16 		0-91110-516-0 12 1 0908- ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0803-0804 ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0805-0808 ● ●
85 NUT; DIFF CAGE SETTING
(A) M14 		1-09400-077-1 12 1 0809- ● ● ●
88 PLATE; LK,ADJ NUT
(C) T=3.2 		1-41124-026-0 02 1 0908- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 0809- ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0803-0804 ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0805-0808 ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 0809- ● ● ● ● ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0908- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0803-0804 ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0805-0808 ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0809- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0803-0808 ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0809-0907 ● ● ●
100 SEAL; OIL,FINAL PINION
(B) NOK 		1-09625-322-0 01 1 0908- ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0803-0804 ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0805-0808 ● ●
100 SEAL; OIL,FINAL PINION
(A) NOK 		1-09625-017-0 01 1 0809- ● ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ZF9S1110 M/T(Y5E) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-37245-397-0 01 1 0809- ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0803-0804 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-387-0 01 1 0805-0808 ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0809-0809 ● ● ●
126 COUPLING; DRIVING PINION
P46 PROP SHAFT(C4Z) (A) 		1-37245-387-0 01 1 0810- ● ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0803-0805 ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0806-0808 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0809-0906 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0907-0907 ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0907-0907 ●
126 COUPLING; DRIVING PINION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
EXC. ANTI LOCK BRAKE<JE5> (C) 		1-37245-265-2 01 1 0908- ●
126 COUPLING; DRIVING PINION
(C) 		1-37245-265-2 01 1 0908- ● ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0809-0906 ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ,FULLER FSO5206B OD M/T(Y4V) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-37245-390-0 01 1 0907- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0803-0808 ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (D) 		1-37245-343-0 01 1 0809- ● ●
126 COUPLING; DRIVING PINION
ANTI LOCK BRAKE<JE5> (D) 		1-37245-343-0 01 1 0809- ●
429 PLATE; DUMMY 1-41279-014-0 01 1 0908- ● ●
430 BOLT; PLATE,DUMMY
M8X20 FLANGE 		0-28650-820-0 03 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
