0-60 — ENGINE ELECTRICAL CONTROL PARTS (#6800) — 163 parça

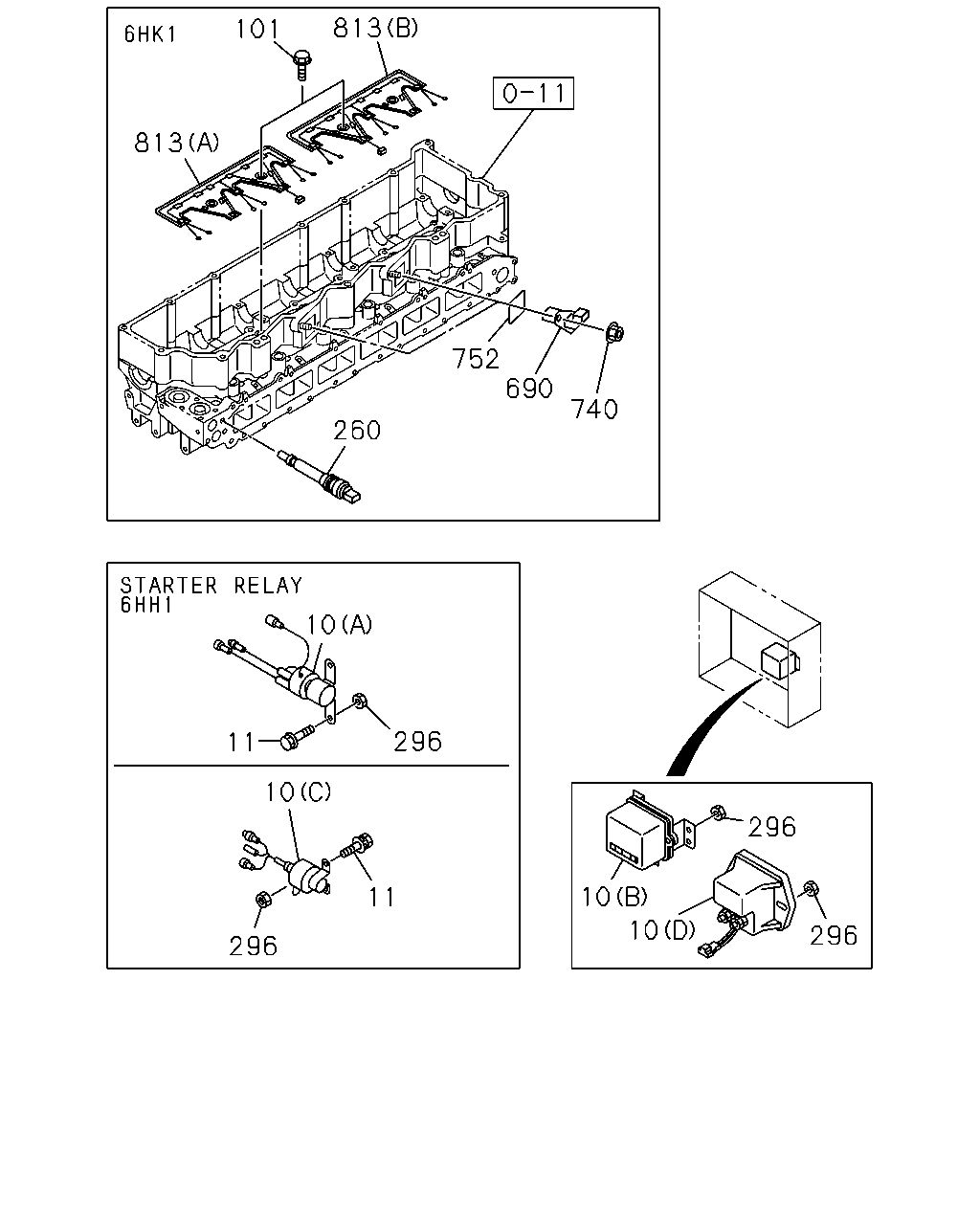

çizim 25979
813 101 813 752 690 740 260 10 296 11 10 296 10 11 10 296 296
BalonParca AdiParca NoAdetTipApplied Date A B C
10 RELAY; STARTER
ELEC SW BOX ENG ROOM<TEK> (B) NIKKO 		1-81171-025-1 01 1 9806-9911 ● ●
10 RELAY; STARTER
(B) NIKKO 		1-81171-025-1 01 1 9912-0212 ●
10 RELAY; STARTER
(D) 		1-81171-096-0 01 1 0301- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ELEC SW BOX ENG ROOM<TEK> (C) NIKKO 		1-81171-075-0 01 1 9806-9911 ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ELEC SW BOX ENG ROOM<TEK> (C) HITACHI 		1-81171-087-0 01 1 9904-9911 ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) EXC. ELEC SW BOX ENG ROOM<TEK> (A) DENSO 		1-81171-070-0 01 1 9806-9911 ●
11 BOLT; RELAY STARTER
ELEC SW BOX ENG ROOM<TEK> M6X20 FLANGE 		0-28680-620-0 04 1 9806-9911 ● ●
11 BOLT; RELAY STARTER
M6X20 FLANGE 		0-28680-620-0 04 1 9912-0312 ●
11 BOLT; RELAY STARTER
M6X20 FLANGE 		0-28680-620-0 02 1 0301-0512 ●
11 BOLT; RELAY STARTER
M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
11 BOLT; RELAY STARTER
EXC. ELEC SW BOX ENG ROOM<TEK> M8X30 FLANGE 		0-28680-830-0 02 1 9806-9911 ● ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28680-840-0 04 1 9912-0512 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0601- ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9806-9911 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 9912- ●
296 NUT; RELAY,STARTER
ELEC SW BOX ENG ROOM<TEK> M6 FLANGE 		0-91150-106-0 04 1 9806-9911 ● ●
296 NUT; RELAY,STARTER
M6 FLANGE 		0-91150-106-0 04 1 9912-0312 ●
296 NUT; RELAY,STARTER
M6 FLANGE 		0-91150-106-0 02 1 0301-0602 ●
296 NUT; RELAY,STARTER
M6 FLANGE 		0-91180-106-0 02 1 0603- ●
296 NUT; RELAY,STARTER
EXC. ELEC SW BOX ENG ROOM<TEK> M8 FLANGE 		0-91150-108-0 02 1 9806-9911 ● ●
690 CONNECTOR 8-94390-858-1 02 1 9912- ●
740 NUT
M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 9912- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-94391-302-3 01 1 9912- ●
813 HARNESS; INJECTOR
(B) REAR 		8-94391-303-3 01 1 9912- ●

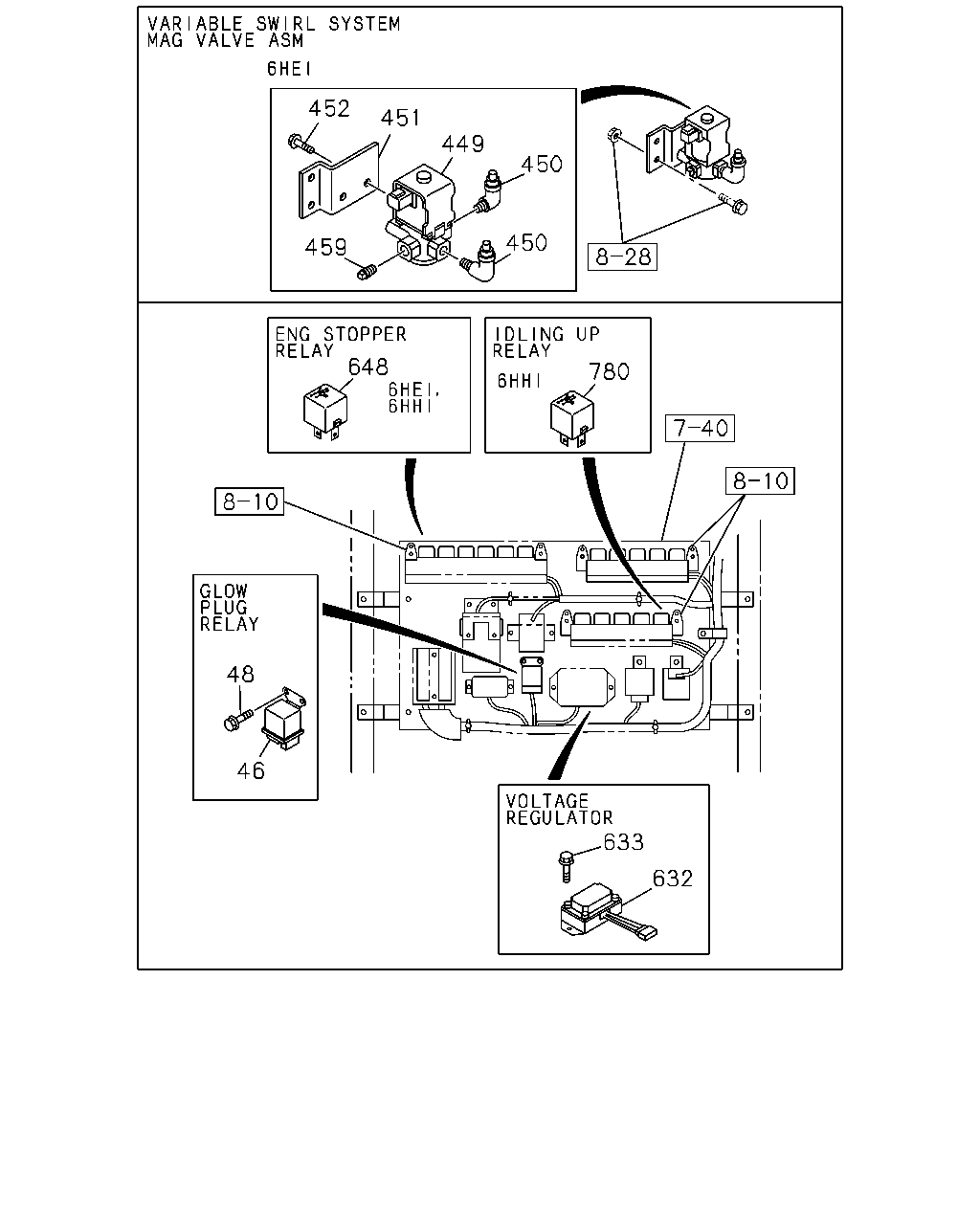

çizim 26017
452 451 449 450 450 459 648 780 48 46 633 632
BalonParca AdiParca NoAdetTipApplied Date A B C
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9806-9911 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9912- ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 9806-9911 ● ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 9912-0512 ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-600-4 01 1 9806-9911 ●
450 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9806-9911 ●
451 BRACKET; MAG VLV,VSS 1-47478-025-0 01 1 9806-9911 ●
452 BOLT; VSS MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9806-9911 ●
459 PLUG
PT1/4 		9-99204-513-0 01 1 9806-9911 ●
632 REGULATOR; VOLTAGE
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) NIKKO 		1-81251-042-2 01 1 9806-9911 ●
632 REGULATOR; VOLTAGE
NIKKO 		1-81251-042-2 01 1 9912- ●
633 BOLT; VOLTAGE REG
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) M8X16 FLANGE 		0-28080-816-0 02 1 9806-9908 ●
633 BOLT; VOLTAGE REG
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) M6X16 FLANGE 		0-28680-616-0 02 1 9909-9911 ●
633 BOLT; VOLTAGE REG
M6X16 FLANGE 		0-28680-616-0 02 1 9912-0512 ●
633 BOLT; VOLTAGE REG
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
648 RELAY; ENG STOPPER
24V 12.5A JIDECO 		8-97062-815-1 01 1 9806-9911 ● ●
780 RELAY; IDLING UP
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9806-9911 ●

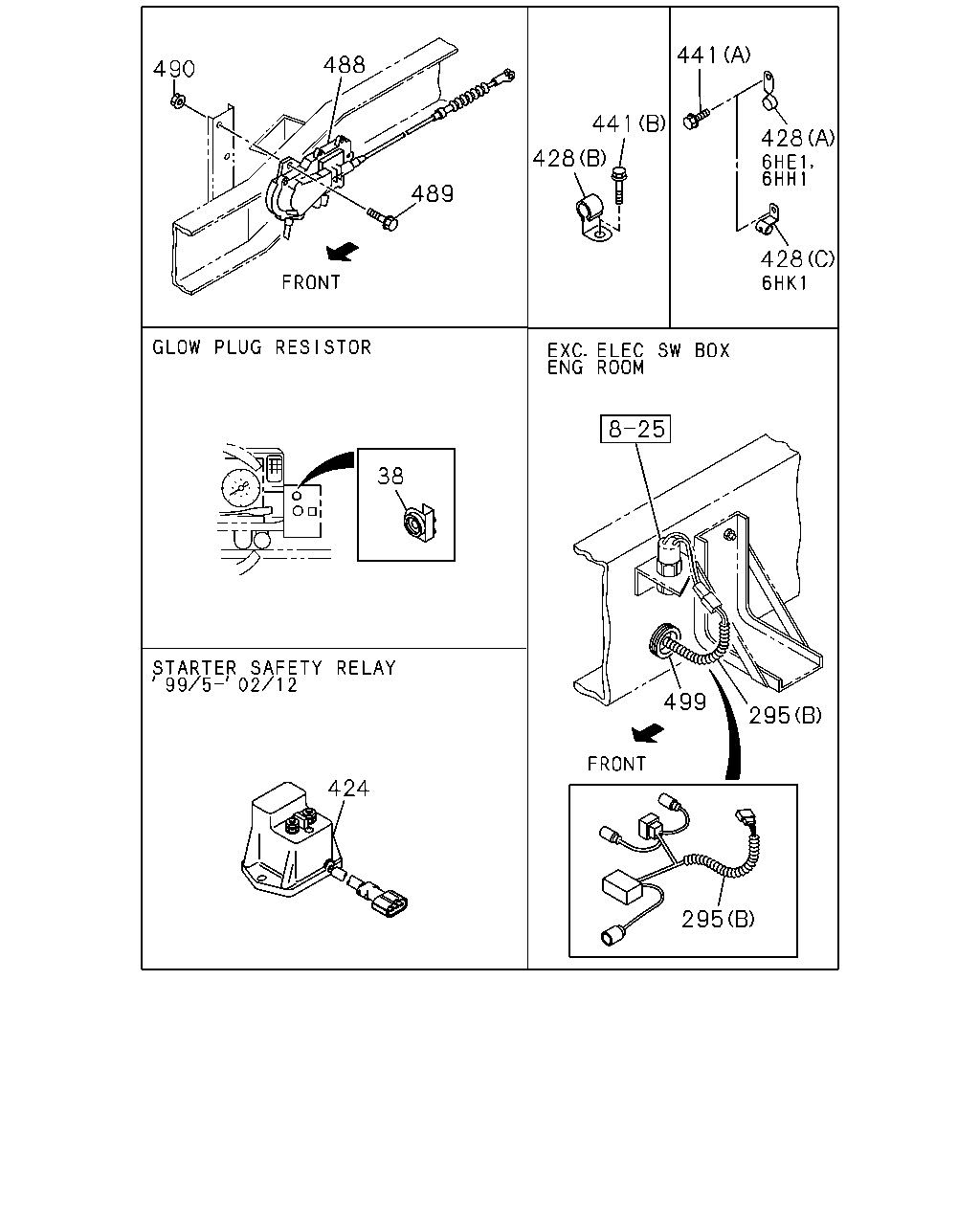

çizim 26187
441 488 490 441 428 428 489 428 38 499 295 424 295
BalonParca AdiParca NoAdetTipApplied Date A B C
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9806-9911 ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9912- ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9806-9911 ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-2 01 1 9912- ●
295 HARNESS; STARTER
EXC. ELEC SW BOX ENG ROOM<TEK> (B) 		1-82639-084-1 01 1 9806-9911 ● ●
424 RELAY; SAFETY,STARTER
ELEC SW BOX ENG ROOM<TEK> SAWAFUJI 		1-81171-082-0 01 1 9905-9911 ● ●
424 RELAY; SAFETY,STARTER
SAWAFUJI 		1-81171-082-0 01 1 9912-0212 ●
428 CLIP; HARNESS
(A) ID=25 L=54 		1-09700-392-0 01 1 9806-9810 ● ●
428 CLIP; HARNESS
(A) ID=28 L=60 		1-09700-585-1 01 1 9811-9911 ● ●
428 CLIP; HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9912- ●
428 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) ID=11 L=24 		9-09525-045-0 01 1 9806-9911 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-9911 ● ●
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0512 ●
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
441 BOLT; HARNESS TO FRAME
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911 ● ●
488 STOPPER; ENG 1-82840-136-1 01 1 9806-9911 ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9806-9911 ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9806-9911 ● ●
499 GROMMET
EXC. ELEC SW BOX ENG ROOM<TEK> ID=24 OD=30 T=17 		9-09956-092-1 01 1 9806-9911 ● ●

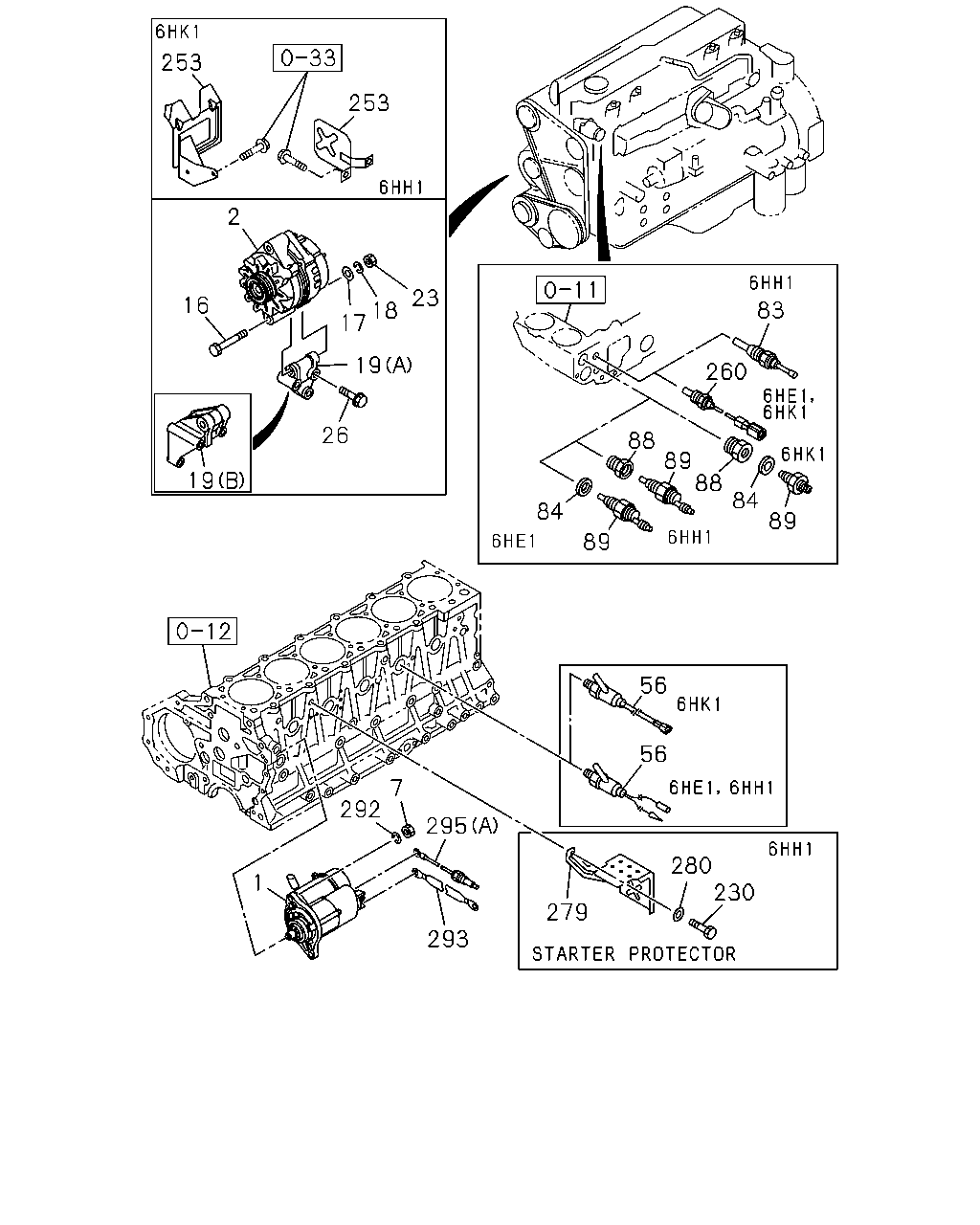

çizim 26354
253 253 2 23 16 83 18 17 19 260 26 88 89 88 19 84 89 84 89 7 292 56 56 295 280 230 1 279 293
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-324-0 01 1 9806-9807 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9806-9807 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. AIR CMPR HVY DUTY<E1Q> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9808-9911 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW NIKKO 		1-81100-329-2 01 1 9912- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENG OIL CLR HVY DUTY<E1E> EXC. STARTER DENSO(RC6),ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ANTI NOISE EQUIPMENT VAR2<TAK> EXC. STARTER DENSO(RC6),OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENG OIL CLR HVY DUTY<E1E>,STARTER DENSO(RC6) ,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW NIKKO 		1-81100-323-0 01 1 9807-9911 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 5.5KW NIKKO 		8-94399-896-2 01 1 9806-9911 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9807-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		1-81200-416-4 01 1 9806-9806 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 40A NIKKO 		1-81200-416-4 01 1 9806-9806 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		1-81200-416-4 01 1 9807-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN DENSO 24V-40A 1KW(SC4),GEN NIKKO 24V-60A 1.5KW(SC8),GEN NIKKO24V-90A 2.5KW(SD2),OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 40A NIKKO 		1-81200-416-4 01 1 9807-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN DENSO 24V-40A 1KW(SC4),GEN NIKKO 24V-60A 1.5KW(SC8),GEN NIKKO24V-90A 2.5KW(SD2),OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		1-81200-577-0 01 1 9906-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN DENSO 24V-40A 1KW(SC4),GEN NIKKO 24V-60A 1.5KW(SC8),GEN NIKKO24V-90A 2.5KW(SD2),OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-110A 3KW(PU1) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 110A NIKKO 		8-94394-797-1 01 1 9806-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 110A NIKKO 		8-94394-797-1 01 1 9912- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-110A 3KW(PU1) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 110A MITSUBISHI 		1-81200-560-0 01 1 9905-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-60A 1.5KW(SC8) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 60A NIKKO 		1-81200-417-3 01 1 9807-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-60A 1.5KW(SC8) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 60A MITSUBISHI 		1-81200-531-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-60A 1.5KW(SC8) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 60A MITSUBISHI 		1-81200-576-0 01 1 9906-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-90A 2.5KW(SD2) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 90A NIKKO 		8-94394-796-1 01 1 9806-9911 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GEN NIKKO 24V-90A 2.5KW(SD2) OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 90A MITSUBISHI 		1-81200-538-0 01 1 9905-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. STARTER DENSO(RC6) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> 24V 40A DENSO 		8-94399-157-1 01 1 9807-9911 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9806-9911 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9912-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9806-9911 ●
16 BOLT; GEN
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M14X135 		1-09000-133-1 01 1 9806-9911 ●
16 BOLT; GEN
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M14X157 		1-09000-071-1 01 1 9806-9911 ●
16 BOLT; GEN
M14X157 		1-09000-071-1 01 1 9912- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9806-9911 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9912-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9806-9911 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9912-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ●
19 BRACKET; GEN
(A) 		8-94396-297-0 01 1 9806-9806 ●
19 BRACKET; GEN
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 		8-94396-297-0 01 1 9806-9806 ●
19 BRACKET; GEN
(A) 		8-94396-297-0 01 1 9808-9911 ●
19 BRACKET; GEN
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 		8-94396-297-0 01 1 9808-9911 ●
19 BRACKET; GEN
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) 		8-94399-351-0 01 1 9807-9911 ●
19 BRACKET; GEN
(B) 		8-94399-351-0 01 1 9912- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9806-9911 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9912-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9806-9806 ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X40 FLANGE 		0-28181-040-0 01 1 9806-9806 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9808-9911 ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X40 FLANGE 		0-28181-040-0 01 1 9808-9911 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9806-9806 ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X80 FLANGE 		0-28181-080-0 02 1 9806-9806 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9808-9911 ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X80 FLANGE 		0-28181-080-0 02 1 9808-9911 ●
26 BOLT; GEN BRKT
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X45 FLANGE 		0-28181-045-0 01 1 9807-9911 ●
26 BOLT; GEN BRKT
M10X45 FLANGE 		0-28181-045-0 01 1 9912-0512 ●
26 BOLT; GEN BRKT
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
26 BOLT; GEN BRKT
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M10X107 FLANGE 		8-94399-488-1 02 1 9807-9911 ●
26 BOLT; GEN BRKT
M10X107 FLANGE 		8-94399-488-1 02 1 9912- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-160-0 01 1 9806-9911 ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 9912- ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9806-9911 ●
84 GASKET; THERMO SW
ID=16.2 		1-09630-086-0 01 1 0001- ●
84 GASKET; THERMO SW
ID=16.2 		1-09630-086-0 01 1 9806-9911 ●
88 ADAPTER; SW 8-94395-851-1 01 1 0001- ●
88 ADAPTER; SW 8-94396-396-1 01 1 9806-9911 ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 0001- ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9806-9911 ● ●
230 BOLT; HEAT PROTECTOR
M8X14 		0-20800-814-0 03 1 9806-9806 ●
230 BOLT; HEAT PROTECTOR
ANTI NOISE EQUIPMENT VAR2<TAK> M8X14 		0-20800-814-0 03 1 9807-9911 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT VAR2<TAK> M8X28 FLANGE 		0-28080-828-0 02 1 9807-9911 ●
230 BOLT; HEAT PROTECTOR
EXC. ANTI NOISE EQUIPMENT VAR2<TAK> M10X30 FLANGE 		0-28181-030-0 01 1 9807-9911 ●
253 PROTECTOR; HEAT,GEN 8-94396-301-3 01 1 9806-9911 ●
253 PROTECTOR; HEAT,GEN 8-97600-329-1 01 1 9912- ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9806-9911 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 9912- ●
279 PROTECTOR; STARTER 8-94394-435-2 01 1 9806-9806 ●
279 PROTECTOR; STARTER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-435-2 01 1 9807-9911 ●
279 PROTECTOR; STARTER
EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-952-1 01 1 9807-9911 ●
280 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 03 1 9806-9911 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9806-9911 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9912-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9806-9911 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9912- ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=450 		1-82650-238-0 01 1 9806-9806 ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=450 		1-82650-238-0 01 1 9807-9911 ●
293 CABLE; STARTER EARTH
EXC. ENG OIL CLR HVY DUTY<E1E>,ANTI NOISE EQUIPMENT VAR2<TAK>,OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=450 		1-82650-238-0 01 1 9807-9911 ●
293 CABLE; STARTER EARTH
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=550 		1-82650-239-0 01 1 9806-9806 ●
293 CABLE; STARTER EARTH
ENG OIL CLR HVY DUTY<E1E> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=550 		1-82650-239-0 01 1 9807-9911 ●
293 CABLE; STARTER EARTH
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=550 		1-82650-239-0 01 1 9807-9911 ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9806-9911 ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-2 01 1 9912- ●
295 HARNESS; STARTER
EXC. ELEC SW BOX ENG ROOM<TEK> (B) 		1-82639-084-1 01 1 9806-9911 ● ●

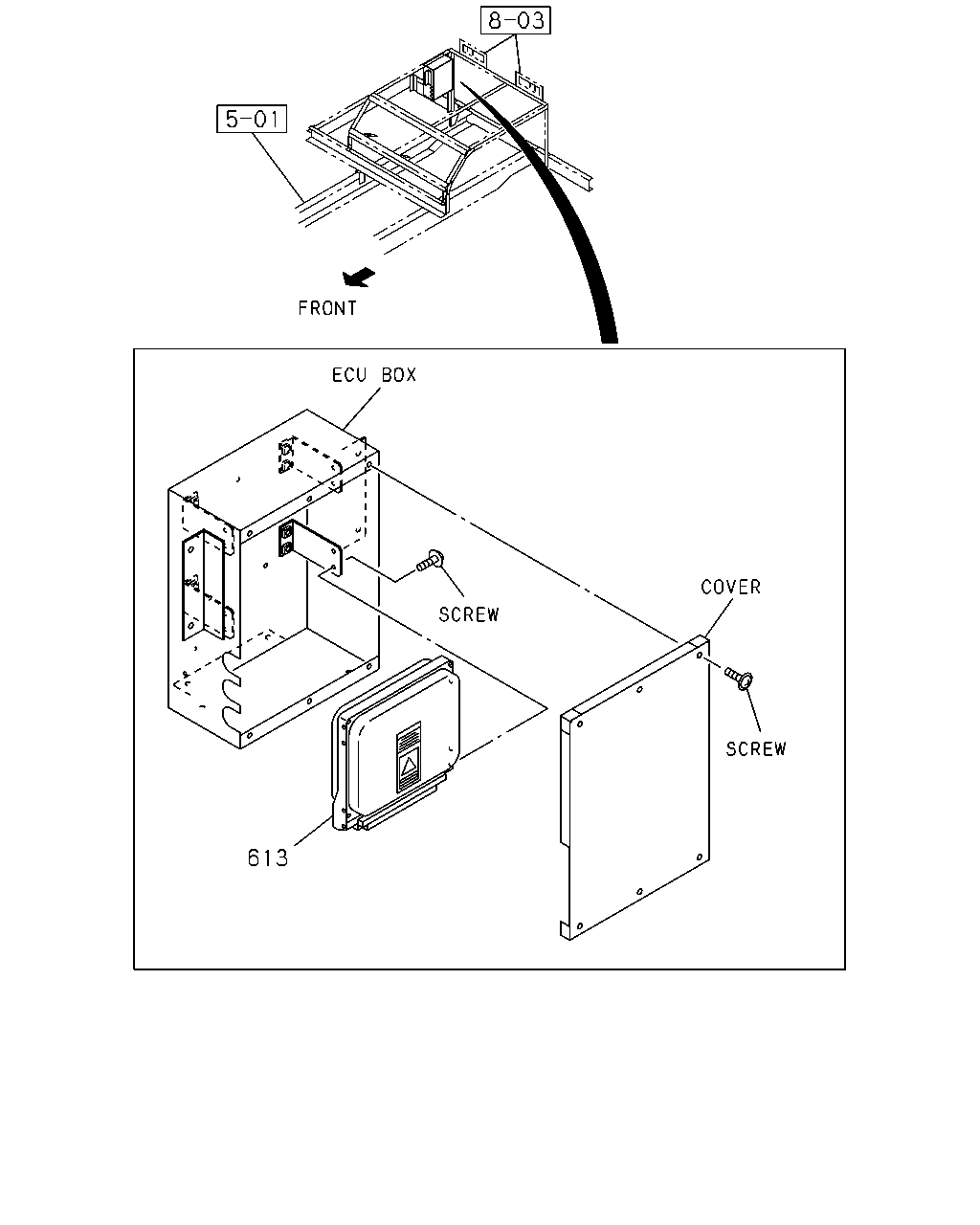

çizim 98667
613
BalonParca AdiParca NoAdetTipApplied Date A B C
613 CONTROL UNIT; ENG 8-94392-865-1 01 1 9912-0502 ●
613 CONTROL UNIT; ENG 8-97607-413-0 01 1 0503- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
