Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#68) — 212 parça

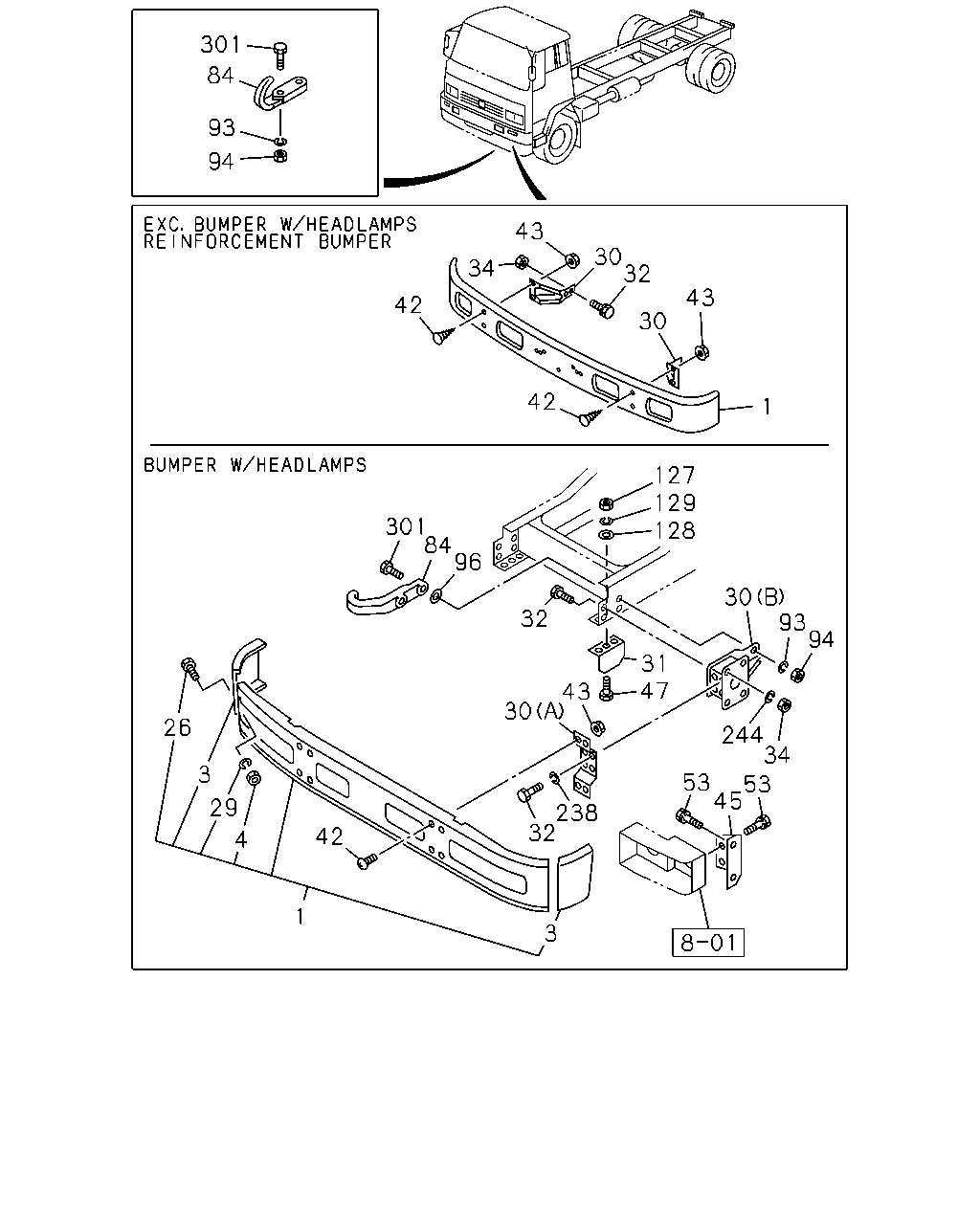

301 84 93 94 43 34 42 30 32 43 30 42 1 127 129 128 301 84 96 32 30 93 94 34 244 53 45 53 31 47 43 30 238 32 3 42 1 4 29 3 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-502-2	01	1	9202-		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>,REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-9307	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-241-6	01	1	9202-9307		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9308-	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> WHITE	1-71210-241-6	01	1	9308-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-4	01	1	9202-9307	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9308-	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-450-1	01	1	9308-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> WHITE	1-71210-450-1	01	1	9308-	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-496-0	01	1	9202-	●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-495-0	01	1	9202-	●	●
3	BUMPER; FRT,SIDE LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-371-3	01	1	9407-	●	●
3	BUMPER; FRT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-371-3	01	1	9407-	●
3	BUMPER; FRT,SIDE LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-370-3	01	1	9407-	●	●
3	BUMPER; FRT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-370-3	01	1	9407-	●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8 FLANGE	0-91150-108-0	06	1	9202-	●	●
4	NUT; CTR BUMPER LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	04	1	9407-	●	●
4	NUT; CTR BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8 FLANGE	0-91150-108-0	04	1	9407-	●
26	BOLT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	06	1	9202-	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	06	1	9202-	●	●
29	WASHER; FRT BUMPER LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	04	1	9407-	●	●
29	WASHER; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	04	1	9407-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-188-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-295-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
31	SUPPORT; FRT BUMPER,LWR BUMPER W/HEADLAMPS<SLB>	1-71230-210-1	01	1	9202-	●	●
31	SUPPORT; FRT BUMPER,LWR BUMPER W/HEADLAMPS<SLB>	1-71230-209-1	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	04	1	9202-	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	01	1	9303-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X50 W/LK WASHER	0-50041-050-0	01	1	9303-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9202-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●
42	BOLT; BUMPER AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28080-825-0	02	1	9412-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-211-1	02	1	9202-	●	●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> HEAVY DUTY PACKAGE TRUCK<RD2> M14X35	0-20801-435-0	04	1	9202-	●	●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	0-20801-450-0	02	1	9202-	●	●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X30	0-20801-430-0	04	1	9202-	●	●
47	BOLT; SUPPORT TO BODY BUMPER W/HEADLAMPS<SLB> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40	0-20801-440-0	02	1	9202-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X30	0-20801-430-0	04	1	9202-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 W/LK&PL WASHER	0-50141-020-0	08	1	9202-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M14X35	0-20801-435-0	02	1	9202-	●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9202-	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9202-	●
84	HOOK	1-57181-020-1	01	1	9202-		●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9202-	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9202-	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9202-		●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9202-	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9202-9202	●
94	NUT; HOOK M14	9-99110-414-0	02	1	9202-9202		●
94	NUT; HOOK BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	02	1	9203-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 OD=40	9-09851-995-0	01	1	9202-	●	●
127	NUT; FRT BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9202-	●	●
128	WASHER; PL,FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=15 OD=36	9-09164-714-0	02	1	9202-	●	●
129	WASHER; LK,FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	06	1	9202-	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	04	1	9202-	●
238	WASHER; LK,BUMPER BRKT BUMPER W/HEADLAMPS<SLB> ID=10.2	9-09150-510-0	08	1	9206-	●	●
244	WASHER; LK,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=14.2	9-09150-514-0	06	1	9202-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	9202-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M14X60	0-10811-460-0	01	1	9202-9501	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X60	0-10811-460-0	01	1	9502-	●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	9502-		●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9202-9202	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X50	0-10811-450-0	01	1	9203-9501	●	●

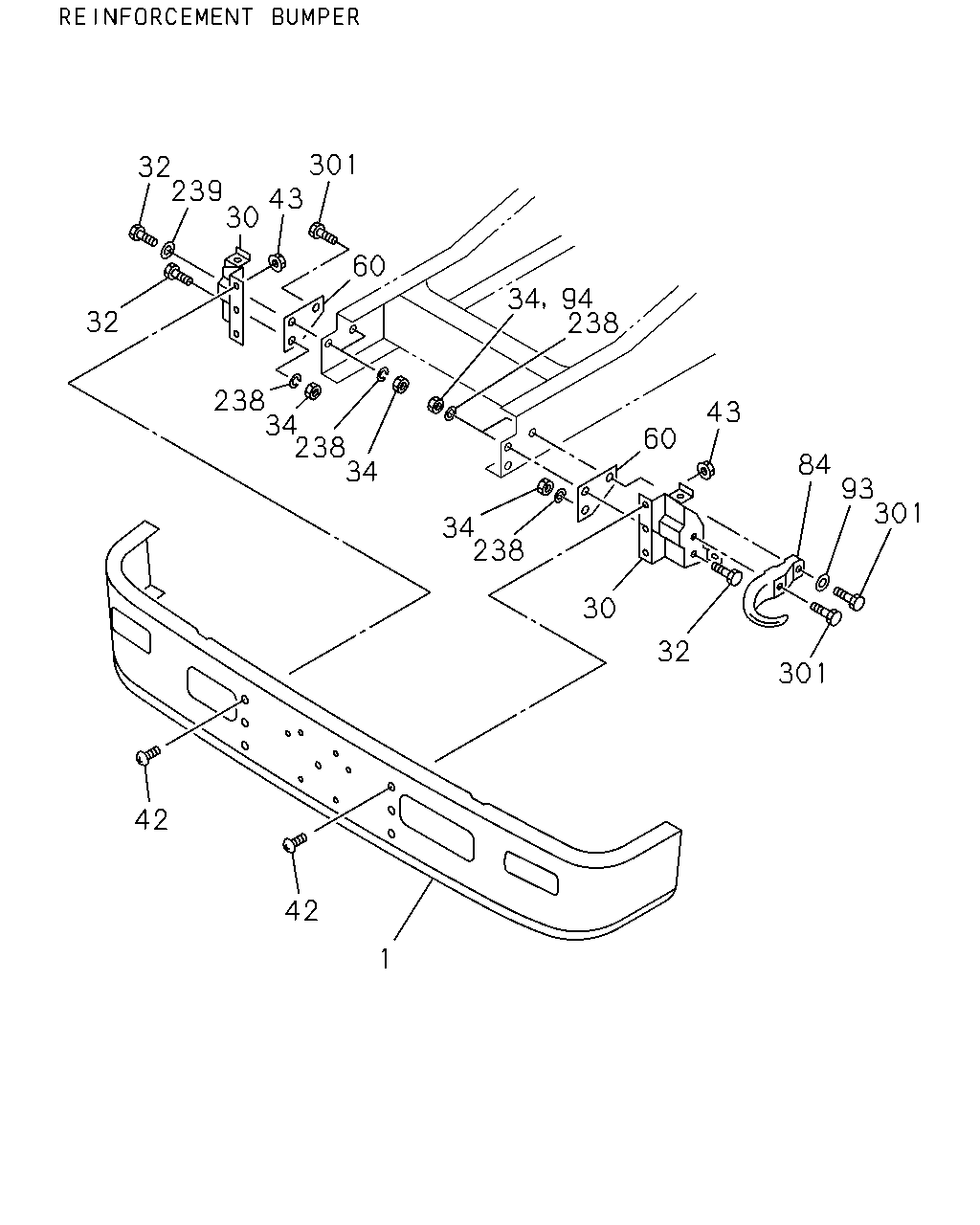

1 42 42 301 32 30 238 34 34 238 34 238 32 32 239 30 43 301 60 34 94 238 60 43 84 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-502-2	01	1	9202-		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>,REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-9307	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-241-6	01	1	9202-9307		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9308-	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> WHITE	1-71210-241-6	01	1	9308-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-4	01	1	9202-9307	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9308-	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-450-1	01	1	9308-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> WHITE	1-71210-450-1	01	1	9308-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-188-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-295-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	04	1	9202-	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	01	1	9303-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X50 W/LK WASHER	0-50041-050-0	01	1	9303-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9202-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●
42	BOLT; BUMPER AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28080-825-0	02	1	9412-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-172-0	01	1	9202-	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-173-0	01	1	9202-	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9202-	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9202-	●
84	HOOK	1-57181-020-1	01	1	9202-		●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9202-	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9202-	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9202-		●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9202-	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9202-9202	●
94	NUT; HOOK M14	9-99110-414-0	02	1	9202-9202		●
94	NUT; HOOK BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	02	1	9203-	●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	04	1	9202-	●
238	WASHER; LK,BUMPER BRKT BUMPER W/HEADLAMPS<SLB> ID=10.2	9-09150-510-0	08	1	9206-	●	●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	9202-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M14X60	0-10811-460-0	01	1	9202-9501	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X60	0-10811-460-0	01	1	9502-	●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	9502-		●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9202-9202	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X50	0-10811-450-0	01	1	9203-9501	●	●

94 93 84 301 34 43 30 32 1 3 42 42 254 250 42 3 5 29 4 30 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-502-2	01	1	9202-	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB>	1-71210-502-2	01	1	9202-		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>,REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9202-9307	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-241-6	01	1	9202-9307		●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9308-	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> WHITE	1-71210-241-6	01	1	9308-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-4	01	1	9202-9307	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-299-4	01	1	9308-	●
1	BUMPER ASM; FRT LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71210-450-1	01	1	9308-	●	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> WHITE	1-71210-450-1	01	1	9308-	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-496-0	01	1	9202-	●	●
3	BUMPER; FRT,SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-495-0	01	1	9202-	●	●
3	BUMPER; FRT,SIDE LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-371-3	01	1	9407-	●	●
3	BUMPER; FRT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-371-3	01	1	9407-	●
3	BUMPER; FRT,SIDE LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-370-3	01	1	9407-	●	●
3	BUMPER; FRT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-370-3	01	1	9407-	●
4	NUT; CTR BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8 FLANGE	0-91150-108-0	06	1	9202-	●	●
4	NUT; CTR BUMPER LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	04	1	9407-	●	●
4	NUT; CTR BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8 FLANGE	0-91150-108-0	04	1	9407-	●
5	BRACKET; AIR DAM LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-387-0	01	1	9407-	●	●
5	BRACKET; AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-387-0	01	1	9407-	●
5	BRACKET; AIR DAM LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-386-0	01	1	9407-	●	●
5	BRACKET; AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-386-0	01	1	9407-	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	06	1	9202-	●	●
29	WASHER; FRT BUMPER LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	04	1	9407-	●	●
29	WASHER; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	04	1	9407-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9202-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9202-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-188-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-190-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-191-1	01	1	9202-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-295-0	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9202-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9202-	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	04	1	9202-	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	0-20801-025-0	08	1	9202-9205	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M10X30	0-20801-030-0	08	1	9206-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9202-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	01	1	9303-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X50 W/LK WASHER	0-50041-050-0	01	1	9303-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	9202-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	06	1	9202-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9202-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9202-	●
42	BOLT; BUMPER AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28080-825-0	02	1	9412-	●	●
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X25	1-09060-010-1	08	1	9202-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9202-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9202-	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	9202-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9202-	●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9202-	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9202-	●
84	HOOK	1-57181-020-1	01	1	9202-		●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9202-	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9202-	●
93	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9202-		●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9202-	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9202-9202	●
94	NUT; HOOK M14	9-99110-414-0	02	1	9202-9202		●
94	NUT; HOOK BUMPER W/HEADLAMPS<SLB> M14	9-99110-414-0	02	1	9203-	●	●
250	WASHER; PL AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	9412-	●	●
254	NUT; STEP AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8	9-09110-408-0	02	1	9412-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9202-	●
301	BOLT; HOOK TO FRAME M14X70	0-10811-470-0	01	1	9202-		●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M14X60	0-10811-460-0	01	1	9202-9501	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X60	0-10811-460-0	01	1	9502-	●
301	BOLT; HOOK TO FRAME M14X60	0-10811-460-0	01	1	9502-		●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9202-9202	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M14X50	0-10811-450-0	01	1	9203-9501	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
