Sayfa 4-11 - Isuzu EPC

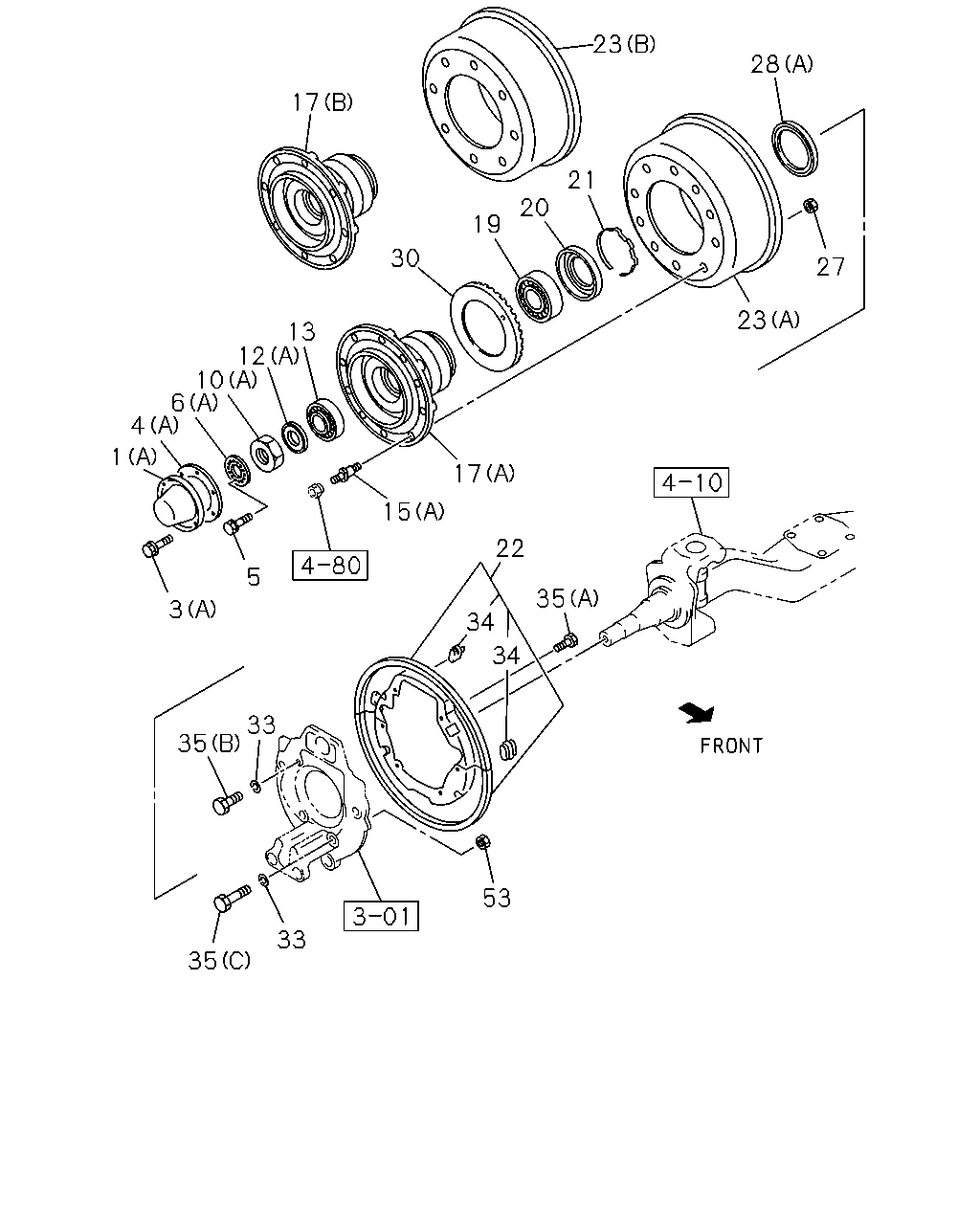

4-11 — FRONT HUB AND DRUM OR ROTOR (#67999) — 287 parça

28 23 17 21 20 19 30 13 12 10 6 4 1 3 5 15 17 23 27 22 35 34 34 53 33 35 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42313-028-0	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	0803-0907	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	0908-1009	●	●
1	CAP; HUB,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) OD=156	9-42313-123-2	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) OD=156	9-42313-123-2	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	1010-1105		●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	1106-	●	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-189-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	0803-0907	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	0908-1009	●	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105		●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	1106-	●	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-186-0	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	0803-0907	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	0908-1009	●	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-185-2	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-42319-185-2	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	1010-1105		●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	1106-	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0803-0907	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0908-1009	●	●
5	BOLT; LK WASHER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M6X16 HEX SOCKET	8-98084-271-0	04	1	1010-1105	●
5	BOLT; LK WASHER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M6X16 HEX SOCKET	8-98084-271-0	04	1	1010-1105	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	1010-1105		●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	1106-1201	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●	●
6	WASHER; LK,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-020-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	0803-0907	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	0908-1009	●	●
6	WASHER; LK,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=48	8-98084-561-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=48	8-98084-561-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	1010-1105		●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	1106-	●	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-019-0	02	1	1010-1105	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (C)	1-42329-022-0	02	1	1010-1105	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	0803-0907	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	0908-1009	●	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M48	1-09840-012-5	02	1	1010-1105	●
10	NUT; FRT HUB BRG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M48	1-09840-012-5	02	1	1010-1105	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	1010-1105		●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	1106-	●	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-021-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	1-09533-016-0	02	1	0803-0907	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	1-09533-016-0	02	1	0908-0911	●	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	0912-1009	●	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=48	8-98156-755-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=48	8-98156-755-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	1010-1105		●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	1106-	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0803-0907	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	0908-1009	●	●
13	BEARING; HUB OUTER,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09812-234-0	02	1	1010-1105	●
13	BEARING; HUB OUTER,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) JTEKT	1-09812-234-0	02	1	1010-1105	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1010-1105		●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1106-	●	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42337-091-0	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0809-0907	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0908-1009	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0908-1009		●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105		●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-		●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0803-0808	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0809-1011	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1106-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0803-0808	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0809-1011	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1106-	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (C)	8-98122-636-0	02	1	1010-1105	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-100-1	02	1	0809-	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	0809-0907	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	0908-1009	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	0908-1009		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-160-0	02	1	1010-1105	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1010-1105		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	1106-	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1106-		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-42312-151-3	02	1	0803-0808	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42312-151-3	02	1	0809-1009	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-151-3	02	1	1010-	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42312-128-2	02	1	0803-0808	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42312-128-2	02	1	0809-	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0803-0907	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	0908-1009	●	●
19	BEARING; HUB INNER,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09812-231-0	02	1	1010-1105	●
19	BEARING; HUB INNER,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) JTEKT	1-09812-231-0	02	1	1010-1105	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1010-1105		●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1106-	●	●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0803-0907	●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0908-1009	●	●
20	COVER; HUB BRG INNER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	1010-1105	●
20	COVER; HUB BRG INNER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-42319-039-0	02	1	1010-1105	●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1010-1105		●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1106-	●	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0803-0907	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0908-1009	●	●
21	RING; SNAP,HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	1010-1105	●
21	RING; SNAP,HUB BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09587-017-0	02	1	1010-1105	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	1010-1105		●
21	RING; SNAP,HUB	1-09587-017-0	02	1	1106-	●	●
22	COVER SET; FRT BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-87831-225-0	02	1	0803-0907	●
22	COVER SET; FRT BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-87831-225-0	02	1	0908-1009	●
22	COVER SET; FRT BRK DRUM	1-87831-225-0	02	1	0908-1009		●
22	COVER SET; FRT BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-87831-225-0	02	1	1010-1105	●
22	COVER SET; FRT BRK DRUM	1-87831-225-0	02	1	1010-1105		●
22	COVER SET; FRT BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-87831-225-0	02	1	1106-	●
22	COVER SET; FRT BRK DRUM	1-87831-225-0	02	1	1106-		●
22	COVER SET; FRT BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-458-1	02	1	0803-	●
23	DRUM; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-380-0	02	1	0809-	●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-365-0	02	1	0809-0907	●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-365-0	02	1	0908-1009	●
23	DRUM; BRK,FRT (A)	1-42315-365-0	02	1	0908-1009		●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-365-0	02	1	1010-1105	●
23	DRUM; BRK,FRT (A)	1-42315-365-0	02	1	1010-1105		●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-365-0	02	1	1106-	●
23	DRUM; BRK,FRT (A)	1-42315-365-0	02	1	1106-		●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-42315-397-0	02	1	0803-0808	●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42315-397-0	02	1	0809-1009	●
23	DRUM; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-397-0	02	1	1010-	●
23	DRUM; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42315-355-0	02	1	0803-0808	●
23	DRUM; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42315-355-0	02	1	0809-	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	0809-0907	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	0908-1009	●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	0908-1009		●
27	NUT; WHEEL PIN,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	1010-1105	●
27	NUT; WHEEL PIN,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1010-1105	●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	1010-1105		●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1106-	●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	1106-		●
27	NUT; WHEEL PIN,FRT AXLE M22 FLANGE	1-09440-065-0	16	1	0803-0808	●
27	NUT; WHEEL PIN,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	0809-1011	●
27	NUT; WHEEL PIN,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M22 FLANGE	1-09440-065-0	16	1	1012-1105	●
27	NUT; WHEEL PIN,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	1012-1105	●
27	NUT; WHEEL PIN,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	1106-	●
28	SEAL; OIL,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-09625-652-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	0803-0907	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	0908-1009	●	●
28	SEAL; OIL,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) OD=140	1-09625-041-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) OD=140	1-09625-041-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	1010-1105		●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	1106-	●	●
30	RING; EXCITER,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	0803-0809	●
30	RING; EXCITER,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	0810-1007	●
30	RING; EXCITER,FRT HUB	1-42319-203-0	02	1	0810-1007		●
30	RING; EXCITER,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1008-1009	●
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1008-1009		●
30	RING; EXCITER,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-203-0	02	1	1010-1105	●
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1010-1105		●
30	RING; EXCITER,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1106-	●
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1106-		●
33	WASHER; LK,DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=18.2	0-91510-818-0	12	1	0803-0907	●
33	WASHER; LK,DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=18.2	0-91510-818-0	12	1	0908-1009	●
33	WASHER; LK,DRUM COVER ID=18.2	0-91510-818-0	12	1	0908-1009		●
33	WASHER; LK,DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> ID=18.2	0-91510-818-0	12	1	1010-1105	●
33	WASHER; LK,DRUM COVER ID=18.2	0-91510-818-0	12	1	1010-1105		●
33	WASHER; LK,DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=18.2	0-91510-818-0	12	1	1106-	●
33	WASHER; LK,DRUM COVER ID=18.2	0-91510-818-0	12	1	1106-		●
33	WASHER; LK,DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=16.2	0-91510-816-0	04	1	0803-	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0803-0907	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-1009	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	1010-1105	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1010-1105		●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1106-	●	●
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	0803-0907	●
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	0908-1009	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (A) M10X12	1-47159-187-0	12	1	1010-1105	●
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1010-1105		●
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1106-	●	●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M18X65	1-09000-583-0	04	1	0803-0805	●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M18X65	1-09000-789-0	04	1	0806-0907	●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M18X65	1-09000-789-0	04	1	0908-1009	●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	0908-1009		●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X65	1-09000-789-0	04	1	1010-1105	●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	1010-1105		●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M18X65	1-09000-789-0	04	1	1106-	●
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	1106-		●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M18X45	9-92061-845-0	08	1	0803-0805	●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M18X45	1-09000-790-0	08	1	0806-0907	●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M18X45	1-09000-790-0	08	1	0908-1009	●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	0908-1009		●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X45	1-09000-790-0	08	1	1010-1105	●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	1010-1105		●
35	BOLT; DRUM COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M18X45	1-09000-790-0	08	1	1106-	●
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	1106-		●
35	BOLT; DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M16X52	1-09044-120-0	04	1	0803-	●
53	NUT; DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M16	0-91110-516-0	04	1	0803-	●

38 37 36 28 87 25 15 17 44 43 85 10 12 6 10 4 1 48 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42313-028-0	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	0803-0907	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	0908-1009	●	●
1	CAP; HUB,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) OD=156	9-42313-123-2	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) OD=156	9-42313-123-2	02	1	1010-1105	●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	1010-1105		●
1	CAP; HUB,FRT AXLE (A) OD=156	9-42313-123-2	02	1	1106-	●	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-189-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	0803-0907	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	0908-1009	●	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105	●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	1010-1105		●
3	BOLT; HUB CAP,FRT WHEEL (A) M8X12 FLANGE	0-28050-812-0	12	1	1106-	●	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42319-186-0	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	0803-0907	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	0908-1009	●	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42319-185-2	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-42319-185-2	02	1	1010-1105	●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	1010-1105		●
4	GASKET; HUB CAP,FRT WHEEL (A)	1-42319-185-2	02	1	1106-	●	●
6	WASHER; LK,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-020-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	0803-0907	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	0908-1009	●	●
6	WASHER; LK,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=48	8-98084-561-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=48	8-98084-561-0	02	1	1010-1105	●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	1010-1105		●
6	WASHER; LK,FRT HUB (A) ID=48	8-98084-561-0	02	1	1106-	●	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-019-0	02	1	1010-1105	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (C)	1-42329-022-0	02	1	1010-1105	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	0803-0907	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	0908-1009	●	●
10	NUT; FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M48	1-09840-012-5	02	1	1010-1105	●
10	NUT; FRT HUB BRG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M48	1-09840-012-5	02	1	1010-1105	●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	1010-1105		●
10	NUT; FRT HUB BRG (A) M48	1-09840-012-5	02	1	1106-	●	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42329-021-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	1-09533-016-0	02	1	0803-0907	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	1-09533-016-0	02	1	0908-0911	●	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	0912-1009	●	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) ID=48	8-98156-755-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=48	8-98156-755-0	02	1	1010-1105	●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	1010-1105		●
12	WASHER; LK,FRT HUB BRG (A) ID=48	8-98156-755-0	02	1	1106-	●	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-42337-091-0	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0809-0907	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0908-1009	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0908-1009		●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1010-1105		●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-	●
15	PIN; WHEEL,FRT AXLE (A) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-		●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0803-0808	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	0809-1011	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1106-	●
15	PIN; WHEEL,FRT AXLE (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0803-0808	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	0809-1011	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1012-1105	●
15	PIN; WHEEL,FRT AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1106-	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (C)	8-98122-636-0	02	1	1010-1105	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-100-1	02	1	0809-	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	0809-0907	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	0908-1009	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	0908-1009		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-160-0	02	1	1010-1105	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1010-1105		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	1106-	●
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1106-		●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-42312-151-3	02	1	0803-0808	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42312-151-3	02	1	0809-1009	●
17	HUB; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-151-3	02	1	1010-	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42312-128-2	02	1	0803-0808	●
17	HUB; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B)	1-42312-128-2	02	1	0809-	●
25	ROTOR; DISC BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-42316-051-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-09625-652-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	0803-0907	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	0908-1009	●	●
28	SEAL; OIL,FRT HUB BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) OD=140	1-09625-041-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) OD=140	1-09625-041-0	02	1	1010-1105	●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	1010-1105		●
28	SEAL; OIL,FRT HUB (A) OD=140	1-09625-041-0	02	1	1106-	●	●
36	BOLT; BACK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-42319-216-0	14	1	1010-1105	●
37	WASHER; LK,BACK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-42319-214-0	14	1	1010-1105	●
38	NUT; BACK PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-42319-215-0	14	1	1010-1105	●
43	BOLT; DISC BRAKE FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	8-98105-043-0	20	1	1010-1105	●
44	WASHER; LK,DISC BRAKE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-41229-168-0	20	1	1010-1105	●
48	WASHER; LK,HUB CAP,FRT WHEEL BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-42319-190-0	12	1	1010-1105	●
85	CONE; BEARING,HUB OUTER BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-09812-252-0	02	1	1010-1105	●
87	CONE; BEARING,HUB INNER BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>	1-09812-253-0	02	1	1010-1105	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
