Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#67995) — 52 parça
◀

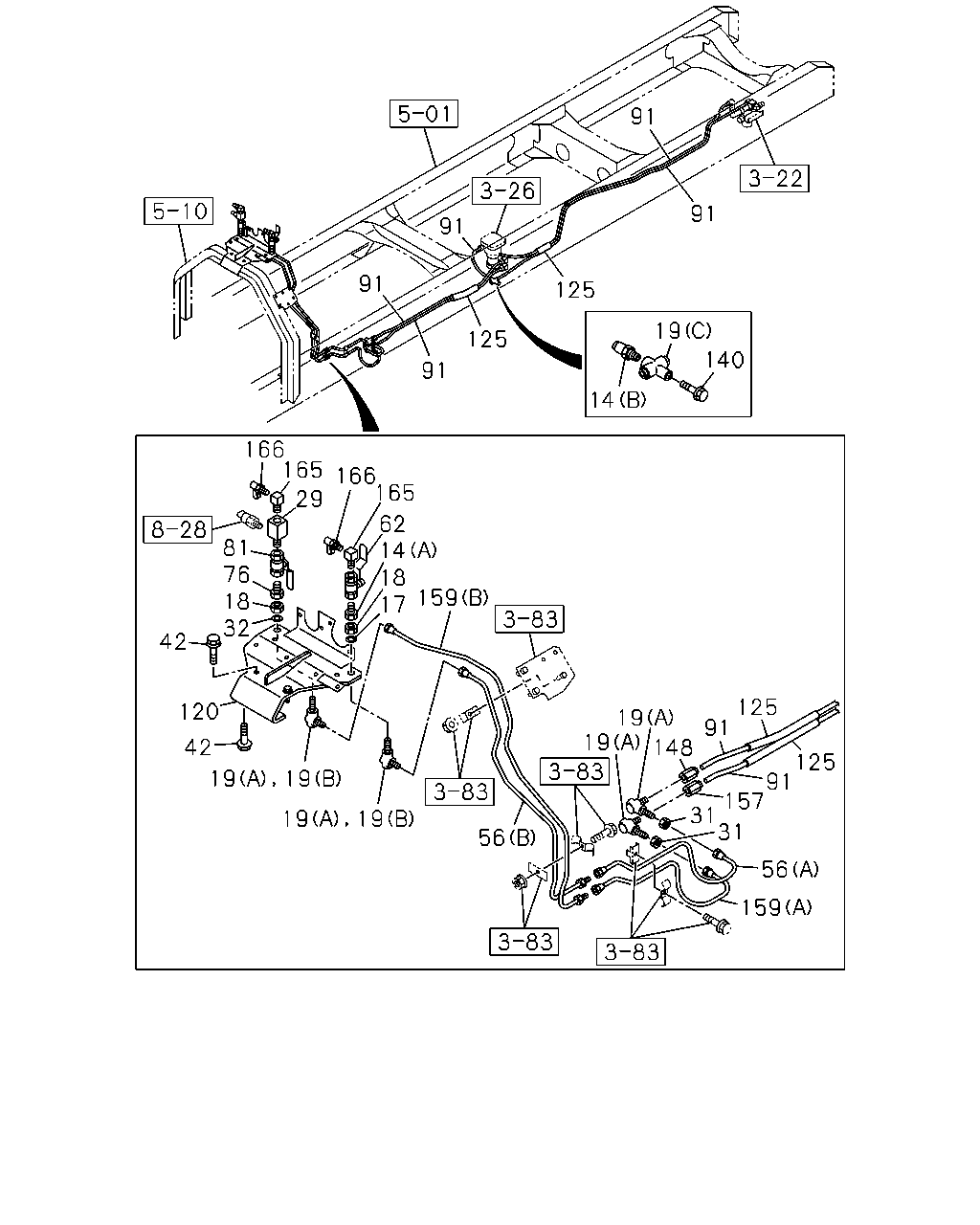

[380A] NO.2 (42 parça)

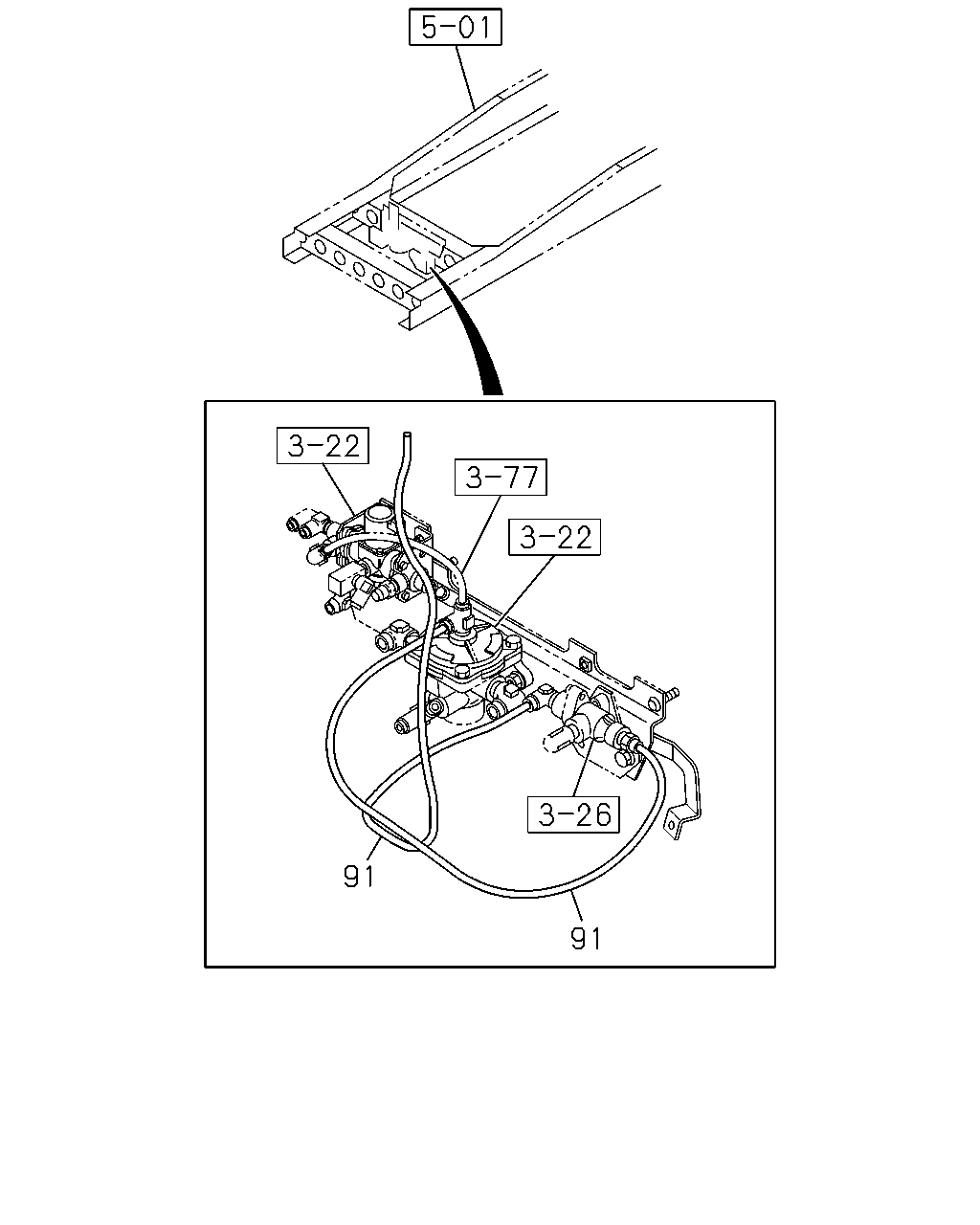

[380A] NO.1 (10 parça)
▶
91
91
91
91
125
125
91
19
14
140
166
165
29
81
76
18
32
42
120
42
19
19
19
166
165
62
14
18
17
159
19
56
19
19
148
91
125
125
91
157
31
31
56
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CONNECTOR; AIR PIPE
(A)
1-09660-078-0
01
1
0908-
14
CONNECTOR; AIR PIPE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0908-
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
02
1
0908-1009
17
WASHER; LK,UNION
ID=16.2
0-91510-816-0
01
1
1010-
18
NUT; UNION
M16
0-91111-516-0
02
1
0908-
19
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
0908-1009
19
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
04
1
1010-
19
UNION; AIR PIPE
(C) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0908-
19
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-110-1
02
1
0908-1009
29
CONNECTOR; COCK
PT1/2
1-09664-041-1
01
1
0908-
31
NUT; UNION
M16
0-91111-516-0
02
1
0908-
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
0908-1009
32
WASHER; LK,UNION
ID=16.2
0-91510-816-0
01
1
1010-
42
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
0908-
56
PIPE; AIR,UNION TO COCK
(A) L=565 SERVICED BY L=600
1-47428-868-0
01
1
0908-
56
PIPE; AIR,UNION TO COCK
(B) L=831 SERVICED BY L=900
1-47428-873-0
01
1
0908-
62
COCK; AIR PIPE
YELLOW
1-09680-093-0
01
1
0908-
76
NIPPLE; AIR PIPE
1-09660-078-0
01
1
0908-
81
COCK; AIR COUPLING
RED
1-09680-091-0
01
1
0908-
91
TUBE; NYLON
ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0908-1009
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1010-
91
TUBE; NYLON
ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
0908-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
0908-1009
91
TUBE; NYLON
EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
02
1
0908-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
01
1
0908-1009
91
TUBE; NYLON
EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=4000 OD=12
1-87411-012-0
01
1
1010-
120
BRACKET; COCK
8-98118-861-0
01
1
0908-1012
120
BRACKET; COCK
8-98184-318-0
01
1
1101-
125
TUBE; CORRUGATE
ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1010-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
02
1
0908-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
01
1
0908-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
01
1
0908-
140
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
0908-
148
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0908-
157
ADAPTER
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0908-
159
PIPE; AIR,UNION TO CONNECTOR
(A)
8-98118-440-0
01
1
0908-
159
PIPE; AIR,UNION TO CONNECTOR
(B) L=1073
8-98118-441-0
01
1
0908-
165
CONNECTOR; ELBOW
PT1/2 & NPTF1/2 2WAY
1-09660-695-0
02
1
0908-
166
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0908-
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
TUBE; NYLON
ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0908-1009
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1010-
91
TUBE; NYLON
ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
0908-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
0908-1009
91
TUBE; NYLON
EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
1010-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
02
1
0908-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
01
1
0908-1009
91
TUBE; NYLON
EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=4000 OD=12
1-87411-012-0
01
1
1010-
