Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#67993) — 455 parça

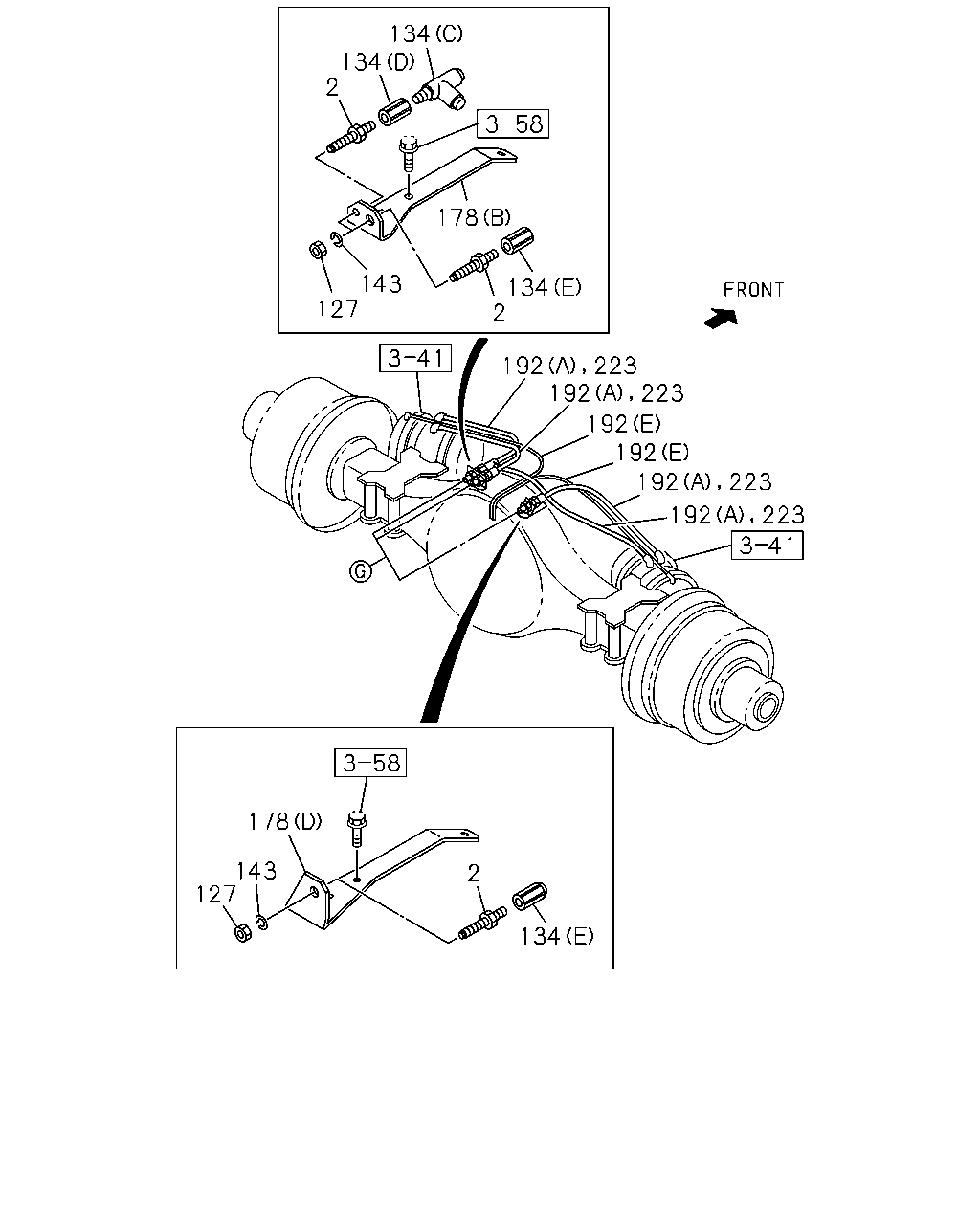

134 134 2 127 143 178 2 134 192 223 192 223 192 192 192 223 223 192 134 127 143 178 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=65 STRAIGHT	0-92123-110-0	03	1	1008-1108	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	0803-0907	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	0908-1007	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	0908-1007		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=74	0-92123-310-0	03	1	1008-1108	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) M16 L=74	0-92123-310-0	03	1	1008-1108	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1008-1108		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	1109-	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1109-		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	0803-0907	●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	0908-	●
127	NUT; UNION M16	0-91111-516-0	03	1	0908-		●
134	CONNECTOR (E) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-		●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0908-		●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0803-0907	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0908-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0908-		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	0803-0907	●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	0908-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	0908-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98074-407-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98074-408-0	01	1	1008-1108	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0908-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	0908-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0803-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0803-0907	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0908-1007	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0908-1007		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1008-1108		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1109-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1109-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0803-1007	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1109-	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0908-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1012-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0803-	●	●

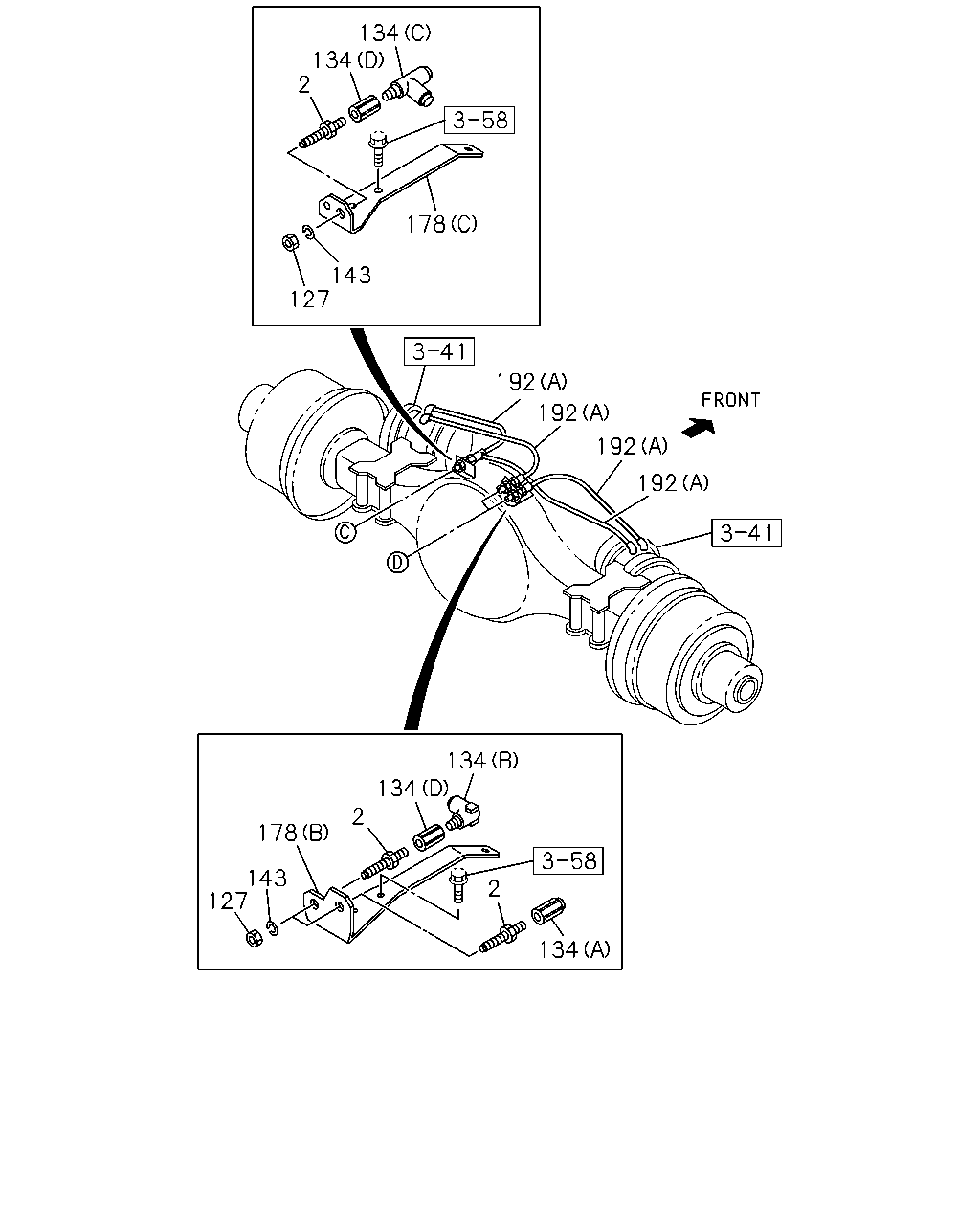

134 134 2 178 143 127 192 192 192 192 134 2 134 134 2 178 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=65 STRAIGHT	0-92123-110-0	03	1	1008-1108	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	0803-0907	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	0908-1007	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	0908-1007		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M16 L=74	0-92123-310-0	03	1	1008-1108	●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) M16 L=74	0-92123-310-0	03	1	1008-1108	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1008-1108		●
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	1109-	●
2	UNION; AIR PIPE M16 L=74	0-92123-310-0	03	1	1109-		●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	0803-0907	●
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	0908-	●
127	NUT; UNION M16	0-91111-516-0	03	1	0908-		●
134	CONNECTOR (E) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-		●
134	CONNECTOR (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0908-		●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0803-	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0803-0907	●
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0908-	●
134	CONNECTOR (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0908-		●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	0803-0907	●
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	0908-	●
143	WASHER; LK,UNION ID=16.2	0-91510-816-0	03	1	0908-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98074-407-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98074-408-0	01	1	1008-1108	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0908-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	0908-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0803-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0803-0907	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0908-1007	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0908-1007		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1008-1108		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1109-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1109-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0803-1007	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1109-	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●

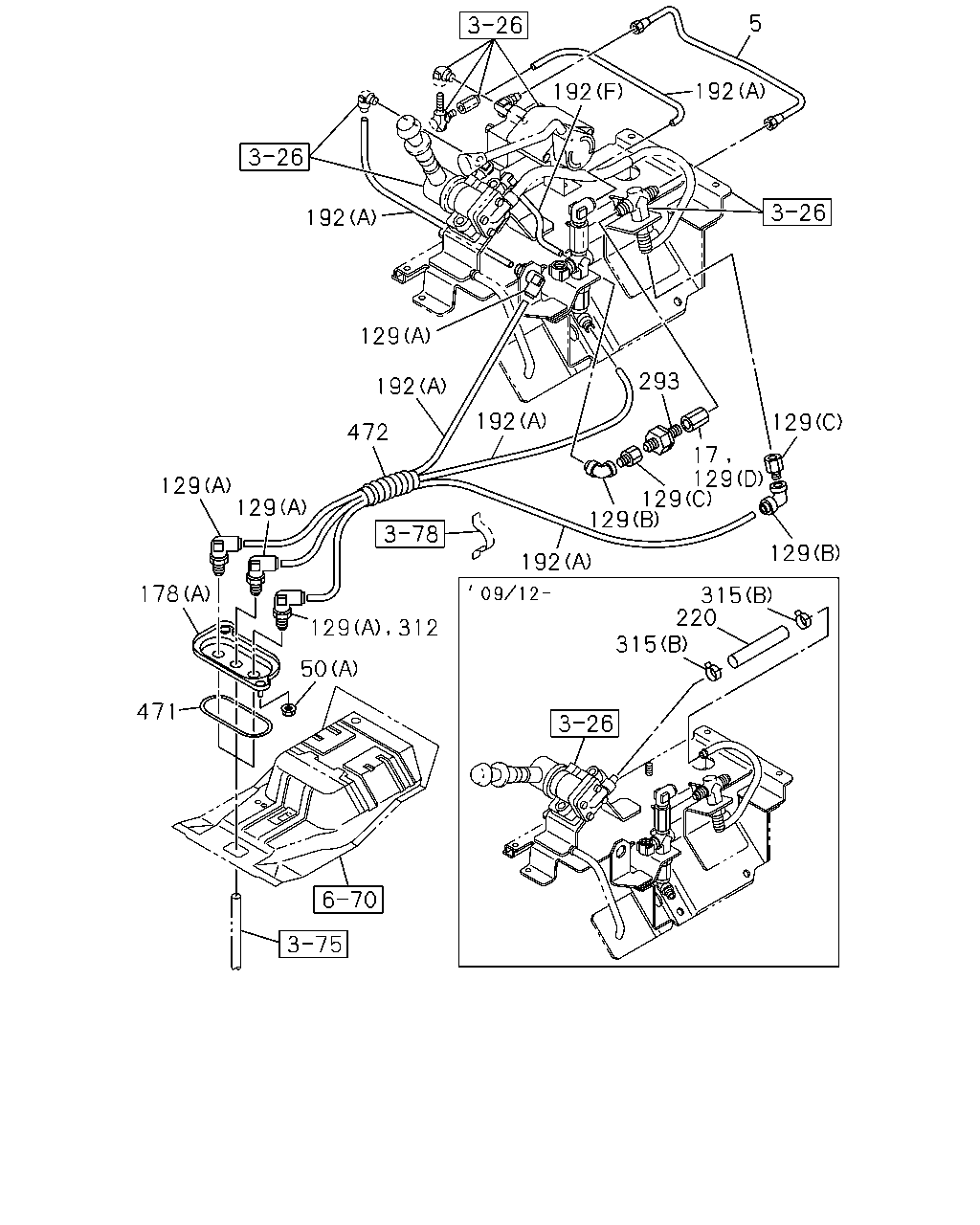

5 192 192 192 129 192 192 293 129 129 17 129 129 129 192 472 129 129 178 471 50 129 312 315 220 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV	8-97610-775-1	01	1	0908-		●
17	UNION; AIR PIPE M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0908-1101		●
50	NUT; UNION BRKT (B) M12	0-91111-512-0	03	1	0908-		●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0803-	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0803-	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1102-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0908-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	01	1	1007-1110		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	01	1	1007-1110		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	02	1	1111-		●
129	CONNECTOR; NYLON TUBE (C)	1-09660-930-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (C)	1-09660-930-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	01	1	1007-		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	01	1	1007-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0803-0907	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0803-0907	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98074-407-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98074-408-0	01	1	1008-1108	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0908-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	0908-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0803-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0803-0907	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0908-1007	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0908-1007		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1008-1108		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1109-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1109-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0803-1007	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1109-	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	0912-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0912-	●
293	VALVE; CHECK	1-48410-479-1	01	1	0908-		●
312	CONNECTOR; SUPPLY DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-		●
315	CLIP DIFF LOCK<C3N> (C) L=350	1-09707-183-0	01	1	1010-1107	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	0912-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0803-0907	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0908-	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0908-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0803-0907	●
471	SEAL; BRKT	1-79738-832-0	01	1	0908-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0803-0907	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0908-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0908-		●

192 71 80 10 172 192 192 172 315 71 80 10 10 90 50 79 67 172 192 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE (A) M16 2WAY	1-09650-182-1	03	1	0908-		●
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	0803-	●
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	0803-	●
50	NUT; UNION BRKT (B) M12	0-91111-512-0	03	1	0908-		●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0803-	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0803-	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0908-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0908-		●
71	HOSE; FLEX,RWD RR L=600	1-09363-746-0	01	1	0908-0910		●
71	HOSE; FLEX,RWD RR L=580	1-09363-772-0	01	1	0908-0910		●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0810-0910	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	0810-0910	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	0803-0809	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0810-0910	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0803-0907	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0908-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-		●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) L=680	1-09363-742-0	02	1	1010-1107	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0911-	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0911-	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	0911-1009	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	1010-1107	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	1108-	●
80	HOSE; FLEX,POWER CHAMBER L=600	1-09363-746-0	01	1	0911-		●
80	HOSE; FLEX,POWER CHAMBER L=580	1-09363-772-0	01	1	0911-		●
90	BRACKET; PIPE UNION	8-98130-763-0	01	1	0908-		●
90	BRACKET; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	0803-	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) L=600	1-09363-746-0	01	1	1010-1107	●
161	HOSE; FLEX,QUICK RELEASE VLV	8-98031-452-0	01	1	0908-		●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=740	1-09363-756-0	01	1	0803-0904	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	0905-1009	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T) L=680	1-09363-742-0	01	1	1010-1107	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1108-	●
172	ADAPTER; UNION DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
315	CLIP DIFF LOCK<C3N> (C) L=350	1-09707-183-0	01	1	1010-1107	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	0912-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0803-0907	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0908-	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0908-		●

182 315 274 72 223 192 192 192 192 192 223 192 223 225 184 192 192 192 161 50 79 90 67 10 46 192 280 50 280 46 192 192 10 71 80 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	CONNECTOR; FLEX HOSE (A) M16 2WAY	1-09650-182-1	03	1	0908-		●
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	0803-	●
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	0803-	●
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0803-	●
50	NUT; UNION BRKT (B) M12	0-91111-512-0	03	1	0908-		●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0803-	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0803-	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0908-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0908-		●
71	HOSE; FLEX,RWD RR L=600	1-09363-746-0	01	1	0908-0910		●
71	HOSE; FLEX,RWD RR L=580	1-09363-772-0	01	1	0908-0910		●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0810-0910	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	0810-0910	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	0803-0809	●
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0810-0910	●
72	NUT; BRKT DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	01	1	1010-1107	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0803-0907	●
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0908-	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	0908-		●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) L=680	1-09363-742-0	02	1	1010-1107	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0911-	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0911-	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	0911-1009	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	1010-1107	●
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	02	1	1108-	●
80	HOSE; FLEX,POWER CHAMBER L=600	1-09363-746-0	01	1	0911-		●
80	HOSE; FLEX,POWER CHAMBER L=580	1-09363-772-0	01	1	0911-		●
90	BRACKET; PIPE UNION	8-98130-763-0	01	1	0908-		●
90	BRACKET; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	0803-	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) L=600	1-09363-746-0	01	1	1010-1107	●
161	HOSE; FLEX,QUICK RELEASE VLV	8-98031-452-0	01	1	0908-		●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=740	1-09363-756-0	01	1	0803-0904	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	0905-1009	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T) L=680	1-09363-742-0	01	1	1010-1107	●
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	1108-	●
182	BRACKET; TUBE CLIP DIFF LOCK<C3N> L=150 H=30	1-47477-629-2	01	1	1010-1107	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0907	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0908-1211	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0908-1211		●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	1212-	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1212-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0908-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1012-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0803-	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0908-1211	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0908-1211		●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1212-	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1212-		●
274	BOLT; BRKT DIFF LOCK<C3N> M8X35 FLANGE	0-28650-835-0	01	1	1010-1107	●
280	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.2	0-91510-812-0	02	1	0803-	●
280	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=16.2	0-91510-816-0	01	1	0803-	●
315	CLIP DIFF LOCK<C3N> (C) L=350	1-09707-183-0	01	1	1010-1107	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	0912-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0803-0907	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0908-	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0908-		●

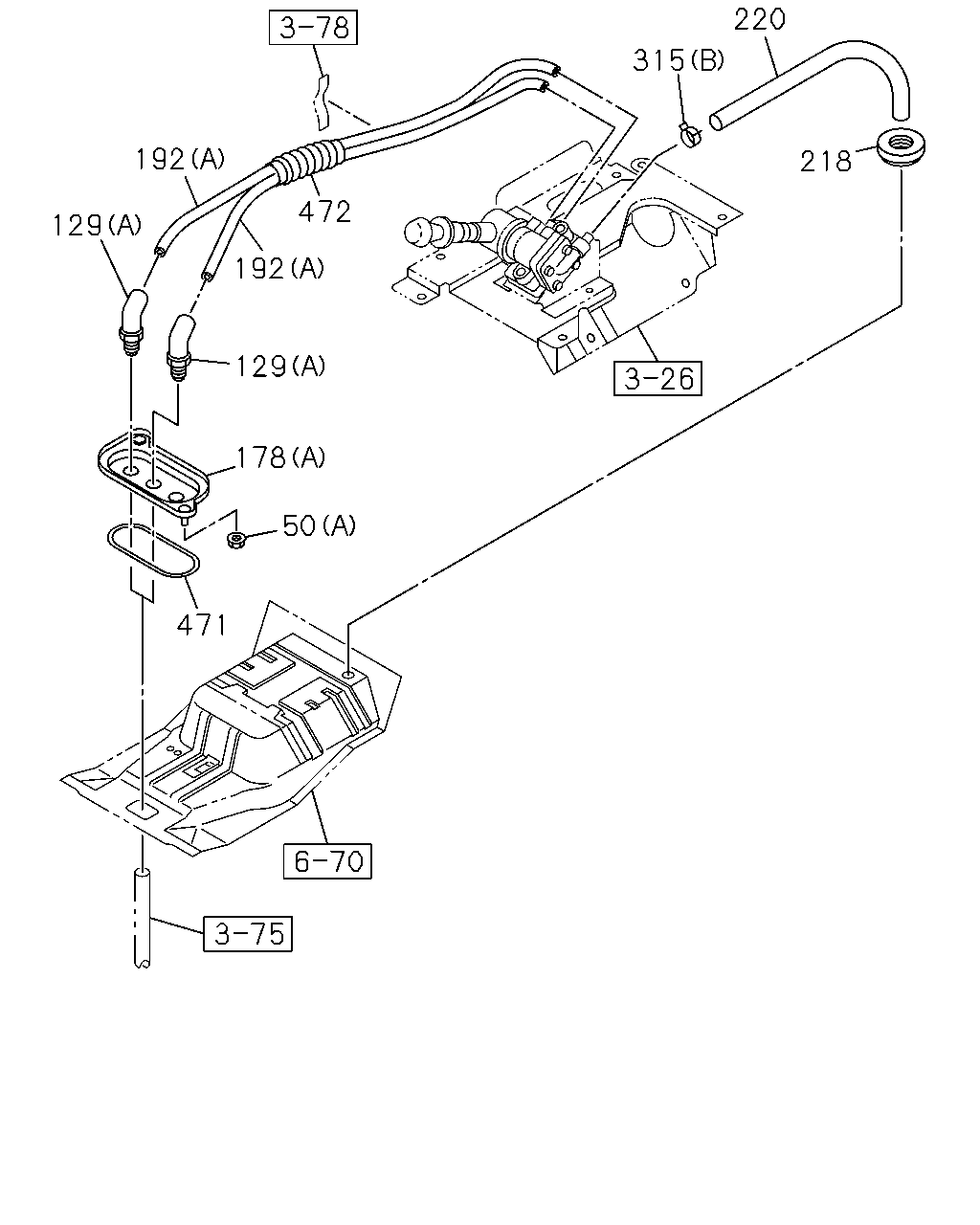

192 129 471 50 178 129 192 472 315 220 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT (B) M12	0-91111-512-0	03	1	0908-		●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0803-	●
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0803-	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0803-0907	●
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
129	CONNECTOR; NYLON TUBE (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	1102-		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0908-		●
129	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	01	1	1007-1110		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	01	1	1007-1110		●
129	CONNECTOR; NYLON TUBE (B)	8-97633-756-0	02	1	1111-		●
129	CONNECTOR; NYLON TUBE (C)	1-09660-930-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (C)	1-09660-930-1	01	1	0908-1006		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	01	1	1007-		●
129	CONNECTOR; NYLON TUBE (C)	8-97633-768-0	01	1	1007-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0803-0907	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0803-0907	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101		●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0908-1101		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1102-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98074-407-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98074-408-0	01	1	1008-1108	●
178	BRACKET; UNION (A)	8-98017-056-1	01	1	0908-		●
178	BRACKET; UNION (D)	8-98031-033-1	01	1	0908-		●
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	0803-	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0803-0907	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0908-1007	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	0908-1007		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (B)	8-98031-034-1	01	1	1008-1108	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1008-1108		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	1109-	●
178	BRACKET; UNION (B)	8-98031-034-1	01	1	1109-		●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0803-1007	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (C)	8-98057-823-0	01	1	1008-1108	●
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	1109-	●
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0912-	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=220 SERVICED BY L=10000	9-09914-701-0	01	1	0912-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0912-	●
315	CLIP DIFF LOCK<C3N> (C) L=350	1-09707-183-0	01	1	1010-1107	●
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-	●
315	CLIP (B) ID=14	8-94238-572-0	02	1	0912-		●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0803-0907	●
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0908-	●
315	CLIP (A) ID=18 & 18	8-94323-068-0	01	1	0908-		●
471	SEAL; BRKT	1-79738-832-0	01	1	0803-0907	●
471	SEAL; BRKT	1-79738-832-0	01	1	0908-	●	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0803-0907	●
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0908-	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	0908-		●

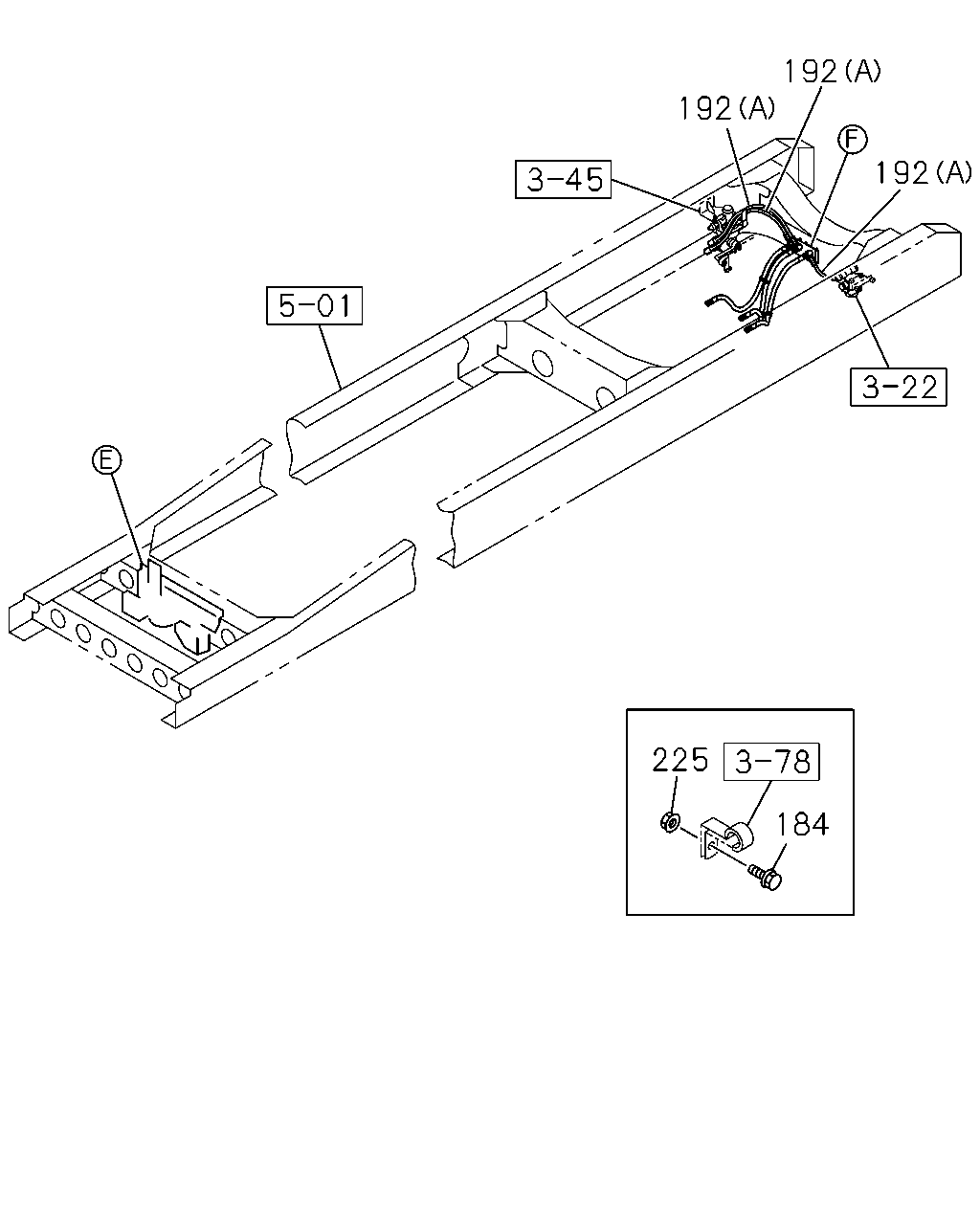

192 192 192 225 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0907	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0908-1211	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0908-1211		●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	1212-	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1212-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (C)	8-98177-652-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (B)	8-98177-653-0	01	1	1010-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. H.S.A SYSTEM<6EP> (D)	8-98094-882-0	01	1	1010-1107	●
192	TUBE; NYLON (E) L=990 OD=8	1-49218-618-1	02	1	0908-		●
192	TUBE; NYLON (F)	8-98017-537-0	01	1	0908-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	0803-1009	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> (D)	8-98109-842-0	01	1	1010-1107	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1010-1107		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98109-842-0	01	1	1108-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> (D)	8-98109-842-0	01	1	1108-		●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98085-803-0	01	1	0803-	●
192	TUBE; NYLON ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98085-806-0	01	1	0803-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1012-	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0803-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0908-1211	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0908-1211		●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1212-	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
