Sayfa 3-75 - Isuzu EPC

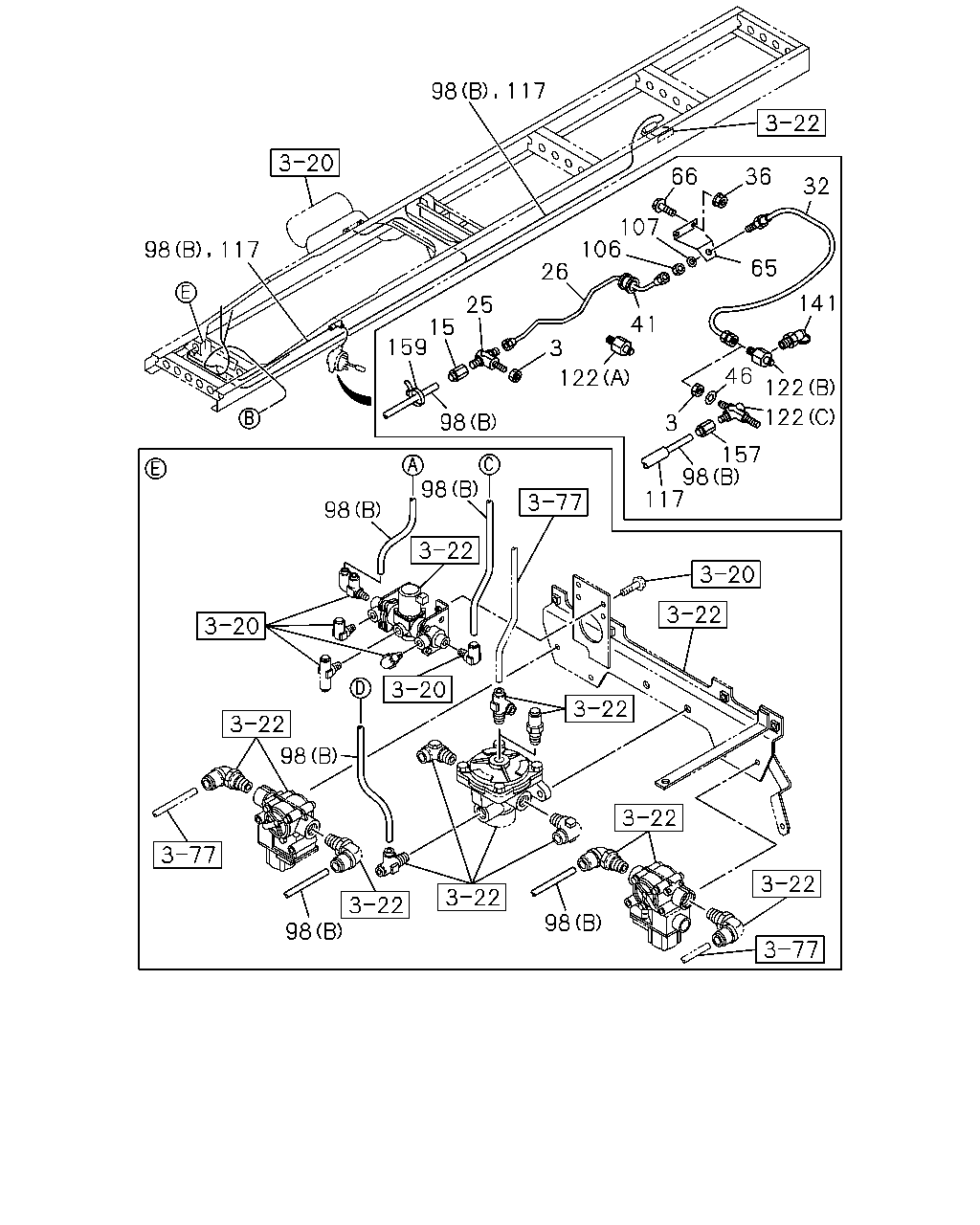

3-75 — BRAKE PIPING; AIR,FRONT (#67992) — 340 parça

98 117 117 98 66 36 32 107 106 26 25 15 159 3 122 41 65 141 46 3 122 122 157 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) M16	0-91111-516-0	02	1	1008-1107	●
3	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	0803-0907	●
3	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	0908-	●
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	0908-		●
15	CONNECTOR; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0803-0907	●
15	CONNECTOR; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-	●
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-		●
25	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	1-09654-148-1	02	1	0803-0907	●
25	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	1-09654-148-1	02	1	0908-	●
25	UNION; AIR PIPE M16	1-09654-148-1	02	1	0908-		●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=659	8-98091-273-0	01	1	0803-0806	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	0807-0907	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	0908-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=657	8-98126-150-1	01	1	0908-		●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	0803-0907	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	0908-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=500	8-98091-274-1	01	1	0908-		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T)	8-98095-051-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0803-0907	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0908-1009	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0908-1009		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T)	8-98090-844-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1010-1107		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1108-	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1108-		●
36	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	0803-0907	●
36	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	0908-	●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	0908-		●
41	GROMMET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0803-0907	●
41	GROMMET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0908-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0908-		●
46	WASHER; LK,PIPE UNION HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) ID=16.2	0-91510-816-0	02	1	1008-1107	●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	0803-0907	●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	0908-	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0908-		●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	0803-0907	●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	0908-	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0908-		●
66	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0803-0907	●
66	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0908-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0908-		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1008-	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97625-675-0	01	1	0803-0803	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0804-0901	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98094-874-0	01	1	0803-0901	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98141-250-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0904-0907	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0908-0910	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0908-0910		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0911-	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0911-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0908-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0803-	●	●
106	NUT; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	0803-0907	●
106	NUT; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	0908-	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0908-		●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-516-0	02	1	0803-0907	●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-516-0	02	1	0908-1009	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0908-1009		●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1010-	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-816-0	02	1	1010-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0908-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0803-	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (C) M16 ELBOW	0-92135-210-0	02	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (E) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-1007	●
141	CONNECTOR; TEST HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1008-1107	●
141	CONNECTOR; TEST ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1008-1107	●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1108-	●
157	CONNECTOR; ADAPTER HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1008-1107	●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0812-0907	●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0908-1007	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0908-1007		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1008-	●
159	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1008-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	01	1	0803-0811	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	02	1	0812-1007	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	02	1	1008-	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1008-		●

98 117 117 98 159 15 25 26 106 107 66 36 32 65 122 41 3 98 117 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) M16	0-91111-516-0	02	1	1008-1107	●
3	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	0803-0907	●
3	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	0908-	●
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	0908-		●
15	CONNECTOR; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0803-0907	●
15	CONNECTOR; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-	●
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0908-		●
25	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	1-09654-148-1	02	1	0803-0907	●
25	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	1-09654-148-1	02	1	0908-	●
25	UNION; AIR PIPE M16	1-09654-148-1	02	1	0908-		●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=659	8-98091-273-0	01	1	0803-0806	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	0807-0907	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	0908-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=657	8-98126-150-1	01	1	0908-		●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	0803-0907	●
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	0908-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=500	8-98091-274-1	01	1	0908-		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T)	8-98095-051-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0803-0907	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0908-1009	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0908-1009		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T)	8-98090-844-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1010-1107		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1108-	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1108-		●
36	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	0803-0907	●
36	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	0908-	●
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	0908-		●
41	GROMMET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0803-0907	●
41	GROMMET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0908-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0908-		●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	0803-0907	●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	0908-	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0908-		●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	0803-0907	●
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	0908-	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0908-		●
66	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0803-0907	●
66	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0908-	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	0908-		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1008-	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97625-675-0	01	1	0803-0803	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0804-0901	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98094-874-0	01	1	0803-0901	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98141-250-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0904-0907	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0908-0910	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0908-0910		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0911-	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0911-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0908-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0803-	●	●
106	NUT; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	0803-0907	●
106	NUT; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	0908-	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0908-		●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-516-0	02	1	0803-0907	●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-516-0	02	1	0908-1009	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0908-1009		●
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1010-	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-816-0	02	1	1010-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0908-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0803-	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (C) M16 ELBOW	0-92135-210-0	02	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (E) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0812-0907	●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	0908-1007	●
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0908-1007		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1008-	●
159	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1008-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	01	1	0803-0811	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	02	1	0812-1007	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	02	1	1008-	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1008-		●

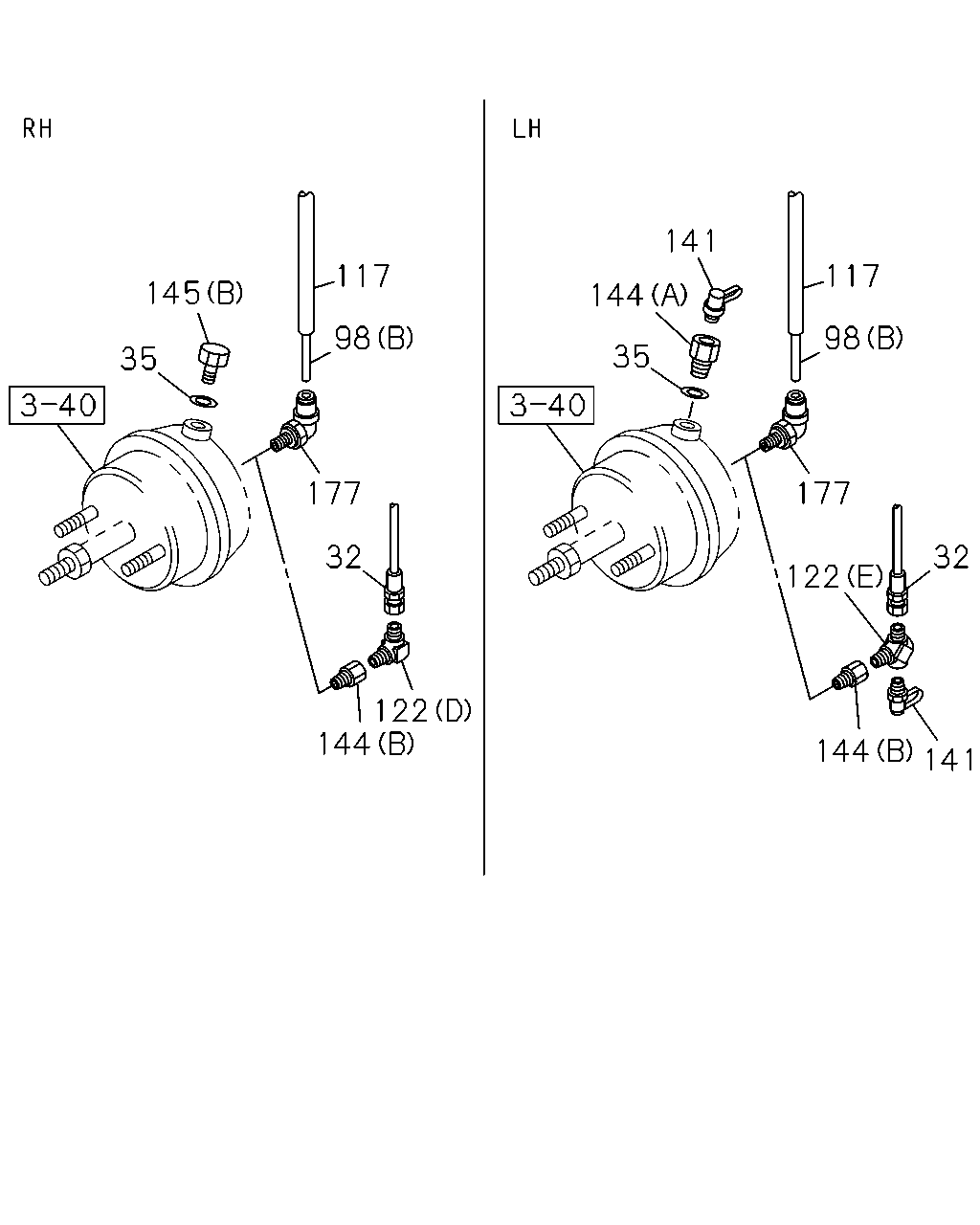

145 35 117 98 177 32 122 144 141 144 117 98 35 177 122 32 144 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T)	8-98095-051-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0803-0907	●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0908-1009	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	0908-1009		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T)	8-98090-844-0	02	1	1010-1107	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1010-1107		●
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1108-	●
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1108-		●
35	GASKET; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) ID=16.2 OD=24	9-09571-416-0	02	1	1008-1107	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1008-	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97625-675-0	01	1	0803-0803	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0804-0901	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98094-874-0	01	1	0803-0901	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98141-250-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0904-0907	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0908-0910	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0908-0910		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0911-	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0911-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0908-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0908-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0803-	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (C) M16 ELBOW	0-92135-210-0	02	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (E) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	1008-1107	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0803-0907	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-	●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0908-		●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0803-1007	●
141	CONNECTOR; TEST HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1008-1107	●
141	CONNECTOR; TEST ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1008-1107	●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1108-	●
144	ADAPTER HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (A)	1-09661-821-0	01	1	1008-1107	●
144	ADAPTER HUB LUBRICATION OIL BATH<C5K> EXC. IRAN EQUIPMENT(D8T) (B) NPTF3/8 & RC3/8	1-09660-548-0	02	1	1008-1107	●
145	PLUG HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (B) M16X12	0-92002-416-0	01	1	1008-1107	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	0803-0907	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	0908-	●	●
177	CONNECTOR HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T)	1-09661-496-0	02	1	1008-1107	●

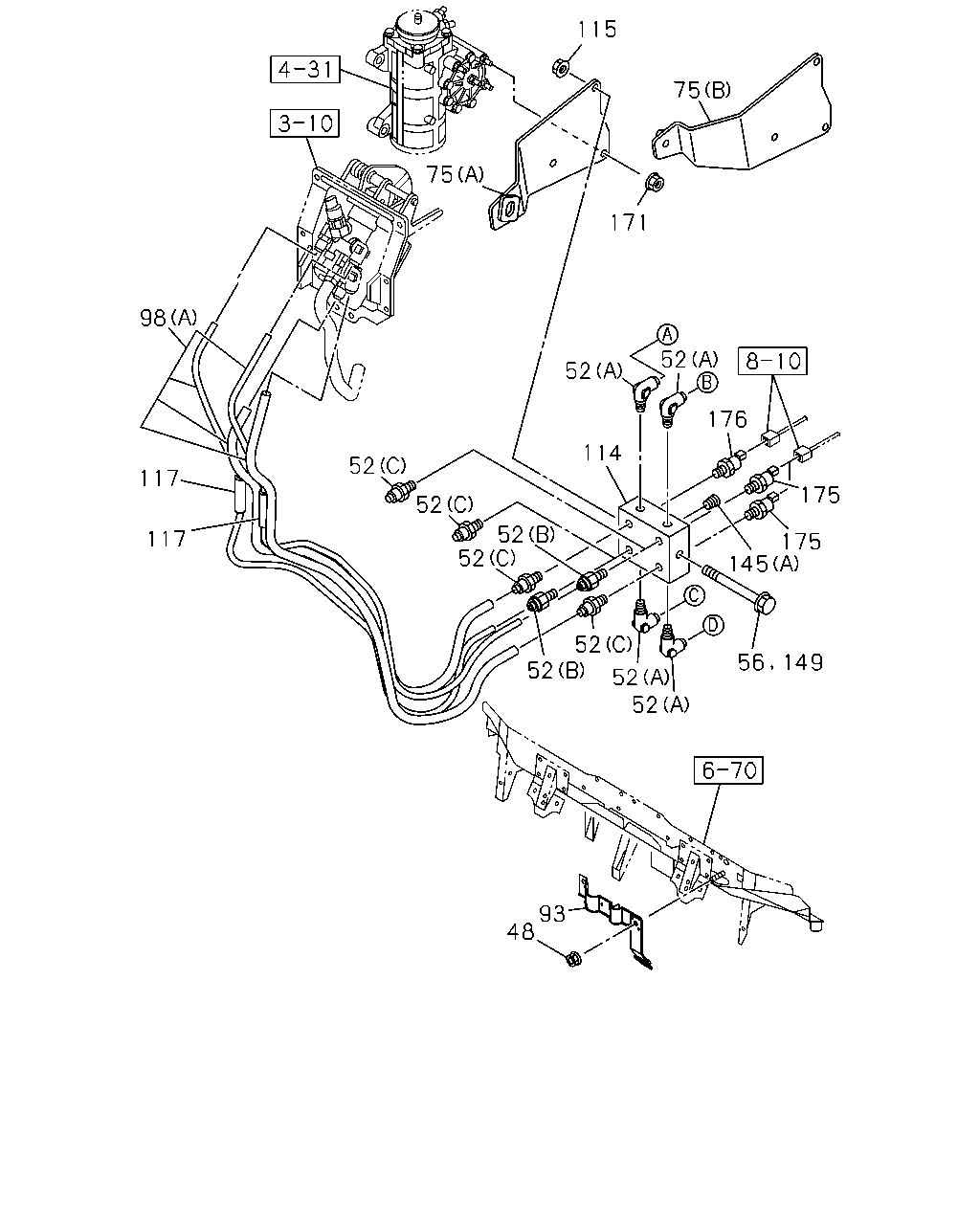

115 75 171 75 98 52 117 117 52 52 52 114 52 52 176 175 175 145 52 52 52 52 56 149 93 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE	0-91180-210-0	02	1	0803-	●
48	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M6 FLANGE	0-91180-106-0	02	1	0803-0907	●
48	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M6 FLANGE	0-91180-106-0	02	1	0908-	●
48	NUT; UNION BRKT M6 FLANGE	0-91180-106-0	02	1	0908-		●
52	CONNECTOR; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	0803-	●
52	CONNECTOR; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0803-	●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0803-0907	●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0908-	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0908-		●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0803-0907	●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0908-	●
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0908-		●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0803-0907	●
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0908-	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0908-		●
56	BOLT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X100 FLANGE	0-28050-800-0	01	1	0803-0907	●
56	BOLT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X100 FLANGE	0-28050-800-0	01	1	0908-	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0908-		●
75	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98075-871-1	01	1	0803-0803	●
75	BRACKET; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98099-485-0	01	1	0803-0803	●
75	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98094-848-0	01	1	0803-0803	●
75	BRACKET; UNION (B)	8-98094-848-0	01	1	0804-0806	●
75	BRACKET; UNION (B)	8-98126-944-0	01	1	0807-0907	●
75	BRACKET; UNION (B)	8-98126-944-0	01	1	0908-	●	●
93	BRACKET; UNION,TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98079-262-0	01	1	0803-0803	●
93	BRACKET; UNION,TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98112-515-1	01	1	0804-0907	●
93	BRACKET; UNION,TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98112-515-1	01	1	0908-	●
93	BRACKET; UNION,TUBE	8-98112-515-1	01	1	0908-		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1008-	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-97625-675-0	01	1	0803-0803	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0804-0901	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98094-874-0	01	1	0803-0901	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98141-250-0	01	1	0902-0903	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0904-0907	●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98146-119-0	01	1	0908-0910	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0908-0910		●
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0911-	●
98	TUBE; NYLON (A)	8-98146-119-0	01	1	0911-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0908-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0803-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0803-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0803-0907	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0908-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0908-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0908-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0803-	●	●
145	PLUG HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) (B) M16X12	0-92002-416-0	01	1	1008-1107	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	0803-0907	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	0908-	●	●
149	BOLT; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X100 FLANGE	0-28050-800-0	01	1	0803-	●
171	NUT; BRACKET BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	02	1	0803-0907	●
171	NUT; BRACKET BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	02	1	0908-	●
171	NUT; BRACKET M10 FLANGE	0-91180-210-0	02	1	0908-		●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0803-0907	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0908-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0803-0907	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0908-	●	●

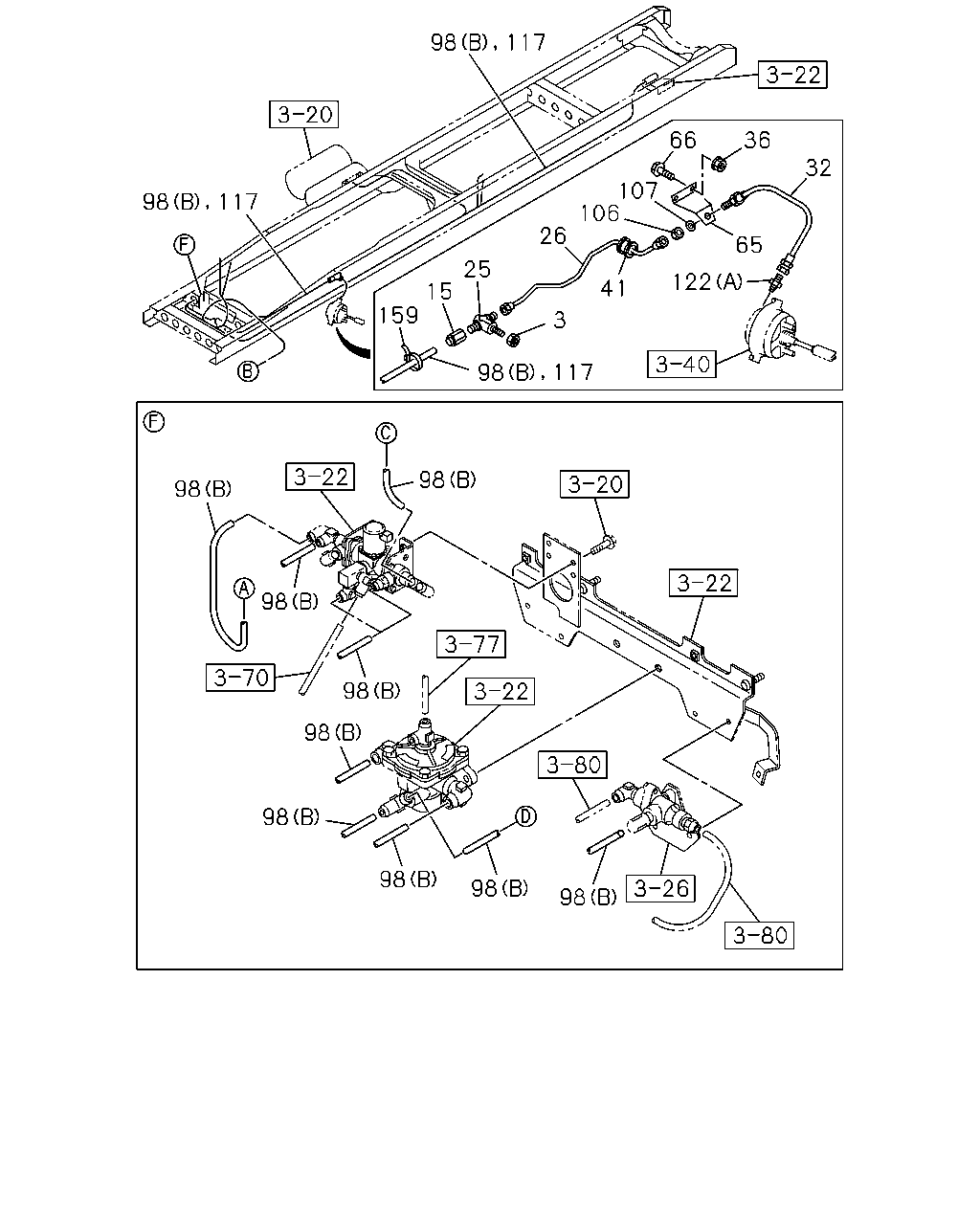

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
