3-58 — FIXING PARTS; OIL PIPING (#67990) — 68 parça

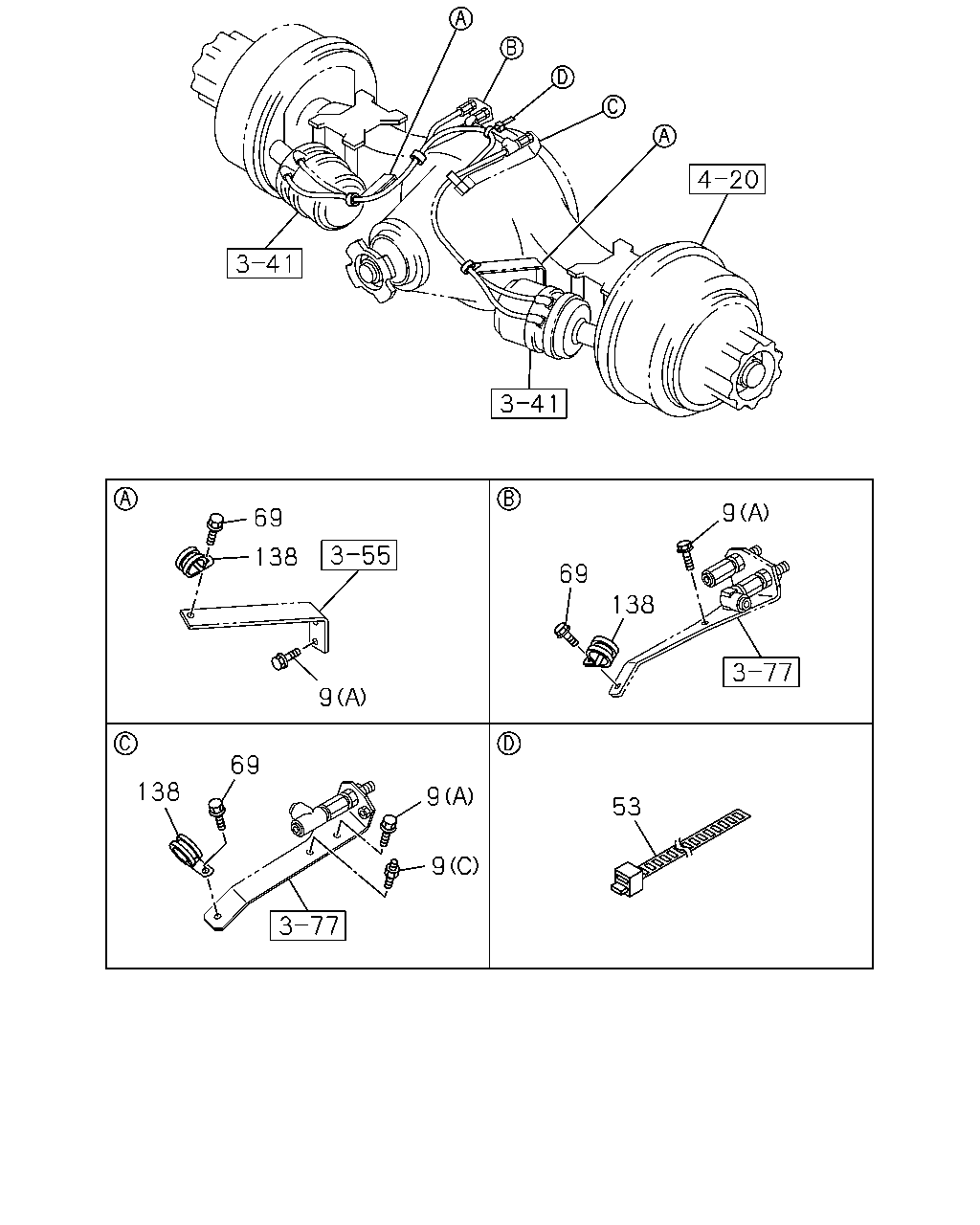

69 138 9 69 138 9 9 53 138 69 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X15 M8X17 L=40	8-97945-023-0	01	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108		●
9	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8X30 FLANGE	0-28650-830-0	01	1	0807-	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	0803-0907	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	0908-1007	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	0908-1007		●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	1109-	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	1109-		●
53	CLIP; UNION L=250	1-09707-126-0	06	1	0908-		●
53	CLIP; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=250	1-09707-126-0	01	1	0803-	●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28050-820-0	04	1	1008-1108	●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) M8X20 FLANGE	0-28050-820-0	04	1	1008-1108	●
69	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	04	1	1008-1108		●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28050-820-0	04	1	0803-0907	●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28050-820-0	04	1	0908-1007	●
69	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	04	1	0908-1007		●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28050-820-0	02	1	1008-1108	●
69	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28050-820-0	04	1	1109-	●
69	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	04	1	1109-		●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=35 L=33	1-09700-945-0	04	1	1008-1108	●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) ID=35 L=33	1-09700-945-0	04	1	1008-1108	●
138	CLIP; TUBE ID=35 L=33	1-09700-945-0	04	1	1008-1108		●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=35 L=33	1-09700-945-0	04	1	0803-0907	●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=35 L=33	1-09700-945-0	04	1	0908-1007	●
138	CLIP; TUBE ID=35 L=33	1-09700-945-0	04	1	0908-1007		●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=35 L=33	1-09700-945-0	02	1	1008-1108	●
138	CLIP; TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=35 L=33	1-09700-945-0	04	1	1109-	●
138	CLIP; TUBE ID=35 L=33	1-09700-945-0	04	1	1109-		●

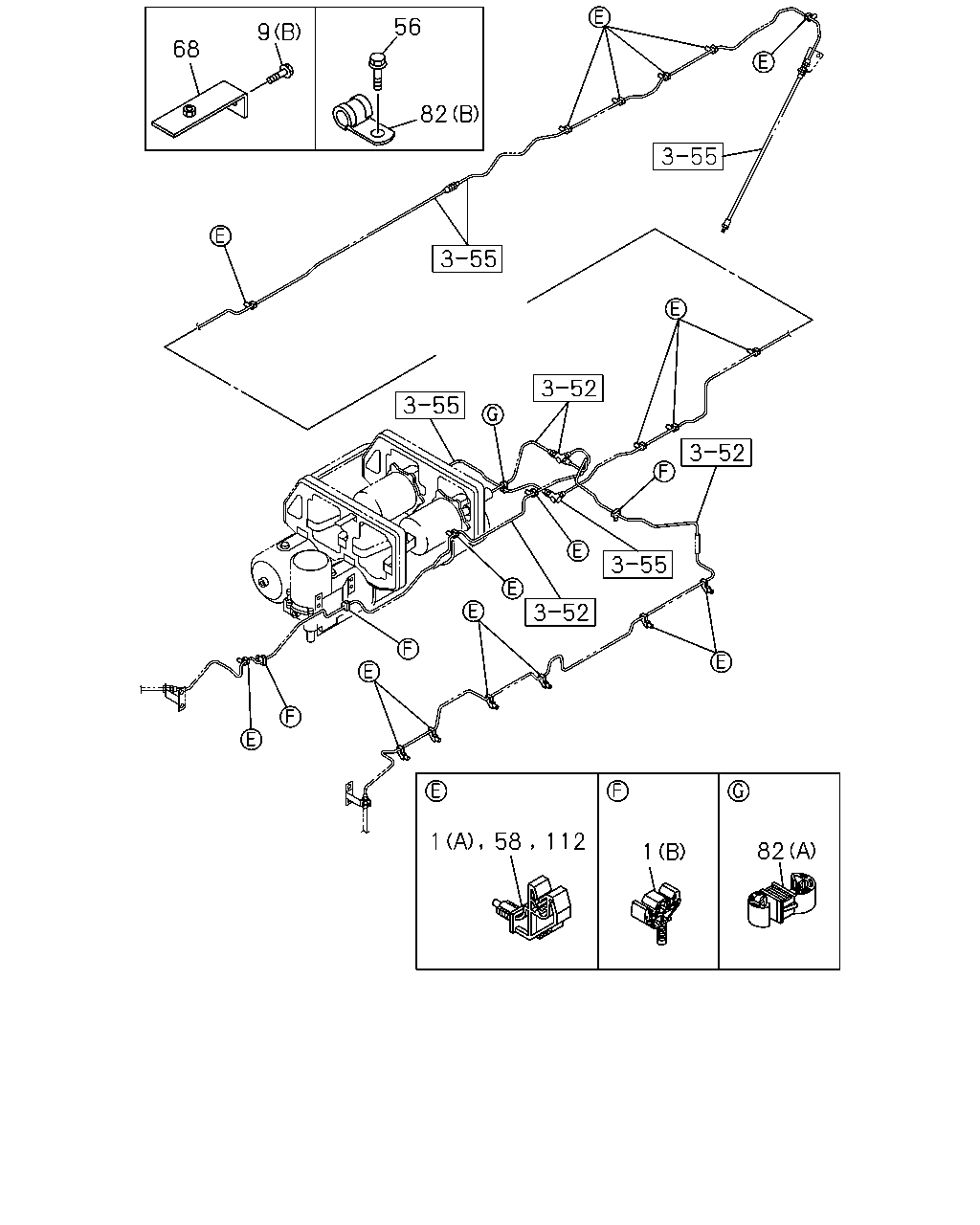

68 9 56 82 1 58 112 1 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	09	1	0803-0803	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	08	1	0804-0809	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	06	1	0810-	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98012-254-1	03	1	0803-0806	●
1	CLIP; OIL PIPE TO BODY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98012-254-1	04	1	0807-	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X15 M8X17 L=40	8-97945-023-0	01	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	1008-1108		●
9	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8X30 FLANGE	0-28650-830-0	01	1	0807-	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	0803-0907	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	0908-1007	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	0908-1007		●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-1108	●
9	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X16 FLANGE	0-28050-816-0	08	1	1109-	●
9	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	08	1	1109-		●
56	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0807-	●
58	CLIP; OIL PIPE WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	06	1	0804-0809	●
58	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	05	1	0803-0803	●
58	CLIP; OIL PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	05	1	0804-0808	●
58	CLIP; OIL PIPE WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	05	1	0809-0809	●
58	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	06	1	0810-	●
68	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47475-519-0	01	1	0807-	●
82	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=7 L=16	0-95234-625-0	01	1	0807-	●
82	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0803-0803	●
82	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0804-0806	●
82	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0807-	●
112	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	03	1	0810-	●
112	CLIP; OIL PIPE WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	03	1	0809-0809	●
112	CLIP; OIL PIPE WHEEL BASE 3900MM(39W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	02	1	0810-	●
112	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	05	1	0804-	●
112	CLIP; OIL PIPE WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	06	1	0804-0808	●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	06	1	0809-	●
112	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	06	1	0803-0803	●
112	CLIP; OIL PIPE WHEEL BASE 4600MM(46W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35	1-09701-247-1	04	1	0804-	●

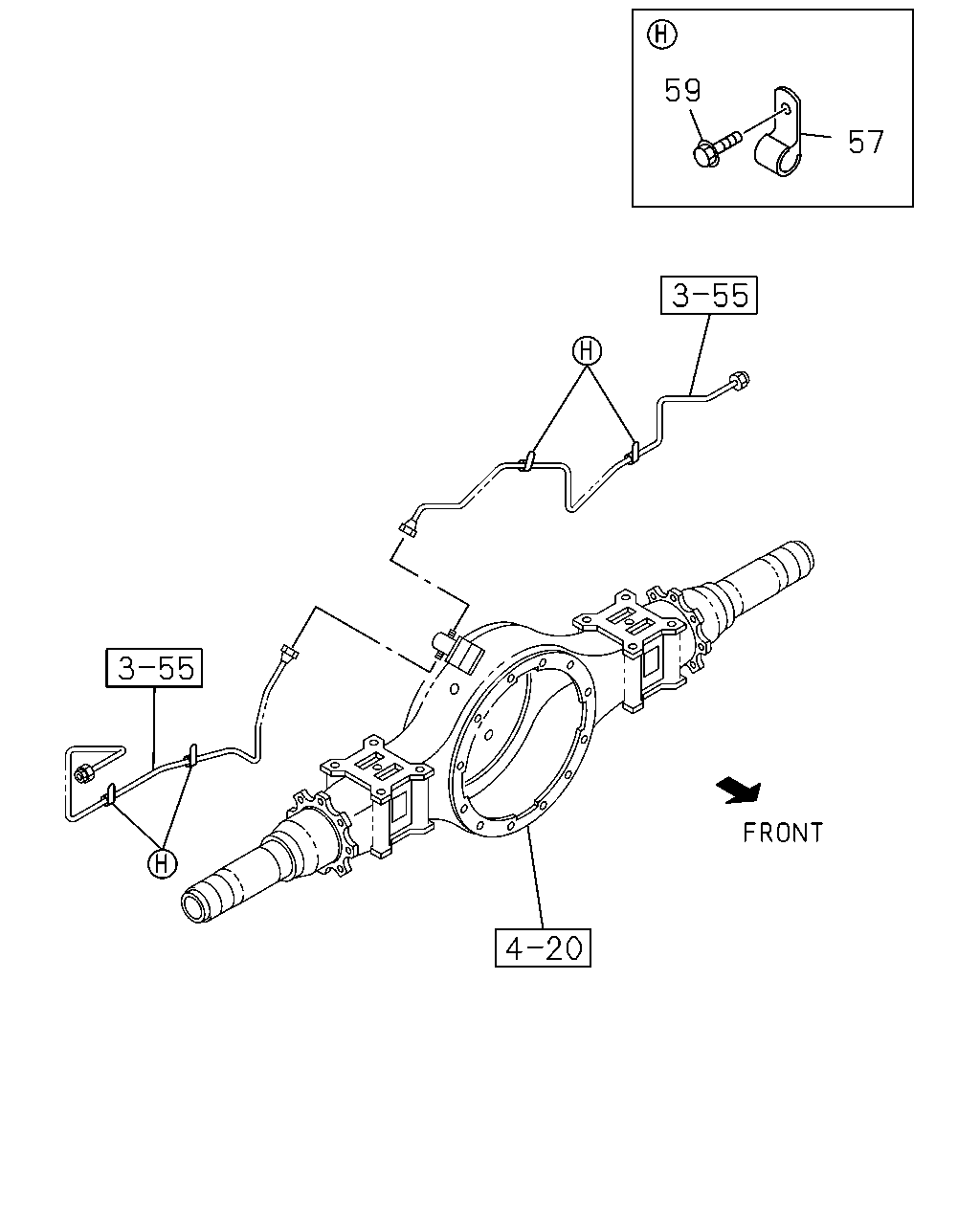

59 57

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	57	CLIP; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=7 L=20	0-95234-635-0	04	1	0803-	●
	59	BOLT; BRK PIPE,RR AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X10 FLANGE	0-28050-810-0	04	1	0803-	●
