Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#6799) — 188 parça

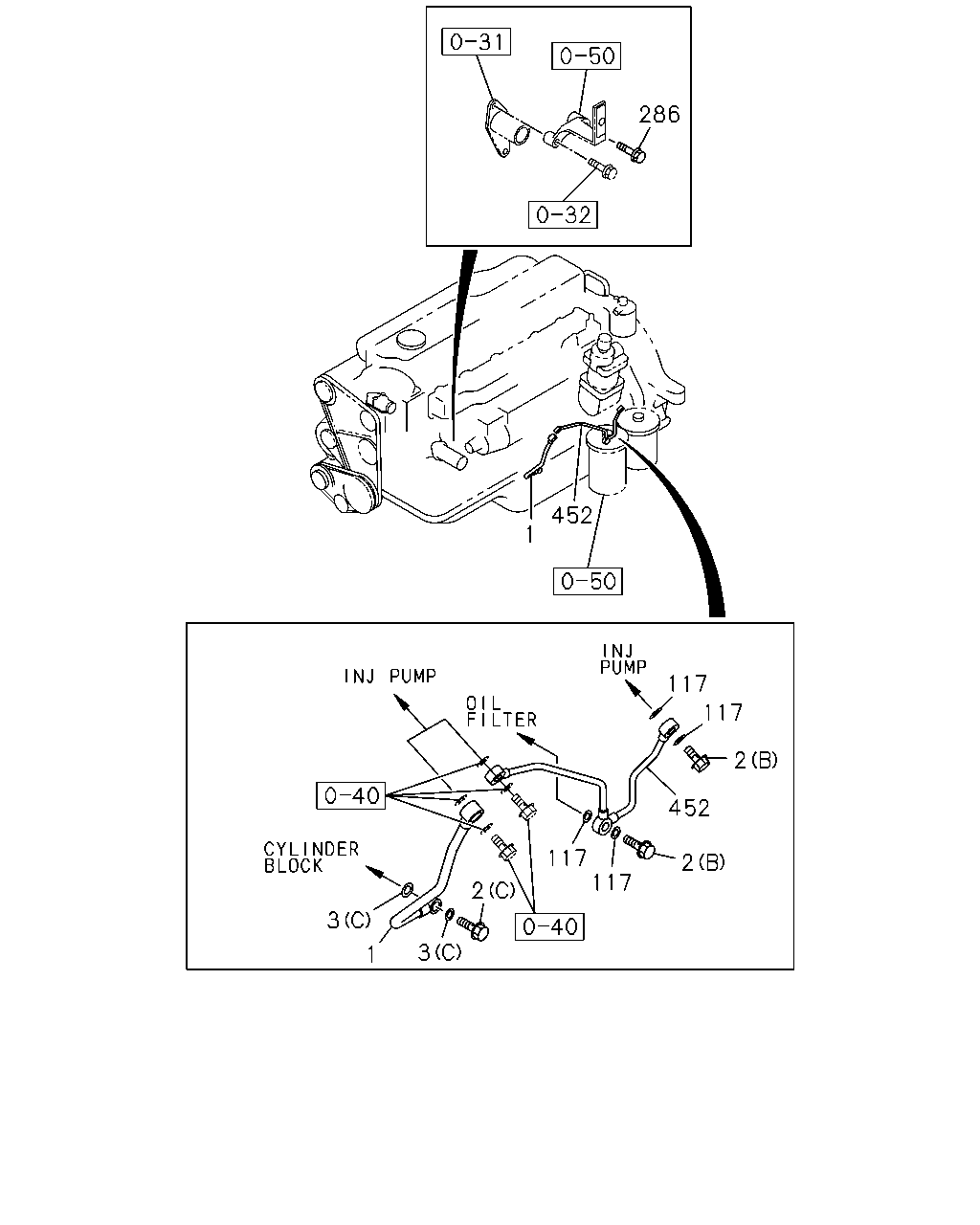

286 452 1 117 117 2 452 117 117 2 2 3 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9806-9911	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	9912-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9806-9911			●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	02	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3	1-09623-481-0	01	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9806-9911	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9912-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9806-9911	●		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
286	BOLT; BRKT,OIL COOLER M8X65 FLANGE	1-09044-072-1	01	1	9806-9911	●
286	BOLT; BRKT,OIL COOLER M8X65 FLANGE	1-09044-072-1	01	1	9912-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94395-595-1	01	1	9806-9906			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-573-0	01	1	9907-9911			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-574-0	01	1	9912-		●

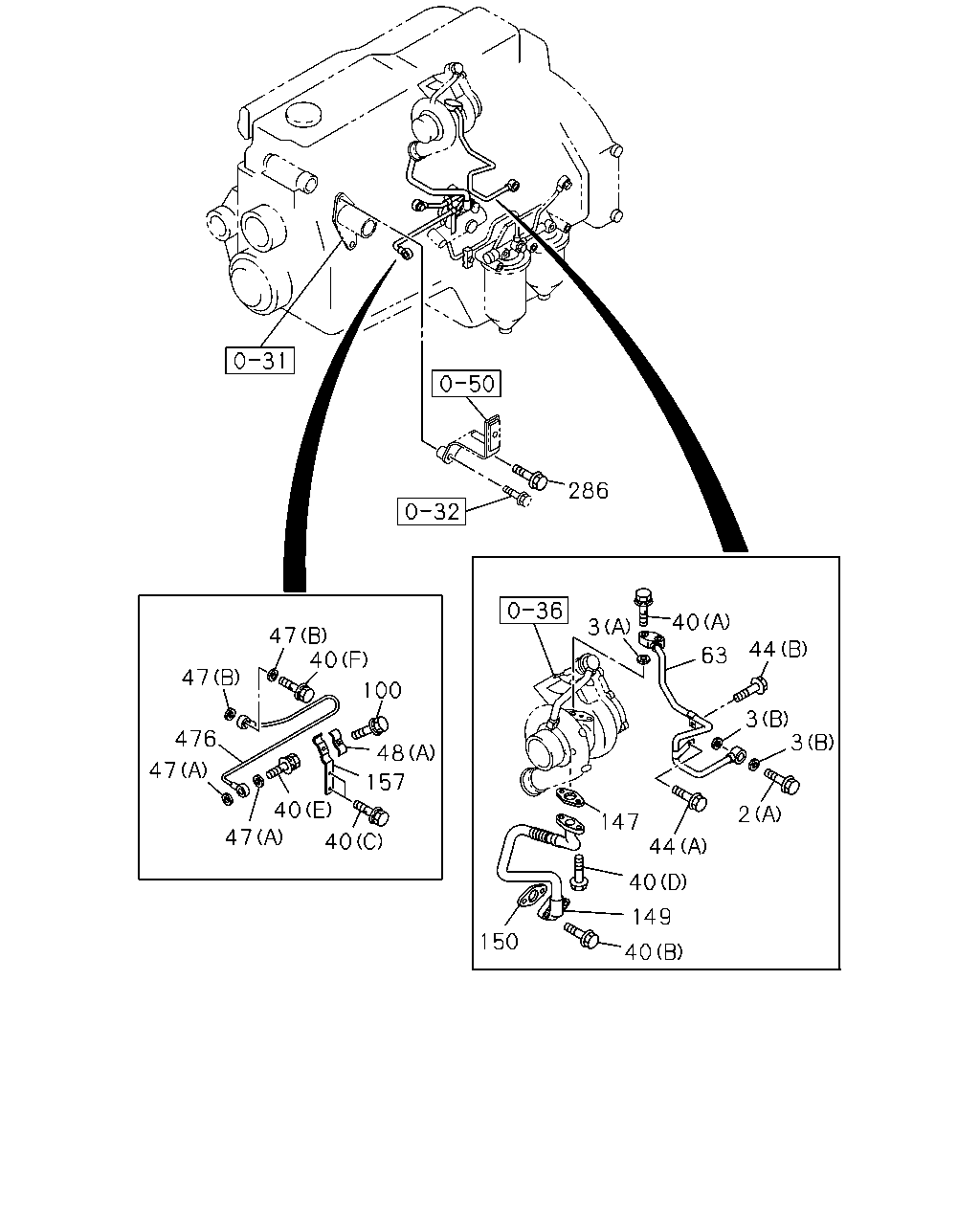

286 40 3 47 40 44 63 47 100 3 3 476 48 47 157 40 2 147 44 47 40 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	02	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3	1-09623-481-0	01	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9806-9911	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9912-		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28080-830-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28080-830-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28181-016-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28181-016-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X22 FLANGE	0-28181-022-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (E) EYE BOLT M10X21 FLANGE	1-09675-077-0	01	1	9806-9911	●
40	BOLT; OIL PIPE (F) EYE BOLT M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (D) M8X15	1-09000-114-0	01	1	9912-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9806-9911			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9806-9911	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9912-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
48	CLIP; OIL PIPE (B)	1-09701-228-3	01	1	0207-		●
48	CLIP; OIL PIPE (C)	1-09701-229-2	01	1	0207-		●
48	CLIP; OIL PIPE (A)	8-94395-170-0	01	1	9806-9911	●
48	CLIP; OIL PIPE (A)	8-94395-170-0	01	1	9912-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-94390-652-0	01	1	9806-9808	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	9809-9811	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97600-050-0	01	1	9812-9911	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94390-642-1	01	1	9912-0206		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0207-		●
100	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9806-9911	●
100	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9912-0512		●
100	BOLT; CLIP M6X16 FLANGE	0-28050-616-0	01	1	0601-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9806-9911	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	9912-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-191-0	01	1	9806-9809	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97600-051-0	01	1	9810-9911	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	9912-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9806-9911	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9912-		●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9806-9911	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9912-		●
286	BOLT; BRKT,OIL COOLER M8X65 FLANGE	1-09044-072-1	01	1	9806-9911	●
286	BOLT; BRKT,OIL COOLER M8X65 FLANGE	1-09044-072-1	01	1	9912-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9806-9911	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9912-		●

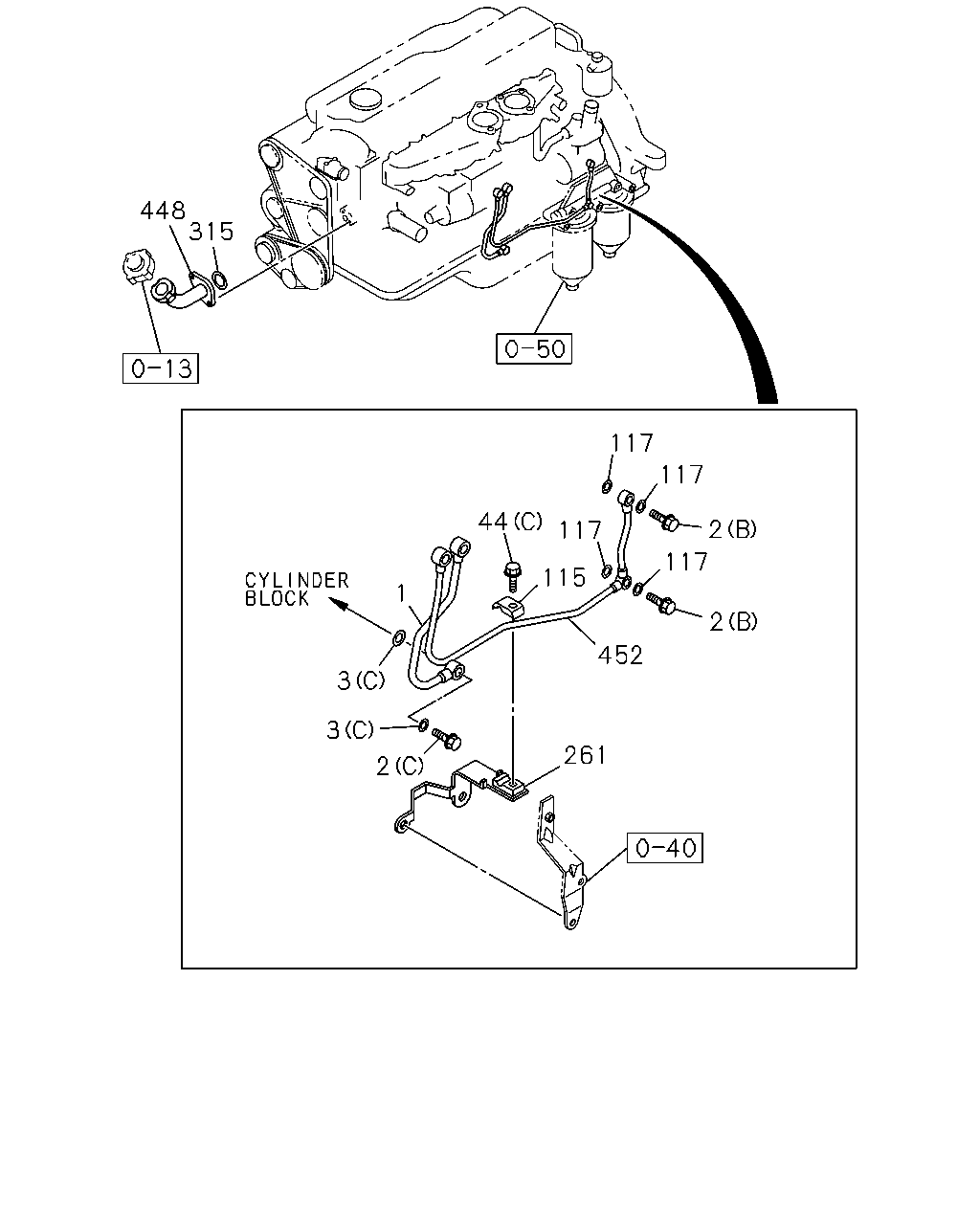

448 315 117 117 44 2 117 117 115 1 2 452 3 3 261 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9806-9911	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	9912-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9806-9911			●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	02	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3	1-09623-481-0	01	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9806-9911	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9912-		●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (D) M8X15	1-09000-114-0	01	1	9912-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9806-9911			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9806-9911			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9806-9911	●		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
261	BRACKET; CLIP,OIL PIPE	8-94396-695-0	01	1	9806-9911			●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09561-250-0	01	1	9806-9911	●		●
448	FILLER; OIL	8-94395-198-0	01	1	9806-9911	●		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94395-595-1	01	1	9806-9906			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-573-0	01	1	9907-9911			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-574-0	01	1	9912-		●

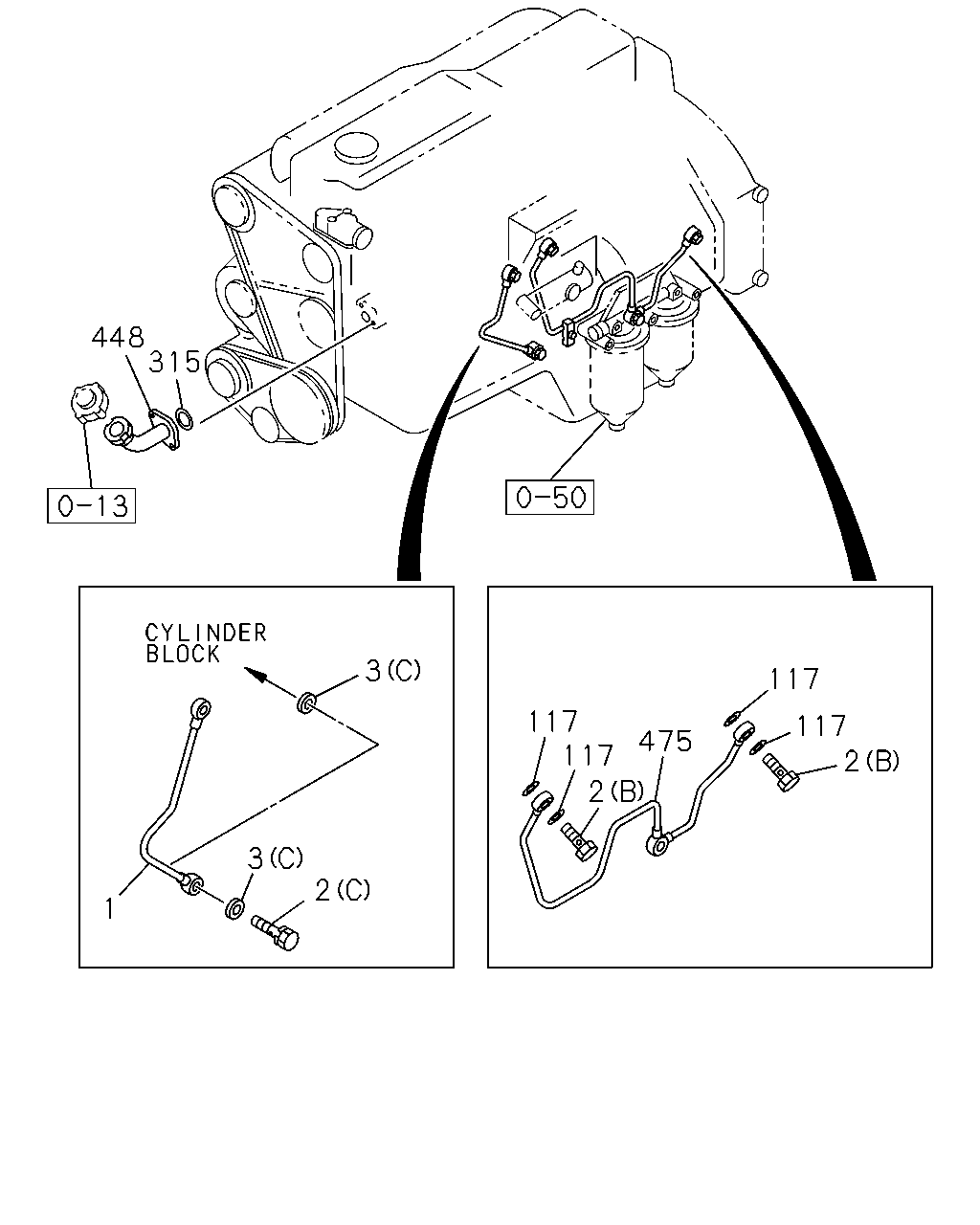

448 315 3 117 117 117 2 117 2 475 3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9806-9911	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	9912-		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9806-9911			●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	02	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3	1-09623-481-0	01	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9806-9911	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9912-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9806-9911	●		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09561-250-0	01	1	9806-9911	●		●
448	FILLER; OIL	8-94395-198-0	01	1	9806-9911	●		●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-94391-126-0	01	1	9806-9911	●

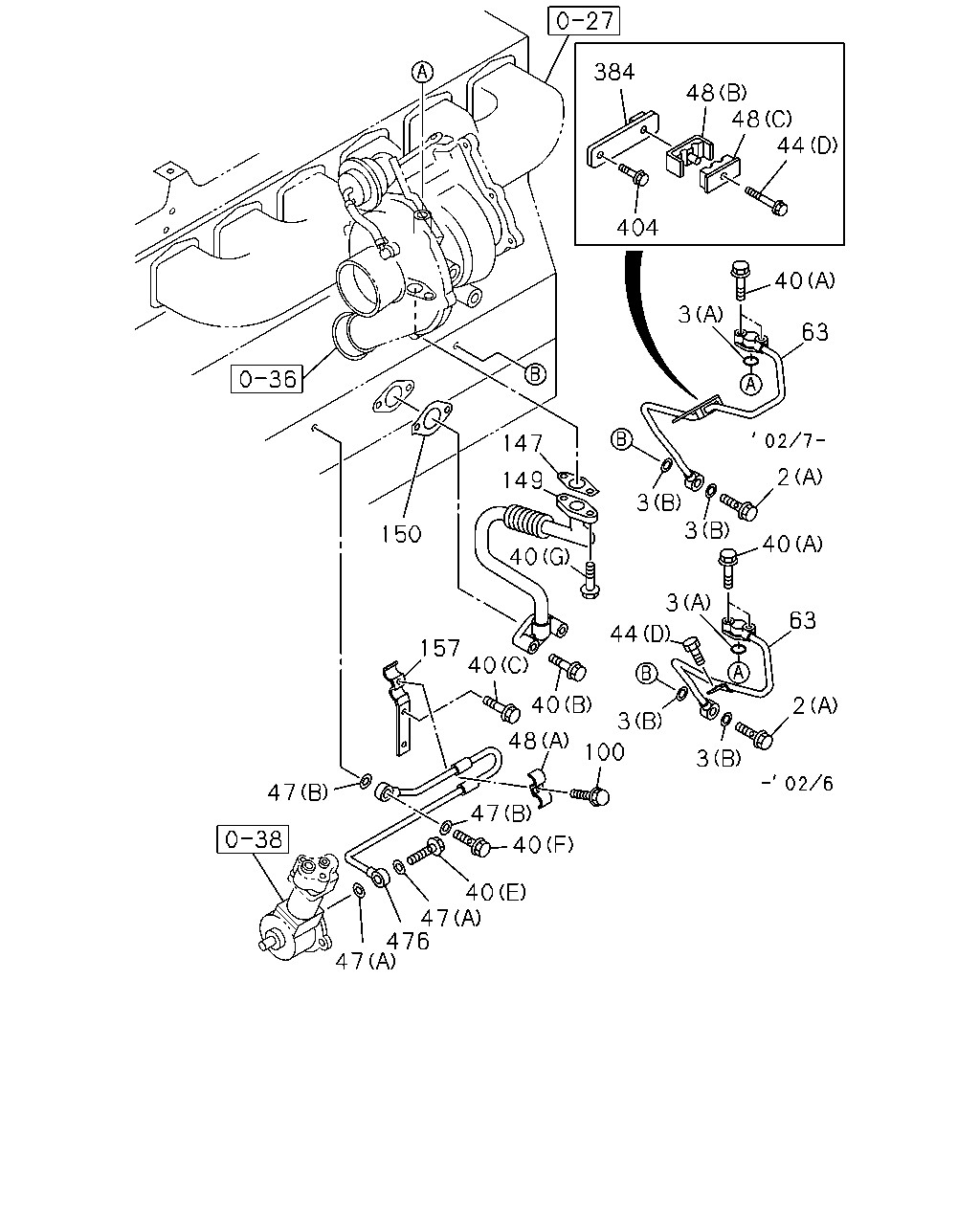

384 48 48 44 404 40 3 63 147 2 149 3 3 150 40 40 3 63 44 157 40 40 2 3 48 100 3 47 47 40 40 47 476 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	02	1	9912-		●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	02	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9806-9911	●		●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-085-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3	1-09623-481-0	01	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9806-9911	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9912-		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28080-830-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28080-830-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28181-016-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28181-016-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
40	BOLT; OIL PIPE (D) M10X22 FLANGE	0-28181-022-0	02	1	9806-9911	●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512		●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
40	BOLT; OIL PIPE (E) EYE BOLT M10X21 FLANGE	1-09675-077-0	01	1	9806-9911	●
40	BOLT; OIL PIPE (F) EYE BOLT M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (D) M8X15	1-09000-114-0	01	1	9912-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9806-9911	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9806-9911			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9806-9911	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9912-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
48	CLIP; OIL PIPE (B)	1-09701-228-3	01	1	0207-		●
48	CLIP; OIL PIPE (C)	1-09701-229-2	01	1	0207-		●
48	CLIP; OIL PIPE (A)	8-94395-170-0	01	1	9806-9911	●
48	CLIP; OIL PIPE (A)	8-94395-170-0	01	1	9912-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-94390-652-0	01	1	9806-9808	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	9809-9811	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97600-050-0	01	1	9812-9911	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94390-642-1	01	1	9912-0206		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0207-		●
100	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9806-9911	●
100	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9912-0512		●
100	BOLT; CLIP M6X16 FLANGE	0-28050-616-0	01	1	0601-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9806-9911	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	9912-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-191-0	01	1	9806-9809	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97600-051-0	01	1	9810-9911	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	9912-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9806-9911	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9912-		●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9806-9911	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9912-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0207-		●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0207-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9806-9911	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9912-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
