◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#67989) — 48 parça

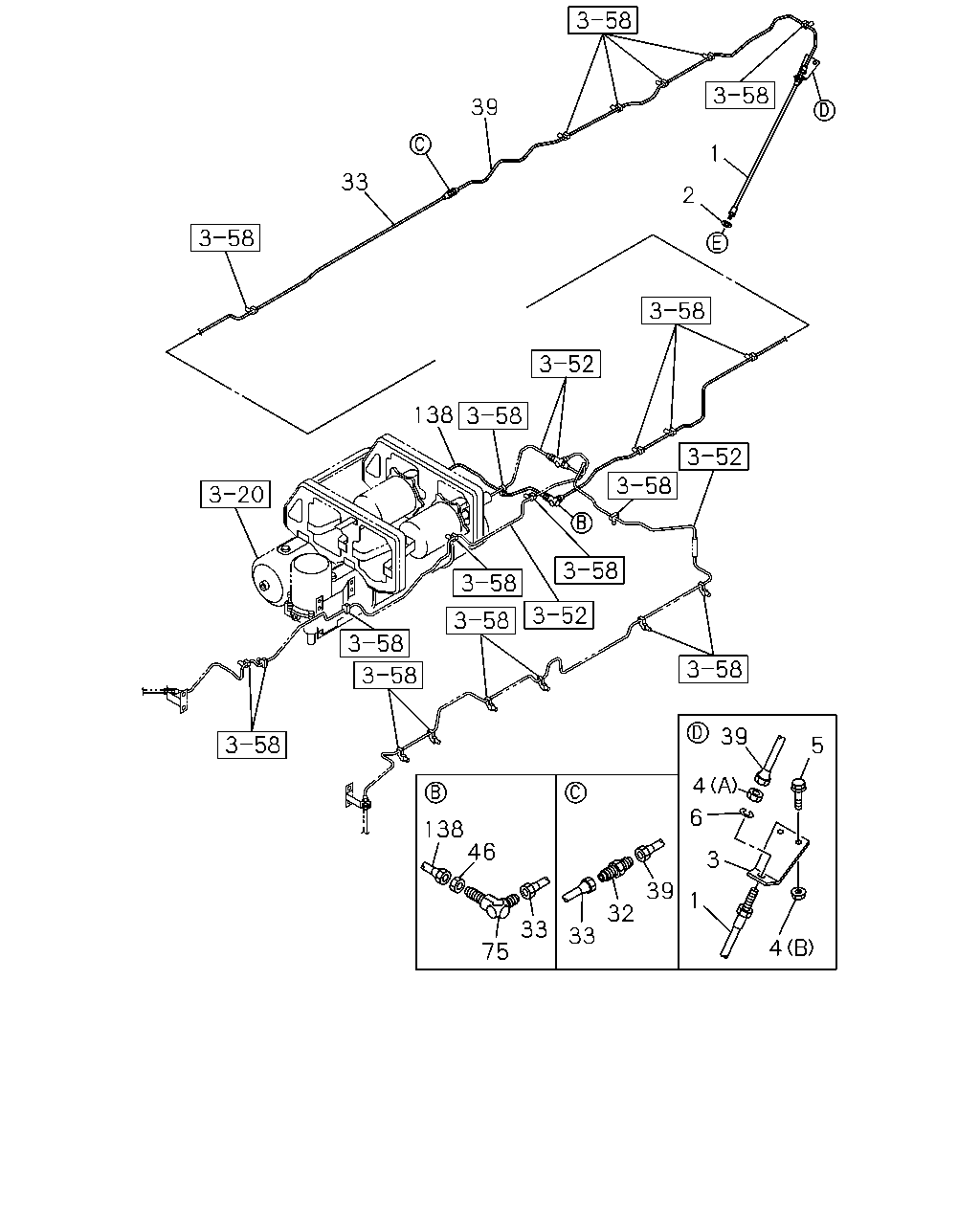

çizim 119977
39 33 1 2 138 138 46 75 33 33 32 39 1 3 6 4 39 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=700 		0-05312-700-0 01 1 0803-0907 ●
1 HOSE; FLEX,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=700 		0-05212-700-0 01 1 0908- ●
2 GASKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17 		9-09920-472-0 01 1 0905- ●
3 BRACKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47465-251-0 01 1 0803- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8 FLANGE 		0-91180-108-0 02 1 0803- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M12 		9-09840-280-0 01 1 0803- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
6 WASHER; LK,FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2 		0-91510-512-0 01 1 0803- ●
32 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 L=40 		0-92113-006-0 01 1 0803- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CHILE EQUIPMENT(KE1) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0810-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. CHILE EQUIPMENT(KE1) L=2141 SERVICED BY L=2200 		1-47428-740-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3900MM(39W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=940 SERVICED BY L=1000 		1-47428-730-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3900MM(39W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=941 SERVICED BY L=1000 		1-47428-730-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1341 SERVICED BY L=1370 		1-47428-734-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1342 SERVICED BY L=1370 		1-47428-734-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2644 SERVICED BY L=2650 		1-47428-743-0 01 1 0809-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2649 SERVICED BY L=2650 		1-47428-743-0 01 1 0809-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2650 SERVICED BY L=2650 		1-47428-743-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0809 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CHILE EQUIPMENT(KE1) L=2102 SERVICED BY L=2200 		1-47428-740-0 01 1 0810- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2866 SERVICED BY L=2900 		1-47428-744-0 01 1 0804-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2856 SERVICED BY L=2900 		1-47428-744-0 01 1 0901- ●
33 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98109-539-0 01 1 0803-0803 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1717 SERVICED BY L=1820 		1-47428-738-0 01 1 0804-0812 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1708 SERVICED BY L=1820 		1-47428-738-0 01 1 0901- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 6000MM(60W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2388 SERVICED BY L=2500 		1-47428-742-0 01 1 0804- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0803-0803 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0804 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 0804-0808 ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 0809- ●
46 NUT; UNION,OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 0803- ●
75 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 ELBOW 		0-92125-206-0 01 1 0803- ●
138 PIPE; HYDRAULIC UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=504 SERVICED BY L=550 		1-47428-724-0 01 1 0803-0803 ●
138 PIPE; HYDRAULIC UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=994 SERVICED BY L=1000 		1-47428-730-0 01 1 0804-0806 ●
138 PIPE; HYDRAULIC UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=504 SERVICED BY L=550 		1-47428-724-0 01 1 0807- ●

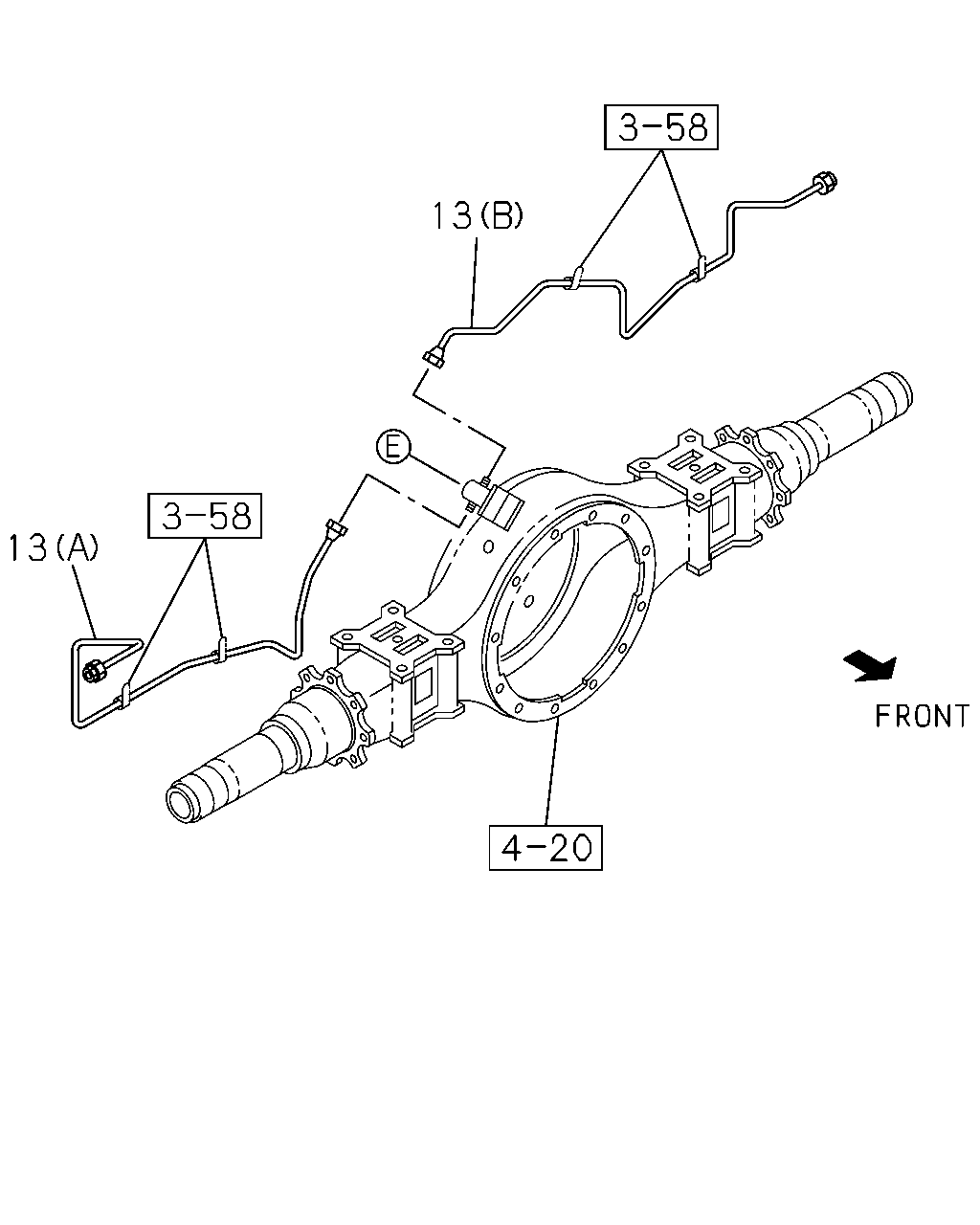

çizim 193635
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=935 		8-98003-970-0 01 1 0803- ●
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=1212 		8-98003-971-0 01 1 0803- ●

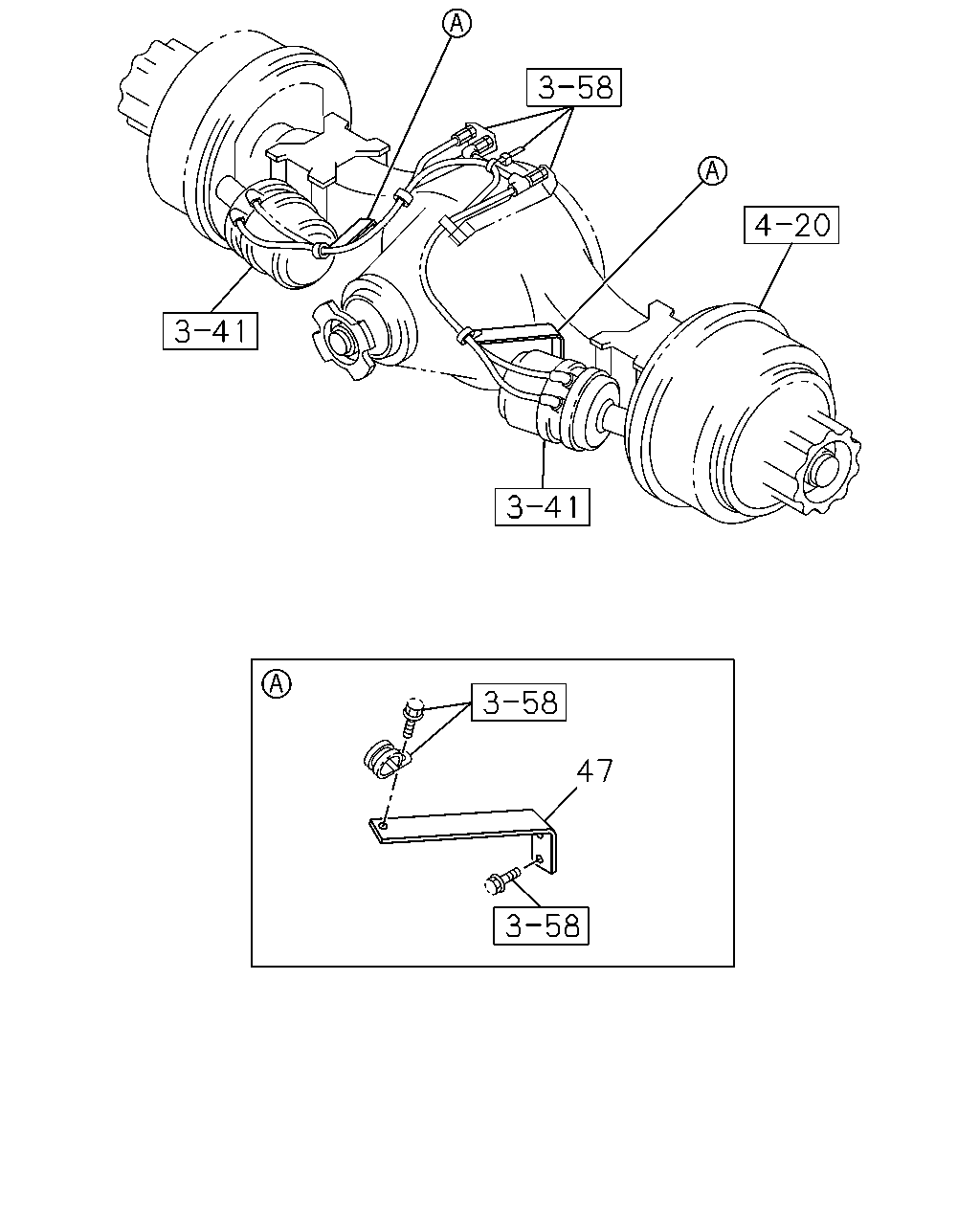

çizim 193642
47
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET 1-42129-481-2 01 1 0908- ●
47 BRACKET 1-42129-482-2 01 1 0908- ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-515-2 01 1 0803-1007 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-42129-515-2 01 1 1008-1108 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) 		1-42129-515-2 01 1 1008-1108 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-515-2 01 1 1109- ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-516-2 01 1 0803-1007 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-42129-516-2 01 1 1008-1108 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. IRAN EQUIPMENT(D8T) 		1-42129-516-2 01 1 1008-1108 ●
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-516-2 01 1 1109- ●
çizim 193784
42
BalonParca AdiParca NoAdetTipApplied Date A B
42 HOSE; FLEX,DIFF LOCK
DIFF LOCK<C3N> L=400 		1-09363-743-0 01 1 1010-1107 ●
