◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#67988) — 34 parça

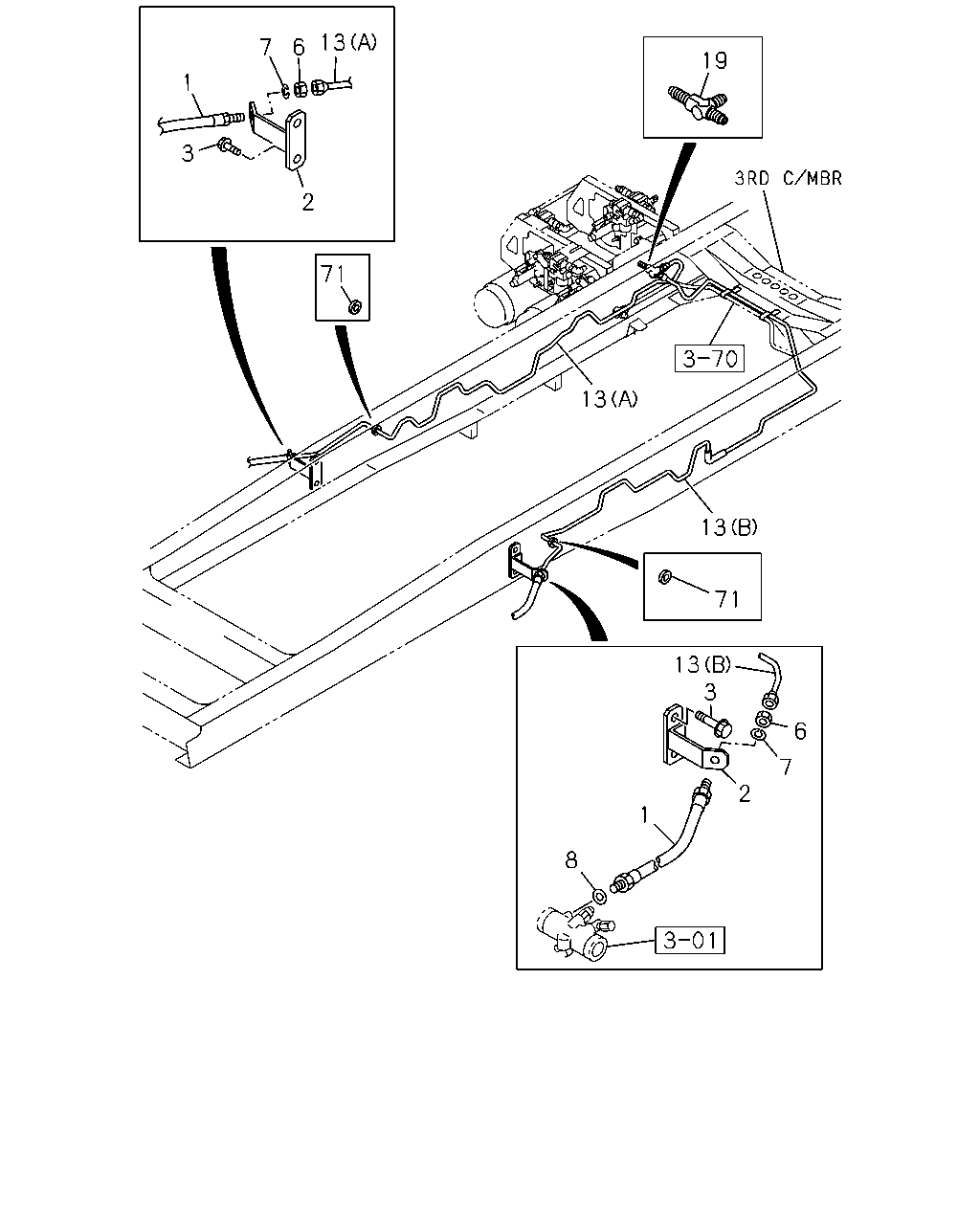

çizim 119709
13 6 7 2 3 1 19 13 71 13 13 3 6 7 2 1 8 71
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=610 		0-05312-610-0 02 1 0803-0907
1 HOSE; FLEX,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=610 		0-05212-610-0 02 1 0908-
2 BRACKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98084-721-0 02 1 0803-0803
2 BRACKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98118-251-1 02 1 0804-1107
2 BRACKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98177-524-0 02 1 1108-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 04 1 0803-
6 NUT; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 02 1 0803-
7 WASHER; LK,FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2 		0-91510-512-0 02 1 0803-
8 GASKET; FLEX HOSE,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17 		9-09920-472-0 02 1 0803-
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98126-034-0 01 1 0810-
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=2577 SERVICED BY L=2650 		1-47428-743-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98120-168-0 01 1 0804-0806
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98126-034-0 01 1 0807-0809
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3331 SERVICED BY L=3400 		1-47428-746-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3258 SERVICED BY L=3400 		1-47428-746-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3305 		8-98120-167-0 01 1 0804-0806
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3453 		8-98126-025-0 01 1 0807-0812
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3328 SERVICED BY L=3400 		1-47428-746-0 01 1 0901-
19 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 3WAY 		0-92138-906-0 01 1 0803-
71 GROMMET; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0803-

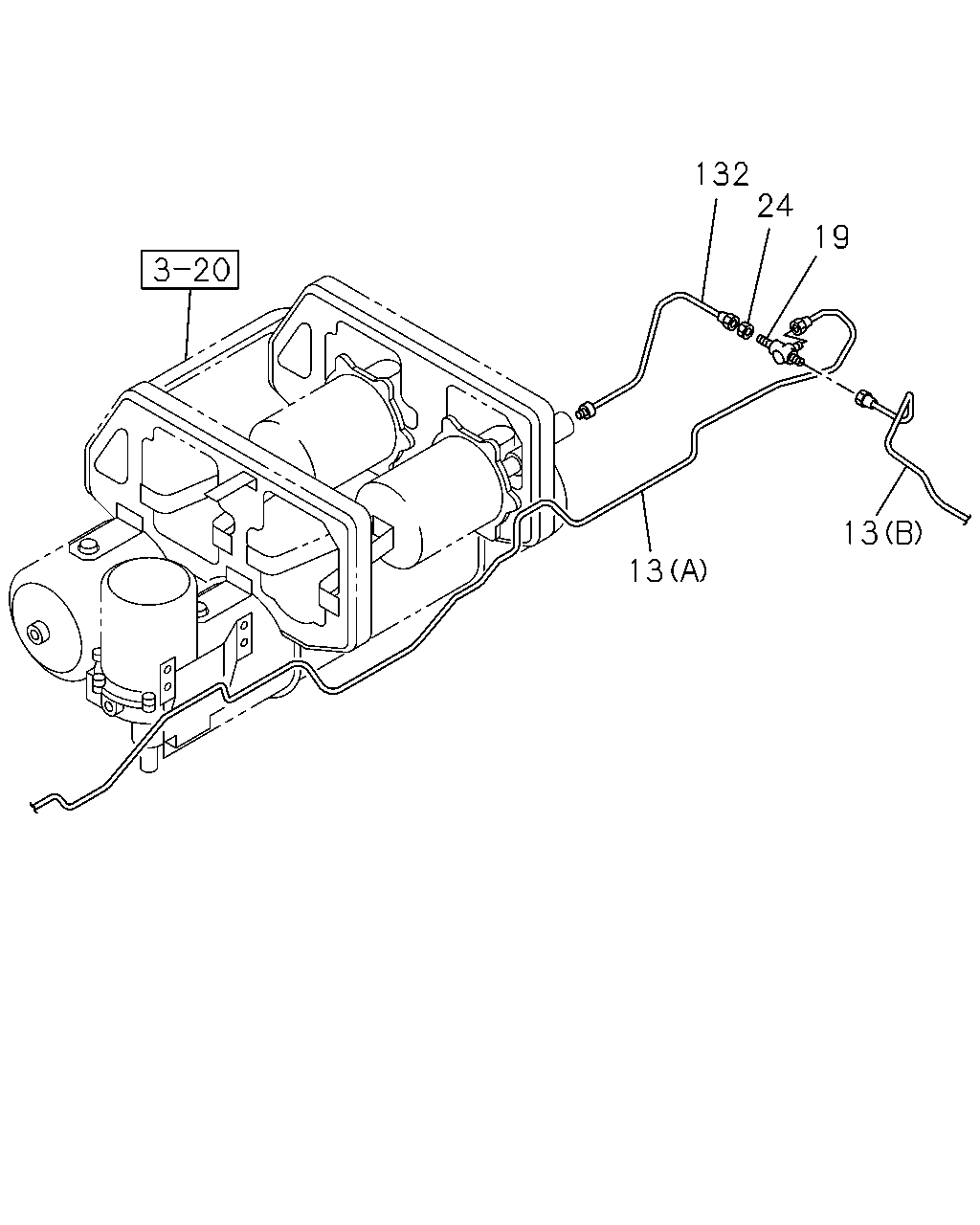

çizim 119717
132 13 24 13 19
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98126-034-0 01 1 0810-
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=2577 SERVICED BY L=2650 		1-47428-743-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98120-168-0 01 1 0804-0806
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=1606 		8-98126-034-0 01 1 0807-0809
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3331 SERVICED BY L=3400 		1-47428-746-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3258 SERVICED BY L=3400 		1-47428-746-0 01 1 0803-0803
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3305 		8-98120-167-0 01 1 0804-0806
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3453 		8-98126-025-0 01 1 0807-0812
13 PIPE; OIL,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=3328 SERVICED BY L=3400 		1-47428-746-0 01 1 0901-
19 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 3WAY 		0-92138-906-0 01 1 0803-
24 NUT; UNION,OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 0803-
132 PIPE; OIL,BRK,HYD UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=400 		8-98109-569-0 01 1 0803-0803
132 PIPE; OIL,BRK,HYD UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=388 SERVICED BY L=460 		1-47428-722-0 01 1 0803-0803
132 PIPE; OIL,BRK,HYD UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=925 SERVICED BY L=1000 		1-47428-730-0 01 1 0804-
