Sayfa 3-40 - Isuzu EPC

3-40 — FRONT BRAKE POWER CHAMBER (#67984) — 210 parça

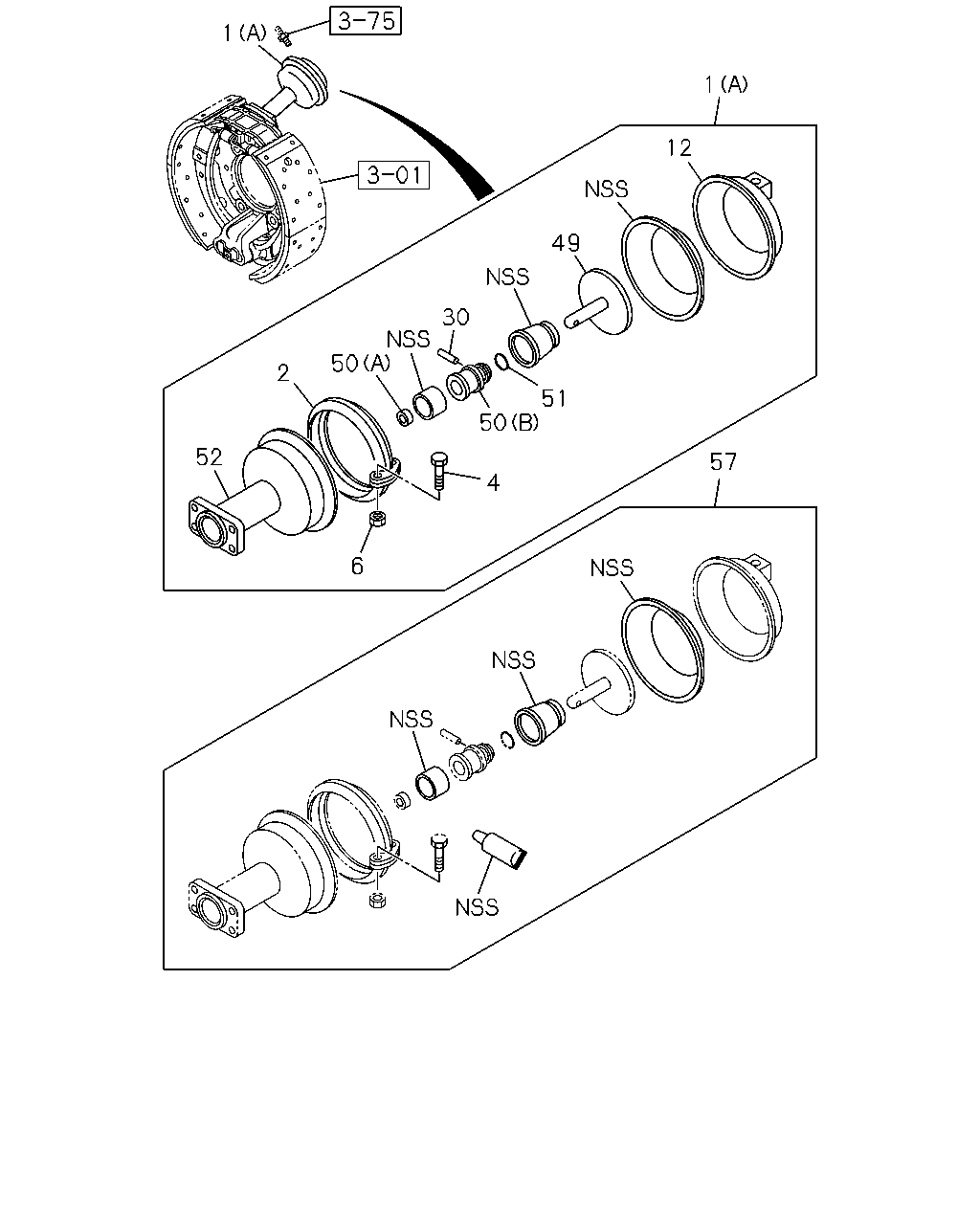

1 1 12 49 30 50 2 52 51 50 4 6 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-946-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-947-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0803-0907	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0908-0910	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-837-0	02	1	0908-0910		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-0	02	1	0911-1009	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	0911-1009		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98145-680-0	02	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	1010-1105		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-1	02	1	1106-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-1	02	1	1106-		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-149-0	02	1	0803-0907	●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-149-0	02	1	0908-0910	●
2	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0908-0910		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-256-0	02	1	0911-1009	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0911-1009		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-256-0	02	1	1010-1105	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1010-1105		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-256-0	02	1	1106-	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1106-		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-146-0	04	1	0803-0907	●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-146-0	04	1	0908-0910	●
4	BOLT; CLAMP RING	1-48269-146-0	04	1	0908-0910		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-257-0	02	1	0911-1009	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	0911-1009		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-257-0	02	1	1010-1105	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	1010-1105		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-257-0	02	1	1106-	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	1106-		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	04	1	0803-0907	●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	04	1	0908-0910	●
6	NUT; CLAMP RING	1-48269-147-0	04	1	0908-0910		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	02	1	0911-1009	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	0911-1009		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	02	1	1010-1105	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	1010-1105		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	02	1	1106-	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	1106-		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	0803-0907	●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	0908-1009	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	0908-1009		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-103-0	02	1	1010-1105	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	1010-1105		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	1106-	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	1106-		●
30	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-153-0	02	1	0803-0907	●
30	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-153-0	02	1	0908-0910	●
30	PIN; STRAIGHT,SPR CHAMBER	1-48269-153-0	02	1	0908-0910		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48263-020-0	02	1	0803-0907	●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48263-020-0	02	1	0908-0910	●
49	ROD; PUSH,SPR CHAMBER	1-48263-020-0	02	1	0908-0910		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-969-0	02	1	0911-1009	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-0	02	1	0911-1009		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-969-0	02	1	1010-1105	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-0	02	1	1010-1105		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-969-1	02	1	1106-	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-1	02	1	1106-		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48269-152-0	02	1	0803-0907	●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48269-152-0	02	1	0908-0910	●
50	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0908-0910		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98146-963-0	02	1	0911-1009	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-1009		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98146-963-0	02	1	1010-1105	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	1010-1105		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98146-963-1	02	1	1106-	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-1	02	1	1106-		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48269-154-0	02	1	0803-0907	●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48269-154-0	02	1	0908-0910	●
50	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0908-0910		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-155-0	02	1	0803-0907	●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-155-0	02	1	0908-0910	●
51	RING; SPR CHAMBER	1-48269-155-0	02	1	0908-0910		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-966-0	02	1	0911-1009	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-1009		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-966-0	02	1	1010-1105	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	1010-1105		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-966-0	02	1	1106-	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	1106-		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-153-0	02	1	0803-0907	●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-153-0	02	1	0908-0910	●
52	HOUSING; SPR CHAMBER	1-48251-153-0	02	1	0908-0910		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-195-1	02	1	0911-1009	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	0911-1009		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-195-1	02	1	1010-1105	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1010-1105		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-195-1	02	1	1106-1403	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1106-1403		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98248-793-0	02	1	1404-	●
52	HOUSING; SPR CHAMBER	8-98248-793-0	02	1	1404-		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-326-0	02	1	0803-0907	●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-326-0	02	1	0908-0910	●
57	REPAIR KIT; SPR CHAMBER	1-85576-326-0	02	1	0908-0910		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-978-0	02	1	0911-1009	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	0911-1009		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-978-0	02	1	1010-1105	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1010-1105		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-978-0	02	1	1106-	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1106-		●

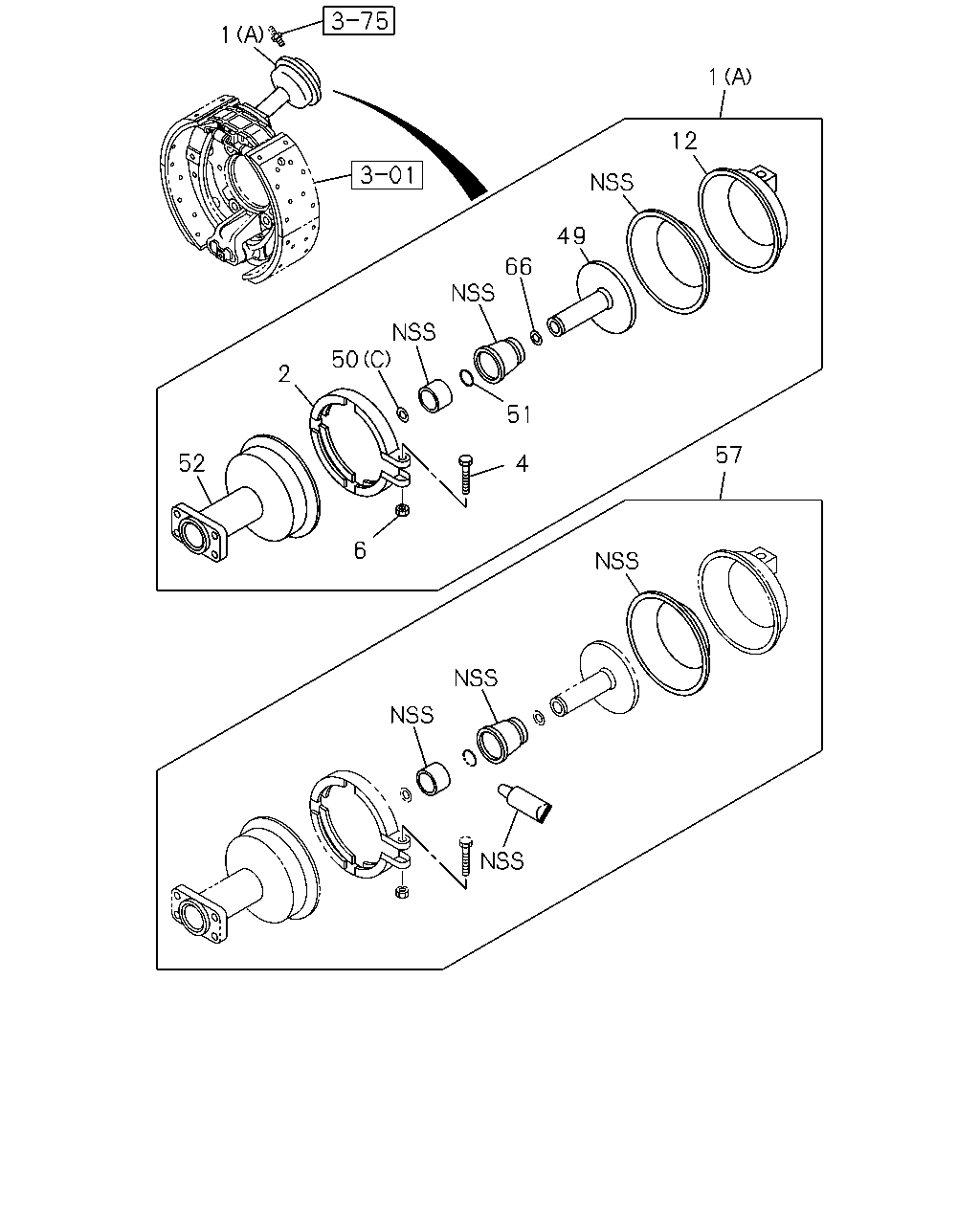

1 1 12 49 66 50 2 52 51 4 6 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-946-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-947-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0803-0907	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0908-0910	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-837-0	02	1	0908-0910		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-0	02	1	0911-1009	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	0911-1009		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98145-680-0	02	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	1010-1105		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-1	02	1	1106-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-1	02	1	1106-		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-149-0	02	1	0803-0907	●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-149-0	02	1	0908-0910	●
2	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0908-0910		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-256-0	02	1	0911-1009	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	0911-1009		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-256-0	02	1	1010-1105	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1010-1105		●
2	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-256-0	02	1	1106-	●
2	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1106-		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-146-0	04	1	0803-0907	●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-146-0	04	1	0908-0910	●
4	BOLT; CLAMP RING	1-48269-146-0	04	1	0908-0910		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-257-0	02	1	0911-1009	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	0911-1009		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-257-0	02	1	1010-1105	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	1010-1105		●
4	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-257-0	02	1	1106-	●
4	BOLT; CLAMP RING	1-48269-257-0	02	1	1106-		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	04	1	0803-0907	●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	04	1	0908-0910	●
6	NUT; CLAMP RING	1-48269-147-0	04	1	0908-0910		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	02	1	0911-1009	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	0911-1009		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48269-147-0	02	1	1010-1105	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	1010-1105		●
6	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-147-0	02	1	1106-	●
6	NUT; CLAMP RING	1-48269-147-0	02	1	1106-		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	0803-0907	●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	0908-1009	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	0908-1009		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-103-0	02	1	1010-1105	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	1010-1105		●
12	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-103-0	02	1	1106-	●
12	COVER ASM; LWR,SPR CHAMBER	1-48251-103-0	02	1	1106-		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48263-020-0	02	1	0803-0907	●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48263-020-0	02	1	0908-0910	●
49	ROD; PUSH,SPR CHAMBER	1-48263-020-0	02	1	0908-0910		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-969-0	02	1	0911-1009	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-0	02	1	0911-1009		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-969-0	02	1	1010-1105	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-0	02	1	1010-1105		●
49	ROD; PUSH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-969-1	02	1	1106-	●
49	ROD; PUSH,SPR CHAMBER	8-98146-969-1	02	1	1106-		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48269-152-0	02	1	0803-0907	●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48269-152-0	02	1	0908-0910	●
50	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0908-0910		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98146-963-0	02	1	0911-1009	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-1009		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98146-963-0	02	1	1010-1105	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	1010-1105		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98146-963-1	02	1	1106-	●
50	GUIDE; SPR CHAMBER (C)	8-98146-963-1	02	1	1106-		●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48269-154-0	02	1	0803-0907	●
50	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48269-154-0	02	1	0908-0910	●
50	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0908-0910		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-155-0	02	1	0803-0907	●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-155-0	02	1	0908-0910	●
51	RING; SPR CHAMBER	1-48269-155-0	02	1	0908-0910		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-966-0	02	1	0911-1009	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-1009		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-966-0	02	1	1010-1105	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	1010-1105		●
51	RING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-966-0	02	1	1106-	●
51	RING; SPR CHAMBER	8-98146-966-0	02	1	1106-		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-153-0	02	1	0803-0907	●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-153-0	02	1	0908-0910	●
52	HOUSING; SPR CHAMBER	1-48251-153-0	02	1	0908-0910		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-195-1	02	1	0911-1009	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	0911-1009		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	1-48251-195-1	02	1	1010-1105	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1010-1105		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-195-1	02	1	1106-1403	●
52	HOUSING; SPR CHAMBER	1-48251-195-1	02	1	1106-1403		●
52	HOUSING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98248-793-0	02	1	1404-	●
52	HOUSING; SPR CHAMBER	8-98248-793-0	02	1	1404-		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-326-0	02	1	0803-0907	●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-326-0	02	1	0908-0910	●
57	REPAIR KIT; SPR CHAMBER	1-85576-326-0	02	1	0908-0910		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-978-0	02	1	0911-1009	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	0911-1009		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-978-0	02	1	1010-1105	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1010-1105		●
57	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-978-0	02	1	1106-	●
57	REPAIR KIT; SPR CHAMBER	8-98146-978-0	02	1	1106-		●
66	SHIM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-965-0	AR	1	0911-1009	●
66	SHIM	8-98146-965-0	AR	1	0911-1009		●
66	SHIM BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98146-965-0	AR	1	1010-1105	●
66	SHIM	8-98146-965-0	AR	1	1010-1105		●
66	SHIM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98146-965-0	AR	1	1106-	●
66	SHIM	8-98146-965-0	AR	1	1106-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

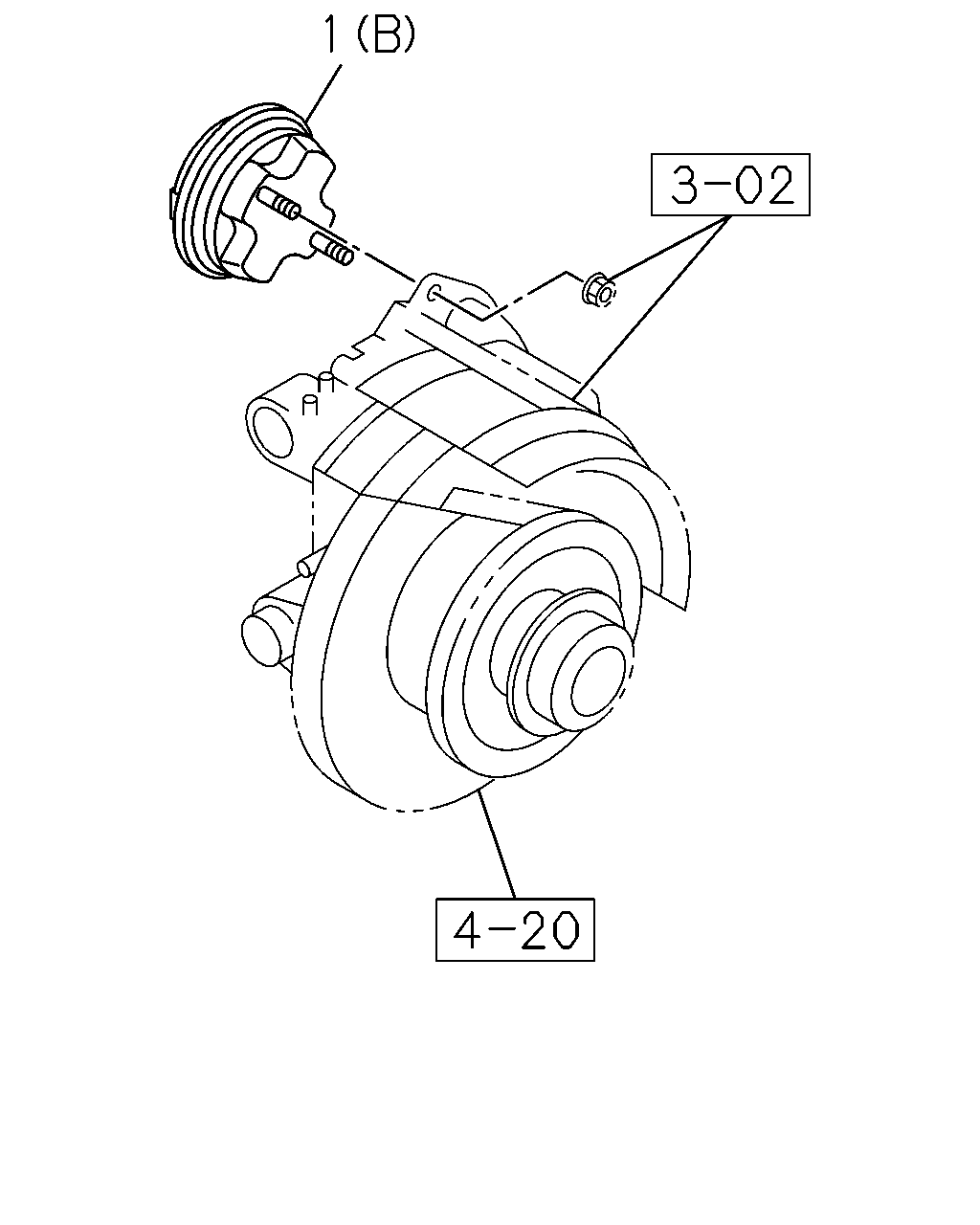

1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-946-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)	1-48250-947-0	01	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0803-0907	●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48250-837-0	02	1	0908-0910	●
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-837-0	02	1	0908-0910		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-0	02	1	0911-1009	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	0911-1009		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	8-98145-680-0	02	1	1010-1105	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-0	02	1	1010-1105		●
1	CHAMBER ASM; POWER,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98145-680-1	02	1	1106-	●
1	CHAMBER ASM; POWER,FRT BRK (A)	8-98145-680-1	02	1	1106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
