Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#67981) — 285 parça

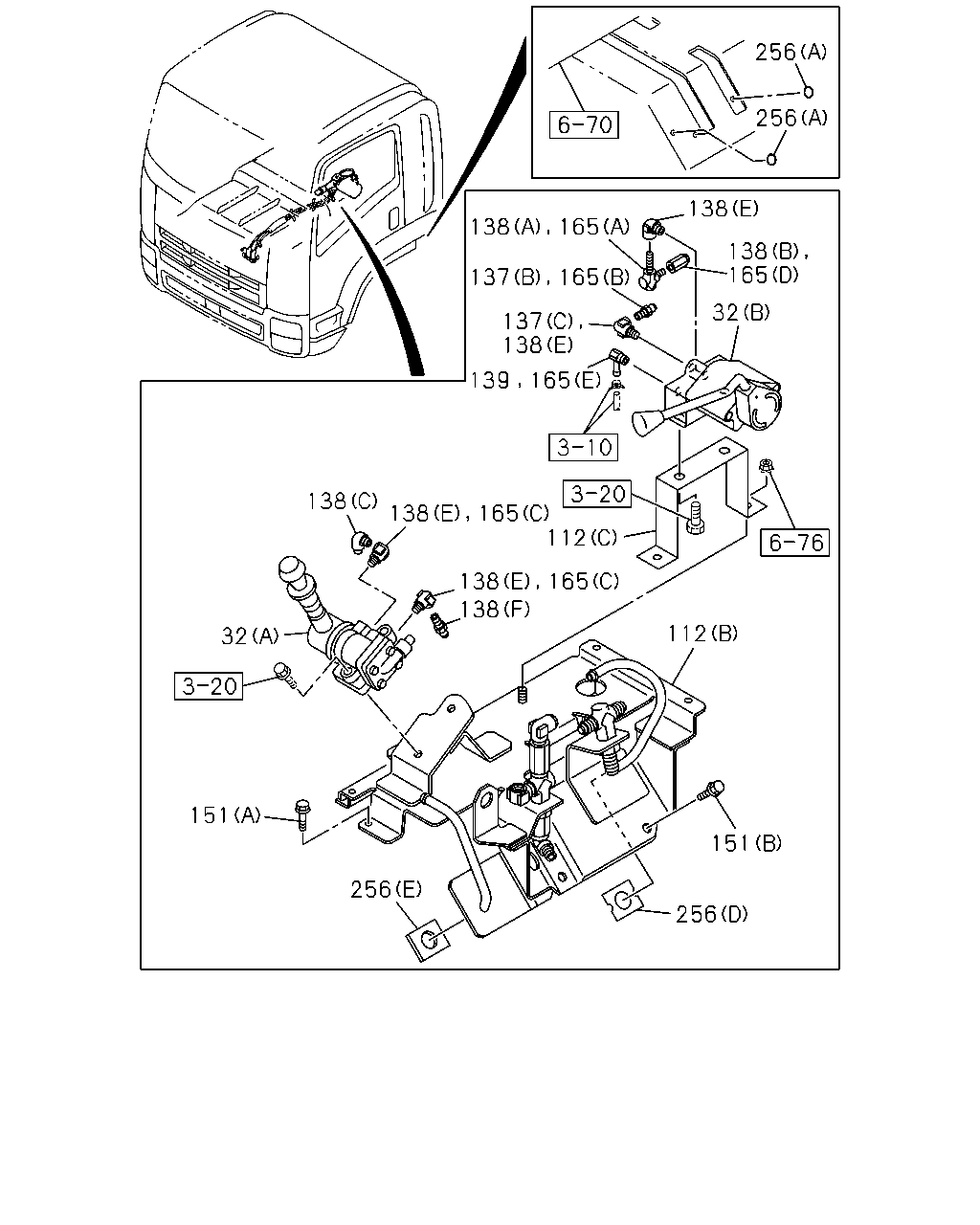

256 256 138 138 138 138 137 138 138 151 112 32 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

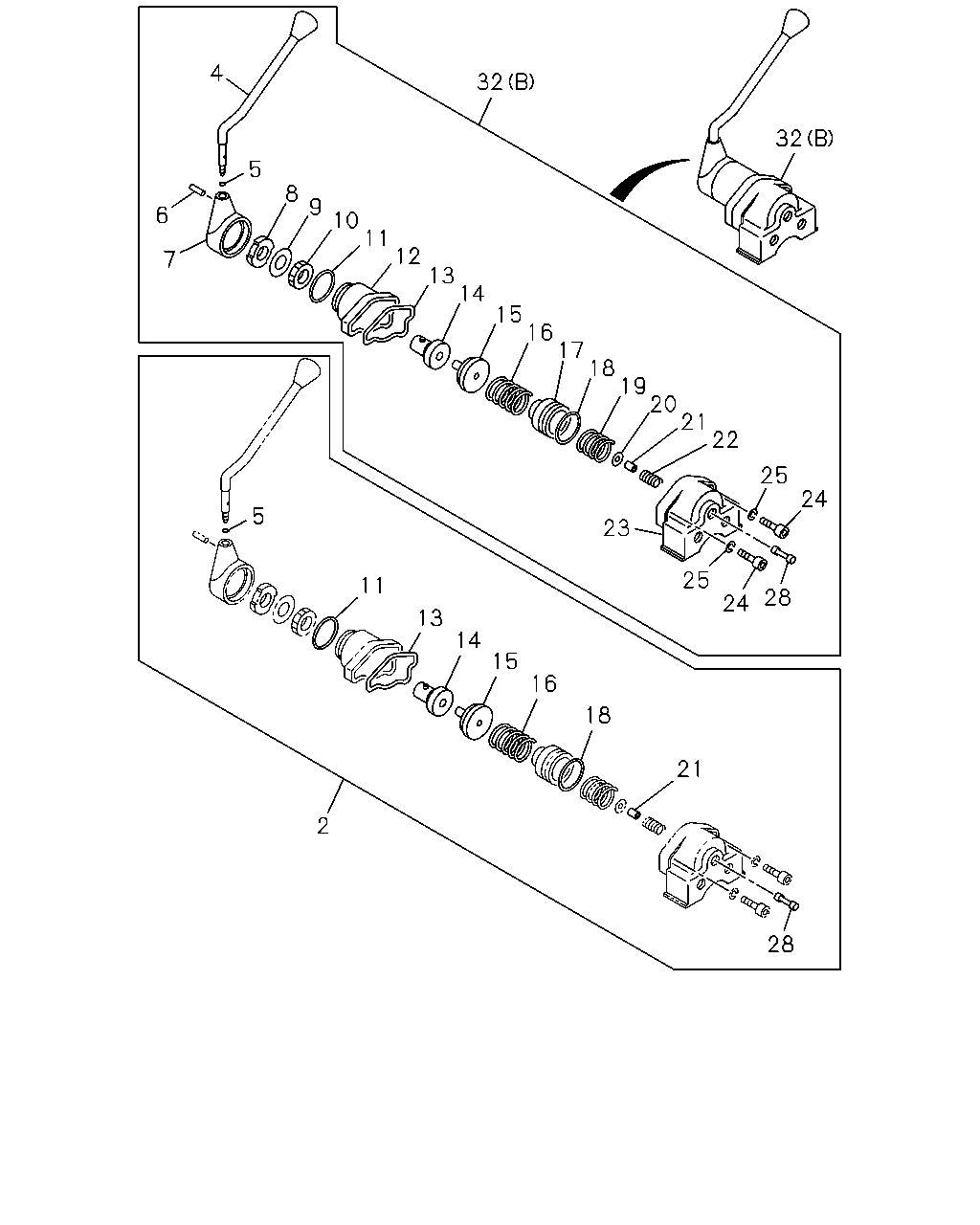

32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0908-0910	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	0911-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0803-		●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0908-	●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	0908-	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	0803-		●
137	CONNECTOR; SUPPLY (B)	1-09650-352-1	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (C) PT1/4 2WAY	1-09660-693-0	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0908-	●
137	CONNECTOR; SUPPLY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-1101		●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	03	1	0908-1101	●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	02	1	1102-	●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0908-	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-335-1	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 2WAY	1-09660-693-0	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110	●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	0803-0907		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	0908-		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	0908-	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0803-0907		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0908-		●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0908-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	0908-	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0908-0911	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	0912-	●
256	SEAL (C) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0908-0910	●
256	SEAL (C) L=50	8-94270-377-1	02	1	0911-	●
256	SEAL (D)	1-79996-382-0	01	1	0908-	●
256	SEAL (E)	8-98049-765-0	01	1	0908-	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	0803-		●

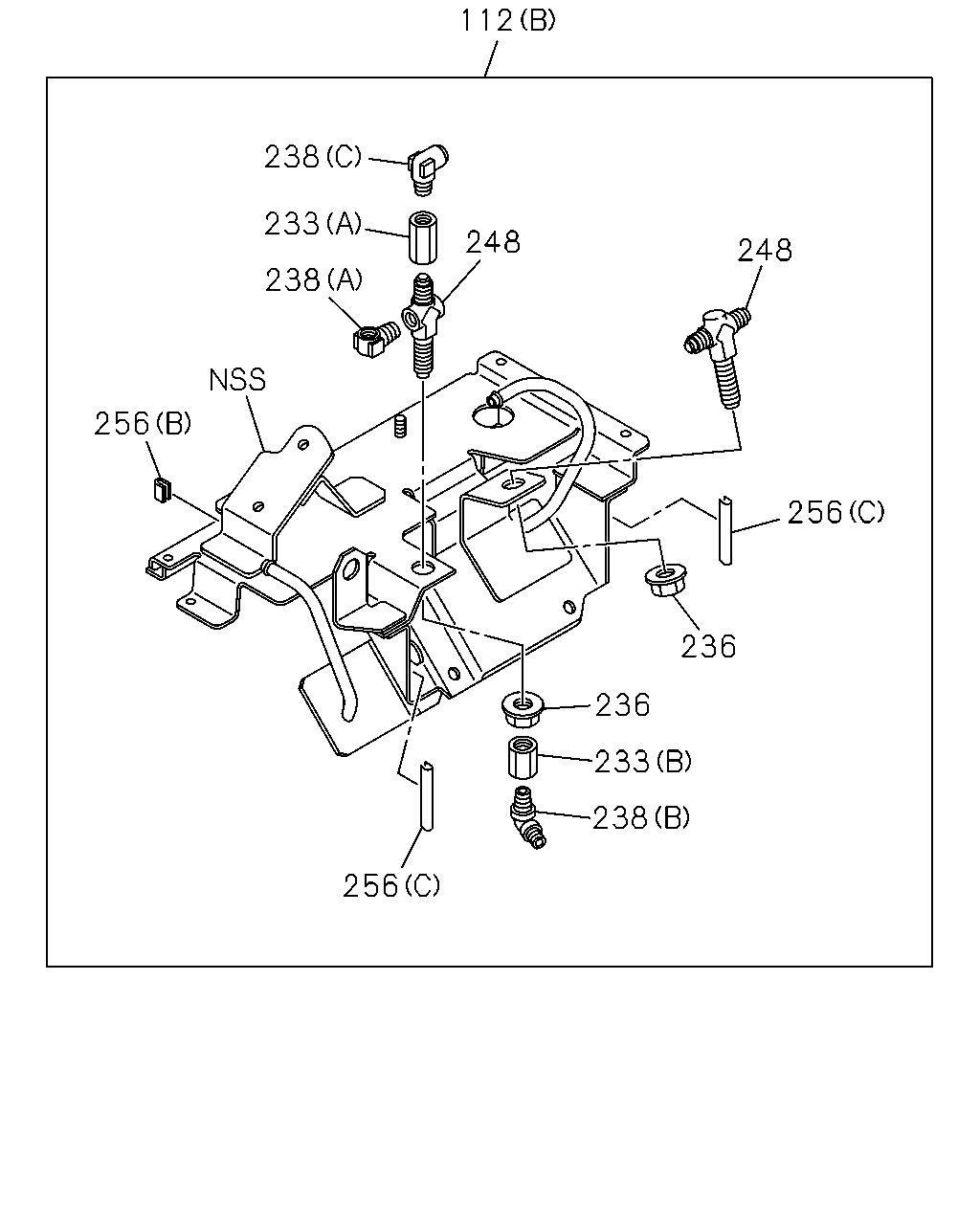

112 238 233 238 256 248 248 256 236 236 233 238 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0908-	●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	0908-	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	0803-		●
233	ADAPTER; VLV (A) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	0908-	●
233	ADAPTER; VLV (B)	1-09660-930-1	01	1	0908-0910	●
233	ADAPTER; VLV (B)	8-97633-768-0	01	1	0911-	●
236	NUT M16 FLANGE	0-91180-216-0	02	1	0908-	●
238	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0908-	●
238	CONNECTOR (B) DIN8 ELBOW	1-09660-924-1	01	1	0908-0910	●
238	CONNECTOR (B)	8-97633-756-0	01	1	0911-	●
238	CONNECTOR (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-	●
248	UNION M16 3WAY	0-92148-610-0	01	1	0908-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	0908-	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0908-0911	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	0912-	●
256	SEAL (C) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0908-0910	●
256	SEAL (C) L=50	8-94270-377-1	02	1	0911-	●
256	SEAL (D)	1-79996-382-0	01	1	0908-	●
256	SEAL (E)	8-98049-765-0	01	1	0908-	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	0803-		●

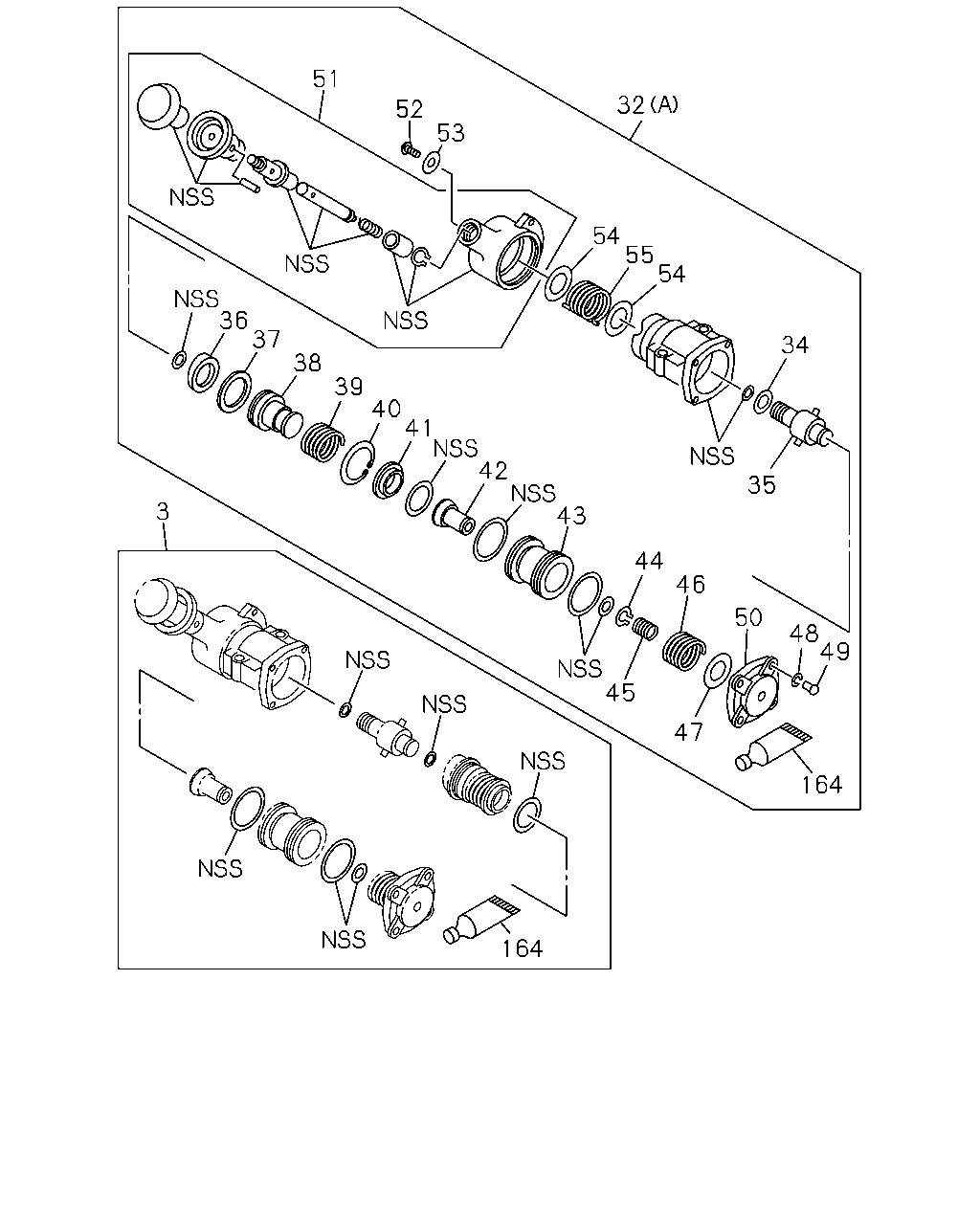

32 51 52 53 54 55 54 34 35 49 48 50 46 44 43 42 41 40 39 38 37 36 3 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-096-0	01	1	0803-0907		●
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-096-0	01	1	0908-		●
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0908-0910	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	0911-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0803-		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0803-0907		●
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	0908-		●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0908-	●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0803-0907		●
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	0908-		●
35	HOLDER; CAM	1-48469-054-0	01	1	0908-	●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0803-0907		●
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	0908-		●
36	RING; CAM	1-48469-056-0	01	1	0908-	●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0803-0907		●
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	0908-		●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0908-	●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0803-0907		●
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	0908-		●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0908-	●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0803-0907		●
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	0908-		●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0908-	●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0803-0907		●
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	0908-		●
40	RING; SNAP	1-48469-067-0	01	1	0908-	●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0803-0907		●
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	0908-		●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0908-	●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0803-0907		●
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	0908-		●
42	VALVE; FEED	1-48469-065-0	01	1	0908-	●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0803-0907		●
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	0908-		●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0908-	●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	0908-	●
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	0803-		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0803-0907		●
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	0908-		●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0908-	●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0803-0907		●
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	0908-		●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0908-	●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0803-0907		●
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	0908-		●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0908-	●
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	0803-		●
49	SCREW; COVER	1-48469-118-0	04	1	0908-	●
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	0803-		●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	0908-	●
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	0803-		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0803-0907		●
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	0908-		●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0908-	●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0803-0907		●
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	0908-		●
52	SCREW; HANDLE	1-48469-062-0	01	1	0908-	●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0803-0907		●
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	0908-		●
53	WASHER; HANDLE	1-48469-061-0	01	1	0908-	●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0803-0907		●
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	0908-		●
54	SEAT; SPRING	1-48469-082-0	02	1	0908-	●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0803-0907		●
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	0908-		●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0908-	●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0803-0907		●
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	0908-		●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0908-	●

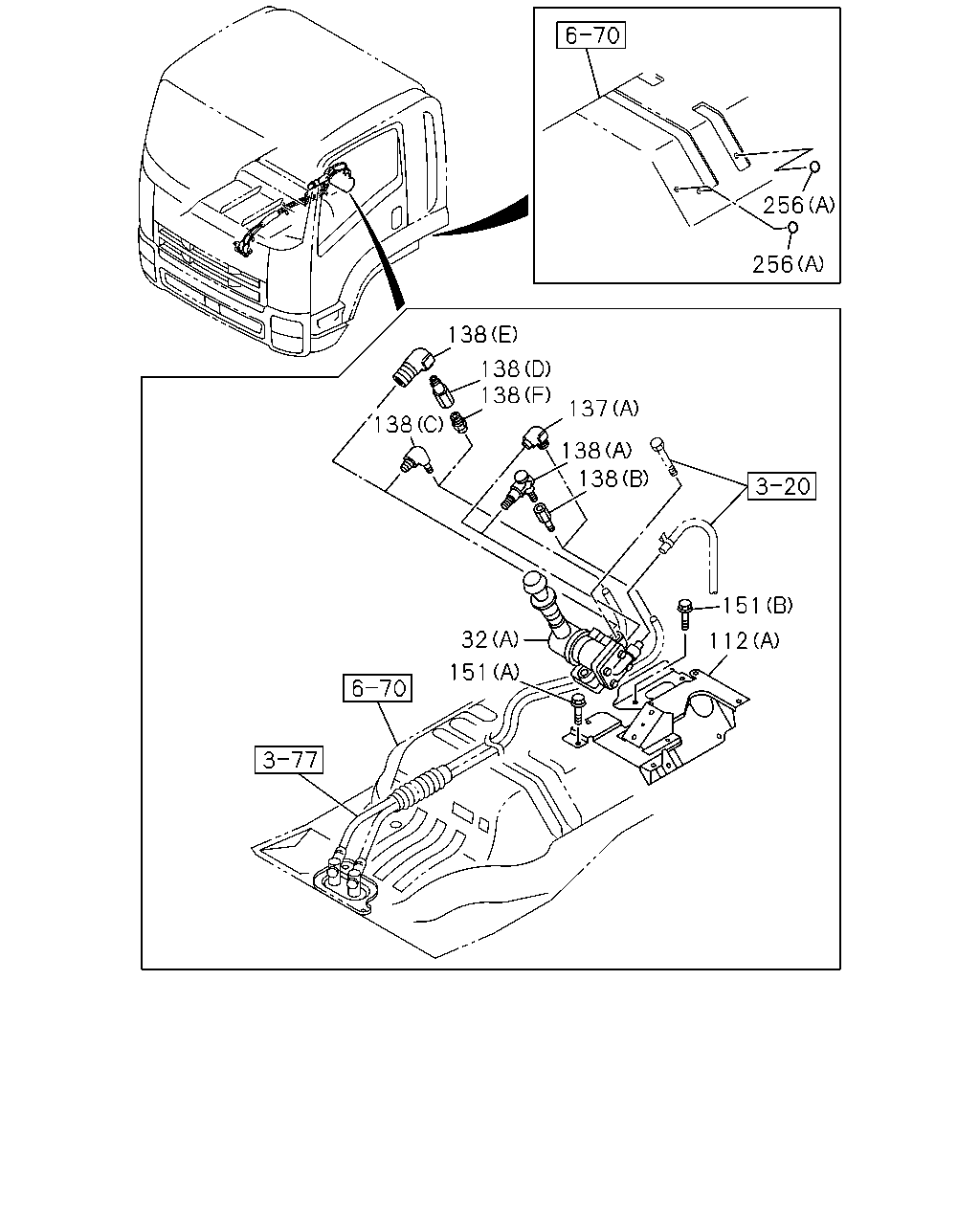

256 256 138 138 165 32 165 138 137 165 137 138 139 165 165 138 138 32 151 256 138 138 112 165 112 151 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0908-0910	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	0911-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0803-		●
112	BRACKET; CONT VLV (C)	1-73908-268-0	01	1	0908-	●
112	BRACKET; CONT VLV (B)	8-98147-689-3	01	1	0908-	●
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-97616-923-1	01	1	0803-		●
137	CONNECTOR; SUPPLY (B)	1-09650-352-1	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (C) PT1/4 2WAY	1-09660-693-0	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0908-	●
137	CONNECTOR; SUPPLY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-1101		●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	03	1	0908-1101	●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	02	1	1102-	●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0908-	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-335-1	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 2WAY	1-09660-693-0	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110	●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-	●
139	CONNECTOR; EXH	8-97062-077-1	01	1	0908-1101	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	0803-0907		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16	0-52000-616-0	03	1	0908-		●
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	0908-	●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0803-0907		●
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0908-		●
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	0908-	●
165	CONNECTOR; HAND BRK VLV (A)	1-09650-240-1	01	1	1102-	●
165	CONNECTOR; HAND BRK VLV (B)	1-09650-352-1	01	1	1102-	●
165	CONNECTOR; HAND BRK VLV (C) PT1/4 2WAY	1-09660-693-0	02	1	1102-	●
165	CONNECTOR; HAND BRK VLV (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1102-	●
165	CONNECTOR; HAND BRK VLV (E)	8-97062-077-1	01	1	1102-	●
256	SEAL (B) 15X30	1-74998-069-0	01	1	0908-	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	07	1	0908-0911	●
256	SEAL (A) OD=25 BLACK	1-76798-019-0	10	1	0912-	●
256	SEAL (C) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0908-0910	●
256	SEAL (C) L=50	8-94270-377-1	02	1	0911-	●
256	SEAL (D)	1-79996-382-0	01	1	0908-	●
256	SEAL (E)	8-98049-765-0	01	1	0908-	●
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=25 BLACK	1-76798-019-0	09	1	0803-		●

32 32 24 25 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 5 4 6 7 5 23 25 24 28 11 13 14 15 16 18 21 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	0908-	●
4	HANDLE ASM; BRK VLV	1-48119-144-0	01	1	0908-0910	●
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0911-	●
5	GASKET; HANDLE	1-48119-128-0	01	1	0908-	●
6	PIN; SPR	1-48119-143-0	01	1	0908-	●
7	HEAD; BRK VLV	1-48119-131-1	01	1	0908-	●
8	STOPPER; BRK VLV	1-48119-136-0	01	1	0908-	●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0908-	●
10	RING; ADJ	1-48119-122-0	01	1	0908-	●
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0908-	●
12	COVER; BRK VLV	1-48129-097-1	01	1	0908-	●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0908-	●
14	FOLLOWER; CAM	1-48129-109-0	01	1	0908-	●
15	CAM; FOLLOWER	1-48129-110-0	01	1	0908-	●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0908-	●
17	PISTON; SPR	1-48129-095-0	01	1	0908-	●
18	GASKET; BODY	1-48129-096-0	01	1	0908-	●
19	SPRING; PISTON	1-48129-094-0	01	1	0908-	●
20	GUIDE; VLV	1-48129-090-0	01	1	0908-	●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0908-	●
22	SPRING; VLV	1-48123-024-0	01	1	0908-	●
23	BODY; BRK VLV	1-48111-060-1	01	1	0908-	●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0908-	●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0908-	●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT (B)	1-48100-674-0	01	1	0908-0910	●
32	VALVE; BRK,HAND CONT (B)	1-48100-849-0	01	1	0911-	●
32	VALVE; BRK,HAND CONT (A)	1-48460-356-0	01	1	0908-	●
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48460-306-0	01	1	0803-		●

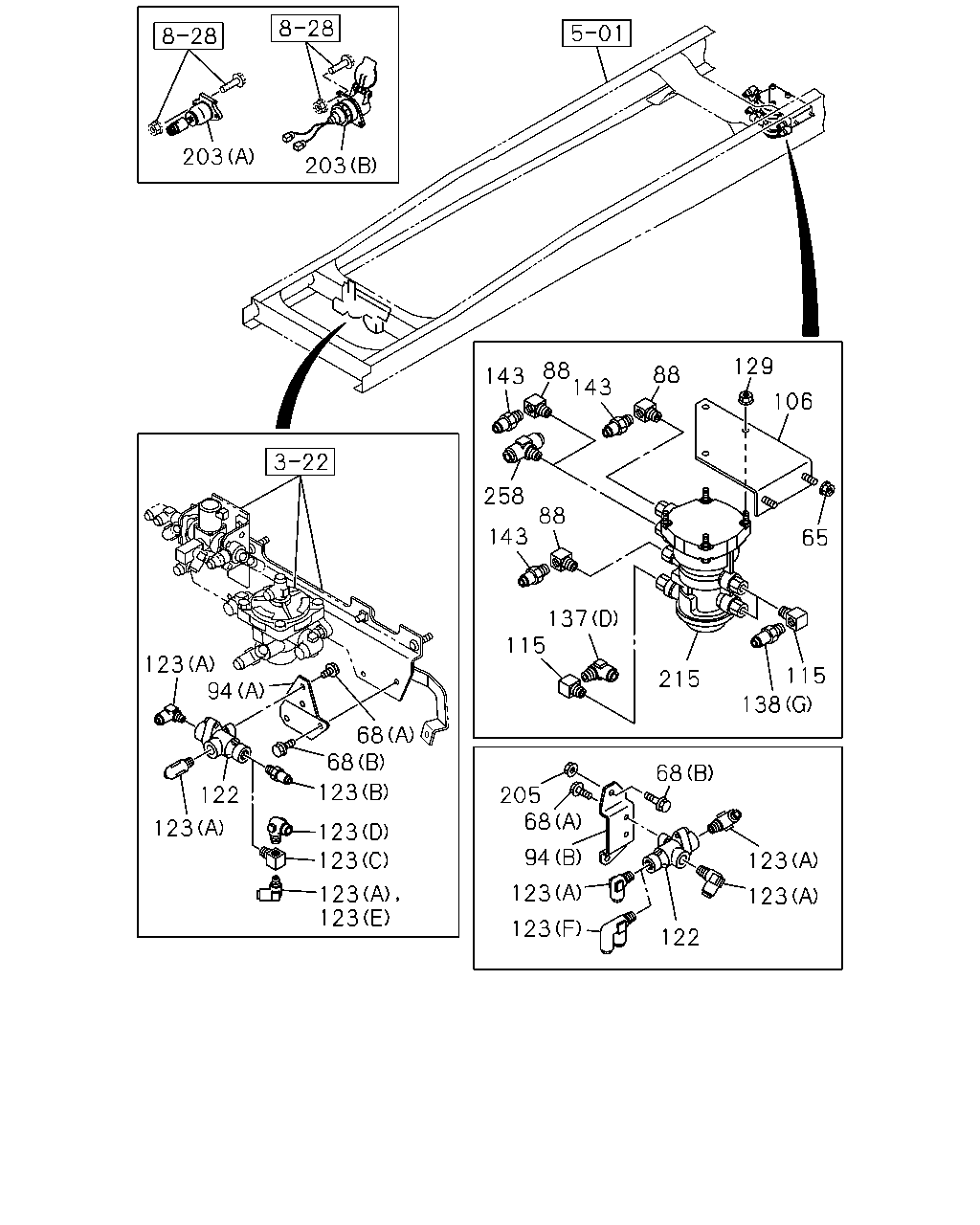

203 203 123 94 122 123 68 68 123 123 123 123 123 123 123 94 68 205 122 123 123 68 115 137 143 88 258 143 88 143 88 129 106 65 115 138 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0908-	●
68	BOLT; DOUBLE CHECK VLV EXC. ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE	0-28650-825-0	02	1	1207-	●
68	BOLT; DOUBLE CHECK VLV (A) M8X12 FLANGE	0-28050-812-0	02	1	0908-	●
68	BOLT; DOUBLE CHECK VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0908-1206	●
68	BOLT; DOUBLE CHECK VLV ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE	0-28650-825-0	01	1	1207-	●
88	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> PT3/8 ELBOW	1-09660-696-0	03	1	0908-	●
88	CONNECTOR; ELBOW EXC. H.S.A SYSTEM<6EP> PT3/8 ELBOW	1-09660-696-0	02	1	0908-	●
94	BRACKET; CHECK VLV ANTI LOCK BRAKE<JE5> (B)	8-98177-521-1	01	1	1010-	●
94	BRACKET; CHECK VLV (A)	8-98145-152-0	01	1	0908-1009	●
94	BRACKET; CHECK VLV EXC. ANTI LOCK BRAKE<JE5> (A)	8-98145-152-0	01	1	1010-	●
106	BRACKET; VLV	8-98110-679-1	01	1	0908-	●
115	CONNECTOR; DUAL RELAY VLV PT3/8 ELBOW	1-09660-696-0	03	1	0908-	●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0908-	●
123	CONNECTOR; DBL CHECK VLV ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-	●
123	CONNECTOR; DBL CHECK VLV H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0908-1009	●
123	CONNECTOR; DBL CHECK VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1010-	●
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0908-0910	●
123	CONNECTOR; DBL CHECK VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0911-1009	●
123	CONNECTOR; DBL CHECK VLV ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1010-	●
123	CONNECTOR; DBL CHECK VLV EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1010-	●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (C)	1-09656-708-0	01	1	0908-1009	●
123	CONNECTOR; DBL CHECK VLV EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (C)	1-09656-708-0	01	1	1010-1101	●
123	CONNECTOR; DBL CHECK VLV EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (C)	8-98166-127-0	01	1	1102-	●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1009	●
123	CONNECTOR; DBL CHECK VLV EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-	●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (E)	1-09660-961-0	01	1	0908-0910	●
123	CONNECTOR; DBL CHECK VLV EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0911-1009	●
123	CONNECTOR; DBL CHECK VLV H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1010-	●
123	CONNECTOR; DBL CHECK VLV ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1010-	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0908-	●
137	CONNECTOR; SUPPLY (B)	1-09650-352-1	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (C) PT1/4 2WAY	1-09660-693-0	01	1	0908-1101	●
137	CONNECTOR; SUPPLY (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0908-	●
137	CONNECTOR; SUPPLY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-1101		●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	03	1	0908-1101	●
138	CONNECTOR; DELIVERY (E) PT1/4 2WAY	1-09660-693-0	02	1	1102-	●
138	CONNECTOR; DELIVERY (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0908-	●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-335-1	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 2WAY	1-09660-693-0	01	1	0803-1110		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110		●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0908-1110	●
138	CONNECTOR; DELIVERY (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1111-	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-240-1	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1102-		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-0907		●
138	CONNECTOR; DELIVERY BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0908-1101	●
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1102-	●
143	CONNECTOR; CONT H.S.A SYSTEM<6EP> DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0908-	●
143	CONNECTOR; CONT EXC. H.S.A SYSTEM<6EP> DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0908-	●
203	CABLE; JUMPER ANTI LOCK BRAKE<JE5> (B)	8-98105-162-1	01	1	1010-	●
203	CABLE; JUMPER (A) 7P	1-82523-014-0	01	1	0908-	●
205	NUT; DOUBLE CHECK VLV ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1010-1206	●
205	NUT; DOUBLE CHECK VLV ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1207-	●
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	0908-	●
258	CONNECTOR; 3 WAY EXC. H.S.A SYSTEM<6EP> DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0908-	●

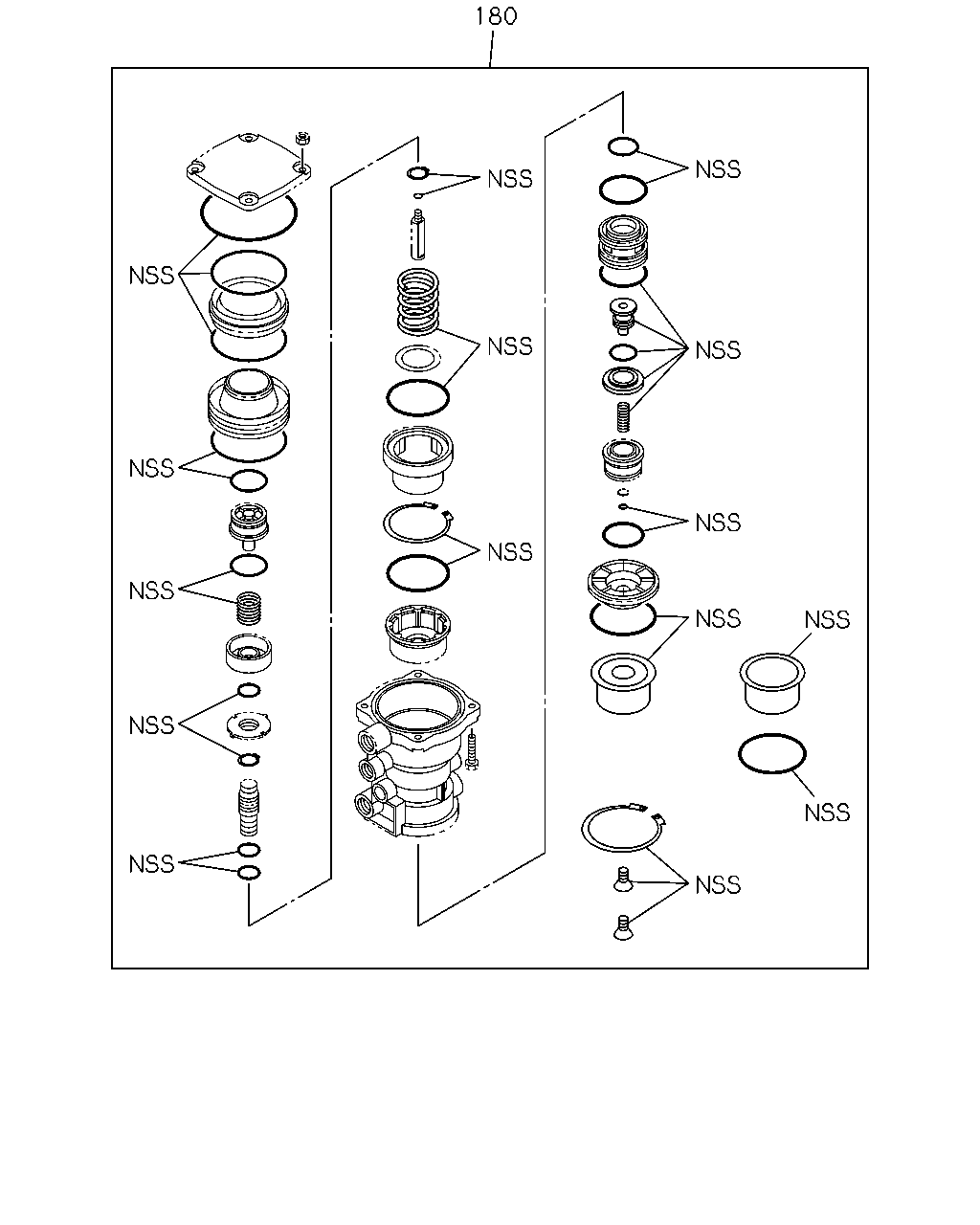

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0908-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
