◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#67977) — 128 parça

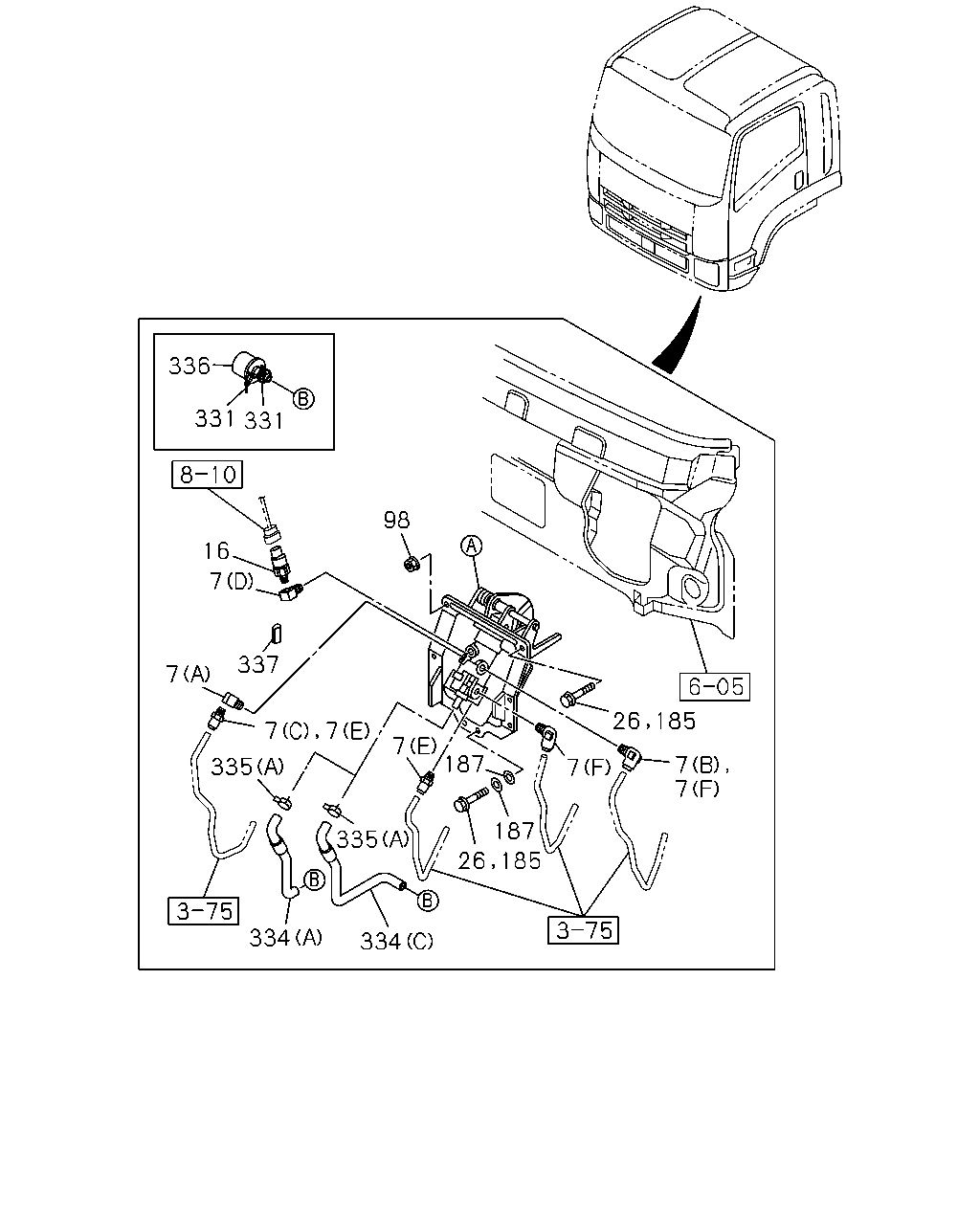

çizim 115134
336 331 331 16 7 337 7 7 7 7 187 335 335 187 26 185 334 334 7 7 7 26 185 98
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0803-1110 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0803-1110 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0908-1110 ●
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0908-1110 ● ●
7 CONNECTOR; BRK VALVE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (D) PT1/4 2WAY 		1-09660-693-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (D) PT1/4 2WAY 		1-09660-693-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0803-0907 ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0908-1110 ● ●
7 CONNECTOR; BRK VALVE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1111- ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1111- ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 0803-0907 ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 0908- ● ●
26 BOLT; PEDAL
M8X25 FLANGE 		8-98057-109-0 07 1 0803-0907 ●
26 BOLT; PEDAL
M8X25 FLANGE 		8-98057-109-0 07 1 0908-0908 ● ●
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 0803-0907 ●
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 0908- ● ●
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 0909-1506 ● ●
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507- ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 0803-0907 ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 0908-1506 ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507- ● ●
331 CLIP; BAND
IRAN EQUIPMENT(D8T) L=197 		1-83574-032-0 02 1 1010-1106 ●
331 CLIP; BAND
BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) L=197 		1-83574-032-0 02 1 1107-1110 ●
331 CLIP; BAND
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) L=197 		1-83574-032-0 02 1 1111- ●
334 HOSE; AIR,BRK
IRAN EQUIPMENT(D8T) (C) 		8-98017-119-3 01 1 1010-1106 ●
334 HOSE; AIR,BRK
BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) (C) 		8-98017-119-3 01 1 1107-1110 ●
334 HOSE; AIR,BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) (C) 		8-98017-119-3 01 1 1111- ●
334 HOSE; AIR,BRK
(B) L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0908-0910 ●
334 HOSE; AIR,BRK
(B) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0911- ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 0803-0907 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 0908-1009 ● ●
334 HOSE; AIR,BRK
EXC. IRAN EQUIPMENT(D8T) (A) 		8-97611-147-2 01 1 1010-1106 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1010-1106 ●
334 HOSE; AIR,BRK
TAIWAN EQUIPMENT(B04) BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
EXC. BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1111- ●
334 HOSE; AIR,BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TAIWAN EQUIPMENT(B04) BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1111- ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1111- ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 02 1 1102- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0803-0907 ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0908-1110 ● ●
335 CLAMP; HOSE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (A) ID=24 		8-98025-921-0 01 1 1111- ●
335 CLAMP; HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) ID=24 		8-98025-921-0 01 1 1111- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1111- ●
336 SILENCER; AIR
BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) 		1-48199-544-0 01 1 0809- ●
337 PROTECTOR; AIR BRK
IRAN EQUIPMENT(D8T) L=30 L=50 		8-94270-377-1 01 1 1010-1106 ●
337 PROTECTOR; AIR BRK
BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) L=30 L=50 		8-94270-377-1 01 1 1107-1110 ●
337 PROTECTOR; AIR BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) L=30 L=50 		8-94270-377-1 01 1 1111- ●

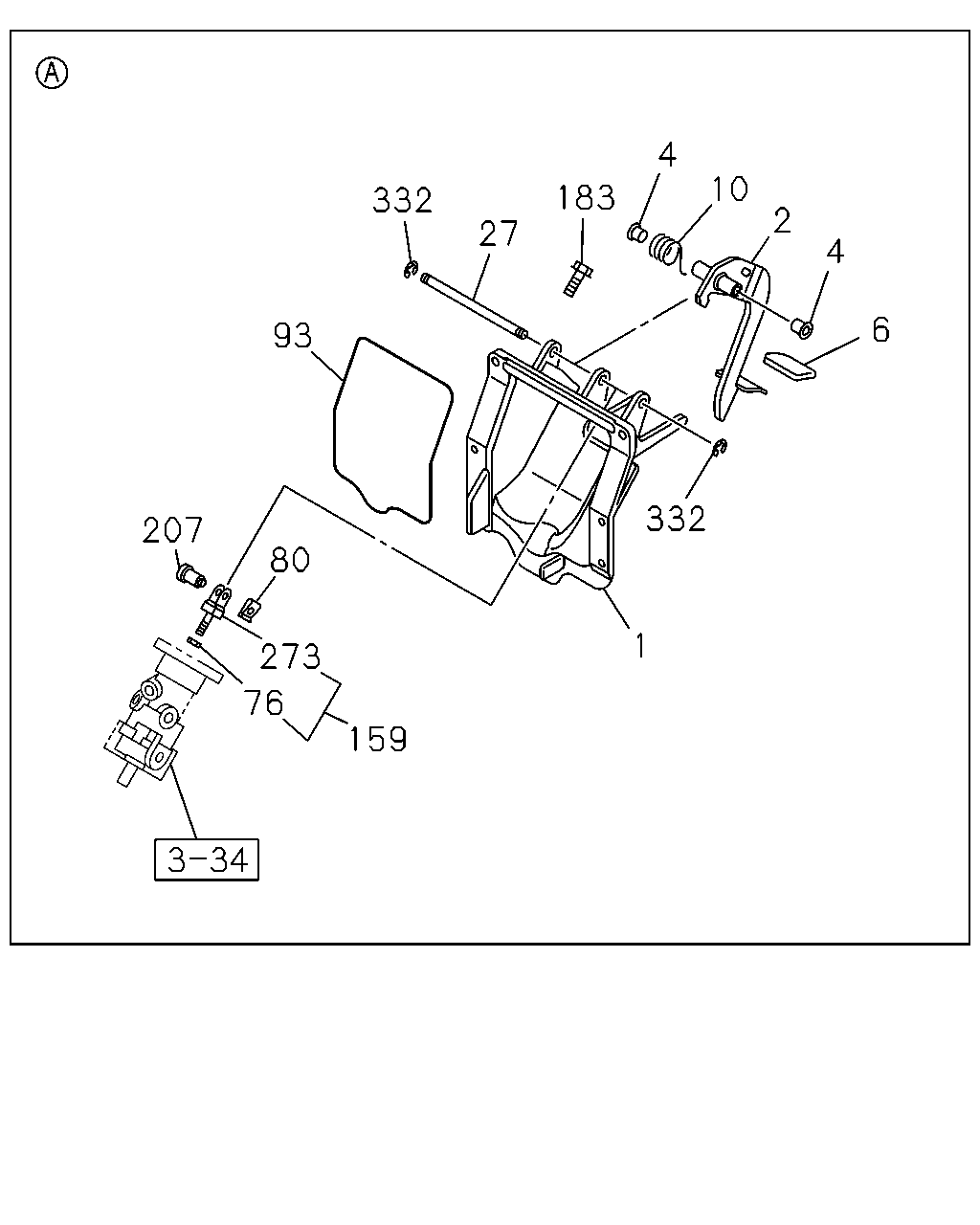

çizim 115490
1 159 76 273 80 207 93 332 27 183 4 10 4 6 332 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-98071-972-0 01 1 0803-0907 ●
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 0908- ● ●
2 PEDAL; BRK 8-98064-200-0 01 1 0803-0907 ●
2 PEDAL; BRK 8-98064-200-0 01 1 0908- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0803-0907 ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0908- ● ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 0803-0907 ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 0908- ● ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 0803-0907 ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 0908- ● ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 0803-0907 ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 0908- ● ●
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0803-0907 ●
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0803-0907 ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0908- ● ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 0803-0907 ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 0908- ● ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 0803-0907 ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 0908- ● ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 0803-0907 ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 0908- ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-97387-230-0 01 1 0803-0907 ●
207 PIN; JOINT,BRK PEDAL LINK 8-97387-230-0 01 1 0908-1007 ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1008- ● ●
273 ROD; PULL 8-98057-233-0 01 1 0803-0907 ●
273 ROD; PULL 8-98057-233-0 01 1 0908- ● ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 0803-0907 ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 0908- ● ●

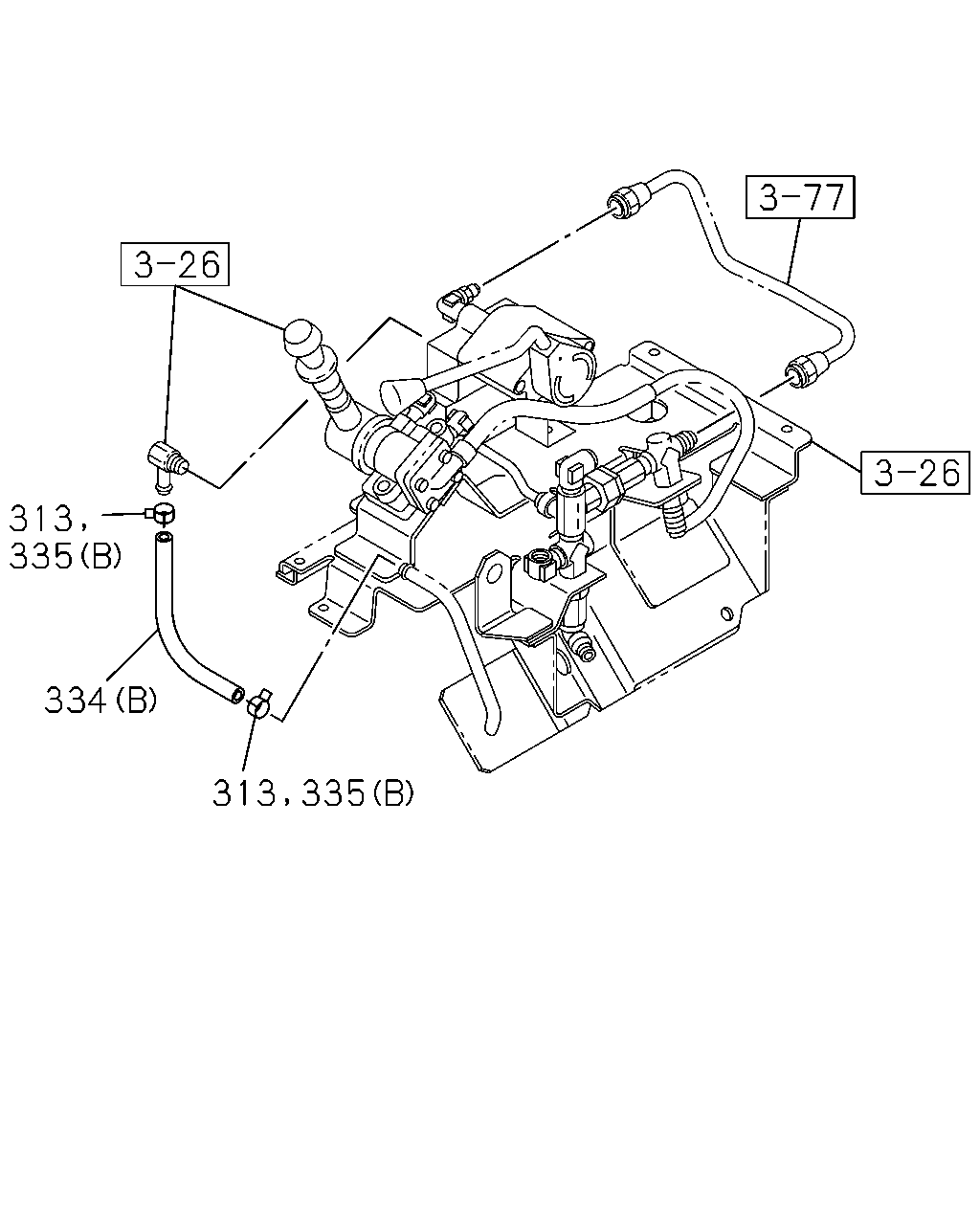

çizim 193762
313 335 334 313 335
BalonParca AdiParca NoAdetTipApplied Date A B
313 CLIP; HOSE
ID=14 		8-94238-572-0 02 1 0908-1101 ●
334 HOSE; AIR,BRK
IRAN EQUIPMENT(D8T) (C) 		8-98017-119-3 01 1 1010-1106 ●
334 HOSE; AIR,BRK
BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) (C) 		8-98017-119-3 01 1 1107-1110 ●
334 HOSE; AIR,BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) EXC. TAIWAN EQUIPMENT(B04) (C) 		8-98017-119-3 01 1 1111- ●
334 HOSE; AIR,BRK
(B) L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0908-0910 ●
334 HOSE; AIR,BRK
(B) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0911- ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 0803-0907 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 0908-1009 ● ●
334 HOSE; AIR,BRK
EXC. IRAN EQUIPMENT(D8T) (A) 		8-97611-147-2 01 1 1010-1106 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1010-1106 ●
334 HOSE; AIR,BRK
TAIWAN EQUIPMENT(B04) BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
EXC. BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1107-1110 ●
334 HOSE; AIR,BRK
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1111- ●
334 HOSE; AIR,BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TAIWAN EQUIPMENT(B04) BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1111- ●
334 HOSE; AIR,BRK
(A) 		8-97611-147-2 01 1 1111- ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 02 1 1102- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0803-0907 ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0908-1110 ● ●
335 CLAMP; HOSE
EXC. TAIWAN EQUIPMENT(B04),BRAKE REGULATION ECE(TDV) (A) ID=24 		8-98025-921-0 01 1 1111- ●
335 CLAMP; HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) ID=24 		8-98025-921-0 01 1 1111- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 1111- ●
