Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
3 - Brakes, Brake System
▶
3-06 - REAR DISC BRAKE CALIPER
▶

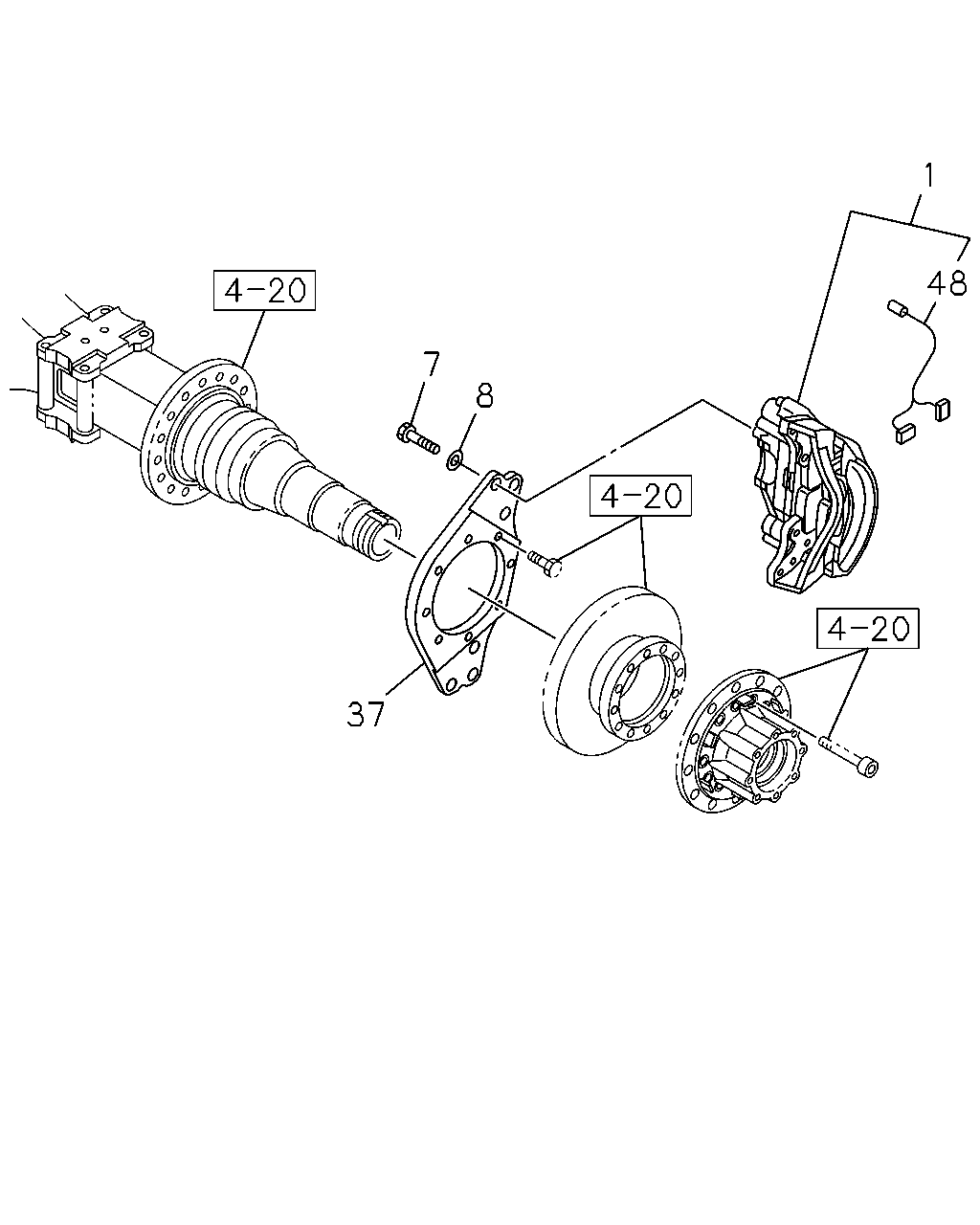

3-06 — REAR DISC BRAKE CALIPER
(#67975) — 12 parça
◀

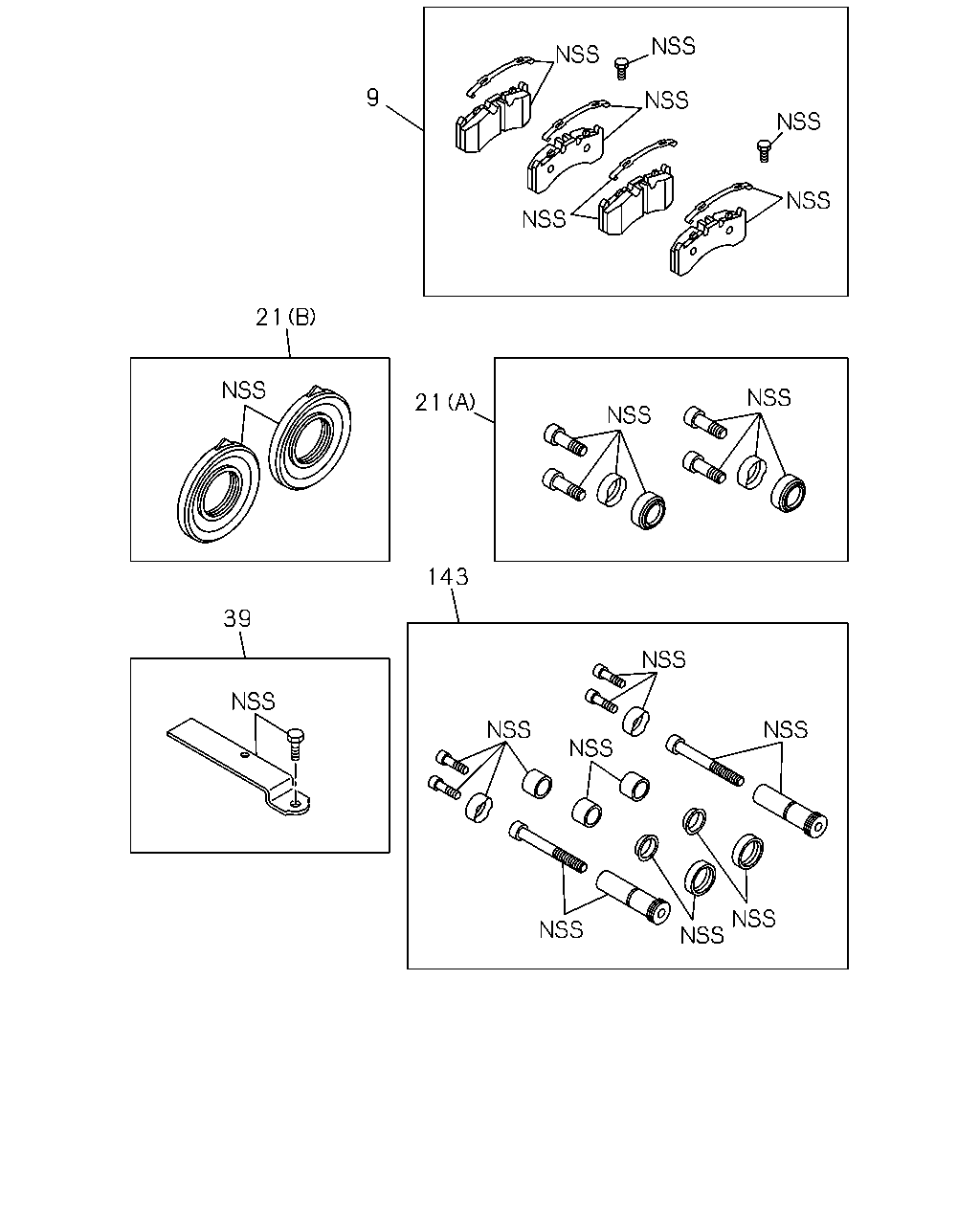

[306A] NO.2 (5 parça)
[306A] NO.1 (7 parça)
▶
9
21
21
143
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PAD KIT; CALIPER,RR
IRAN EQUIPMENT(D8T)
1-47619-192-0
01
1
1010-1107
21
SEAL SET; CALIPER RR
IRAN EQUIPMENT(D8T) (A)
8-98117-053-0
02
1
1010-1107
21
SEAL SET; CALIPER RR
IRAN EQUIPMENT(D8T) (B)
8-98117-057-0
02
1
1010-1107
39
PLATE; RET
IRAN EQUIPMENT(D8T)
8-98117-055-0
02
1
1010-1107
143
PIN KIT
IRAN EQUIPMENT(D8T)
8-98117-054-0
02
1
1010-1107
1
48
8
7
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; RR DISC BRK
IRAN EQUIPMENT(D8T)
1-47601-216-0
01
1
1010-1107
1
CALIPER; RR DISC BRK
IRAN EQUIPMENT(D8T)
1-47601-217-0
01
1
1010-1107
7
BOLT; DISC BRK
IRAN EQUIPMENT(D8T)
1-42119-231-0
12
1
1010-1107
8
WASHER; LK,DISC BRK
IRAN EQUIPMENT(D8T)
1-47139-171-0
12
1
1010-1107
37
PLATE; ANCHOR
IRAN EQUIPMENT(D8T)
1-42319-222-0
02
1
1010-1107
48
INDICATOR; WEAR
IRAN EQUIPMENT(D8T)
1-47619-193-0
01
1
1010-1107
48
INDICATOR; WEAR
IRAN EQUIPMENT(D8T)
1-47619-194-0
01
1
1010-1107
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
