Sayfa 3-05 - Isuzu EPC

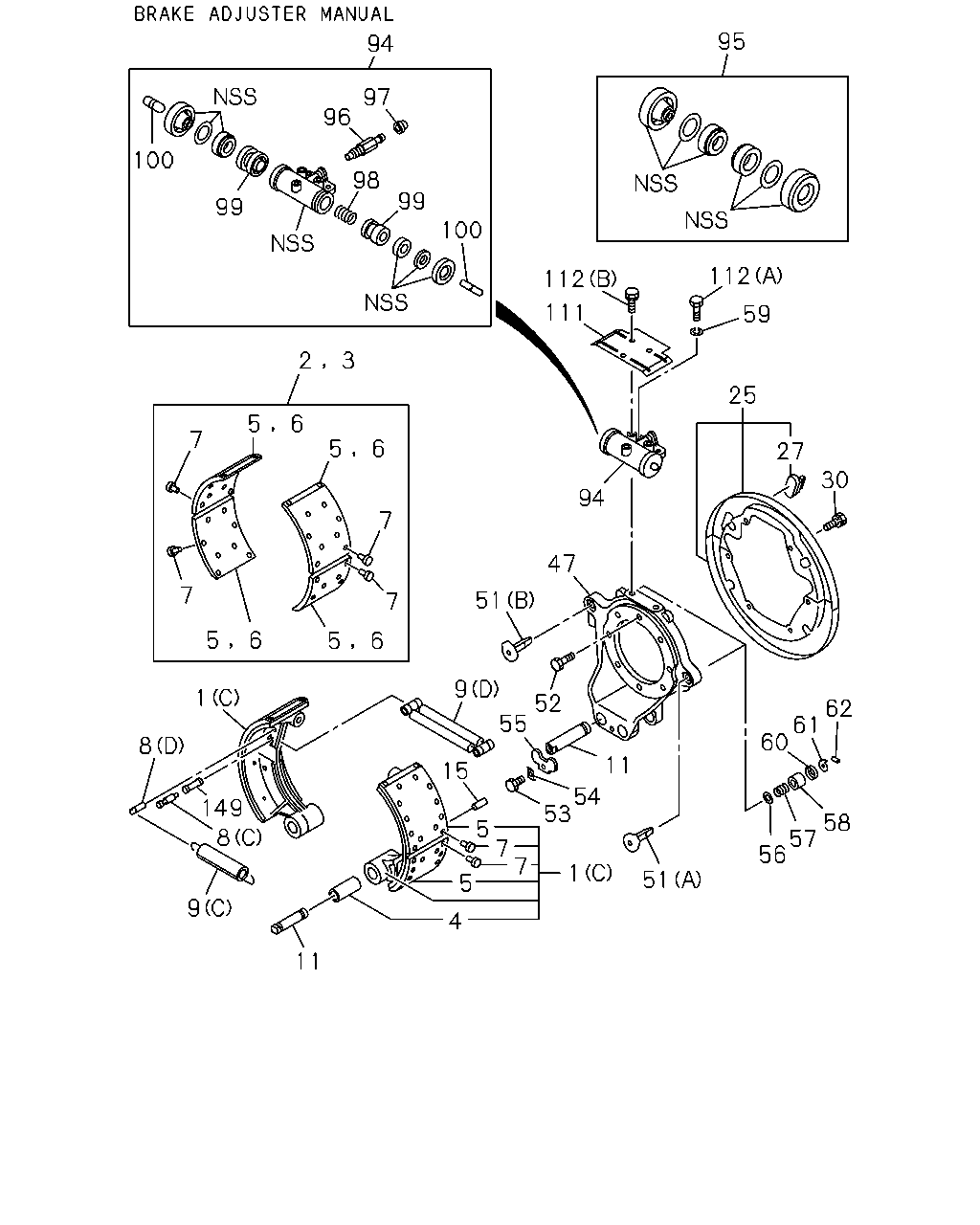

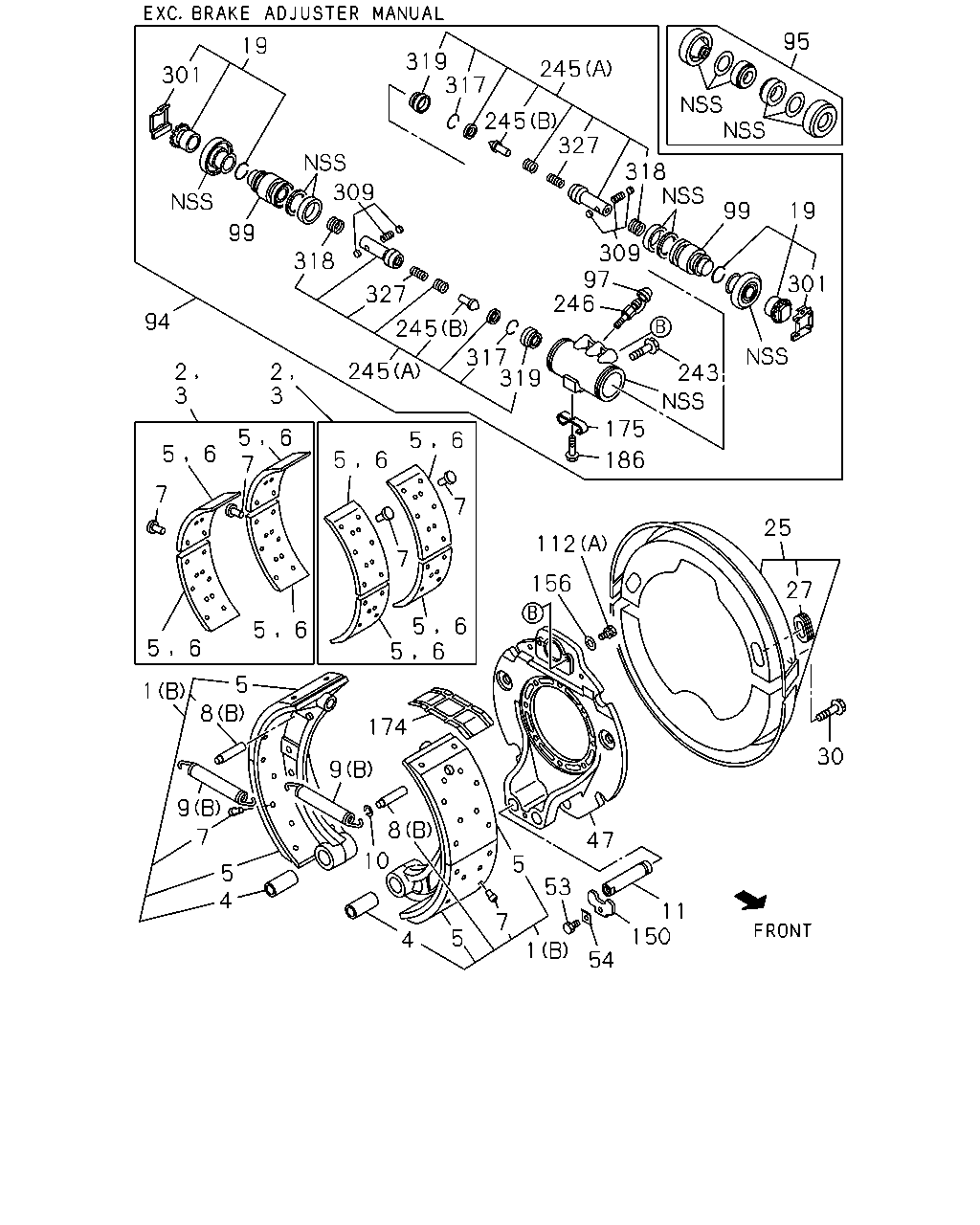

3-05 — REAR WHEEL BRAKE (#67974) — 549 parça

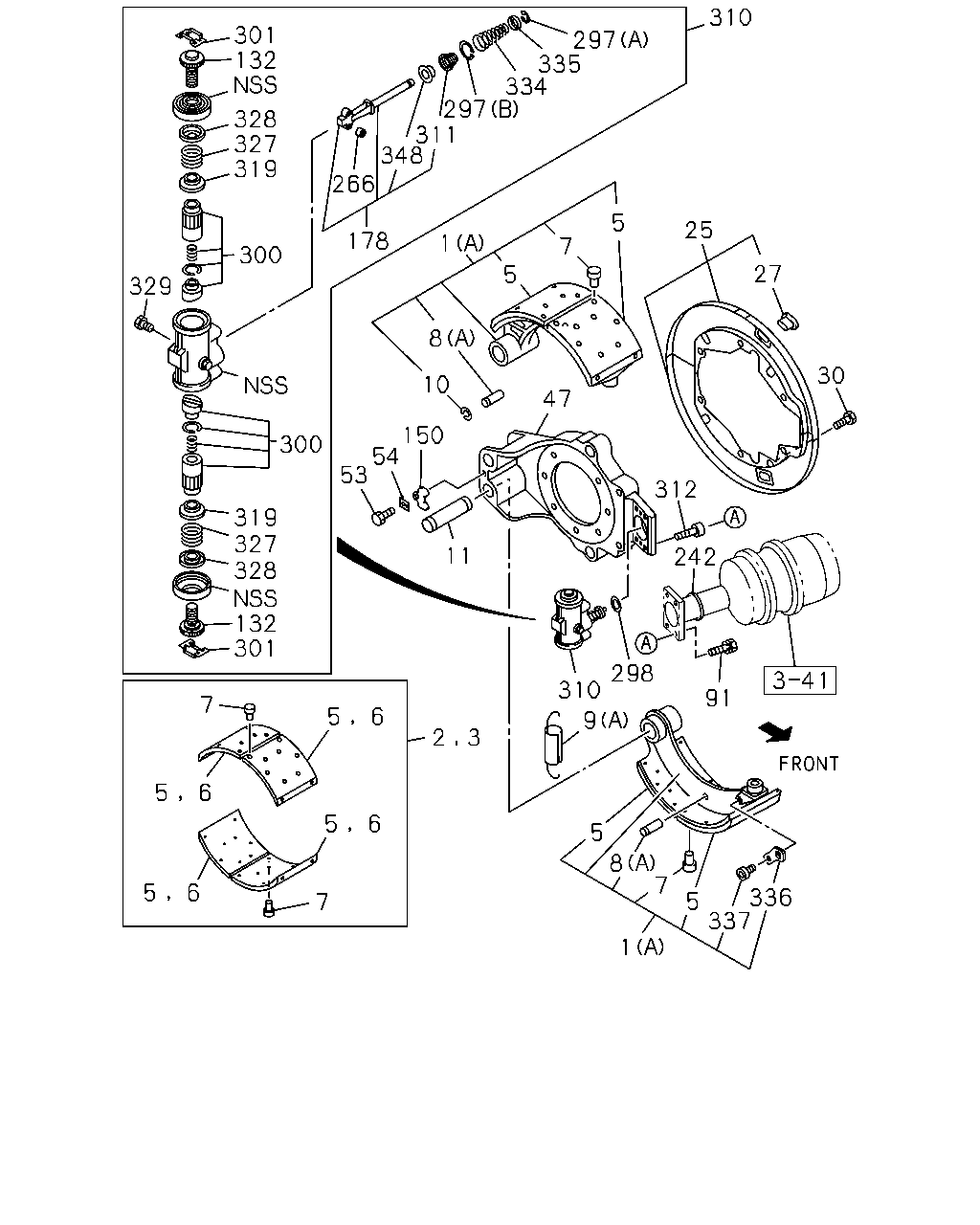

346 301 328 327 319 329 319 327 328 301 347 301 301 348 311 335 297 334 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0803-0907	●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0908-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0908-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0803-0907	●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0908-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0908-		●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0803-0907	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0908-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0908-		●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0803-0905	●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0803-0907	●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0908-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0908-		●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0803-0907	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0908-	●
319	RING; DRIVE	1-47629-200-0	04	1	0908-		●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0803-0905	●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0803-0907	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0908-	●
327	SPRING; ADJ	1-47629-196-0	04	1	0908-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0803-0905	●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0803-0907	●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0908-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0908-		●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0803-0907	●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0908-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0908-		●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0803-0907	●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0908-	●
334	SPRING; ROD	1-47649-041-0	02	1	0908-		●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0803-0907	●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0908-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0908-		●
346	REPAIR KIT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-403-0	02	1	0803-0907	●
346	REPAIR KIT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-403-0	02	1	0908-	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	0908-		●
347	REPAIR KIT; BOOT,EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-404-0	02	1	0803-0907	●
347	REPAIR KIT; BOOT,EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-404-0	02	1	0908-	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	0908-		●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0803-0907	●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0908-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0908-		●

301 132 328 327 319 300 329 300 319 327 328 132 301 7 5 6 5 6 7 5 6 5 6 2 3 11 53 54 150 10 8 5 7 5 1 178 266 348 311 297 334 335 297 310 25 27 30 312 47 242 298 310 9 91 336 337 5 7 8 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	0908-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	0908-		●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	0908-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0803-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0803-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	0908-		●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0803-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0803-0905	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-815-0	08	1	0803-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	0908-		●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	0803-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0803-0907	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0908-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	0908-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	0908-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0803-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-0907	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0908-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0803-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0803-0905	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-	●
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	0803-	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10	0-91805-510-0	02	1	0803-0905	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-0907	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0908-1007	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	0908-1007		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1008-1009	●
10	RING; SNAP,SPR PIN EXC. ANTI LOCK BRAKE<JE5> ID=10	0-91805-510-0	02	1	1008-1009		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1010-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	1010-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0803-0907	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0908-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0908-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0803-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0803-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0803-0907	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0803-0907	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0908-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-549-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-550-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0803-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0803-0907	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0908-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0908-1009		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	0911-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0803-0907	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0908-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0803-0907	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0908-	●	●
91	BOLT; CHAMBER M10X53	1-47139-148-0	08	1	0908-		●
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0803-0906	●
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306	●
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45	1-47139-174-0	08	1	1307-	●
132	SCREW; ADJ,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47623-035-1	04	1	0803-0907	●
132	SCREW; ADJ,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47623-035-2	04	1	0908-	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	0908-		●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0803-0907	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0908-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0908-		●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47133-005-0	02	1	0803-0905	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
178	WEDGE; RR WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47640-012-0	02	1	0803-0907	●
178	WEDGE; RR WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47640-012-0	02	1	0908-	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	0908-		●
242	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47159-186-0	04	1	0803-0907	●
242	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47159-186-0	04	1	0908-	●
242	SEAL	1-47159-186-0	04	1	0908-		●
266	ROLLER; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47643-007-0	04	1	0803-0907	●
266	ROLLER; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47643-007-0	04	1	0908-	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	0908-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0803-0907	●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0908-	●
297	RING; SNAP (A)	1-47649-031-0	02	1	0908-		●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0803-0907	●
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0908-	●
297	RING; SNAP (B)	1-47649-034-1	02	1	0908-		●
298	GASKET BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48259-231-0	02	1	0803-0907	●
298	GASKET BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48259-231-0	02	1	0908-	●
298	GASKET	1-48259-231-0	02	1	0908-		●
300	SLEEVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-247-0	04	1	0803-0907	●
300	SLEEVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-247-1	04	1	0908-	●
300	SLEEVE	1-47629-247-1	04	1	0908-		●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0803-0907	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0908-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0908-		●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0803-0905	●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
310	EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47601-087-0	02	1	0803-0907	●
310	EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47601-087-0	02	1	0908-	●
310	EXPANDER	1-47601-087-0	02	1	0908-		●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0803-0907	●
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0908-	●
311	BOOT; WEDGE	1-47649-042-0	02	1	0908-		●
312	BOLT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0803-0907	●
312	BOLT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0908-	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0908-		●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0803-0907	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0908-	●
319	RING; DRIVE	1-47629-200-0	04	1	0908-		●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0803-0905	●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0803-0907	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0908-	●
327	SPRING; ADJ	1-47629-196-0	04	1	0908-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0803-0905	●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0803-0907	●
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0908-	●
328	CAGE; SPRING	1-47629-192-0	04	1	0908-		●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0803-0907	●
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0908-	●
329	SCREW; LOCATING	1-47619-149-1	04	1	0908-		●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0803-0907	●
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0908-	●
334	SPRING; ROD	1-47649-041-0	02	1	0908-		●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0803-0907	●
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0908-	●
335	RETAINER; SPRING	1-47649-020-0	02	1	0908-		●
336	PLATE; PIVOT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-152-0	04	1	0803-0907	●
336	PLATE; PIVOT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-152-0	04	1	0908-	●
336	PLATE; PIVOT	1-47119-152-0	04	1	0908-		●
337	BOLT; PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-153-0	04	1	0803-0907	●
337	BOLT; PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-153-0	04	1	0908-	●
337	BOLT; PLATE	1-47119-153-0	04	1	0908-		●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0803-0907	●
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0908-	●
348	CAP; EXPANDER	1-47649-044-0	02	1	0908-		●

11 150 54 1 53 5 7 5 4 10 8 174 9 4 5 7 9 5 8 6 5 1 6 5 6 6 5 5 30 47 27 25 112 156 186 175 243 301 19 95 99 318 327 245 245 317 319 309 97 246 319 317 245 327 318 99 309 19 301 2 3 2 3 94 6 5 7 6 5 7 245 6 7 5 6 5 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	0908-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	0908-		●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	0908-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0803-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0803-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	0803-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	0908-		●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0803-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0803-0905	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-815-0	08	1	0803-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	0908-		●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	0803-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0803-0907	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0908-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	0908-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	0908-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0803-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-0907	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0908-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0803-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0803-0905	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-	●
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	0803-	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10	0-91805-510-0	02	1	0803-0905	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-0907	●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0908-1007	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	0908-1007		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1008-1009	●
10	RING; SNAP,SPR PIN EXC. ANTI LOCK BRAKE<JE5> ID=10	0-91805-510-0	02	1	1008-1009		●
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1010-	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	02	1	1010-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0803-0907	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0908-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0908-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0803-	●
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-015-0	04	1	0803-0905	●
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0803-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0803-0907	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0803-0907	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0908-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-549-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-550-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0803-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0803-0907	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0908-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0908-1009		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	0911-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0803-0907	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0908-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0803-0907	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0908-	●	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-068-0	02	1	0803-0905	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-987-0	02	1	0803-0905	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0803-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-372-0	04	1	0803-0905	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	0803-	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0803-0907	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0908-	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	0908-		●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47133-005-0	02	1	0803-0905	●
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
156	WASHER; LK,WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14.2	0-91510-514-0	04	1	0803-0905	●
156	WASHER; LK,WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-	●
174	COVER; CYL,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-081-0	02	1	0803-0905	●
174	COVER; CYL,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-	●
175	HANGER; RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47619-146-0	02	1	0803-0905	●
175	HANGER; RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	0906-	●
186	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0803-0905	●
186	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-	●
243	BOLT; WHEEL CYL COVER SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER	0-50540-816-0	06	1	0803-0905	●
243	BOLT; WHEEL CYL COVER SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-47623-027-1	04	1	0803-0905	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	0906-	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47629-121-0	04	1	0803-0905	●
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	0906-	●
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47615-002-0	02	1	0803-0905	●
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0803-0907	●
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0908-	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	0908-		●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0803-0905	●
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-	●
309	SPRING; ADJUSTER SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-544-0	04	1	0803-0905	●
309	SPRING; ADJUSTER SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-	●
317	RING; RETAINER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-119-0	04	1	0803-0905	●
317	RING; RETAINER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	0906-	●
318	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-542-0	04	1	0803-0905	●
318	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	0906-	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0803-0907	●
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0908-	●
319	RING; DRIVE	1-47629-200-0	04	1	0908-		●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0803-0905	●
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0803-0907	●
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0908-	●
327	SPRING; ADJ	1-47629-196-0	04	1	0908-		●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0803-0905	●
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-	●

94 97 96 98 99 100 100 99 2 3 6 5 6 5 7 7 5 6 5 6 7 7 1 8 149 8 9 11 4 5 7 7 5 1 53 54 11 15 55 52 9 51 47 94 111 112 95 112 59 25 27 30 62 61 60 58 57 56 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR (A) LEADING	1-47170-324-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-325-0	01	1	0908-		●
1	SHOE; BRK,RR (A) LEADING	1-47170-326-0	01	1	0908-		●
1	SHOE; BRK,RR (A) TRAILING	1-47170-327-0	01	1	0908-		●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0803-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0803-0905	●
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD	1-88310-775-1	02	1	0908-		●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0803-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0803-0905	●
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-132-0	01	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-776-1	02	1	0908-		●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0803-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0803-0905	●
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-	●
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	0803-	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-093-0	08	1	0908-		●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0803-	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0803-0905	●
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-815-0	08	1	0803-0905	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-094-0	08	1	0908-		●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-	●
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	0803-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0803-0907	●
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0908-	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	0908-		●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0803-0905	●
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) LEADING	1-47119-172-0	02	1	0908-		●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0803-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0803-0905	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-0907	●
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0908-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) TRAILING	1-47119-136-0	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-365-1	02	1	0908-		●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0803-	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0803-0905	●
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0803-0907	●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0908-	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	0908-		●
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0803-	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-	●
25	COVER SET; RR BRK DRUM	1-47151-808-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM	1-47151-878-0	02	1	1310-		●
25	COVER SET; RR BRK DRUM	1-47151-809-0	01	1	0908-1309		●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0803-	●
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0803-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0803-0907	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0803-0907	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0908-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-549-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE REGULATION ECE(TDV)	1-47137-550-0	01	1	0803-0808	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	0809-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0803-0905	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0803-0907	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	0908-1009	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0908-1009		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1010-1306		●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-	●
52	BOLT; ANCHOR BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	0906-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	0911-		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0803-0907	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0908-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0803-0907	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0908-	●	●
55	PLATE; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-	●
58	BOOT; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-	●
59	WASHER; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-	●
61	INDICATOR; WEAR,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-068-0	02	1	0803-0905	●
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-987-0	02	1	0803-0905	●
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-	●
96	SCREW; BLEEDER,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-	●
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0803-	●
98	SPRING; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	0906-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-372-0	04	1	0803-0905	●
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-	●
100	ROD; PUSH,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-	●
111	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-	●
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	0803-	●
149	PIN; GUIDE RETURN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	0906-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
