Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶
3-02 — FRONT DISC BRAKE CALIPER
(#67973) — 14 parça
◀
[302A] NO.2 (5 parça)
[302A] NO.1 (9 parça)
▶

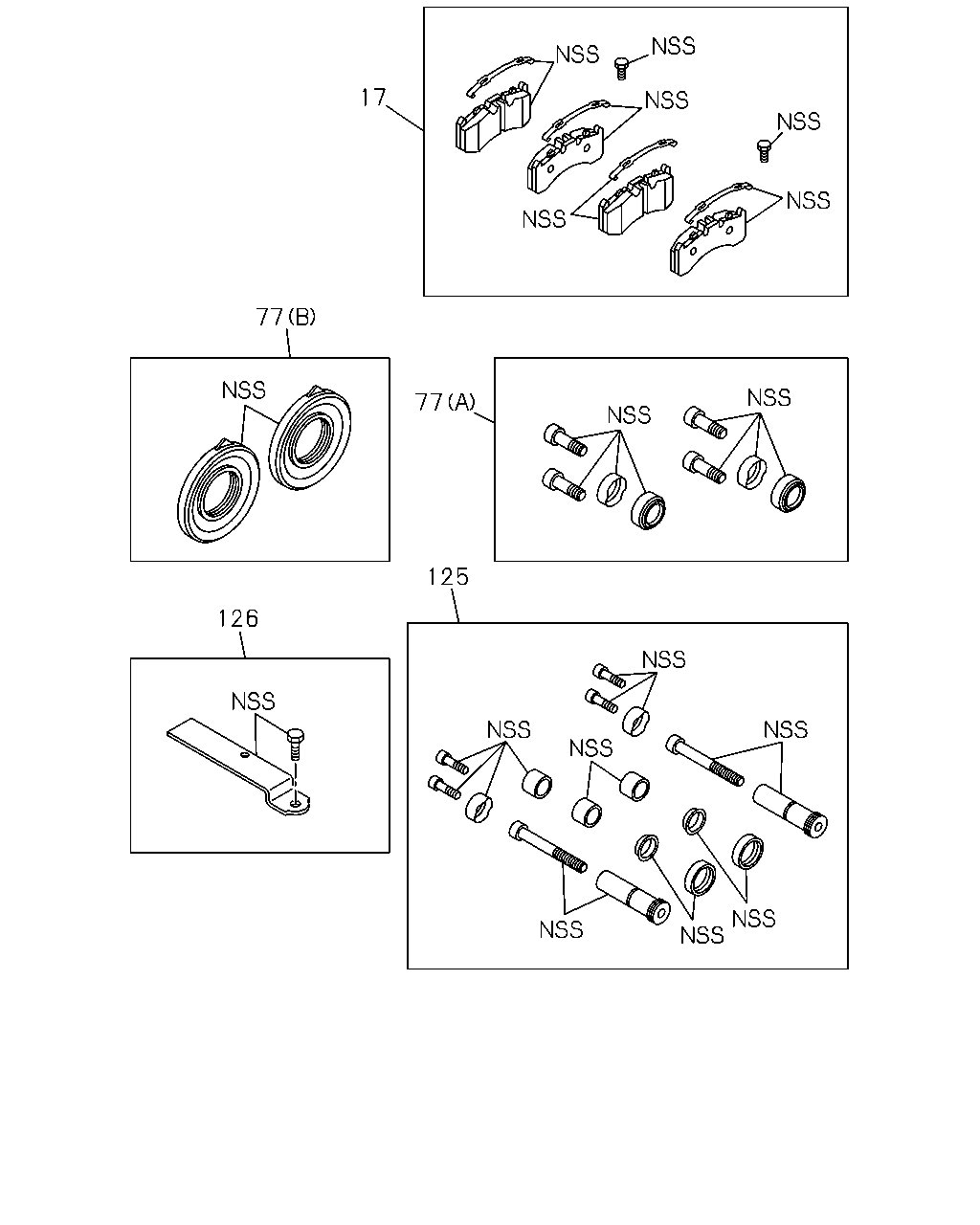

17
77
77
126
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
PAD KIT; CALIPER,DISC BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47619-192-0
01
1
1010-1105
77
SEAL SET; CALIPER FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (A)
8-98117-053-0
02
1
1010-1105
77
SEAL SET; CALIPER FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (B)
8-98117-057-0
02
1
1010-1105
125
PIN KIT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
8-98117-054-0
02
1
1010-1105
126
RETAINER SET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
8-98117-055-0
02
1
1010-1105

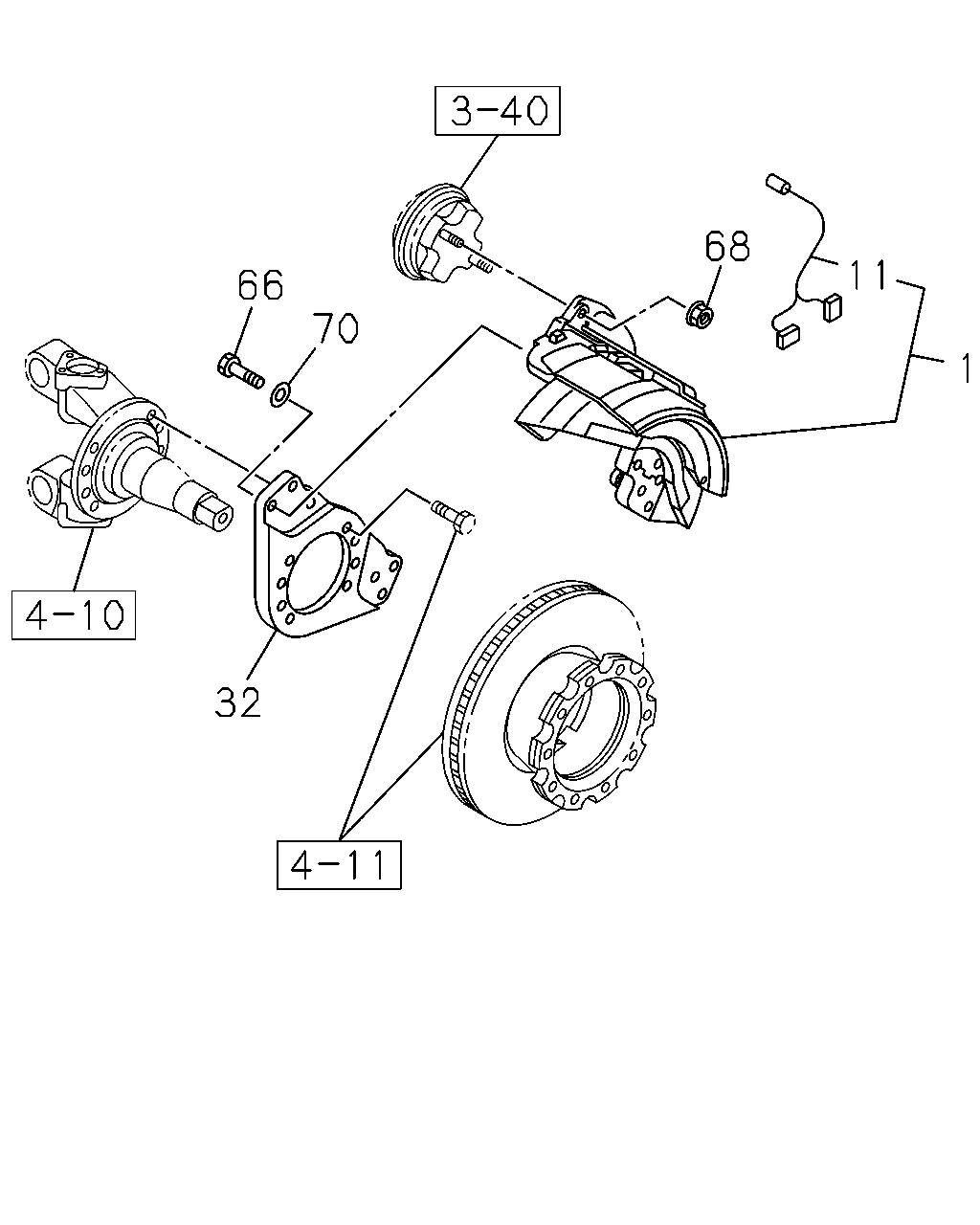

1
11
68
70
66
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47601-216-0
01
1
1010-1105
1
CALIPER; FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47601-217-0
01
1
1010-1105
11
INDICATOR; WEAR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47619-193-0
01
1
1010-1105
11
INDICATOR; WEAR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47619-194-0
01
1
1010-1105
32
SUPPORT; FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47137-582-0
01
1
1010-1105
32
SUPPORT; FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47137-583-0
01
1
1010-1105
66
PIN; RET,FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47139-172-0
12
1
1010-1105
68
NUT; RET PIN,FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-09442-035-0
04
1
1010-1105
70
WASHER ASM; RET PIN,FRT DISC BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K>
1-47139-171-0
12
1
1010-1105
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
