◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#67972) — 882 parça

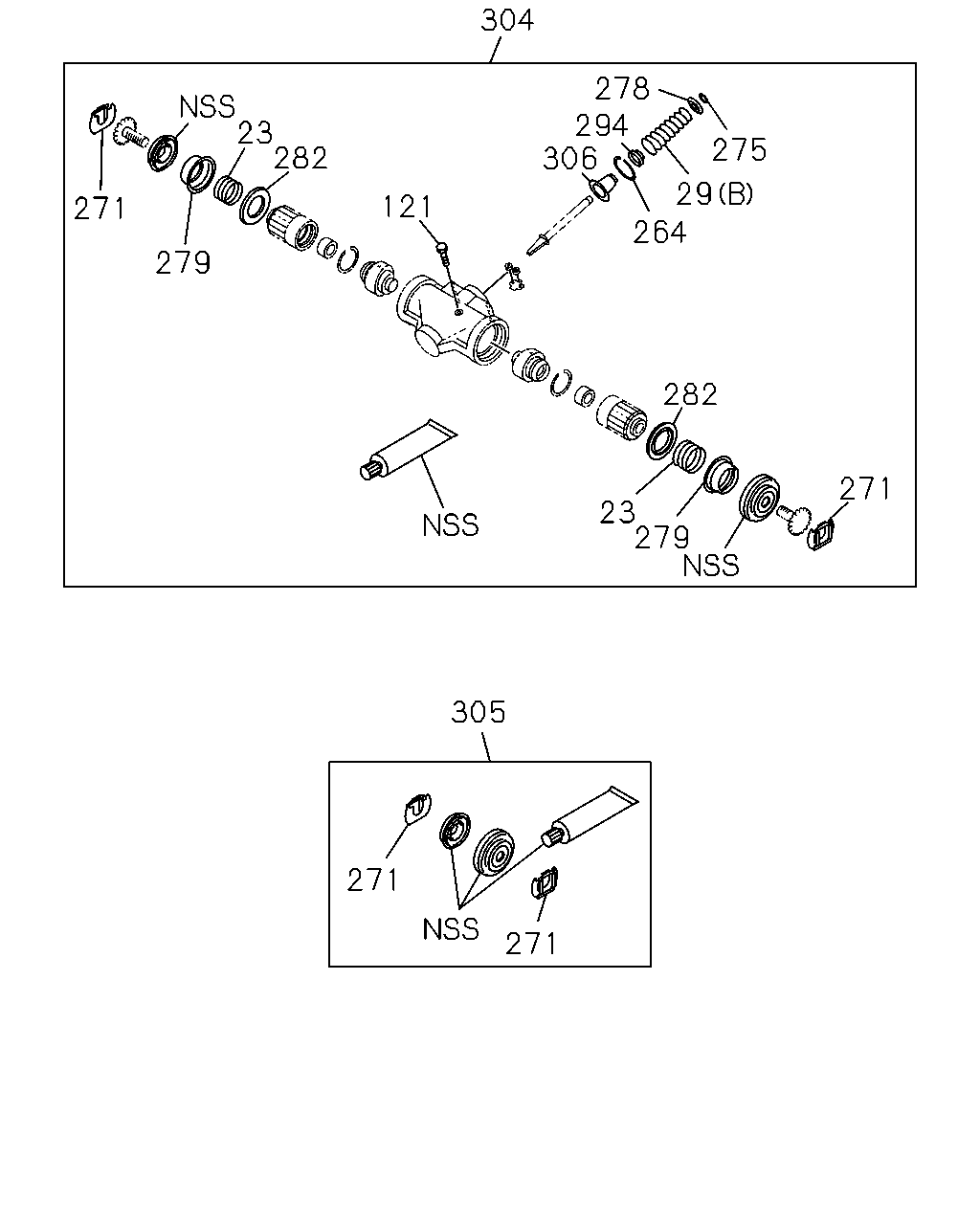

çizim 115200
304 278 294 306 275 29 264 271 282 279 23 121 282 23 271 279 305 271 271
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		9-09940-435-0 02 1 0906- ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0803-0907 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL 1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL 1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 1106- ●
23 SPRING; COIL 1-47629-196-0 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D) 		1-09583-269-1 02 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-09583-359-0 04 1 0803-0905 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09583-359-0 04 1 0906- ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 0803-0907 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 0908-1009 ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0908-1009 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47619-149-1 04 1 1010-1105 ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1010-1105 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 1106- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1106- ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 0803-0907 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 0908-1009 ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0908-1009 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-034-1 02 1 1010-1105 ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1010-1105 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 1106- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1106- ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0803-0907 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ 1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ 1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ 1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47621-016-0 04 1 0803-0905 ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 0906- ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 0803-0907 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 0908-1009 ●
275 RING; RETAINER 1-47649-031-0 02 1 0908-1009 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-031-0 02 1 1010-1105 ●
275 RING; RETAINER 1-47649-031-0 02 1 1010-1105 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 1106- ●
275 RING; RETAINER 1-47649-031-0 02 1 1106- ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 0803-0907 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 0908-1009 ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0908-1009 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-020-0 02 1 1010-1105 ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1010-1105 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 1106- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1106- ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 0803-0907 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 0908-1009 ●
279 CAGE; SPRING 1-47629-192-0 04 1 0908-1009 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-192-0 04 1 1010-1105 ●
279 CAGE; SPRING 1-47629-192-0 04 1 1010-1105 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 1106- ●
279 CAGE; SPRING 1-47629-192-0 04 1 1106- ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 0803-0907 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 0908-1009 ●
282 RING; DRIVE 1-47629-200-0 04 1 0908-1009 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-200-0 04 1 1010-1105 ●
282 RING; DRIVE 1-47629-200-0 04 1 1010-1105 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 1106- ●
282 RING; DRIVE 1-47629-200-0 04 1 1106- ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 0803-0907 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 0908-1009 ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0908-1009 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-042-0 02 1 1010-1105 ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1010-1105 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 1106- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1106- ●
304 REPAIR KIT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-403-0 02 1 0803-0907 ●
304 REPAIR KIT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-403-0 02 1 0908-1009 ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0908-1009 ●
304 REPAIR KIT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85576-403-0 02 1 1010-1105 ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1010-1105 ●
304 REPAIR KIT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-403-0 02 1 1106- ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1106- ●
305 REPAIR KIT; BOOT,EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-404-0 02 1 0803-0907 ●
305 REPAIR KIT; BOOT,EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-404-0 02 1 0908-1009 ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0908-1009 ●
305 REPAIR KIT; BOOT,EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-85576-404-0 02 1 1010-1105 ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1010-1105 ●
305 REPAIR KIT; BOOT,EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-404-0 02 1 1106- ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1106- ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 0803-0907 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 0908-1009 ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0908-1009 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-044-0 02 1 1010-1105 ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1010-1105 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 1106- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1106- ●

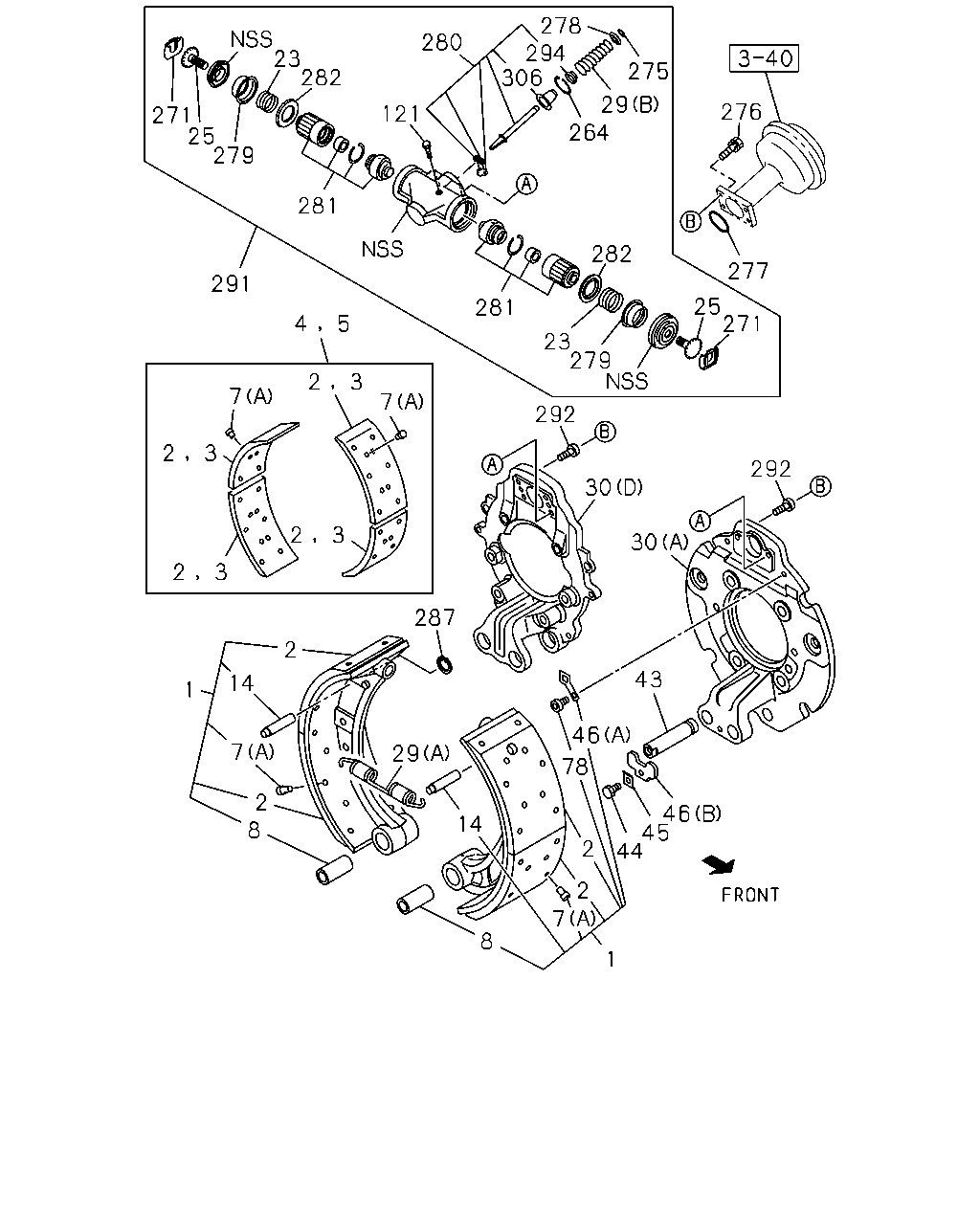

çizim 193623
276 277 271 25 282 264 29 275 278 294 306 280 121 282 23 271 25 279 281 281 23 279 292 30 30 292 43 46 78 46 45 44 2 2 1 7 8 14 29 287 2 14 1 7 2 8 2 3 2 3 7 2 3 7 3 2 4 5 291
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47170-441-0 04 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-496-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-497-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-498-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-499-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 0906- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-758-0 08 1 0906- ●

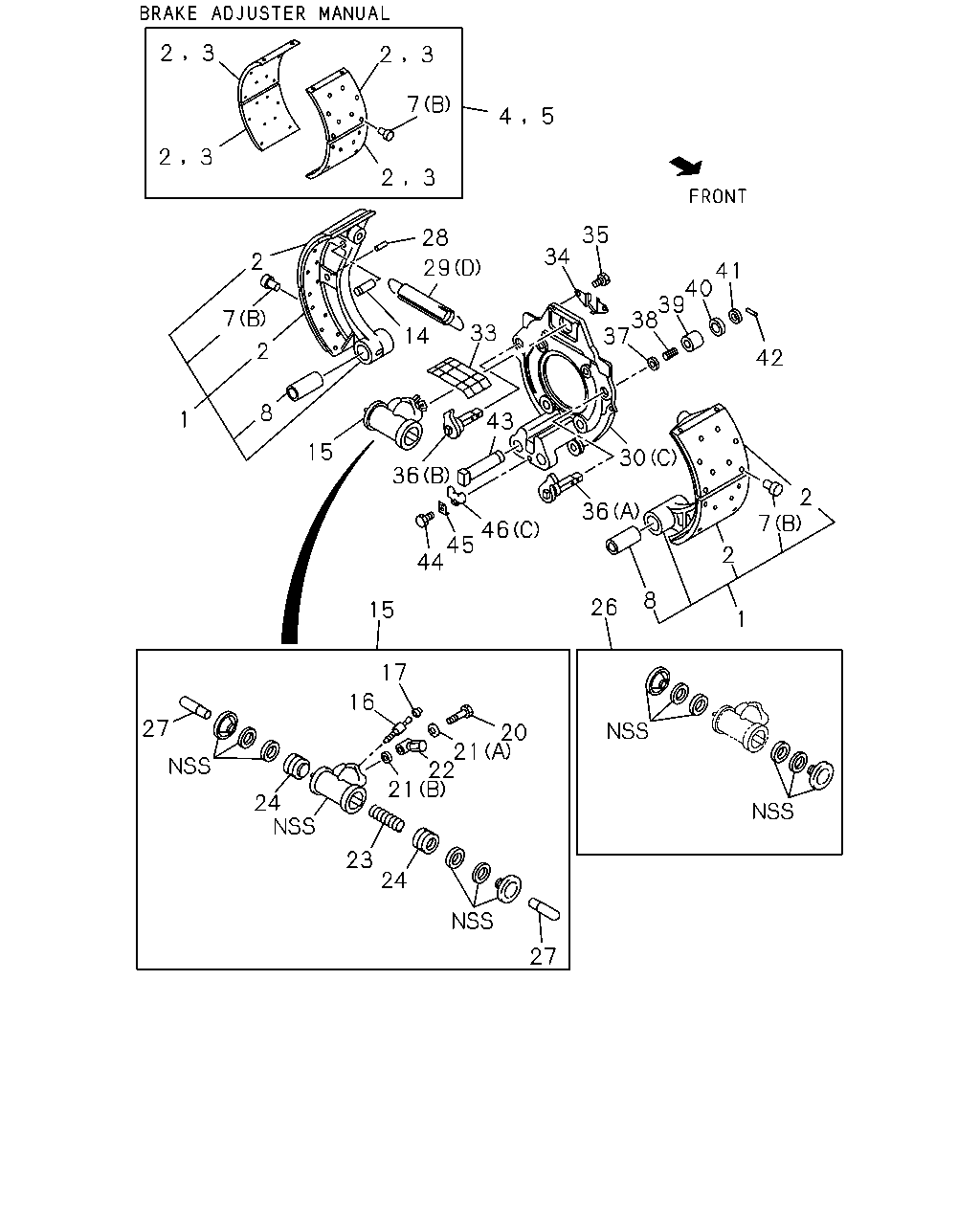

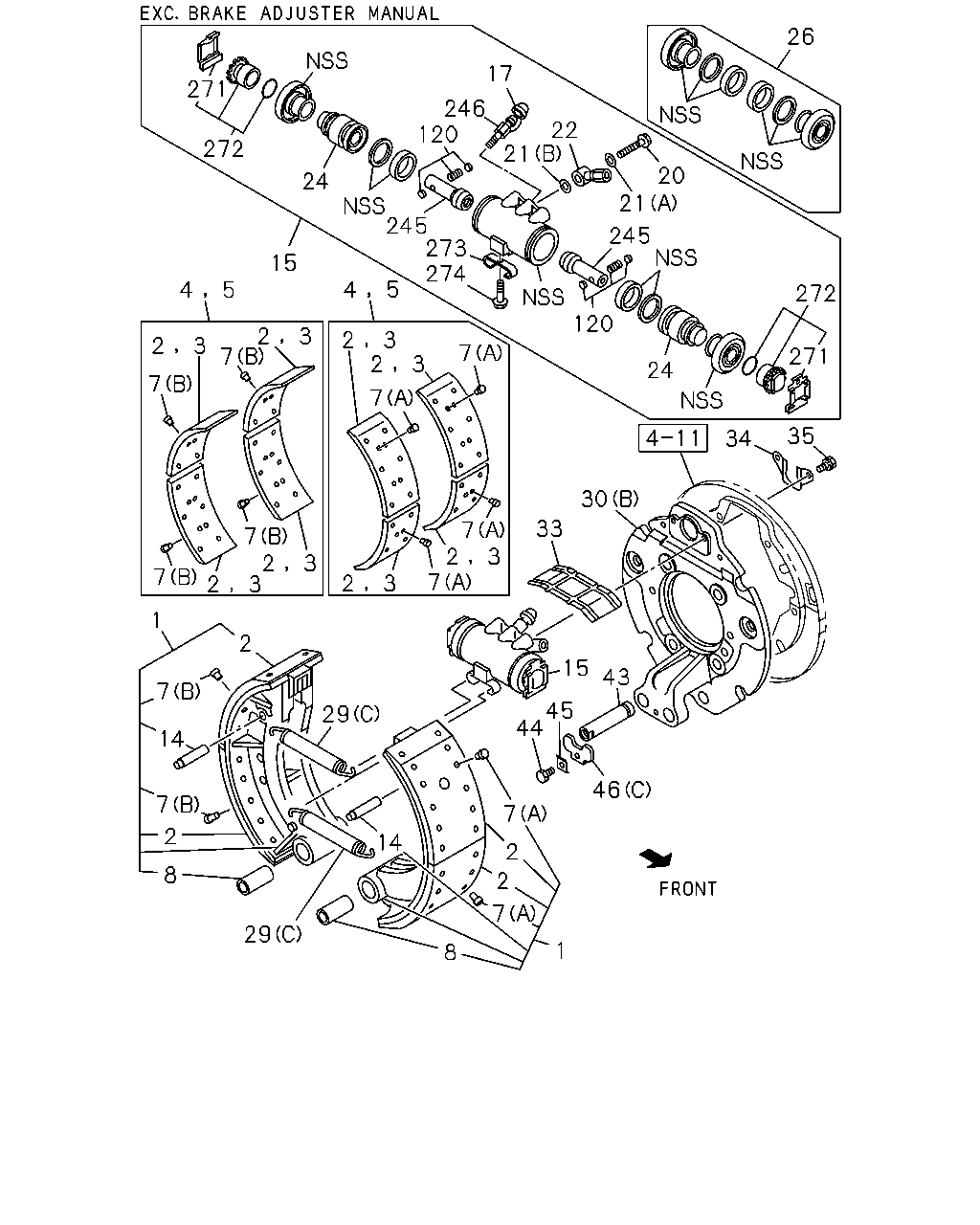

2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0803-0907 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-812-0 08 1 0803-0905 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-759-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0803-0907 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-813-0 08 1 0803-0905 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-353-1 02 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0803-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-390-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-394-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0810-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-354-1 02 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0803-0907 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-391-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-395-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 40 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0803-0907 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5 		1-09732-034-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 80 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5 		1-09732-053-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5 		1-09732-053-0 40 1 0906- ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0803-0907 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47112-011-0 04 1 0803- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5 		1-47119-017-1 04 1 0906- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0803-0907 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47119-134-0 04 1 0803-0905 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 0906- ●
23 SPRING; COIL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		9-09940-435-0 02 1 0906- ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0803-0907 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL 1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL 1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 1106- ●
23 SPRING; COIL 1-47629-196-0 04 1 1106- ●
25 SCREW; ADJ,FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47623-035-2 04 1 0803-0907 ●
25 SCREW; ADJ,FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47623-035-2 04 1 0908-1009 ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 0908-1009 ●
25 SCREW; ADJ,FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47623-035-2 04 1 1010-1105 ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1010-1105 ●
25 SCREW; ADJ,FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47623-035-2 04 1 1106- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D) 		1-09583-269-1 02 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-09583-359-0 04 1 0803-0905 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09583-359-0 04 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47137-435-0 02 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		1-47137-512-0 02 1 0803-0907 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47137-519-0 02 1 0803-0905 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47137-519-0 02 1 0906- ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0803-0907 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5 		1-47131-038-0 04 1 0803- ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0803-0907 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0908-0910 ● ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16 		0-20851-016-0 02 1 0911- ●
45 WASHER; LK 1-47133-011-0 02 1 0803-0907 ●
45 WASHER; LK 1-47133-011-0 02 1 0908-1009 ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1106- ● ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-47133-005-0 02 1 0803- ●
78 BOLT; LK,PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-153-0 04 1 0803-0907 ●
78 BOLT; LK,PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-153-0 04 1 0908-1009 ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 0908-1009 ●
78 BOLT; LK,PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47119-153-0 04 1 1010-1105 ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1010-1105 ●
78 BOLT; LK,PLATE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-153-0 04 1 1106- ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1106- ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 0803-0907 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 0908-1009 ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0908-1009 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47619-149-1 04 1 1010-1105 ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1010-1105 ●
121 SCREW; LK SPR FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47619-149-1 04 1 1106- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1106- ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 0803-0907 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 0908-1009 ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0908-1009 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-034-1 02 1 1010-1105 ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1010-1105 ●
264 RING; SNAP,SPR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-034-1 02 1 1106- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1106- ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0803-0907 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ 1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ 1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ 1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47621-016-0 04 1 0803-0905 ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 0906- ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 0803-0907 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 0908-1009 ●
275 RING; RETAINER 1-47649-031-0 02 1 0908-1009 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-031-0 02 1 1010-1105 ●
275 RING; RETAINER 1-47649-031-0 02 1 1010-1105 ●
275 RING; RETAINER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-031-0 02 1 1106- ●
275 RING; RETAINER 1-47649-031-0 02 1 1106- ●
276 BOLT; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X42.5 		1-47139-163-0 08 1 0803-0907 ●
276 BOLT; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X42.5 		1-47139-163-0 08 1 0908-1009 ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 0908-1009 ●
276 BOLT; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X42.5 		1-47139-163-0 08 1 1010-1105 ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1010-1105 ●
276 BOLT; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X42.5 		1-47139-163-0 08 1 1106- ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1106- ●
277 RING; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-231-0 02 1 0803-0907 ●
277 RING; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-231-0 02 1 0908-1009 ●
277 RING; CHAMBER 1-48259-231-0 02 1 0908-1009 ●
277 RING; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48259-231-0 02 1 1010-1105 ●
277 RING; CHAMBER 1-48259-231-0 02 1 1010-1105 ●
277 RING; CHAMBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48259-231-0 02 1 1106- ●
277 RING; CHAMBER 1-48259-231-0 02 1 1106- ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 0803-0907 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 0908-1009 ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0908-1009 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-020-0 02 1 1010-1105 ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1010-1105 ●
278 RETAINER; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-020-0 02 1 1106- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1106- ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 0803-0907 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 0908-1009 ●
279 CAGE; SPRING 1-47629-192-0 04 1 0908-1009 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-192-0 04 1 1010-1105 ●
279 CAGE; SPRING 1-47629-192-0 04 1 1010-1105 ●
279 CAGE; SPRING
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-192-0 04 1 1106- ●
279 CAGE; SPRING 1-47629-192-0 04 1 1106- ●
280 WEDGE; FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47640-012-0 02 1 0803-0907 ●
280 WEDGE; FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47640-012-0 02 1 0908-1009 ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 0908-1009 ●
280 WEDGE; FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47640-012-0 02 1 1010-1105 ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1010-1105 ●
280 WEDGE; FRT WHEEL CYL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47640-012-0 02 1 1106- ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1106- ●
281 SLEEVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-247-1 04 1 0803-0907 ●
281 SLEEVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-247-1 04 1 0908-1009 ●
281 SLEEVE 1-47629-247-1 04 1 0908-1009 ●
281 SLEEVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-247-1 04 1 1010-1105 ●
281 SLEEVE 1-47629-247-1 04 1 1010-1105 ●
281 SLEEVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-247-1 04 1 1106- ●
281 SLEEVE 1-47629-247-1 04 1 1106- ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 0803-0907 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 0908-1009 ●
282 RING; DRIVE 1-47629-200-0 04 1 0908-1009 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-200-0 04 1 1010-1105 ●
282 RING; DRIVE 1-47629-200-0 04 1 1010-1105 ●
282 RING; DRIVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-200-0 04 1 1106- ●
282 RING; DRIVE 1-47629-200-0 04 1 1106- ●
287 RING; SNAP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10 		0-91805-510-0 08 1 0803-0907 ●
287 RING; SNAP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10 		0-91805-510-0 08 1 0908-1009 ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 0908-1009 ●
287 RING; SNAP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> ID=10 		0-91805-510-0 08 1 1010-1105 ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1010-1105 ●
287 RING; SNAP
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10 		0-91805-510-0 08 1 1106- ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1106- ●
291 EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47601-087-0 02 1 0803-0907 ●
291 EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47601-087-0 02 1 0908-1009 ●
291 EXPANDER 1-47601-087-0 02 1 0908-1009 ●
291 EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47601-087-0 02 1 1010-1105 ●
291 EXPANDER 1-47601-087-0 02 1 1010-1105 ●
291 EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47601-087-0 02 1 1106- ●
291 EXPANDER 1-47601-087-0 02 1 1106- ●
292 BOLT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0803-0907 ●
292 BOLT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0908-1009 ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0908-1009 ●
292 BOLT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1010-1105 ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1010-1105 ●
292 BOLT; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1106- ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1106- ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 0803-0907 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 0908-1009 ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0908-1009 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-042-0 02 1 1010-1105 ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1010-1105 ●
294 BOOT; WEDGE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-042-0 02 1 1106- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1106- ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 0803-0907 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 0908-1009 ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0908-1009 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47649-044-0 02 1 1010-1105 ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1010-1105 ●
306 CAP; EXPANDER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47649-044-0 02 1 1106- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1106- ●
çizim 193628
26 272 271 24 120 245 21 20 22 21 17 246 120 274 273 245 24 272 271 15 4 5 4 5 2 3 7 2 3 7 7 2 3 2 3 7 2 3 7 2 3 7 7 3 3 2 2 7 35 34 30 33 43 15 45 44 46 7 2 2 7 1 8 14 29 2 1 7 14 7 2 8 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47170-441-0 04 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-496-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-497-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-498-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-499-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 0906- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-758-0 08 1 0906- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0803-0907 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-812-0 08 1 0803-0905 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-759-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0803-0907 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-813-0 08 1 0803-0905 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-353-1 02 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0803-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-390-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-394-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0810-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-354-1 02 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0803-0907 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-391-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-395-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 40 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0803-0907 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5 		1-09732-034-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 80 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5 		1-09732-053-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5 		1-09732-053-0 40 1 0906- ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0803-0907 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47112-011-0 04 1 0803- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5 		1-47119-017-1 04 1 0906- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0803-0907 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47119-134-0 04 1 0803-0905 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47601-122-0 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47601-123-0 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47601-041-1 01 1 0803-0905 ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-041-1 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47601-042-1 01 1 0803-0905 ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-042-1 01 1 0906- ●
17 CAP; BLEEDER,FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12 		1-47619-011-0 02 1 0803- ●
20 BOLT; JOINT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40.5 EYE BOLT 		1-47634-006-0 02 1 0803- ●
21 GASKET; UNION BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=15.2 		1-09630-019-0 02 1 0803- ●
21 GASKET; UNION BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.2 		1-09630-020-0 02 1 0803- ●
22 JOINT; PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47631-057-1 02 1 0803- ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47624-389-0 04 1 0906- ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47624-370-0 04 1 0803-0905 ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-370-0 04 1 0906- ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-87830-676-0 02 1 0906- ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-87830-931-0 02 1 0803-0905 ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-931-0 02 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D) 		1-09583-269-1 02 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-09583-359-0 04 1 0803-0905 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09583-359-0 04 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47137-435-0 02 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		1-47137-512-0 02 1 0803-0907 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47137-519-0 02 1 0803-0905 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47137-519-0 02 1 0906- ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47159-080-0 02 1 0906- ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47159-197-0 02 1 0803-0905 ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 0906- ●
34 PLATE; DIRECTION,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47159-094-0 02 1 0803- ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER 		0-50551-235-0 04 1 0906-0906 ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER 		0-50551-235-0 04 1 0907- ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER 		0-50051-235-0 04 1 0803-0905 ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER 		0-50051-235-0 04 1 0906-0906 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0803-0907 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5 		1-47131-038-0 04 1 0803- ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0803-0907 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0908-0910 ● ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16 		0-20851-016-0 02 1 0911- ●
45 WASHER; LK 1-47133-011-0 02 1 0803-0907 ●
45 WASHER; LK 1-47133-011-0 02 1 0908-1009 ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1106- ● ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-47133-005-0 02 1 0803- ●
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-09580-544-0 04 1 0803-0905 ●
120 SPRING; LK,ADJ,FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-544-0 04 1 0906- ●
245 SHAFT; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47623-027-1 04 1 0803-0905 ●
245 SHAFT; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47623-027-1 04 1 0906- ●
246 BLEEDER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47615-002-0 02 1 0803-0905 ●
246 BLEEDER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-002-0 02 1 0906- ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0803-0907 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ 1-47621-017-0 04 1 0908-1009 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ 1-47621-017-0 04 1 1010-1105 ●
271 CLIP; ADJ
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ 1-47621-017-0 04 1 1106- ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47621-016-0 04 1 0803-0905 ●
271 CLIP; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 0906- ●
272 ADJUSTER; MANUAL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47621-015-0 04 1 0803-0905 ●
272 ADJUSTER; MANUAL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-015-0 04 1 0906- ●
273 HANGER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47619-145-0 02 1 0803-0905 ●
273 HANGER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 0906- ●
274 BOLT; HANGER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER 		0-50540-816-0 02 1 0803-0905 ●
274 BOLT; HANGER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 0906- ●
çizim 193751
2 2 3 3 2 3 7 2 3 4 5 35 34 28 29 33 14 2 7 2 8 1 15 36 43 37 38 39 40 41 42 2 7 2 1 8 26 30 36 46 45 44 15 17 16 20 21 22 21 27 24 23 24 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47170-441-0 04 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-316-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-318-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0803-0907 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 0908-1009 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1010-1105 ●
1 SHOE; BRK,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT 1-47170-319-0 01 1 1106- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-496-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-497-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-47170-498-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 0906- ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-47170-499-0 01 1 0803-0905 ●
1 SHOE; BRK,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 0906- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-758-0 08 1 0906- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0803-0907 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 0908-1009 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1010-1105 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1106- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-812-0 08 1 0803-0905 ●
2 LINING; FRT BRK SHOE,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47126-759-0 08 1 0906- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0803-0907 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 0908-1009 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1010-1105 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1106- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47126-813-0 08 1 0803-0905 ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-353-1 02 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0803-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-390-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-394-0 01 1 0803-0905 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 0906- ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0810-0907 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 0908-1009 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1010-1105 ●
4 LINING SET; FRT BRK,STANDARD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-88311-354-1 02 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0803-0907 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 0908-1009 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1010-1105 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1106- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING 		1-88311-391-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 0906- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING 		1-88311-395-0 01 1 0803-0905 ●
5 LINING SET; FRT BRK,OVER SIZE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 40 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0803-0907 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 0908-1009 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1010-1105 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
(A) L=15.5 		1-09732-053-0 80 1 1106- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5 		1-09732-034-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5 		1-09732-034-0 80 1 0906- ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5 		1-09732-053-0 40 1 0803-0905 ●
7 RIVET; LINING,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5 		1-09732-053-0 40 1 0906- ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0803-0907 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0908-1009 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1010-1105 ●
8 BUSHING; BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1106- ●
8 BUSHING; BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47112-011-0 04 1 0803- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5 		1-47119-017-1 04 1 0906- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0803-0907 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 0908-1009 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1010-1105 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1106- ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47119-134-0 04 1 0803-0905 ●
14 PIN; SHOE RETURN SPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47601-122-0 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47601-123-0 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47601-041-1 01 1 0803-0905 ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-041-1 01 1 0906- ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47601-042-1 01 1 0803-0905 ●
15 CYLINDER; WHEEL,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-042-1 01 1 0906- ●
16 SCREW; BLEEDER,FRT BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5 		1-47615-005-0 02 1 0906- ●
17 CAP; BLEEDER,FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12 		1-47619-011-0 02 1 0803- ●
20 BOLT; JOINT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40.5 EYE BOLT 		1-47634-006-0 02 1 0803- ●
21 GASKET; UNION BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=15.2 		1-09630-019-0 02 1 0803- ●
21 GASKET; UNION BOLT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.2 		1-09630-020-0 02 1 0803- ●
22 JOINT; PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47631-057-1 02 1 0803- ●
23 SPRING; COIL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		9-09940-435-0 02 1 0906- ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0803-0907 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL 1-47629-196-0 04 1 0908-1009 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL 1-47629-196-0 04 1 1010-1105 ●
23 SPRING; COIL
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47629-196-0 04 1 1106- ●
23 SPRING; COIL 1-47629-196-0 04 1 1106- ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47624-389-0 04 1 0906- ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47624-370-0 04 1 0803-0905 ●
24 PISTON; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-370-0 04 1 0906- ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-87830-676-0 02 1 0906- ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-87830-931-0 02 1 0803-0905 ●
26 CUP SET; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-931-0 02 1 0906- ●
27 ROD; PUSH
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47621-009-0 04 1 0906- ●
28 PIN; SHOE ADJ CAM GUIDE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47116-002-0 04 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D) 		1-09583-269-1 02 1 0906- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0803-0907 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0908-1009 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1010-1105 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1106- ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-09583-359-0 04 1 0803-0905 ●
29 SPRING; RETURN,FRT BRK SHOE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C) 		1-09583-359-0 04 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C) 		1-47137-435-0 02 1 0906- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		1-47137-512-0 02 1 0803-0907 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-512-0 02 1 0908-1005 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1006-1009 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1010-1105 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
(D) 		8-98091-252-0 02 1 1106- ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47137-519-0 02 1 0803-0905 ●
30 BRACKET; ANCHOR,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47137-519-0 02 1 0906- ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47159-080-0 02 1 0906- ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47159-197-0 02 1 0803-0905 ●
33 COVER; WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 0906- ●
34 PLATE; DIRECTION,FRT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47159-094-0 02 1 0803- ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER 		0-50551-235-0 04 1 0906-0906 ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER 		0-50551-235-0 04 1 0907- ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER 		0-50051-235-0 04 1 0803-0905 ●
35 BOLT; FRT WHEEL CYL
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER 		0-50051-235-0 04 1 0906-0906 ●
36 CAM ASM; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (A) 		1-47165-058-1 02 1 0906- ●
36 CAM ASM; ADJ
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47165-059-1 02 1 0906- ●
37 WASHER; ADJ CAM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-033-0 04 1 0906- ●
38 SPRING; ADJ CAM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-046-0 04 1 0906- ●
39 BOOT; ADJ CAM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-034-0 04 1 0906- ●
40 COVER; BOOT,ADJ CAM
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-031-0 04 1 0906- ●
41 INDICATOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-032-1 04 1 0906- ●
42 PIN; SPINDLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-030-0 04 1 0906- ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0803-0907 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0908-1009 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1010-1105 ●
43 PIN; ANCHOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1106- ●
43 PIN; ANCHOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5 		1-47131-038-0 04 1 0803- ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 0911-1009 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1010-1105 ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1106- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0803-0907 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0908-0910 ● ●
44 BOLT; LOCK,ANCHOR PIN
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16 		0-20851-016-0 02 1 0911- ●
45 WASHER; LK 1-47133-011-0 02 1 0803-0907 ●
45 WASHER; LK 1-47133-011-0 02 1 0908-1009 ● ●
45 WASHER; LK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1010-1105 ●
45 WASHER; LK 1-47133-011-0 02 1 1106- ● ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0803-0907 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0908-1009 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. HUB LUBRICATION OIL BATH<C5K> (B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1010-1105 ●
46 PLATE; LOCK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1106- ●
46 PLATE; LOCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) 		1-47133-005-0 02 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
