◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#67971) — 66 parça

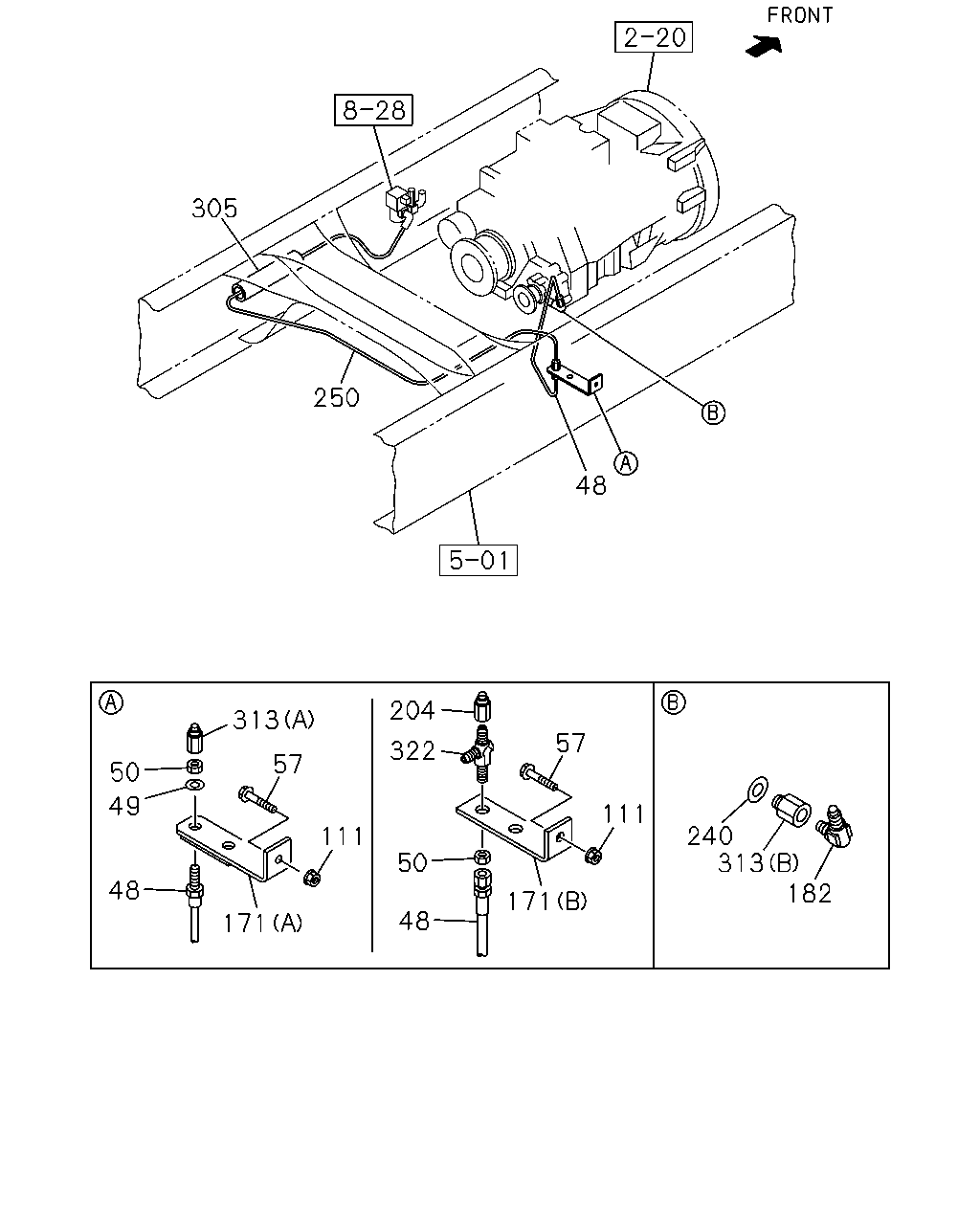

çizim 114379
48 250 305 313 57 111 171 48 49 50 204 322 50 48 57 111 171 240 313 182
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> L=320 		1-09363-625-0 01 1 1012- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=400 		1-09363-743-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=470 		1-09363-714-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0809-0809 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0810-0906 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=360 		1-09363-637-0 01 1 0803- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=410 		1-09363-895-0 01 1 0803-0808 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=410 		1-09363-895-0 01 1 0809- ●
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=380 		1-09363-919-0 01 1 0806- ●
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=430 		1-09363-677-0 01 1 0806- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0803-0803 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0804-1008 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1009-1011 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> L=230 		1-09363-666-0 01 1 1012- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> L=230 		1-09363-666-0 01 1 1012- ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 0803-1011 ●
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> M12 		0-91111-512-0 01 1 1012- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 0803-1011 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> M12 		9-09840-280-0 01 1 1012- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 1012- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0809 ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 0810-1211 ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1212- ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0803-0809 ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0810-1211 ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 1212- ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (B) 		8-98172-810-0 01 1 1012- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 0803-1011 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98100-228-0 01 1 1012- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> (A) 		8-98100-228-0 01 1 1012- ●
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ●
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0803-1312 ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0803- ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0912- ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0803-0911 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-1011 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) PT1/4 		1-09654-396-0 01 1 0803- ●
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> M12 2WAY 		1-09654-059-2 01 1 1012- ●

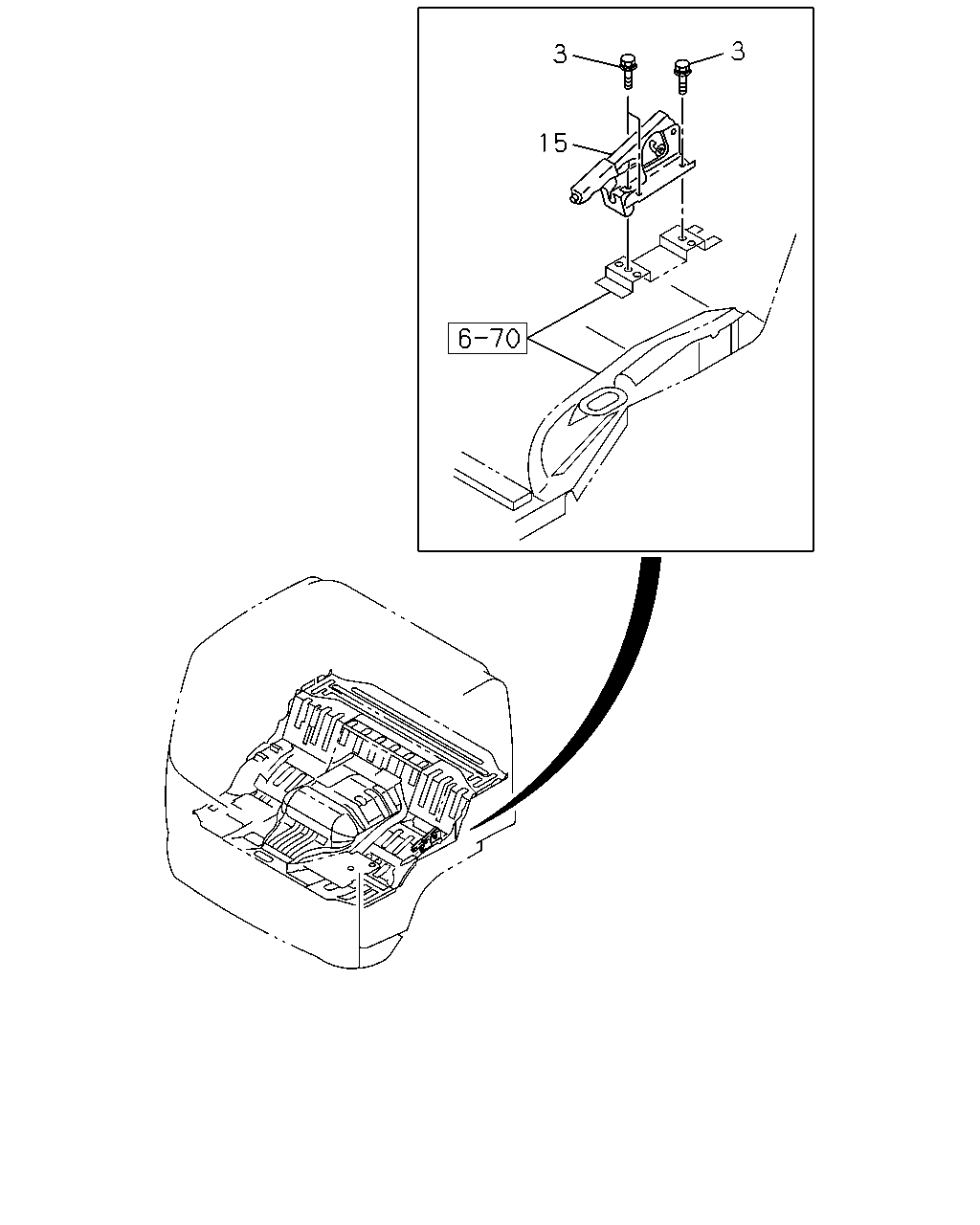

çizim 193618
3 15 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0803-0907 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0908- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0803-0907 ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0908- ● ●

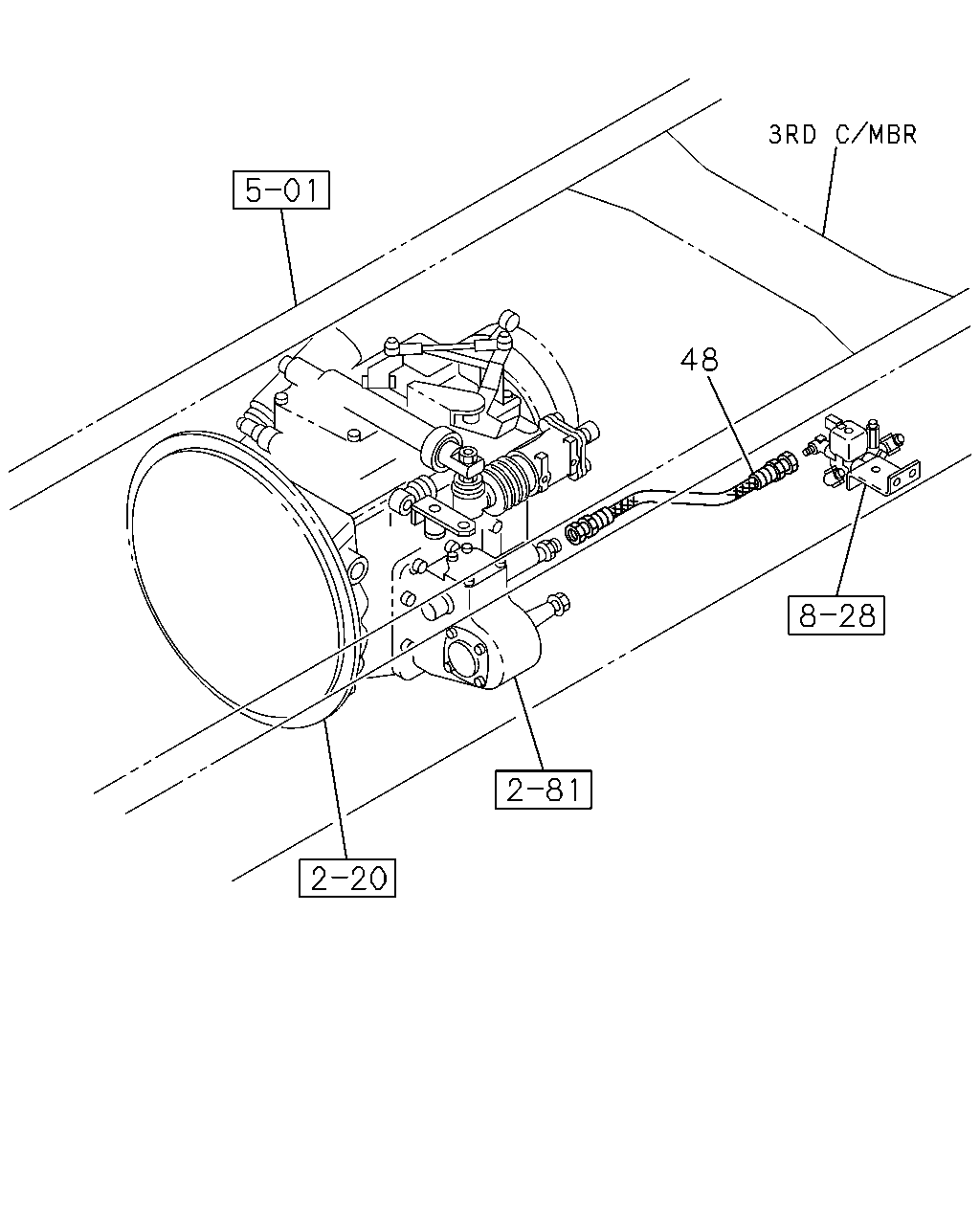

çizim 193624
48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> L=320 		1-09363-625-0 01 1 1012- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=400 		1-09363-743-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=470 		1-09363-714-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0809-0809 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0810-0906 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=450 		1-09363-965-0 01 1 0907- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=360 		1-09363-637-0 01 1 0803- ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=410 		1-09363-895-0 01 1 0803-0808 ●
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=410 		1-09363-895-0 01 1 0809- ●
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=380 		1-09363-919-0 01 1 0806- ●
48 HOSE; FLEX,PTO
MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=430 		1-09363-677-0 01 1 0806- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0803-0803 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0804-1008 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1009-1011 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> L=230 		1-09363-666-0 01 1 1012- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> L=230 		1-09363-666-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
