◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82B - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82B — POWER TAKE OFF; TRANSMISSION REAR (#67970) — 85 parça

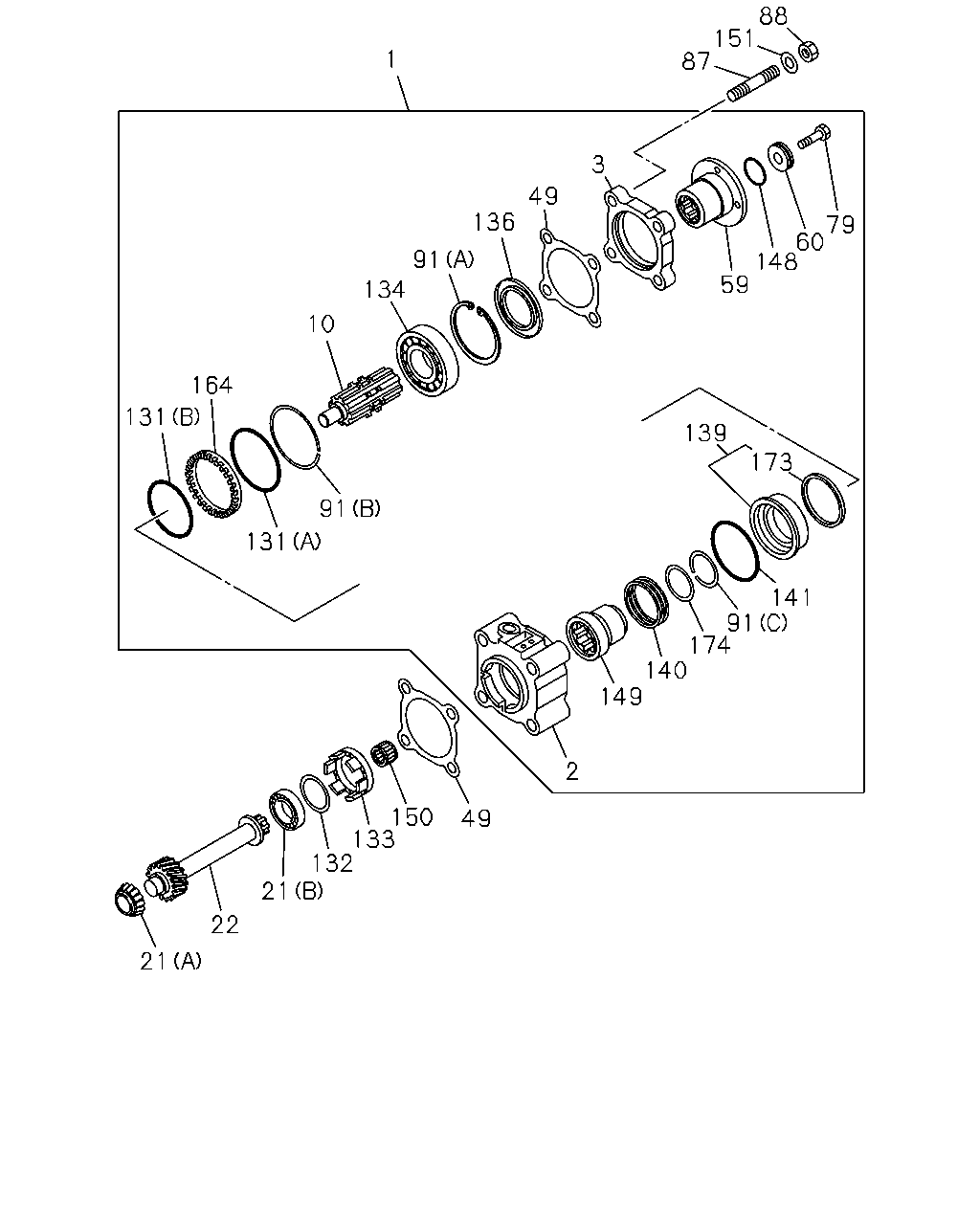

çizim 114412
1 131 164 131 91 10 134 91 136 49 3 87 151 88 79 60 148 59 139 173 141 91 174 140 149 2 49 150 133 132 21 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR(BDM) 		1-38000-398-0 01 1 0803-
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38111-120-0 01 1 0803-1305
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-120-0 01 1 1306-
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38111-116-0 01 1 0803-1305
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-008-0 01 1 0803-1305
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-009-0 01 1 1306-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38221-064-0 01 1 0803-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-33389-054-0 01 1 0803-1305
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-33389-090-0 01 1 1306-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) (B) 		1-33389-068-0 01 1 0803-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33381-015-0 01 1 0803-
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR(BDM) 		1-33132-084-0 02 1 0803-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38229-020-0 01 1 0803-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-021-0 01 1 0803-
79 BOLT
PTO ZF TRANS RR(BDM) 		1-37249-184-0 01 1 0803-1305
79 BOLT
PTO ZF TRANS RR(BDM) 		1-37249-216-0 01 1 1306-
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-560-0 04 1 0803-1305
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) M12X80 		1-38119-103-0 04 1 1306-
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38119-093-0 04 1 0803-1305
88 NUT; COVER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-562-0 04 1 0803-1305
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-104-0 04 1 1306-
88 NUT; COVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38119-027-0 04 1 0803-1305
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-017-0 01 1 0803-1305
91 RING; SNAP
PTO ZF TRANS RR(BDM) (C) 		1-38219-037-0 01 1 0803-
91 RING; SNAP
PTO ZF TRANS RR(BDM) (B) 		1-38219-038-0 01 1 0803-
131 GASKET; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) (A) 		1-38129-035-0 01 1 0803-
131 GASKET; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) (B) 		1-38129-036-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=0.80 		8-98080-566-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.80 		8-98080-566-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=0.95 		8-98080-567-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.95 		8-98080-567-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.10 		8-98080-568-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.10 		8-98080-568-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.25 		8-98080-569-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.25 		8-98080-569-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.40 		8-98080-570-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.40 		8-98080-570-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1306-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.55 		1-33389-048-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.35 		1-33389-052-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.30 		1-33389-053-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33389-055-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.20 		1-33389-056-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.15 		1-33389-057-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33389-058-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.05 		1-33389-059-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.00 		1-33389-060-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33389-061-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.90 		1-33389-062-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.85 		1-33389-063-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=0.80 		1-33389-064-0 01 1 0803-1305
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.75 		1-33389-065-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.70 		1-33389-066-0 01 1 0803-
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.65 		1-33389-067-0 01 1 0803-
133 BUSHING; SHAFT
PTO ZF TRANS RR(BDM) 		1-33389-046-0 01 1 0803-
134 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-015-0 01 1 0803-
136 SEAL; SHAFT
PTO ZF TRANS RR(BDM) 		1-38519-010-0 01 1 0803-1305
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38129-039-0 01 1 0803-1305
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-039-0 01 1 1306-
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38129-033-0 01 1 0803-1305
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-032-0 01 1 0803-1305
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-042-0 01 1 1306-
141 GASKET; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-035-0 01 1 0803-
148 GASKET; YOKE
PTO ZF TRANS RR(BDM) 		1-38519-014-0 01 1 0803-
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38229-060-0 01 1 0803-1305
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-060-0 01 1 1306-
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38229-059-0 01 1 0803-1305
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-565-0 01 1 0803-1305
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		8-98080-565-0 01 1 1306-
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38249-018-0 01 1 0803-1305
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-563-0 04 1 0803-1305
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		8-98080-563-0 04 1 1306-
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38119-028-0 04 1 0803-1305
164 RING; CENTERING,PTO
PTO ZF TRANS RR(BDM) 		1-38129-038-0 01 1 0803-
173 RING; MAGNET
PTO ZF TRANS RR(BDM) 		1-38129-034-0 01 1 0803-
174 DISK; PRESSURE
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38129-040-0 01 1 0803-1305
174 DISK; PRESSURE
PTO ZF TRANS RR(BDM) 		1-38129-040-0 01 1 1306-
174 DISK; PRESSURE
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> 		1-38129-037-0 01 1 0803-1305
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
