0-50 — OIL COOLER AND OIL FILTER (#6797) — 191 parça

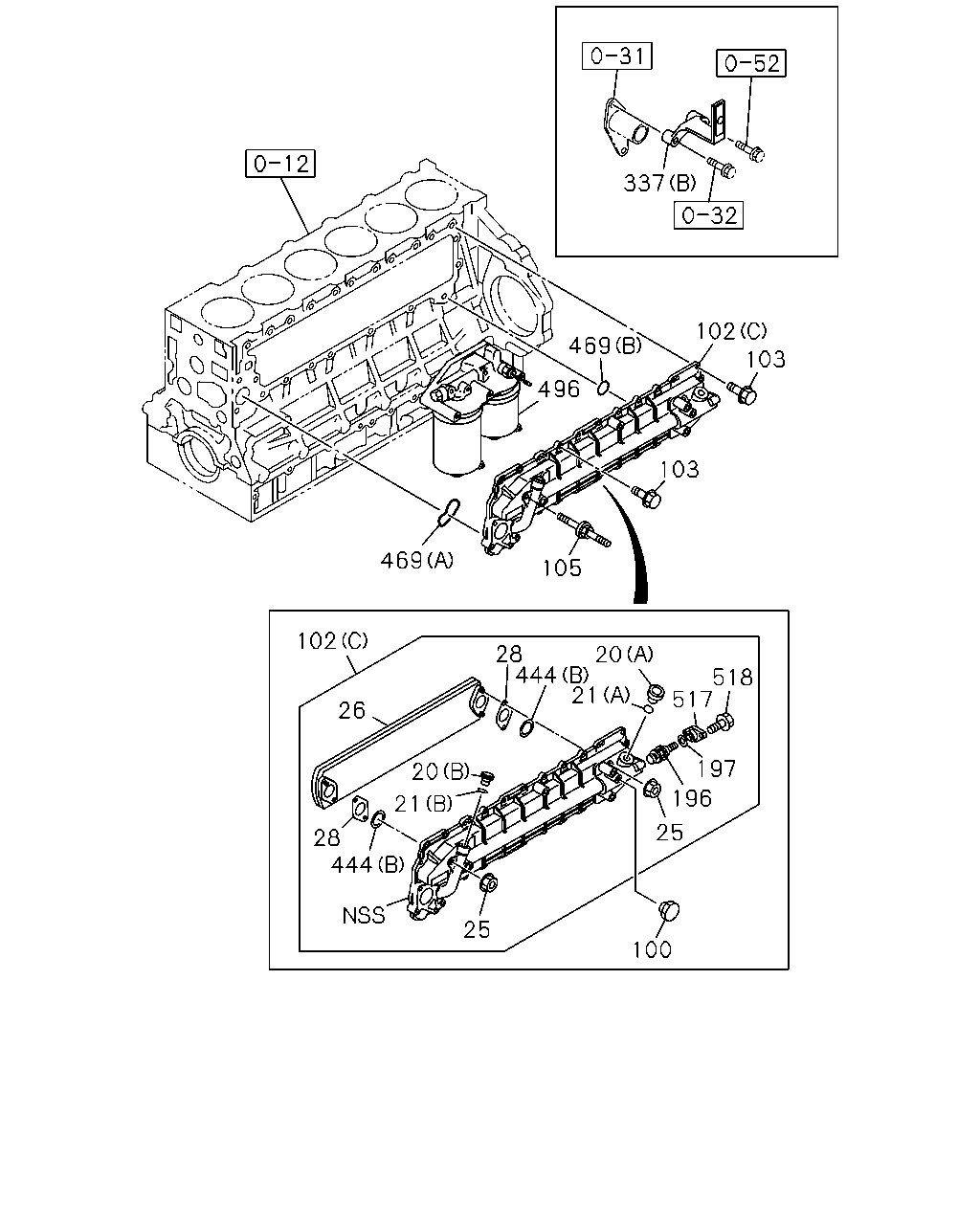

337 102 103 469 496 103 469 105 102 28 20 444 21 518 517 26 197 20 196 21 25 28 444 25 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY (C)	8-94396-753-0	01	1	9806-9911	●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	9912-		●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	9912-		●
21	GASKET; PLUG (C) M24	8-94396-755-0	01	1	9806-9911	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9912-		●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	9912-		●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9806-9911	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9912-		●
26	CORE ASM; OIL COOLER ENG OIL CLR HVY DUTY<E1E>	8-94395-712-0	01	1	9806-9911	●
26	CORE ASM; OIL COOLER EXC. ENG OIL CLR HVY DUTY<E1E>	8-94395-711-0	01	1	9806-9911	●
26	CORE ASM; OIL COOLER	8-94391-739-0	01	1	9912-		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9806-9911	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9912-		●
100	PLUG; OIL COOLER M14	8-94399-225-0	01	1	9912-		●
102	COOLER ASM; OIL (A)	8-94390-536-0	01	1	9806-9911			●
102	COOLER ASM; OIL (C)	8-94392-620-1	01	1	9912-		●
102	COOLER ASM; OIL ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-076-3	01	1	9806-9911	●
102	COOLER ASM; OIL EXC. ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-074-3	01	1	9806-9911	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-9911			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9912-0512		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9806-9911	●		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	9912-		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9806-9911	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9806-9911			●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9912-		●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9806-9911	●		●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9912-0111		●
196	THERMOSTAT; OIL COOLER 90?C	8-97600-936-0	01	1	0112-		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9806-9911	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9912-		●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9806-9911			●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9912-0602		●
337	BRACKET; FUEL PIPE (B)	8-97613-364-0	01	1	0603-		●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9806-9911	●		●
337	BRACKET; FUEL PIPE (C)	8-97600-094-1	01	1	9912-0504		●
337	BRACKET; FUEL PIPE (C)	8-97608-776-0	01	1	0505-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9806-9911			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9912-		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9912-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9912-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-		●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9806-9911	●		●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9912-		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9806-9911	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	9912-		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9806-9911	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9912-0512		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●

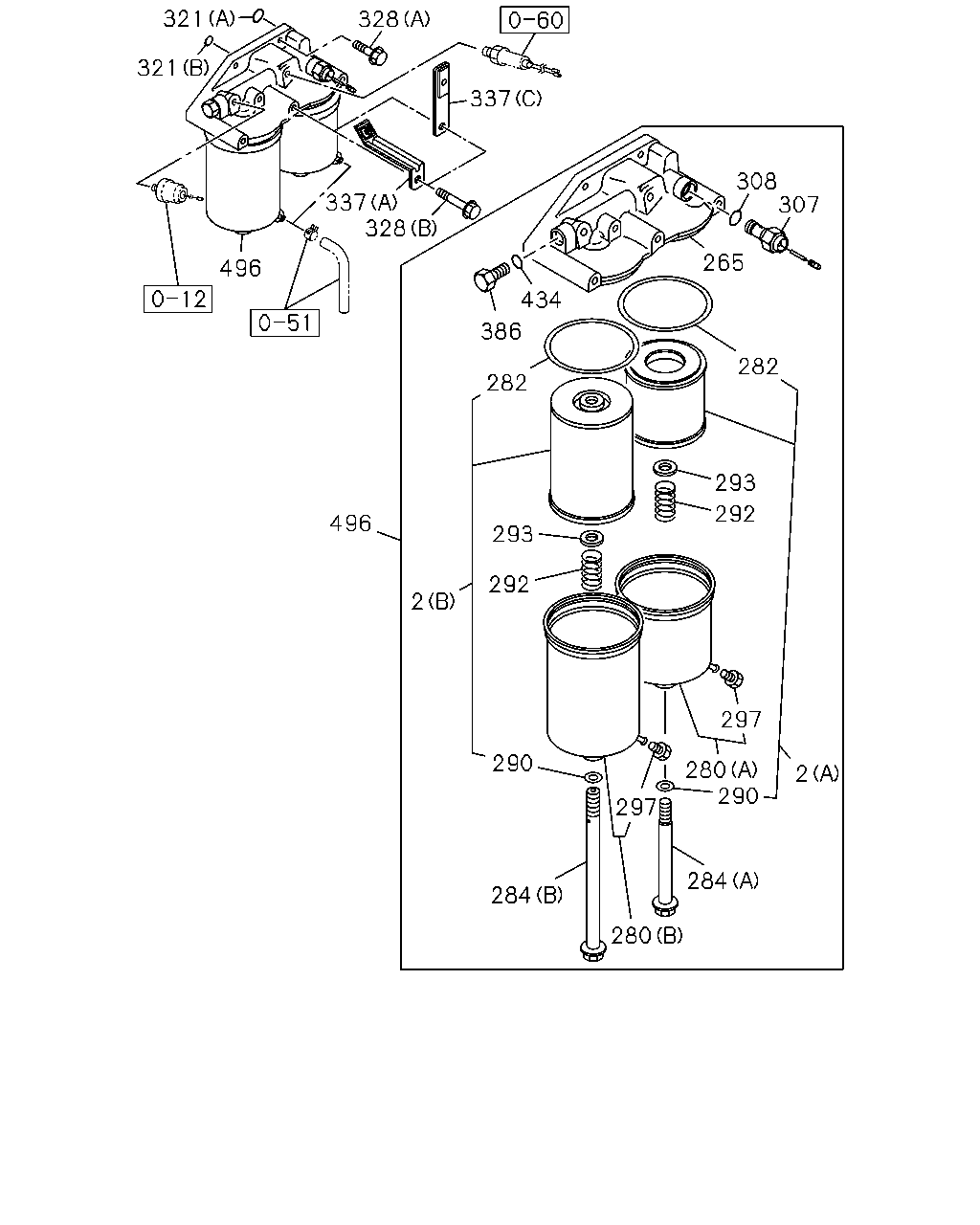

321 328 321 337 308 307 337 328 265 496 434 386 282 282 293 292 496 293 292 2 297 290 280 290 297 2 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9806-9911	●		●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9806-9911	●		●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9912-		●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9912-		●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9806-9911	●		●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9912-		●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9806-9911	●		●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9912-		●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9806-9911	●		●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9912-		●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9806-9911	●		●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9912-		●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9806-9911	●		●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9912-		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9806-9911	●		●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9912-		●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9806-9911	●		●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9912-		●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9806-9911	●		●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9912-		●
293	SEAT; SPR	9-13239-025-0	02	1	9806-9911	●		●
293	SEAT; SPR	9-13239-025-0	02	1	9912-		●
297	PLUG; COVER	1-13219-275-0	02	1	9806-9911	●		●
297	PLUG; COVER	1-13219-275-0	02	1	9912-		●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9806-9911	●		●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9912-		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9806-9911	●		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9912-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9806-9911	●		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9912-		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9806-9911	●		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9912-		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9806-9911	●		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9912-0512		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
328	BOLT; OIL FILTER (B) W/FLANGE M10X135	8-94397-139-1	03	1	9806-9911	●		●
328	BOLT; OIL FILTER (B) W/FLANGE M10X135	8-94397-139-1	02	1	9912-0001		●
328	BOLT; OIL FILTER (B) W/FLANGE M10X135	8-94397-139-1	03	1	0002-		●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9806-9911			●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9912-0602		●
337	BRACKET; FUEL PIPE (B)	8-97613-364-0	01	1	0603-		●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9806-9911	●		●
337	BRACKET; FUEL PIPE (C)	8-97600-094-1	01	1	9912-0504		●
337	BRACKET; FUEL PIPE (C)	8-97608-776-0	01	1	0505-		●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9806-9911	●		●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9912-		●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9806-9911	●		●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9912-		●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9806-9911	●		●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9912-		●

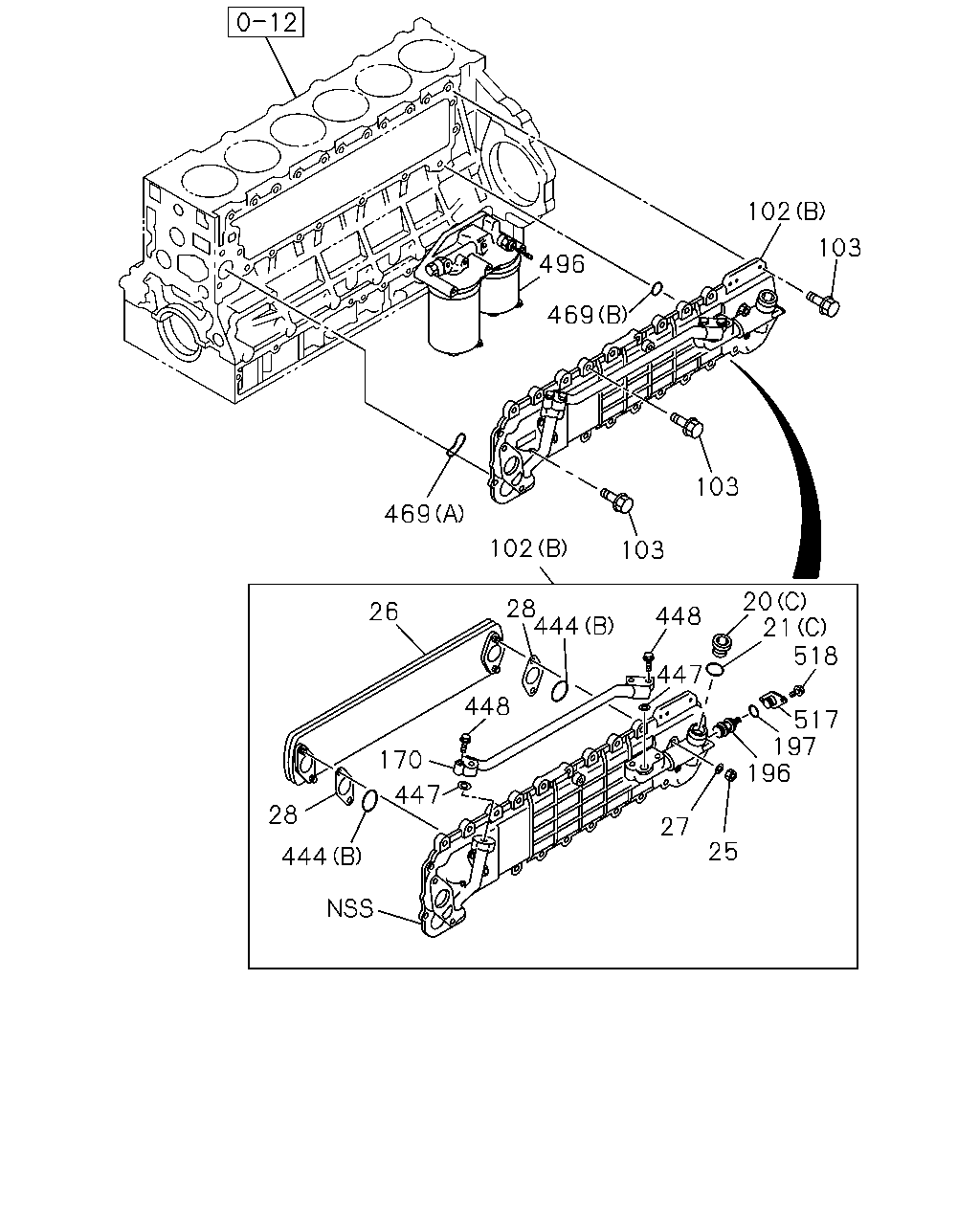

102 103 496 469 103 469 102 103 20 21 518 28 444 26 448 447 448 517 197 196 170 447 28 27 25 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY (C)	8-94396-753-0	01	1	9806-9911	●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	9912-		●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	9912-		●
21	GASKET; PLUG (C) M24	8-94396-755-0	01	1	9806-9911	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9912-		●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	9912-		●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9806-9911	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9912-		●
26	CORE ASM; OIL COOLER ENG OIL CLR HVY DUTY<E1E>	8-94395-712-0	01	1	9806-9911	●
26	CORE ASM; OIL COOLER EXC. ENG OIL CLR HVY DUTY<E1E>	8-94395-711-0	01	1	9806-9911	●
26	CORE ASM; OIL COOLER	8-94391-739-0	01	1	9912-		●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9806-9911	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9806-9911	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9912-		●
102	COOLER ASM; OIL (A)	8-94390-536-0	01	1	9806-9911			●
102	COOLER ASM; OIL (C)	8-94392-620-1	01	1	9912-		●
102	COOLER ASM; OIL ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-076-3	01	1	9806-9911	●
102	COOLER ASM; OIL EXC. ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-074-3	01	1	9806-9911	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-9911			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9912-0512		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9806-9911	●		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	9912-		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9806-9911	●
170	PIPE; BYPASS	8-94390-078-1	01	1	9806-9911	●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9806-9911	●		●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9912-0111		●
196	THERMOSTAT; OIL COOLER 90?C	8-97600-936-0	01	1	0112-		●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9806-9911	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9912-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9806-9911			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9912-		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9806-9911	●		●
447	GASKET; BYPASS PIPE	1-09623-588-0	02	1	9806-9911	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9806-9911	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9912-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9912-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-		●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9806-9911	●		●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9912-		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9806-9911	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	9912-		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9806-9911	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9912-0512		●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●

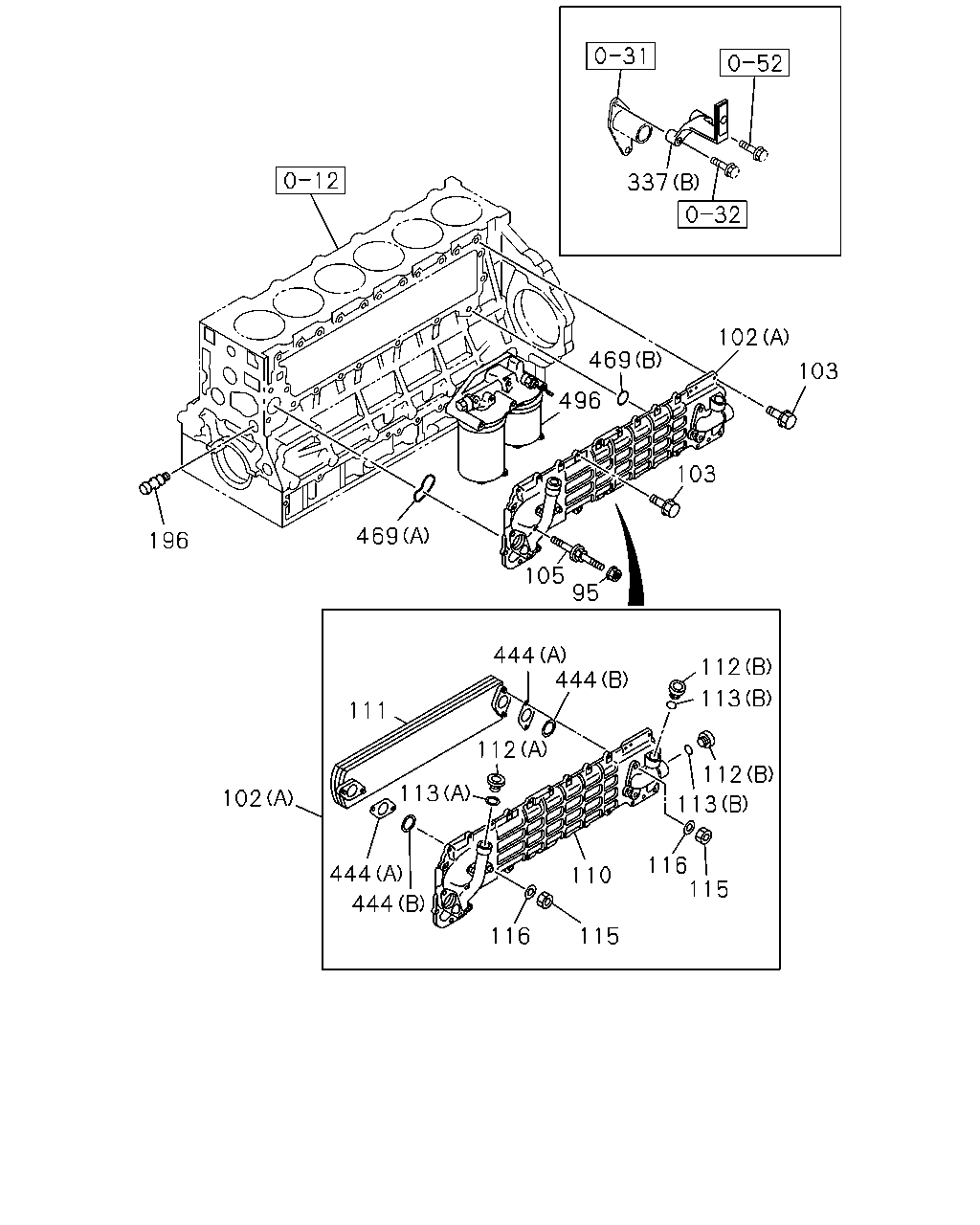

337 102 469 103 496 103 469 196 105 95 444 444 112 113 111 112 112 113 102 113 116 115 444 444 116 115 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91150-108-0	01	1	0603-0603		●
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91150-108-0	01	1	9806-9911			●
102	COOLER ASM; OIL (A)	8-94390-536-0	01	1	9806-9911			●
102	COOLER ASM; OIL (C)	8-94392-620-1	01	1	9912-		●
102	COOLER ASM; OIL ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-076-3	01	1	9806-9911	●
102	COOLER ASM; OIL EXC. ENG OIL CLR HVY DUTY<E1E> (B)	8-94390-074-3	01	1	9806-9911	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-9911			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9912-0512		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9806-9911	●		●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	9912-		●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9806-9911	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9806-9911			●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9912-		●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	9806-9911			●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9806-9911			●
112	PLUG; OIL COOLER CASE (A)	8-94393-604-0	01	1	9806-9911			●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	02	1	9806-9911			●
113	GASKET; PLUG,OIL COOLER CASE (A)	1-09623-499-0	01	1	9806-9911			●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	02	1	9806-9911			●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9806-9911			●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9806-9911			●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9806-9911	●		●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9912-0111		●
196	THERMOSTAT; OIL COOLER 90?C	8-97600-936-0	01	1	0112-		●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9806-9911			●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9912-0602		●
337	BRACKET; FUEL PIPE (B)	8-97613-364-0	01	1	0603-		●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9806-9911	●		●
337	BRACKET; FUEL PIPE (C)	8-97600-094-1	01	1	9912-0504		●
337	BRACKET; FUEL PIPE (C)	8-97608-776-0	01	1	0505-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9806-9911			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9912-		●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9912-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9806-9911	●		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9912-0606		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-		●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9806-9911	●		●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9912-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
