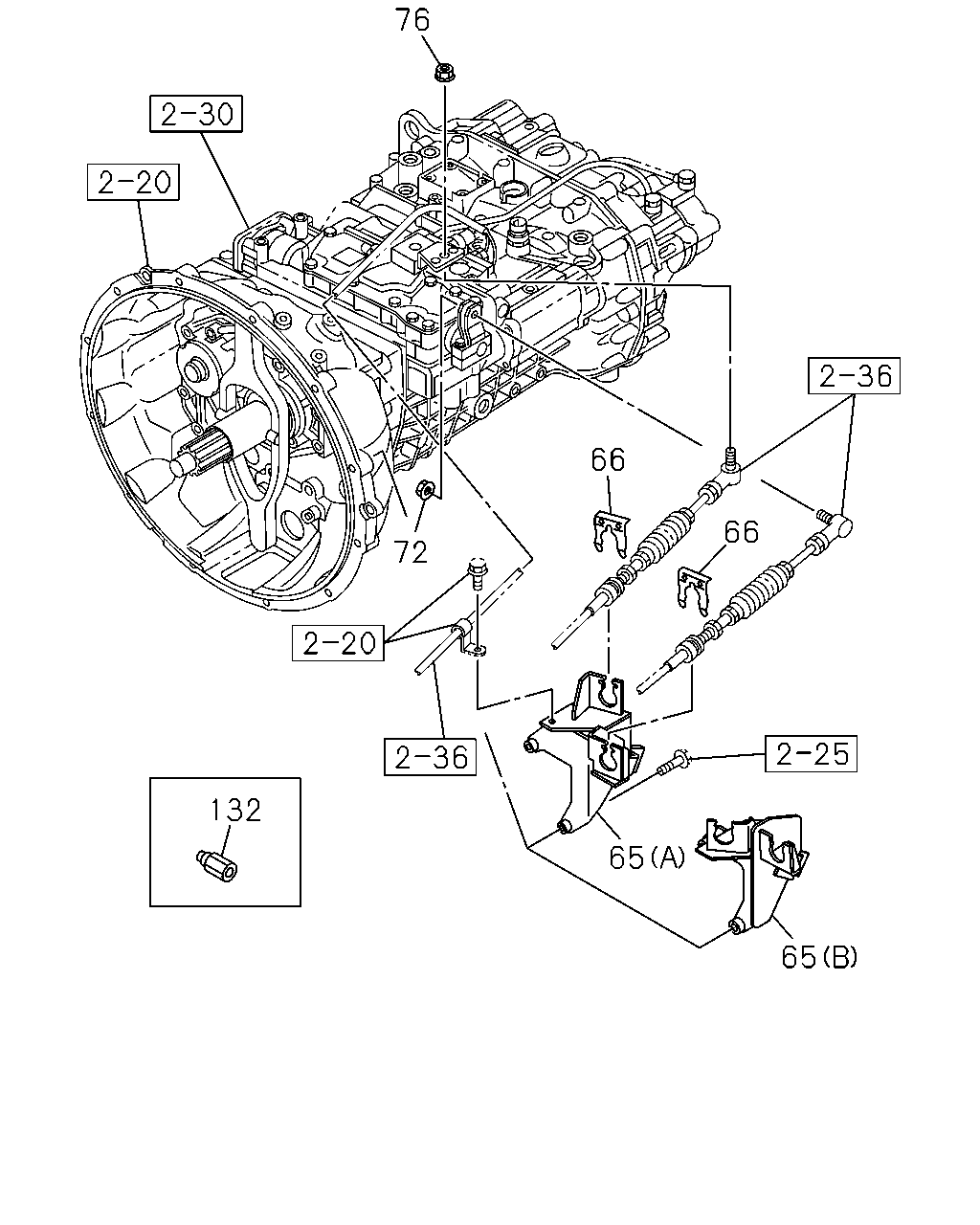

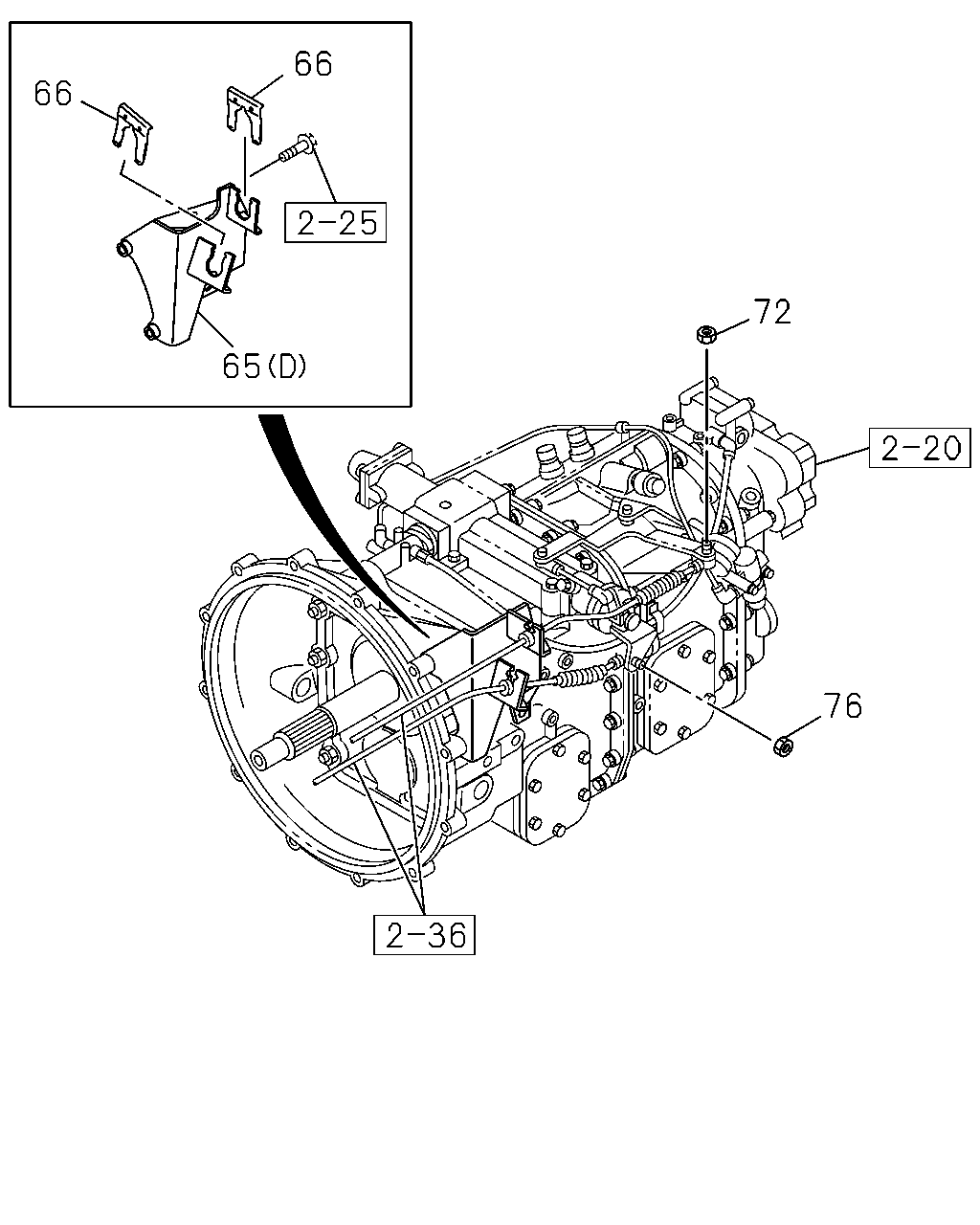

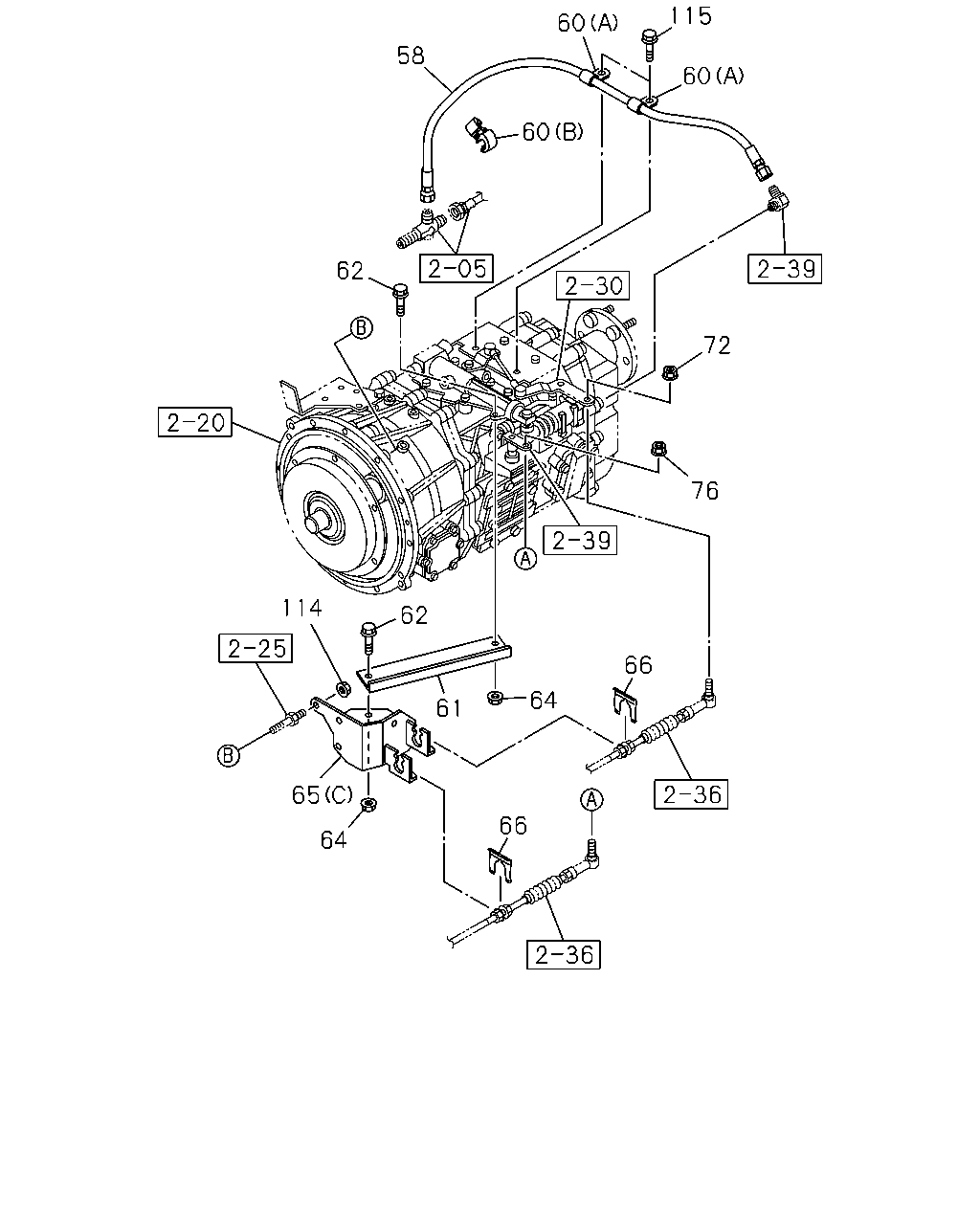

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#67965) — 126 parça

115 60 60 58 60 62 72 76 66 64 66 61 62 114 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	HOSE; FLEX,POWER ASSISTOR MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	0806-1008	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	1009-	●
58	HOSE; FLEX,POWER ASSISTOR MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0803-0906	●
58	HOSE; FLEX,POWER ASSISTOR MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0907-1008	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1009-	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	0803-0805	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	0806-0906	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	0907-1008	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1009-	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	0803-0805	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	0806-0906	●
60	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	0907-1008	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1009-	●
61	STAY; BRKT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	0806-	●
61	STAY; BRKT,TRANS CONT MZX6P M/T(RSW)	1-33657-267-0	01	1	0803-0805	●
61	STAY; BRKT,TRANS CONT MZX6P M/T(RSW)	1-33657-267-0	01	1	0806-0906	●
61	STAY; BRKT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0806-0906	●
61	STAY; BRKT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	0907-	●
61	STAY; BRKT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0907-	●
62	BOLT; STAY MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0806-	●
62	BOLT; STAY MZX6P M/T(RSW) M10X30 FLANGE	0-28651-030-0	02	1	0803-0805	●
62	BOLT; STAY MZX6P M/T(RSW) M10X30 FLANGE	0-28651-030-0	02	1	0806-0906	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0806-0906	●
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	0907-	●
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0907-	●
64	NUT; STAY MZX6P M/T(RSW) M10 FLANGE	0-91180-210-0	02	1	0803-0805	●
64	NUT; STAY MZX6P M/T(RSW),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0806-0906	●
64	NUT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (C)	8-98117-611-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-677-0	01	1	0806-0904	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	1-33657-677-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-672-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98017-432-0	01	1	0803-0803	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98117-499-0	01	1	0804-0806	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98126-579-0	01	1	0807-0808	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0809-0907	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0908-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (D)	8-98131-609-0	01	1	0908-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0803-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	0803-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0803-0906	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0907-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0803-0906	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0907-	●	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0908-		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	0803-	●
114	NUT; BRKT MZX6P M/T(RSW) M10 FLANGE	0-91180-210-0	02	1	0803-0805	●
114	NUT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0806-0906	●
114	NUT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	0907-	●
115	BOLT; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0803-0805	●
115	BOLT; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0806-0906	●
115	BOLT; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0907-1008	●
115	BOLT; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1009-	●

76 72 66 66 65 65 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (C)	8-98117-611-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-677-0	01	1	0806-0904	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	1-33657-677-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-672-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98017-432-0	01	1	0803-0803	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98117-499-0	01	1	0804-0806	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98126-579-0	01	1	0807-0808	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0809-0907	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0908-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (D)	8-98131-609-0	01	1	0908-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0803-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	0803-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0803-0906	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0907-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0803-0906	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0907-	●	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0908-		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	0803-	●
132	CONNECTOR; FLEX HOSE ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0808-	●

66 66 65 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (C)	8-98117-611-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-677-0	01	1	0806-0904	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	1-33657-677-0	01	1	0905-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33657-672-1	01	1	0806-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0803-0906	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	0907-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98017-432-0	01	1	0803-0803	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98117-499-0	01	1	0804-0806	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98126-579-0	01	1	0807-0808	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0809-0907	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (D)	8-98131-609-0	01	1	0908-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT (D)	8-98131-609-0	01	1	0908-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0803-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98060-386-0	01	1	0803-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0803-0906	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0907-	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0803-0906	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0907-	●	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0803-0805	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0806-0906	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0907-0907	●
76	NUT; BALL JOINT,SELECT WIRE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0908-	●
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0908-		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
