0-42 — FUEL PUMP AND PIPE (#6796) — 139 parça

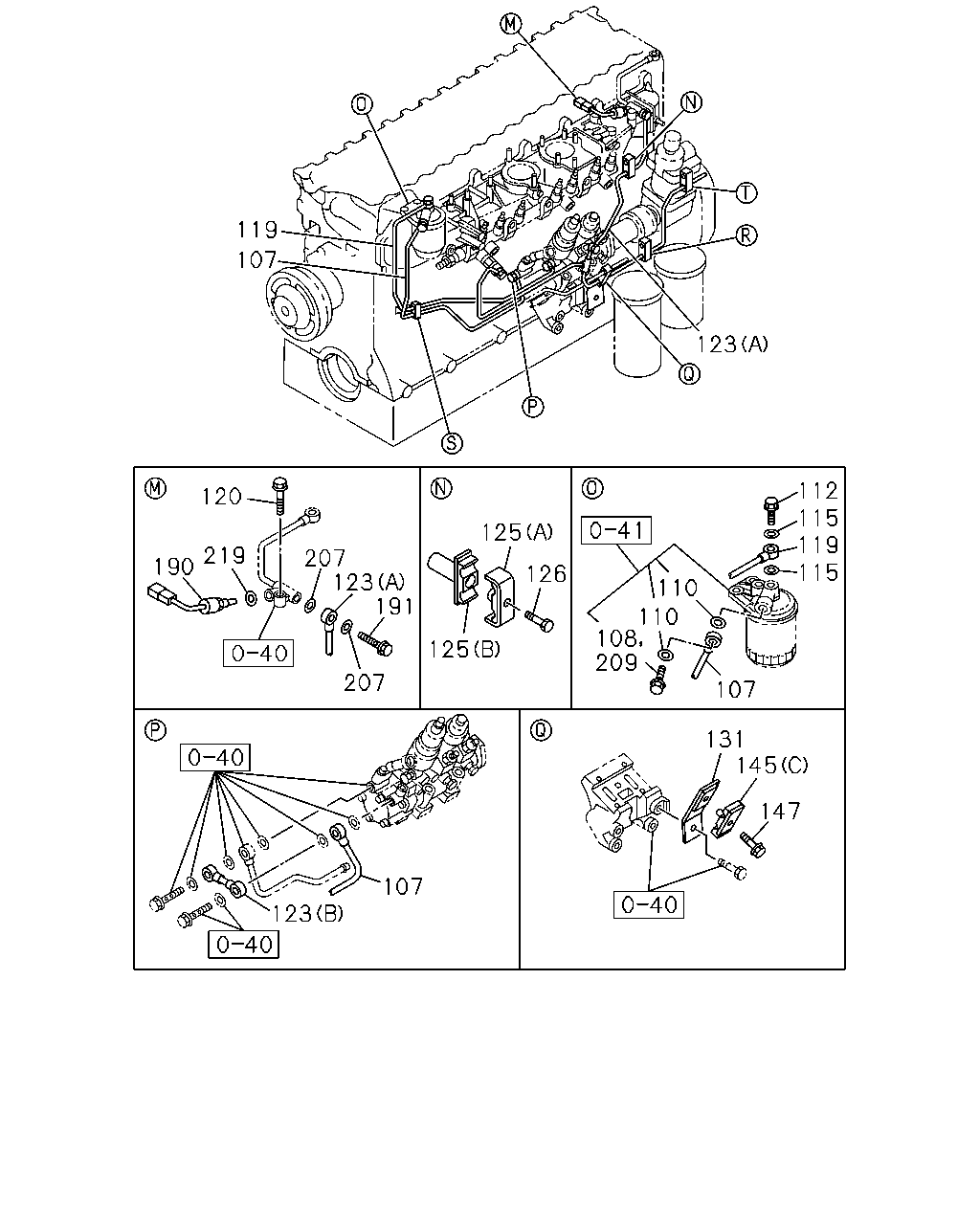

119 107 123 112 115 119 115 120 125 219 190 207 123 191 126 110 110 108 209 125 207 107 131 145 147 107 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9806-9911	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-055-1	01	1	9912-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9806-9911			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9806-9911	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97600-059-2	01	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9806-9911			●
120	BOLT; STAY M8X40 FLANGE	0-28080-840-0	01	1	9912-0512		●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0601-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-94391-537-1	01	1	9806-9911	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	9912-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94395-230-0	01	1	9806-9911			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97600-388-0	01	1	9912-0504		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-774-0	01	1	0505-		●
125	CLIP; FUEL PIPE (A)	1-09701-172-3	01	1	9912-		●
125	CLIP; FUEL PIPE (B)	8-94391-370-1	01	1	9912-		●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28080-660-0	01	1	9912-0512		●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28050-660-0	01	1	0601-		●
131	BRACKET; FUEL PIPE CLIP	8-94390-958-0	01	1	9912-0504		●
131	BRACKET; FUEL PIPE CLIP	8-97608-777-0	01	1	0505-		●
145	CLIP; FUEL PIPE (A)	1-09701-193-1	03	1	0505-		●
145	CLIP; FUEL PIPE (B)	1-09701-194-1	03	1	0505-		●
145	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	04	1	9912-0504		●
145	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0505-		●
147	BOLT; CLIP,FUEL PIPE M6X35 W/LK WASHER	0-50040-635-0	03	1	0505-		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	04	1	9912-0504		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0505-0512		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-		●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	9912-		●
191	BOLT; EYE,FUEL PIPE M10X21 FLANGE	8-94396-711-0	01	1	9912-		●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	9912-		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9806-9911	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9912-0112		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	9912-		●

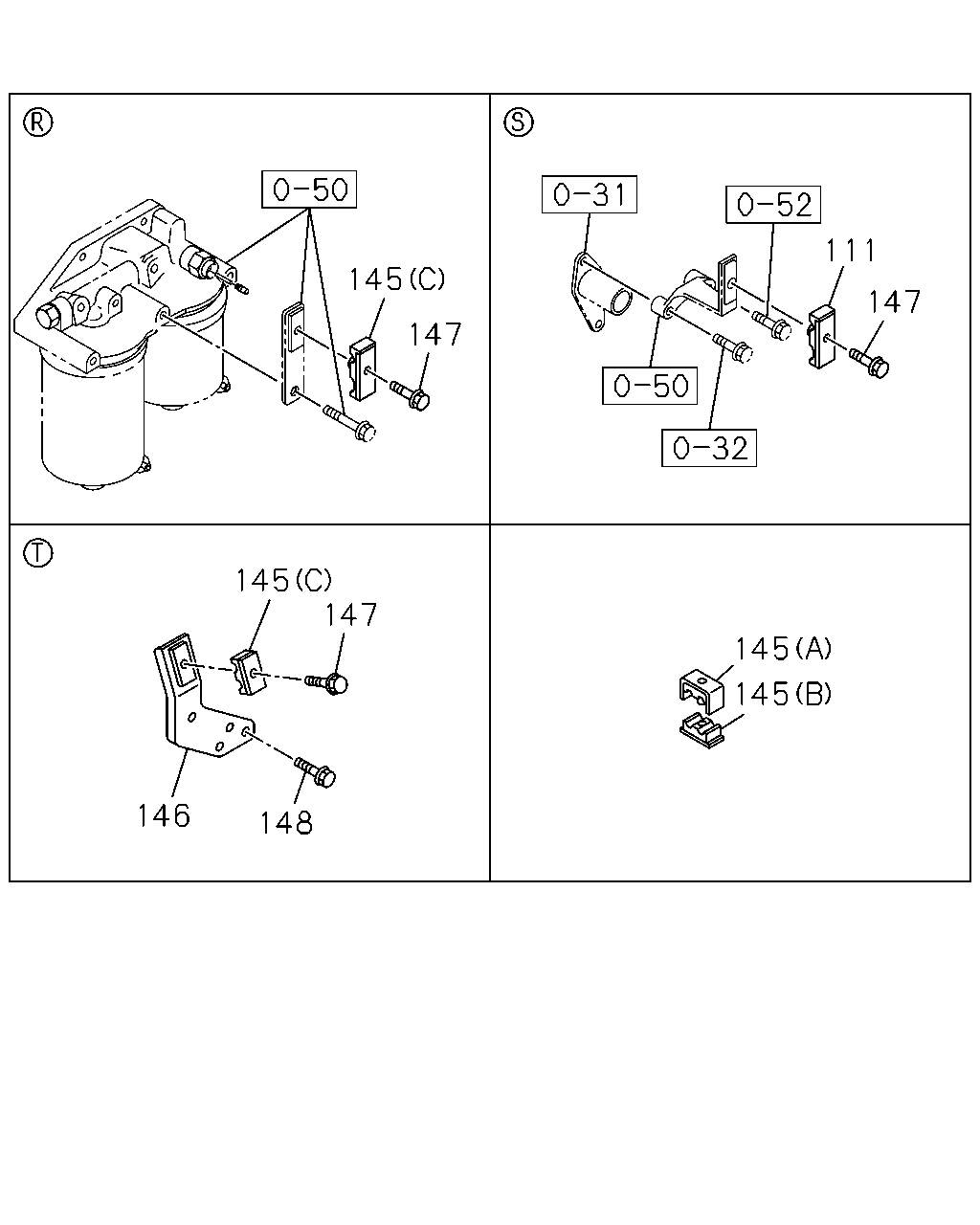

111 145 147 147 145 147 145 145 146 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	06	1	9806-9911	●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	01	1	9912-		●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	08	1	9806-9911			●
111	CLIP; FUEL PIPE L=45	5-09709-104-0	03	1	9806-9911			●
145	CLIP; FUEL PIPE (A)	1-09701-193-1	03	1	0505-		●
145	CLIP; FUEL PIPE (B)	1-09701-194-1	03	1	0505-		●
145	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	04	1	9912-0504		●
145	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0505-		●
146	BRACKET; FUEL END	8-94390-326-2	01	1	9912-0504		●
146	BRACKET; FUEL END	8-97608-775-0	01	1	0505-		●
147	BOLT; CLIP,FUEL PIPE M6X35 W/LK WASHER	0-50040-635-0	03	1	0505-		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	04	1	9912-0504		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0505-0512		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-		●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9806-9911	●
148	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512		●
148	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●

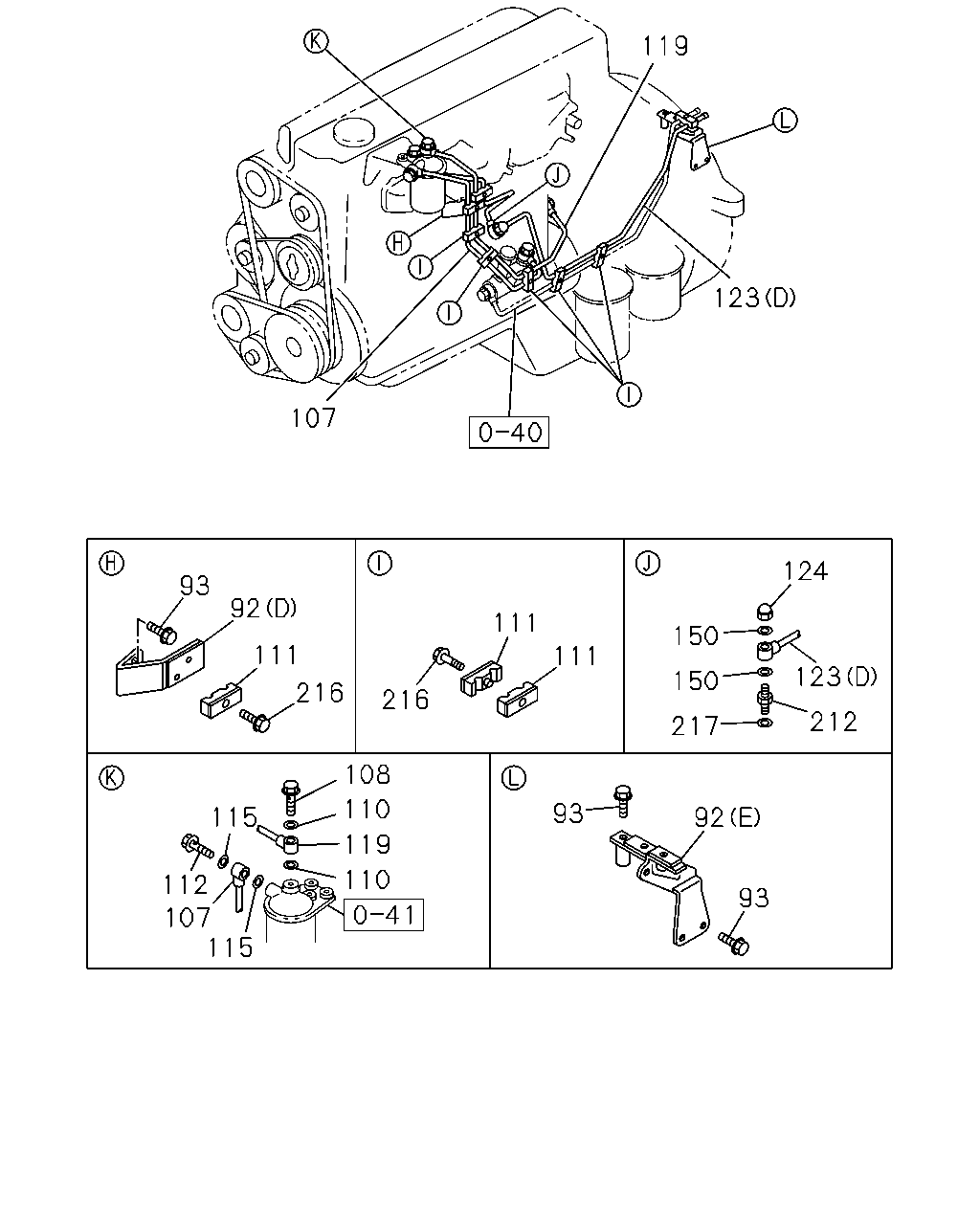

119 123 107 124 93 92 111 150 111 111 123 150 216 216 212 217 108 110 93 115 92 119 112 110 93 107 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (B)	8-94392-249-0	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (D)	8-94395-127-0	01	1	9806-9806			●
92	BRACKET; FUEL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	8-94395-127-0	01	1	9807-9911			●
92	BRACKET; FUEL PIPE (E)	8-94395-569-0	01	1	9806-9911			●
92	BRACKET; FUEL PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	8-94396-160-0	01	1	9807-9911			●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9806-9911	●		●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9806-9911	●		●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	9806-9911			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9806-9911	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-055-1	01	1	9912-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9806-9911			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	06	1	9806-9911	●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	01	1	9912-		●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	08	1	9806-9911			●
111	CLIP; FUEL PIPE L=45	5-09709-104-0	03	1	9806-9911			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9806-9911	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97600-059-2	01	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9806-9911			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-94391-537-1	01	1	9806-9911	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	9912-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94395-230-0	01	1	9806-9911			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97600-388-0	01	1	9912-0504		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-774-0	01	1	0505-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9806-9911			●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911			●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9806-9911			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9806-9911	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	08	1	9806-9911			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9806-9911	●		●

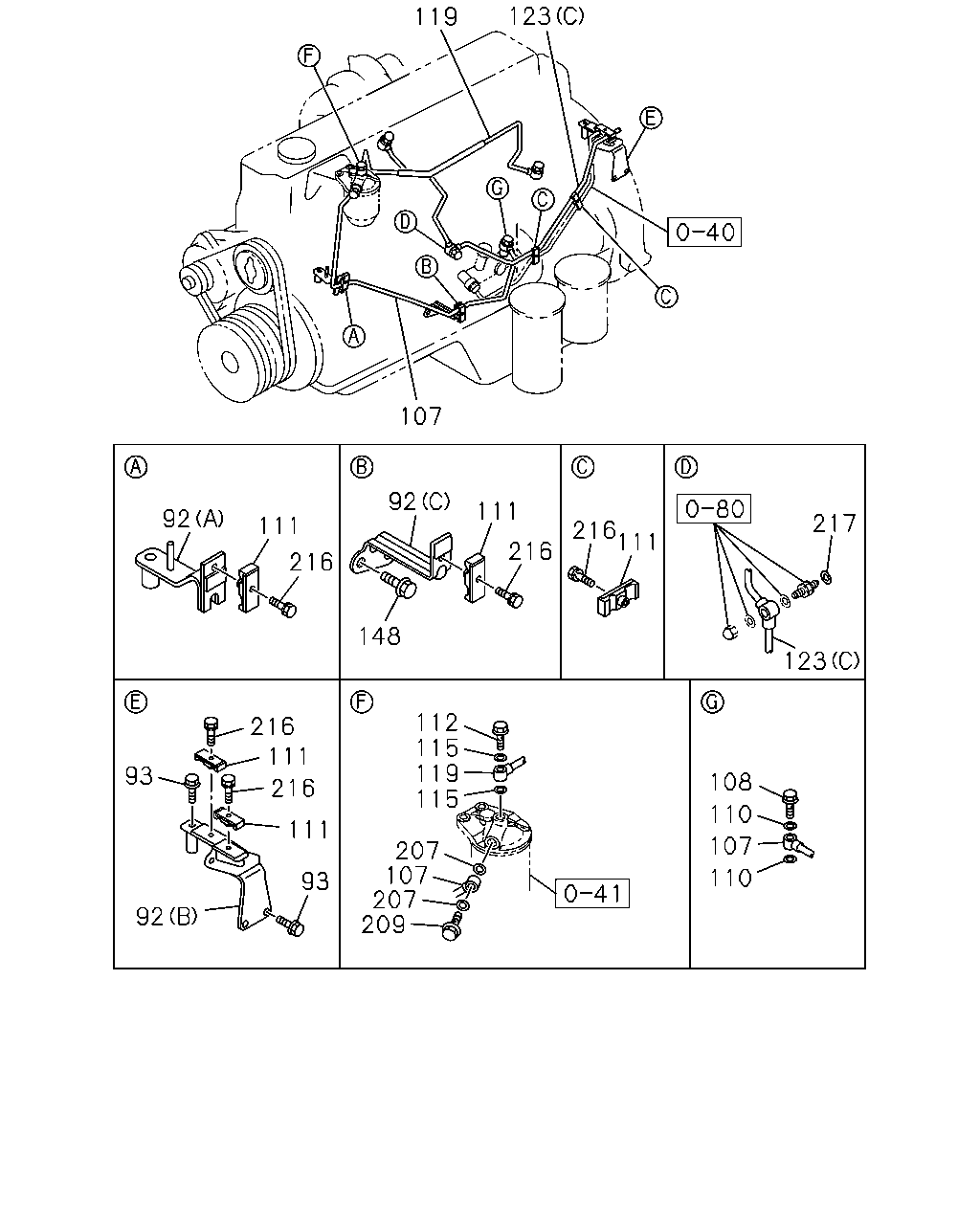

123 119 107 92 111 92 217 111 216 111 216 216 148 123 112 115 119 115 216 111 93 108 216 110 111 107 207 107 207 209 110 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (B)	8-94392-249-0	01	1	9806-9911	●
92	BRACKET; FUEL PIPE (D)	8-94395-127-0	01	1	9806-9806			●
92	BRACKET; FUEL PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	8-94395-127-0	01	1	9807-9911			●
92	BRACKET; FUEL PIPE (E)	8-94395-569-0	01	1	9806-9911			●
92	BRACKET; FUEL PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	8-94396-160-0	01	1	9807-9911			●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9806-9911	●		●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9806-9911	●		●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	9806-9911			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9806-9911	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-055-1	01	1	9912-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9806-9911			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	06	1	9806-9911	●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	01	1	9912-		●
111	CLIP; FUEL PIPE W/TUBE L=48 L=48	5-09709-103-0	08	1	9806-9911			●
111	CLIP; FUEL PIPE L=45	5-09709-104-0	03	1	9806-9911			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9806-9911	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9911	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9806-9911	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97600-059-2	01	1	9912-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9806-9911			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-94391-537-1	01	1	9806-9911	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	9912-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94395-230-0	01	1	9806-9911			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97600-388-0	01	1	9912-0504		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97608-774-0	01	1	0505-		●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9806-9911	●
148	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512		●
148	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	9912-		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9806-9911	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9912-0112		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9806-9911	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	08	1	9806-9911			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9806-9911	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
