2-26C — MANUAL TRANSMISSION GEAR (#67959) — 771 parça

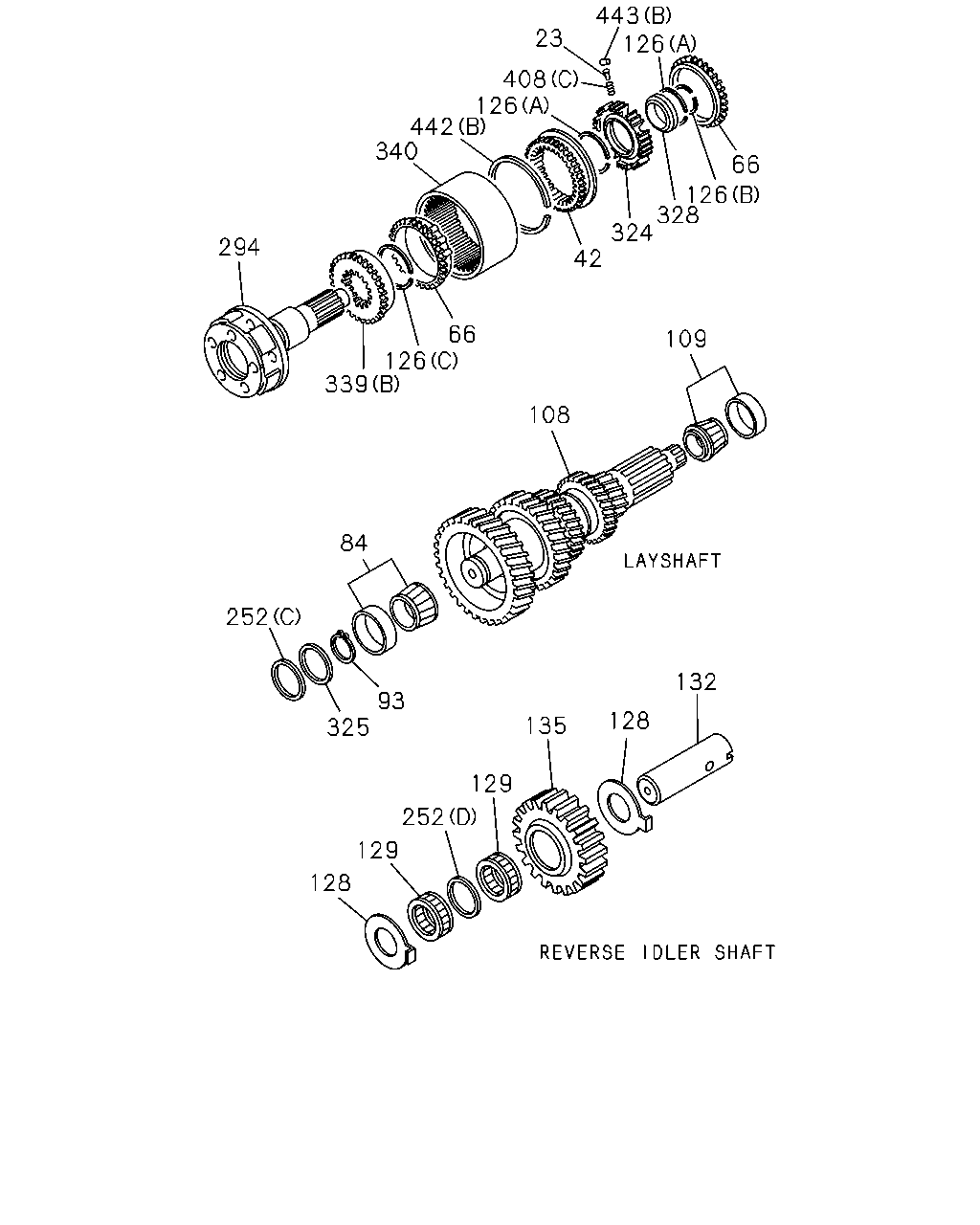

çizim 109657
294 339 126 66 340 442 126 408 23 443 126 66 126 328 324 42 109 108 84 252 325 93 132 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B C
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0908-1211 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0803- ●
42 SLEEVE 1-33262-246-0 01 1 1212- ●
42 SLEEVE 1-33262-196-0 01 1 0908- ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0908-1211 ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 1212- ● ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1212- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 0908- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-221-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1212- ● ● ●
108 SHAFT; COUNTER 1-33311-354-0 01 1 1212- ●
108 SHAFT; COUNTER 1-33311-348-0 01 1 0908- ●
108 SHAFT; COUNTER 1-33311-334-0 01 1 0803- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1212- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-145-0 01 1 0908- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-221-0 01 1 0803- ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1212- ● ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 0908-1211 ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 1212- ● ●
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 0803- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0803-0907 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0908-1211 ● ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1212- ● ● ●
132 SHAFT; REV 1-33351-037-0 01 1 0908- ●
132 SHAFT; REV 1-33351-044-0 01 1 0803-1211 ●
132 SHAFT; REV 1-33351-044-0 01 1 1212- ● ●
135 GEAR; REV IDLER 1-33361-097-0 01 1 1212- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0908- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0803- ●
252 SPACER
(C) 		1-33319-151-0 01 1 0908-1211 ●
252 SPACER
(C) 		1-33319-151-0 01 1 1212- ● ●
252 SPACER
(D) 		1-33359-006-0 01 1 0908-1211 ●
252 SPACER
(D) 		1-33359-006-0 01 1 1212- ● ●
252 SPACER
(A) 		1-33319-223-0 01 1 0803- ●
252 SPACER
(B) 		1-33359-017-0 01 1 0803- ●
294 SHAFT; OUTPUT 1-33231-348-0 01 1 1212- ●
294 SHAFT; OUTPUT 1-33231-293-0 01 1 0908- ●
324 HUB; CLU 1-33261-234-0 01 1 0908-1211 ●
324 HUB; CLU 1-33261-234-0 01 1 1212- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1212- ● ● ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0908-1211 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 1212- ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1212- ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1212- ● ●
340 GEAR; RING 1-33339-052-0 01 1 0908-1211 ●
340 GEAR; RING 1-33339-052-0 01 1 1212- ● ●
408 SPRING
(C) 		1-33264-039-0 18 1 0908-1211 ●
408 SPRING
(C) 		1-33264-039-0 18 1 1212- ● ●
408 SPRING
(B) 		1-33264-043-0 03 1 0803- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0803- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1212- ● ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 06 1 0803- ●

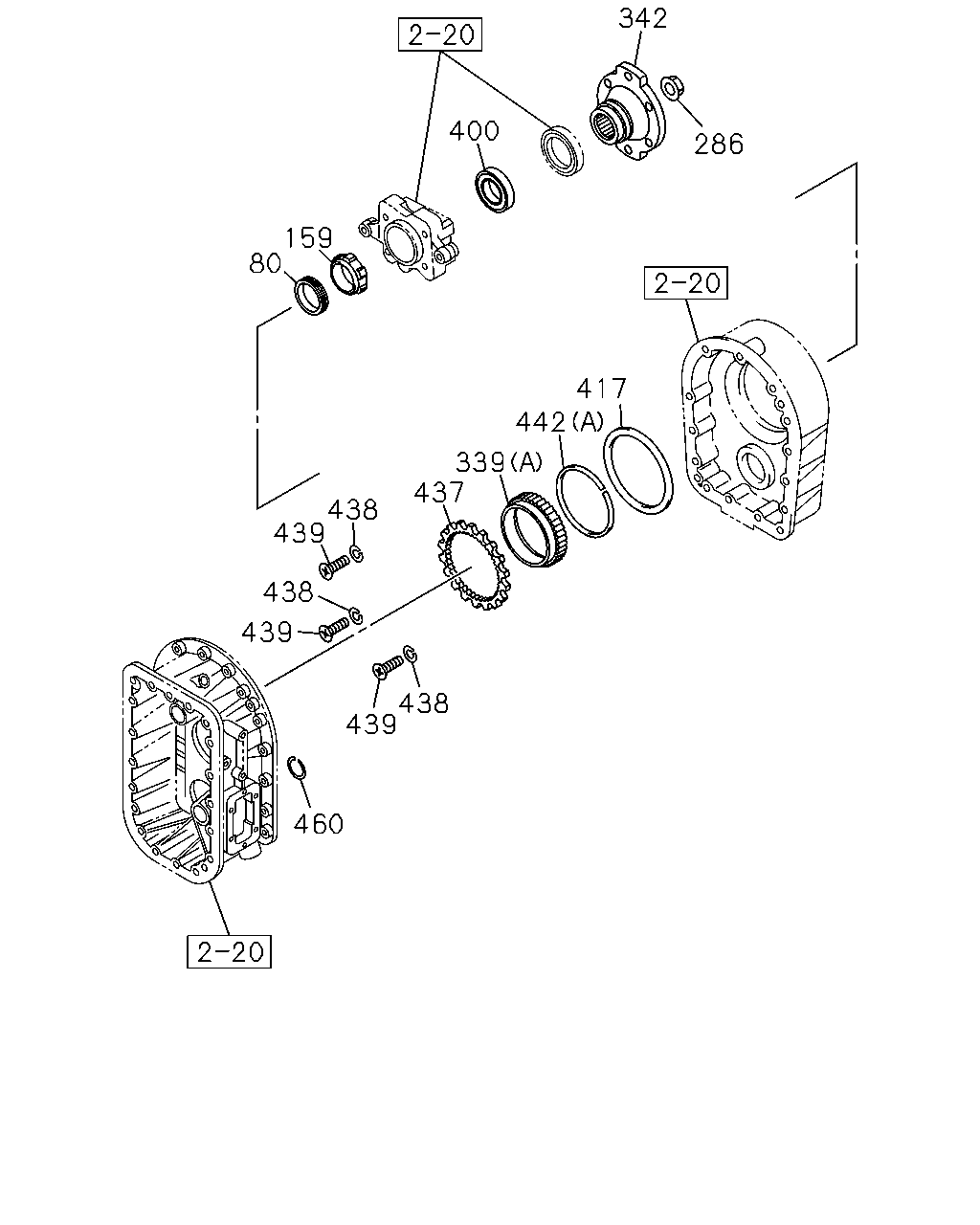

çizim 109684
286 342 400 159 80 417 442 339 437 438 439 438 439 438 439 460
BalonParca AdiParca NoAdetTipApplied Date A B C
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0908-1211 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1212- ● ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0803- ●
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 0908-1211 ●
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 1212- ● ●
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 0908-1211 ●
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 1212- ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1212- ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1212- ● ●
342 FLANGE; OUTPUT 1-37243-430-0 01 1 0908-1211 ●
342 FLANGE; OUTPUT 1-37243-430-0 01 1 1212- ● ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0908-1211 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 1212- ● ●
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 0908-1211 ●
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 1212- ● ●
437 PLATE; LOCK 1-33269-054-0 01 1 0908-1211 ●
437 PLATE; LOCK 1-33269-054-0 01 1 1212- ● ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0908-1211 ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 1212- ● ●
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 0908-1211 ●
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 1212- ● ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1212- ● ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1212- ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0803-0907 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0908-1211 ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1212- ● ● ●

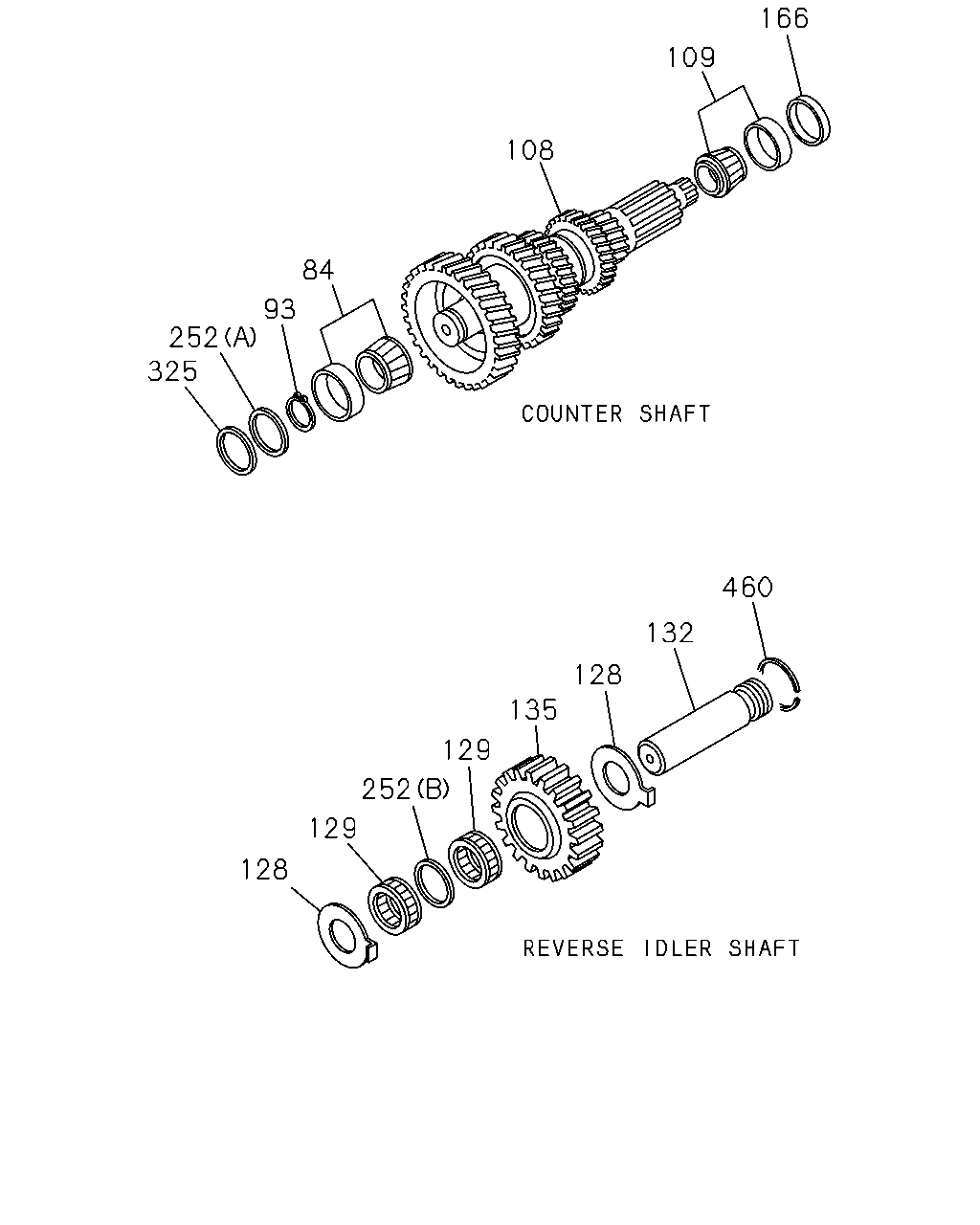

çizim 109893
166 109 108 84 93 252 325 460 132 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B C
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1212- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 0908- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-221-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1212- ● ● ●
108 SHAFT; COUNTER 1-33311-354-0 01 1 1212- ●
108 SHAFT; COUNTER 1-33311-348-0 01 1 0908- ●
108 SHAFT; COUNTER 1-33311-334-0 01 1 0803- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1212- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-145-0 01 1 0908- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-221-0 01 1 0803- ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 0908-1211 ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 1212- ● ●
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 0803- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0803-0907 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0908-1211 ● ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1212- ● ● ●
132 SHAFT; REV 1-33351-037-0 01 1 0908- ●
132 SHAFT; REV 1-33351-044-0 01 1 0803-1211 ●
132 SHAFT; REV 1-33351-044-0 01 1 1212- ● ●
135 GEAR; REV IDLER 1-33361-097-0 01 1 1212- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0908- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0803- ●
166 PIECE; DIST 1-33319-222-0 01 1 0803- ●
252 SPACER
(C) 		1-33319-151-0 01 1 0908-1211 ●
252 SPACER
(C) 		1-33319-151-0 01 1 1212- ● ●
252 SPACER
(D) 		1-33359-006-0 01 1 0908-1211 ●
252 SPACER
(D) 		1-33359-006-0 01 1 1212- ● ●
252 SPACER
(A) 		1-33319-223-0 01 1 0803- ●
252 SPACER
(B) 		1-33359-017-0 01 1 0803- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1212- ● ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0803-0907 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0908-1211 ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1212- ● ● ●

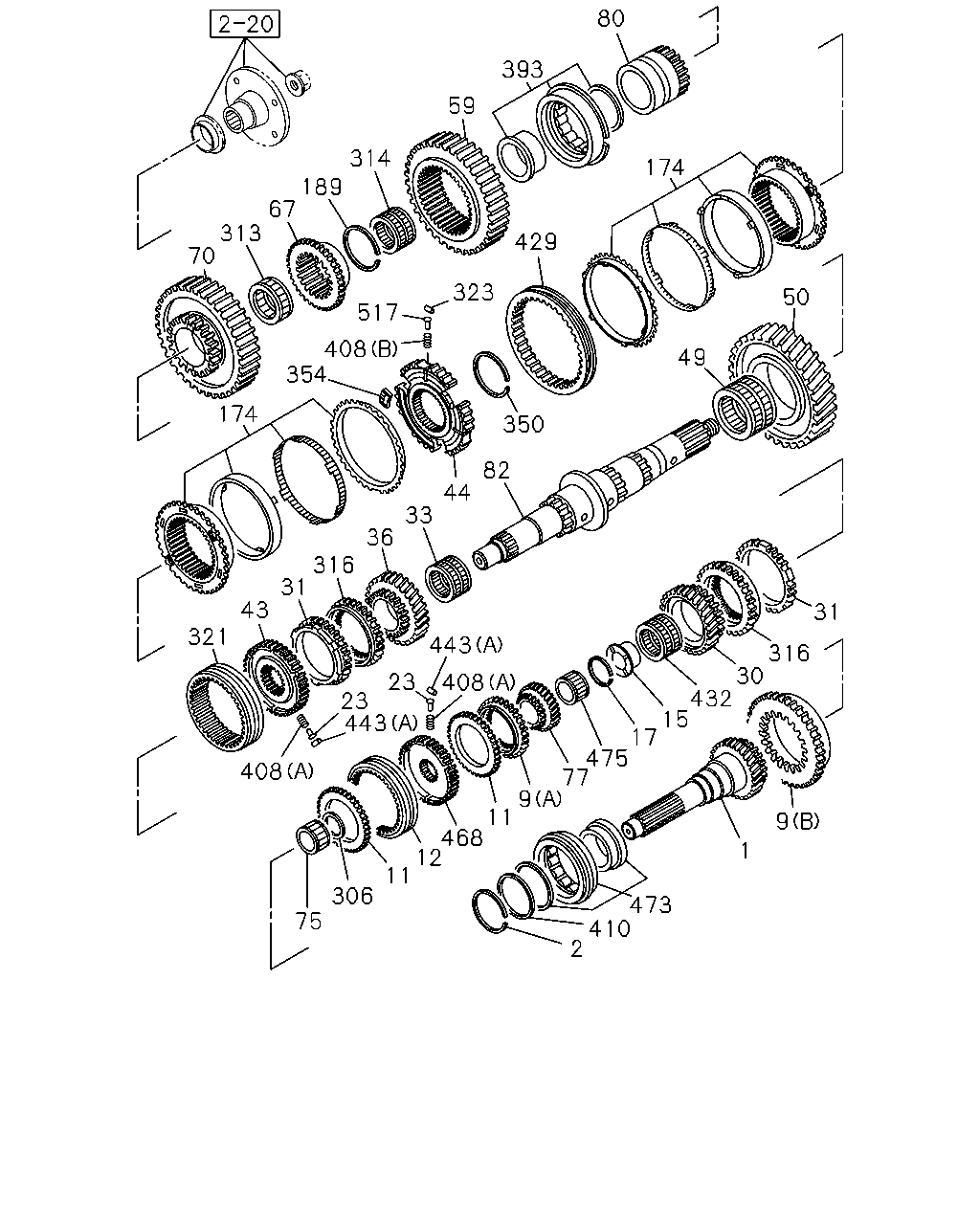

çizim 193613
80 393 59 314 189 67 313 174 70 354 408 517 323 429 174 50 49 350 82 44 33 36 316 31 43 321 408 443 23 23 443 408 75 306 11 12 468 11 9 77 475 17 15 432 30 316 31 9 1 473 410 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1212- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0908- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0803- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-268-0 01 1 0803- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0803- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0803- ●
11 RING; BLOCK,5TH & 6TH 1-33265-602-0 02 1 0803- ●
12 SLEEVE; 5TH & 6TH 1-33262-234-0 01 1 0803- ●
15 COLLAR; 4TH GEAR 1-33259-123-0 01 1 0803- ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1212- ● ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1212- ● ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0908-1211 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0803- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0908-1211 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 1212- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0803- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 01 1 1212- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 02 1 0803- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0908-1211 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1212- ● ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0803- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0908-1211 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1212- ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0803- ●
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-288-0 01 1 0803- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0908-1211 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1212- ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0803- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0908-1211 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1212- ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0803- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0908-1211 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 1212- ● ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0803- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0908-1211 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1212- ● ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0803- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0908-1211 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1212- ● ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0803- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0908-1211 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1212- ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0803- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0803-0907 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0908-1211 ● ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1212- ● ● ●
77 GEAR; 6TH,MAINSHAFT 1-33253-719-0 01 1 0803- ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0908-1211 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1212- ● ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0803- ●
82 SHAFT; MAIN,TRANS 1-33231-347-0 01 1 1212- ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0908- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0803- ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33265-639-0 02 1 0803- ●
189 RING; SNAP,REV,GEAR
T=2.10 		1-33269-066-0 01 1 0803- ●
189 RING; SNAP,REV,GEAR
T=2.05 		1-33269-067-0 01 1 0803- ●
189 RING; SNAP,REV,GEAR
T=2.00 		1-33269-068-0 01 1 0803- ●
306 RING; SNAP,MAINSHAFT
T=2.12 		1-33239-238-0 01 1 0803- ●
306 RING; SNAP,MAINSHAFT
T=2.07 		1-33239-239-0 01 1 0803- ●
306 RING; SNAP,MAINSHAFT
T=2.02 		1-33239-240-0 01 1 0803- ●
306 RING; SNAP,MAINSHAFT
SET 		1-33239-314-0 01 1 0803- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0803-0907 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0908-1211 ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1212- ● ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0803-0907 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0908-1211 ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1212- ● ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0803- ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-233-0 01 1 0803- ●
323 INSERT 1-33269-103-0 03 1 0803- ●
350 RING; RET,2ND GEAR 1-33269-095-0 01 1 0803- ●
354 RETAINER; SYN 1-33269-102-0 03 1 0803- ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0908-1211 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1212- ● ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0803- ●
408 SPRING
(C) 		1-33264-039-0 18 1 0908-1211 ●
408 SPRING
(C) 		1-33264-039-0 18 1 1212- ● ●
408 SPRING
(B) 		1-33264-043-0 03 1 0803- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.10 		1-33219-298-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.15 		1-33219-299-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.20 		1-33219-300-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.25 		1-33219-301-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.30 		1-33219-302-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.35 		1-33219-303-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.40 		1-33219-304-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.45 		1-33219-305-0 01 1 0803- ●
410 SPACER; TOP GEAR SHAFT
T=3.50 		1-33219-306-0 01 1 0803- ●
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1212- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0908- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0803- ●
432 BEARING; NEEDLE,4TH 1-33259-069-0 01 1 0803- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 06 1 0803- ●
468 HUB; CLU,5TH & 6TH 1-33261-289-0 01 1 0803- ●
473 BEARING; INPUT SHAFT 1-33219-186-0 01 1 0803- ●
475 BEARING; 6TH 1-33259-071-0 01 1 0803- ●
517 BALL; SYNCHRO,INDEX 1-33269-104-0 03 1 0803- ●

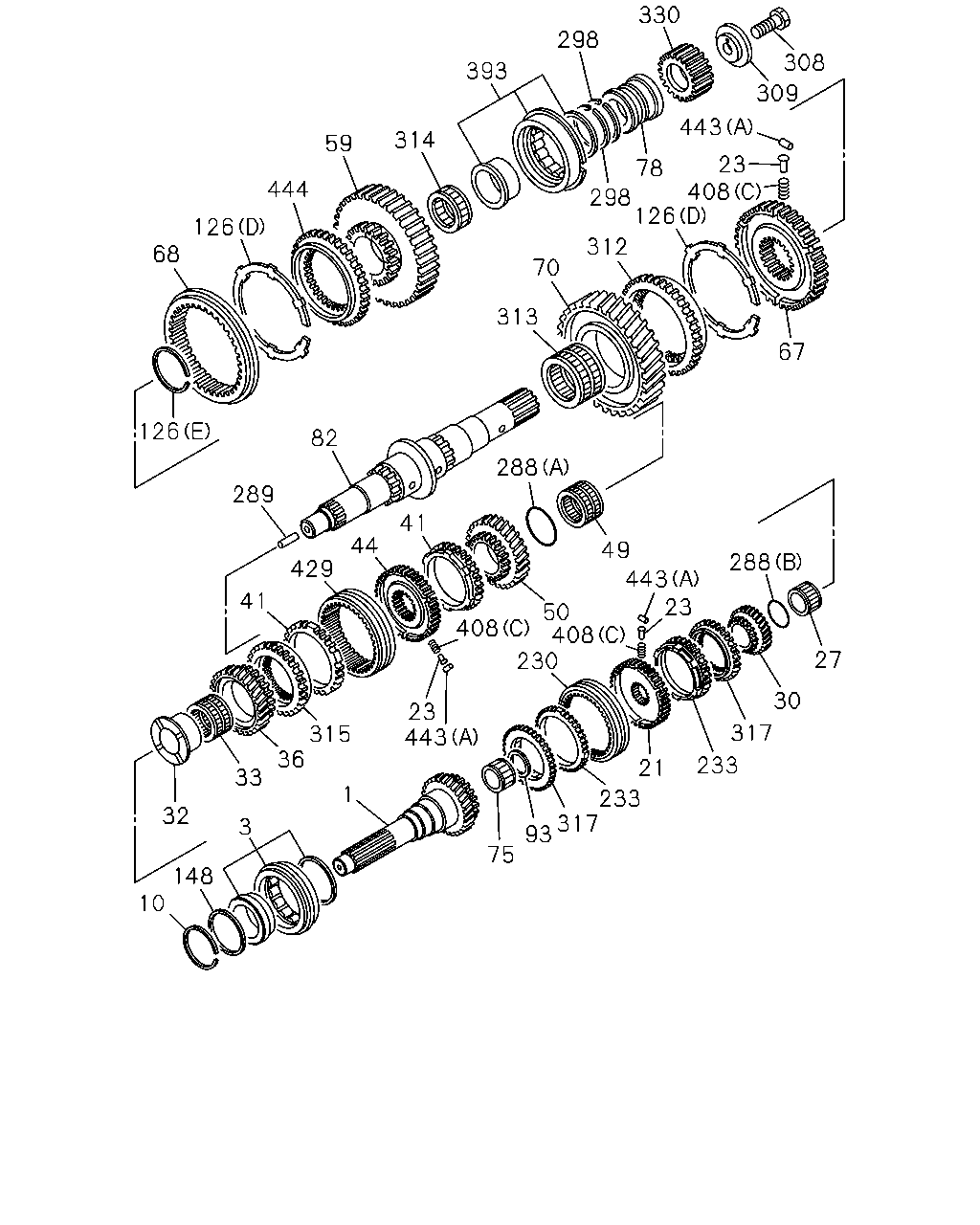

çizim 193771
126 68 126 444 59 314 393 298 330 308 309 443 23 78 298 408 126 312 70 313 82 289 41 429 44 41 288 67 288 23 443 49 50 408 230 408 23 443 315 36 33 32 1 3 148 10 75 93 317 233 21 233 317 30 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1212- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0908- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0803- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0908-1211 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 1212- ● ●
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 0908-1211 ●
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 1212- ● ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0908-1211 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0908-1211 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0803- ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0908-1211 ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 1212- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0908-1211 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 1212- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0803- ●
32 COLLAR; 3RD GEAR 1-33259-123-0 01 1 1212- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0908- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0908-1211 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1212- ● ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0803- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0908-1211 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1212- ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0803- ●
41 RING; BLOCK,2ND & 3RD 1-33265-647-0 02 1 1212- ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0908- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0908-1211 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1212- ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0803- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0908-1211 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1212- ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0803- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0908-1211 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 1212- ● ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0803- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0908-1211 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1212- ● ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0803- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0908-1211 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1212- ● ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0803- ●
68 SLEEVE; 1ST TO REV 1-33265-645-0 01 1 1212- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0908- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0908-1211 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1212- ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0803- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0803-0907 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0908-1211 ● ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1212- ● ● ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-377-0 01 1 1212- ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0908- ●
82 SHAFT; MAIN,TRANS 1-33231-347-0 01 1 1212- ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0908- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1212- ● ● ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 1212- ● ●
230 SLEEVE; 4TH TO 5TH 1-33262-245-0 01 1 1212- ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0908- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-647-0 02 1 1212- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0908- ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0908-1211 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 1212- ● ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0908-1211 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 1212- ● ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0908-1211 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 1212- ● ●
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 0908-1211 ●
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 1212- ● ●
308 BOLT; MAINSHAFT 1-33239-366-0 01 1 1212- ●
308 BOLT; MAINSHAFT 1-33239-355-0 01 1 0908- ●
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 0908-1211 ●
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 1212- ● ●
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 1212- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0908- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0803-0907 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0908-1211 ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1212- ● ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0803-0907 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0908-1211 ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1212- ● ● ●
315 CLUTCH; DOG,2ND GEAR 1-33265-646-0 02 1 1212- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-561-0 02 1 0908- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-646-0 02 1 1212- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-561-0 02 1 0908- ●
330 GEAR; SUN 1-34311-012-0 01 1 1212- ●
330 GEAR; SUN 1-34311-004-0 01 1 0908- ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0908-1211 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1212- ● ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0803- ●
408 SPRING
(C) 		1-33264-039-0 18 1 0908-1211 ●
408 SPRING
(C) 		1-33264-039-0 18 1 1212- ● ●
408 SPRING
(B) 		1-33264-043-0 03 1 0803- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0803- ●
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1212- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0908- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0803- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 06 1 0803- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0908-1211 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 1212- ● ●

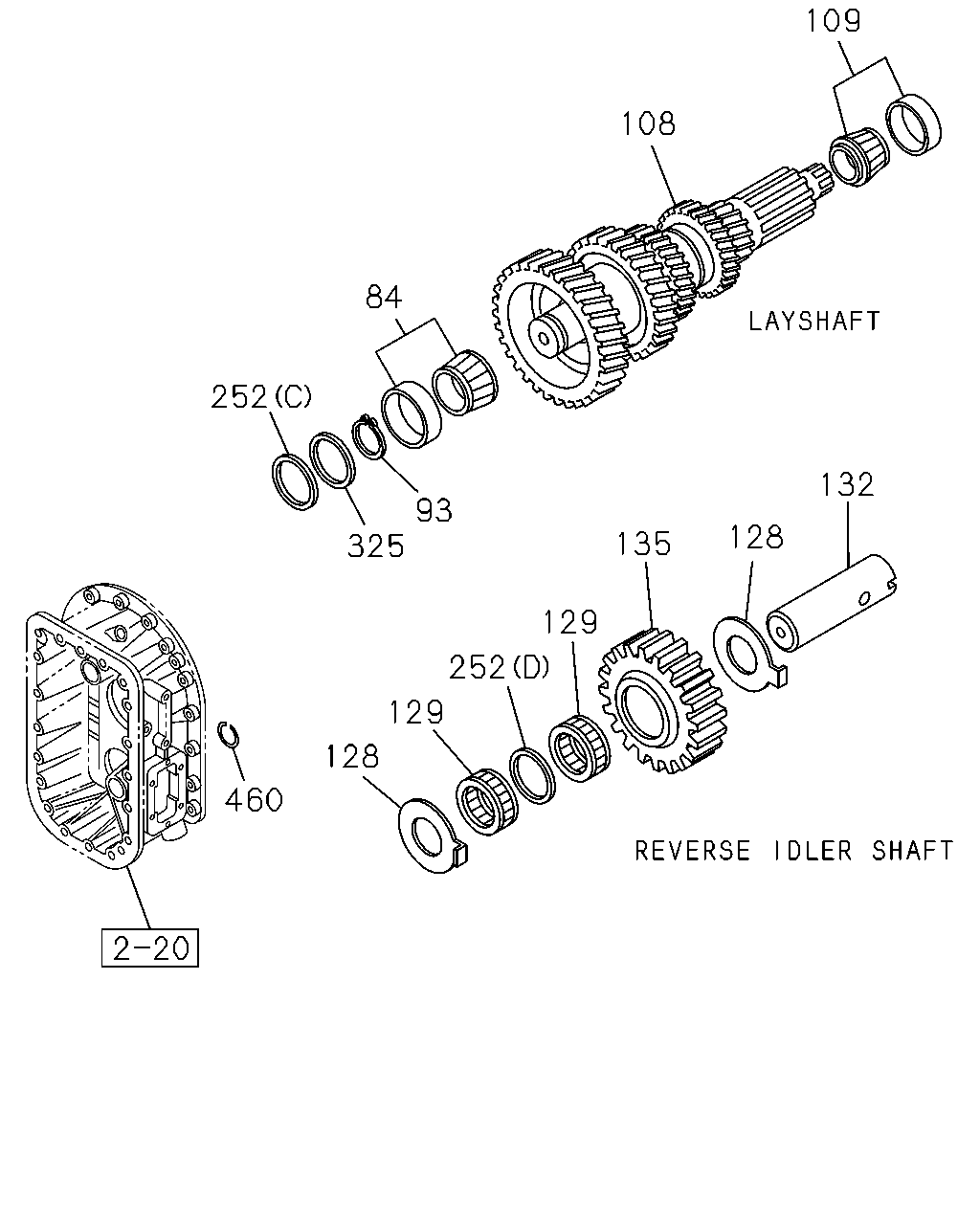

çizim 321313
252 84 325 93 108 109 132 128 135 129 252 129 128 460
BalonParca AdiParca NoAdetTipApplied Date A B C
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1212- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 0908- ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-221-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1212- ● ● ●
108 SHAFT; COUNTER 1-33311-354-0 01 1 1212- ●
108 SHAFT; COUNTER 1-33311-348-0 01 1 0908- ●
108 SHAFT; COUNTER 1-33311-334-0 01 1 0803- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1212- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-145-0 01 1 0908- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-221-0 01 1 0803- ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 0908-1211 ●
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 1212- ● ●
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 0803- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0803-0907 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0908-1211 ● ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1212- ● ● ●
132 SHAFT; REV 1-33351-037-0 01 1 0908- ●
132 SHAFT; REV 1-33351-044-0 01 1 0803-1211 ●
132 SHAFT; REV 1-33351-044-0 01 1 1212- ● ●
135 GEAR; REV IDLER 1-33361-097-0 01 1 1212- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0908- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0803- ●
252 SPACER
(C) 		1-33319-151-0 01 1 0908-1211 ●
252 SPACER
(C) 		1-33319-151-0 01 1 1212- ● ●
252 SPACER
(D) 		1-33359-006-0 01 1 0908-1211 ●
252 SPACER
(D) 		1-33359-006-0 01 1 1212- ● ●
252 SPACER
(A) 		1-33319-223-0 01 1 0803- ●
252 SPACER
(B) 		1-33359-017-0 01 1 0803- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1212- ● ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0803-0907 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0908-1211 ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1212- ● ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0803-0907 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0908-1211 ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1212- ● ● ●

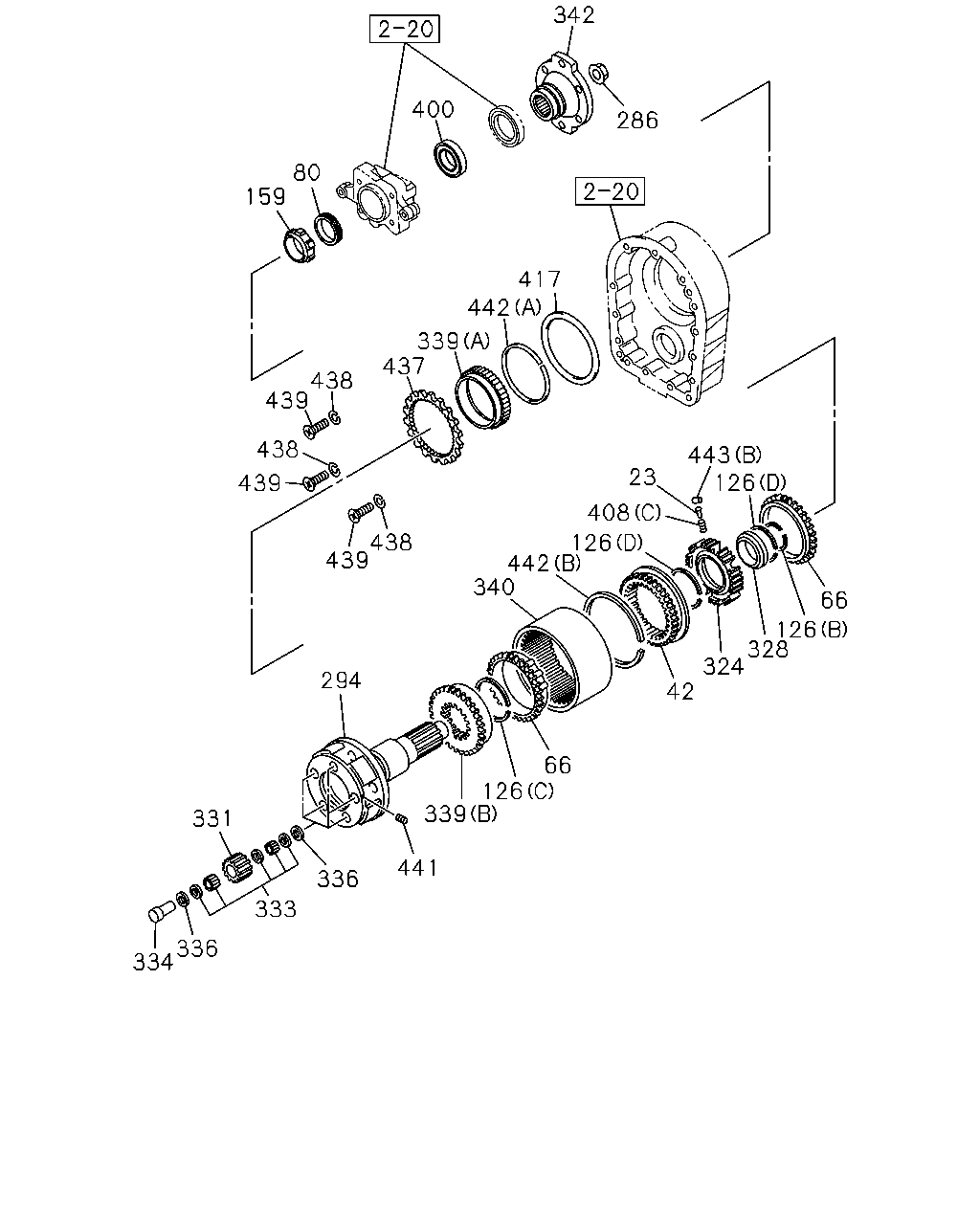

çizim 322576
159 80 400 342 286 417 442 339 437 438 439 438 439 439 438 331 334 333 336 336 294 441 339 340 126 442 66 42 126 408 23 443 66 126 126 328 324
BalonParca AdiParca NoAdetTipApplied Date A B C
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0908-1211 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0803- ●
42 SLEEVE 1-33262-246-0 01 1 1212- ●
42 SLEEVE 1-33262-196-0 01 1 0908- ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0908-1211 ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 1212- ● ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0908-1211 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1212- ● ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0803- ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1212- ● ●
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 0908-1211 ●
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 1212- ● ●
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 0908-1211 ●
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 1212- ● ●
294 SHAFT; OUTPUT 1-33231-348-0 01 1 1212- ●
294 SHAFT; OUTPUT 1-33231-293-0 01 1 0908- ●
324 HUB; CLU 1-33261-234-0 01 1 0908-1211 ●
324 HUB; CLU 1-33261-234-0 01 1 1212- ● ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0908-1211 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 1212- ● ●
331 GEAR SET; PLANETARY 1-33239-379-0 05 1 1212- ●
333 ROLLER; PLANETARY GEAR 1-33239-250-0 05 1 1212- ●
334 SHAFT; PLANETARY GEAR 1-33239-378-0 01 1 1212- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-276-0 10 1 1212- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1212- ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0908-1211 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1212- ● ●
340 GEAR; RING 1-33339-052-0 01 1 0908-1211 ●
340 GEAR; RING 1-33339-052-0 01 1 1212- ● ●
342 FLANGE; OUTPUT 1-37243-430-0 01 1 0908-1211 ●
342 FLANGE; OUTPUT 1-37243-430-0 01 1 1212- ● ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0908-1211 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 1212- ● ●
408 SPRING
(C) 		1-33264-039-0 18 1 0908-1211 ●
408 SPRING
(C) 		1-33264-039-0 18 1 1212- ● ●
408 SPRING
(B) 		1-33264-043-0 03 1 0803- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0803- ●
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 0908-1211 ●
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 1212- ● ●
437 PLATE; LOCK 1-33269-054-0 01 1 0908-1211 ●
437 PLATE; LOCK 1-33269-054-0 01 1 1212- ● ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0908-1211 ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 1212- ● ●
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 0908-1211 ●
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 1212- ● ●
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 1212- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1212- ● ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0908-1211 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 06 1 0803- ●

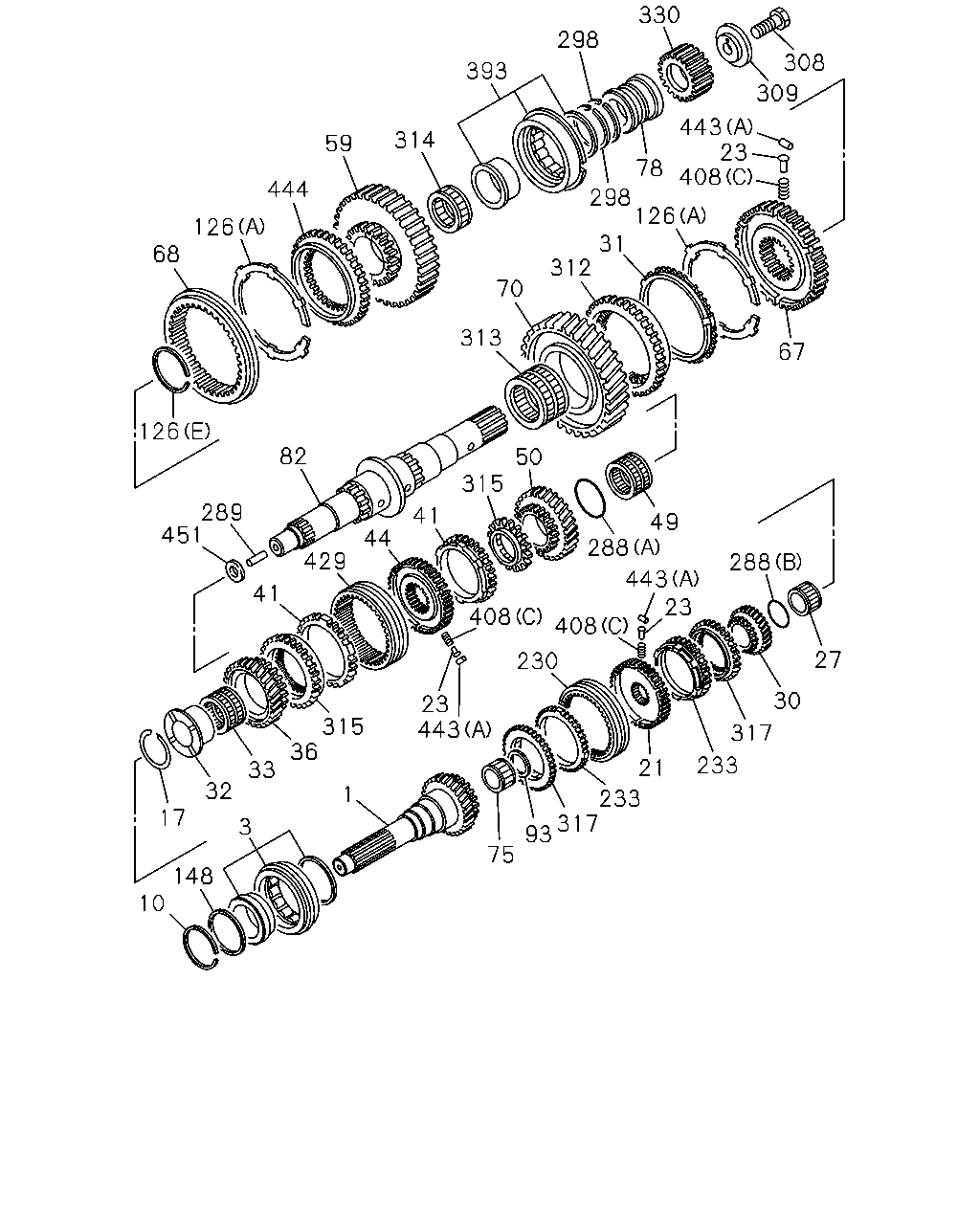

çizim 322689
68 126 444 59 314 393 298 330 308 309 443 408 78 126 298 31 312 70 313 126 451 289 82 41 44 429 41 315 50 67 49 288 408 23 315 36 33 32 17 10 3 148 1 443 75 23 93 408 317 443 23 233 288 21 233 30 317 27 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1212- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0908- ●
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0803- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0908-1211 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 1212- ● ●
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 0908-1211 ●
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 1212- ● ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1212- ● ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1212- ● ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 0803-1211 ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1212- ● ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0908-1211 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0908-1211 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 1212- ● ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0803- ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0908-1211 ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 1212- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0908-1211 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 1212- ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0803- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 01 1 1212- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 02 1 0803- ●
32 COLLAR; 3RD GEAR 1-33259-123-0 01 1 1212- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0908- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0908-1211 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1212- ● ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0803- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0908-1211 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1212- ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0803- ●
41 RING; BLOCK,2ND & 3RD 1-33265-647-0 02 1 1212- ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0908- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0908-1211 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1212- ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0803- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0908-1211 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1212- ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0803- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0908-1211 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 1212- ● ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0803- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0908-1211 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1212- ● ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0803- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0908-1211 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1212- ● ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0803- ●
68 SLEEVE; 1ST TO REV 1-33265-645-0 01 1 1212- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0908- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0908-1211 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1212- ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0803- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0803-0907 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0908-1211 ● ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1212- ● ● ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-377-0 01 1 1212- ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0908- ●
82 SHAFT; MAIN,TRANS 1-33231-347-0 01 1 1212- ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0908- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0908-1211 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1212- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0803- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1212- ● ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0803-0907 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0908-1211 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1212- ● ● ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1212- ● ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0908-1211 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 1212- ● ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0908-1211 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 1212- ● ●
233 RING; BLOCK 4TH TO 5TH 1-33265-647-0 02 1 1212- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0908- ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0908-1211 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 1212- ● ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0908-1211 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 1212- ● ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0908-1211 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 1212- ● ●
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 0908-1211 ●
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 1212- ● ●
308 BOLT; MAINSHAFT 1-33239-366-0 01 1 1212- ●
308 BOLT; MAINSHAFT 1-33239-355-0 01 1 0908- ●
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 0908-1211 ●
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 1212- ● ●
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 1212- ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0908- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0803-0907 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0908-1211 ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1212- ● ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0803-0907 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0908-1211 ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1212- ● ● ●
315 CLUTCH; DOG,2ND GEAR 1-33265-646-0 02 1 1212- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-561-0 02 1 0908- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-646-0 02 1 1212- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-561-0 02 1 0908- ●
330 GEAR; SUN 1-34311-012-0 01 1 1212- ●
330 GEAR; SUN 1-34311-004-0 01 1 0908- ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0908-1211 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1212- ● ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0803- ●
408 SPRING
(C) 		1-33264-039-0 18 1 0908-1211 ●
408 SPRING
(C) 		1-33264-039-0 18 1 1212- ● ●
408 SPRING
(B) 		1-33264-043-0 03 1 0803- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0803- ●
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1212- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0908- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0803- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 0908-1211 ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1212- ● ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 06 1 0803- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0908-1211 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 1212- ● ●
451 RESTRICTOR; MAIN SHAFT 1-33239-275-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
