2-25C — SPEEDOMETER DRIVEN GEAR (#67956) — 85 parça

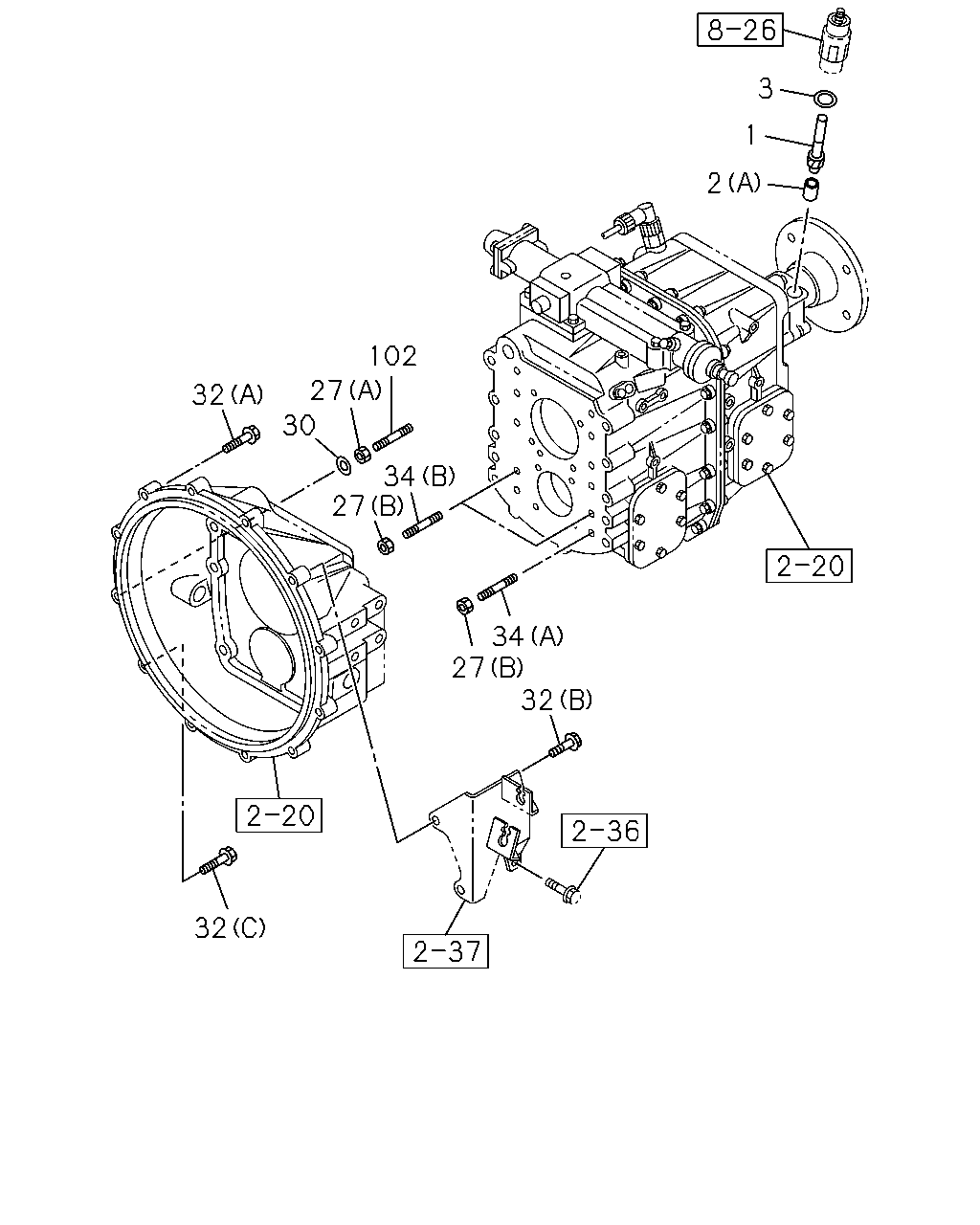

3 1 2 102 27 32 34 27 34 27 32 32 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0908-1211	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	1212-	●	●
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0803-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-009-0	01	1	0908-1211	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-009-0	01	1	1212-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0908-1211	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	1212-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-020-0	01	1	0803-			●
3	GASKET; BUSHING	1-33379-014-0	01	1	0803-0907			●
3	GASKET; BUSHING	1-33379-014-0	01	1	0908-1211	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	1212-	●	●	●
27	NUT; CLU HSG TO TRANS (C)	1-33119-537-0	12	1	0908-1211	●
27	NUT; CLU HSG TO TRANS (C)	1-33119-537-0	12	1	1212-	●	●
27	NUT; CLU HSG TO TRANS (B)	1-33119-582-0	12	1	0803-			●
27	NUT; CLU HSG TO TRANS (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803			●
30	WASHER; PL,TRANS ID=10.5	0-91610-710-0	01	1	0803-0803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (A) M10X53 FLANGE	8-98131-009-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X53 FLANGE	8-98131-009-0	02	1	0810-0907			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X53 FLANGE	8-98131-009-0	02	1	0908-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98131-009-0	02	1	1210-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98131-009-0	02	1	1212-1212	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98234-152-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	04	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	04	1	0810-1209			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	03	1	0803-0803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	04	1	0803-0808			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0810-0905			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0906-0906	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	1210-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	0803-0907			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	0908-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	1212-	●	●	●
34	STUD; CLU HSG (C)	1-33119-535-0	10	1	0908-1211	●
34	STUD; CLU HSG (C)	1-33119-535-0	10	1	1212-	●	●
34	STUD; CLU HSG (D)	1-33119-536-0	02	1	0908-1211	●
34	STUD; CLU HSG (D)	1-33119-536-0	02	1	1212-	●	●
34	STUD; CLU HSG (B)	1-33119-580-0	02	1	0803-			●
34	STUD; CLU HSG (A)	1-33119-581-0	10	1	0803-			●
102	STUD; TRANS M10X50 L=65	0-44011-050-0	01	1	0803-0803			●

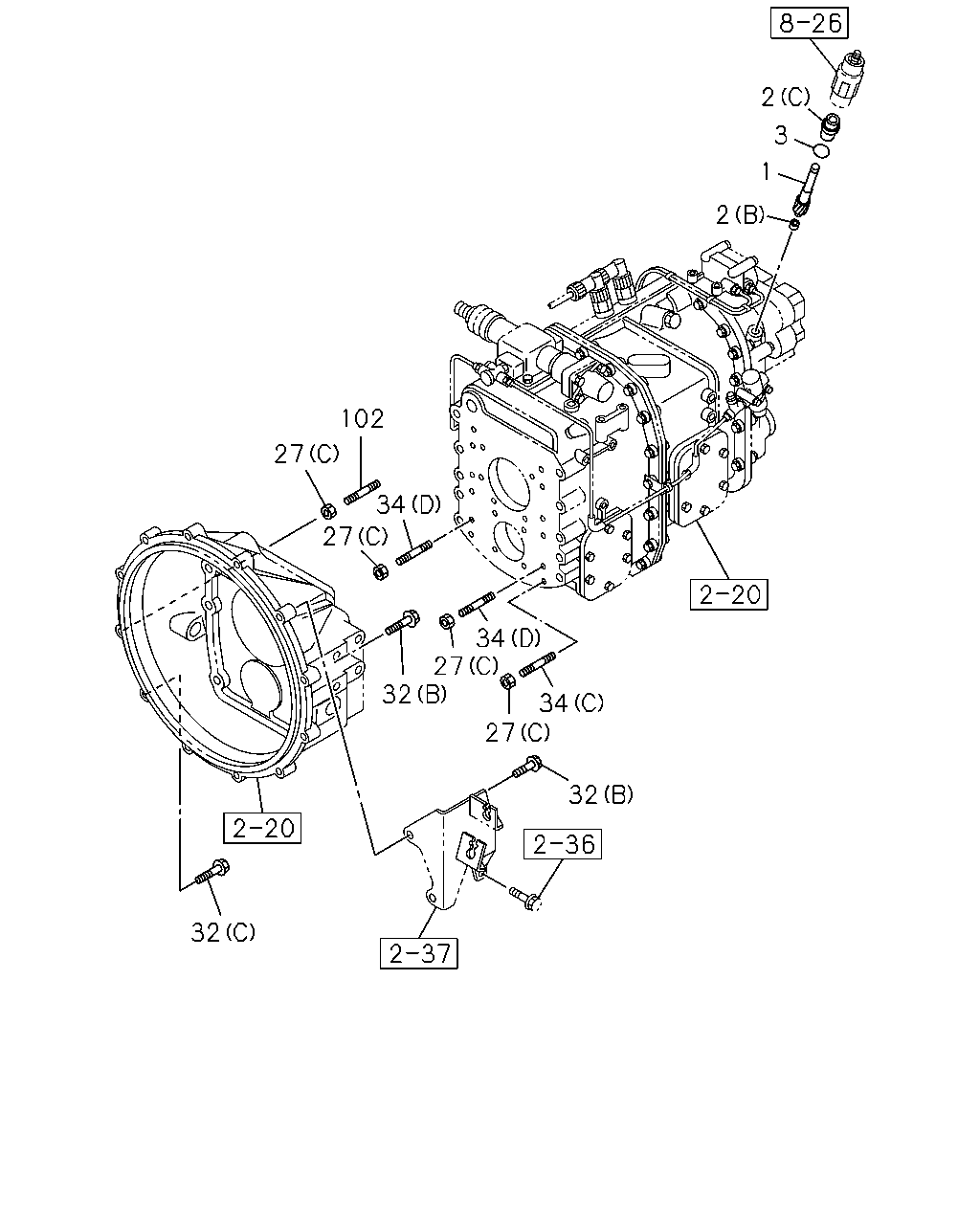

2 1 3 2 102 27 34 27 34 27 32 34 27 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	0908-1211	●
1	GEAR; DRIVEN,SPD Z=14	1-33372-181-0	01	1	1212-	●	●
1	GEAR; DRIVEN,SPD	1-33372-193-0	01	1	0803-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-009-0	01	1	0908-1211	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (C)	1-33379-009-0	01	1	1212-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	0908-1211	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (B)	1-87060-757-0	01	1	1212-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER (A)	1-33379-020-0	01	1	0803-			●
3	GASKET; BUSHING	1-33379-014-0	01	1	0803-0907			●
3	GASKET; BUSHING	1-33379-014-0	01	1	0908-1211	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-33379-014-0	01	1	1212-	●	●	●
27	NUT; CLU HSG TO TRANS (C)	1-33119-537-0	12	1	0908-1211	●
27	NUT; CLU HSG TO TRANS (C)	1-33119-537-0	12	1	1212-	●	●
27	NUT; CLU HSG TO TRANS (B)	1-33119-582-0	12	1	0803-			●
27	NUT; CLU HSG TO TRANS (A) M10 FLANGE	0-91180-110-0	01	1	0803-0803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (A) M10X53 FLANGE	8-98131-009-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X53 FLANGE	8-98131-009-0	02	1	0810-0907			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M10X53 FLANGE	8-98131-009-0	02	1	0908-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98131-009-0	02	1	1210-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98131-009-0	02	1	1212-1212	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X53 FLANGE	8-98234-152-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	04	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	04	1	0810-1209			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	03	1	0803-0803			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	04	1	0803-0808			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0810-0905			●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0906-0906	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	1210-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	0803-0907			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	0908-1211	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X35 FLANGE	0-28751-035-0	08	1	1212-	●	●	●
34	STUD; CLU HSG (C)	1-33119-535-0	10	1	0908-1211	●
34	STUD; CLU HSG (C)	1-33119-535-0	10	1	1212-	●	●
34	STUD; CLU HSG (D)	1-33119-536-0	02	1	0908-1211	●
34	STUD; CLU HSG (D)	1-33119-536-0	02	1	1212-	●	●
34	STUD; CLU HSG (B)	1-33119-580-0	02	1	0803-			●
34	STUD; CLU HSG (A)	1-33119-581-0	10	1	0803-			●
102	STUD; TRANS M10X50 L=65	0-44011-050-0	01	1	0803-0803			●
