Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25B - SPEEDOMETER DRIVEN GEAR
▶

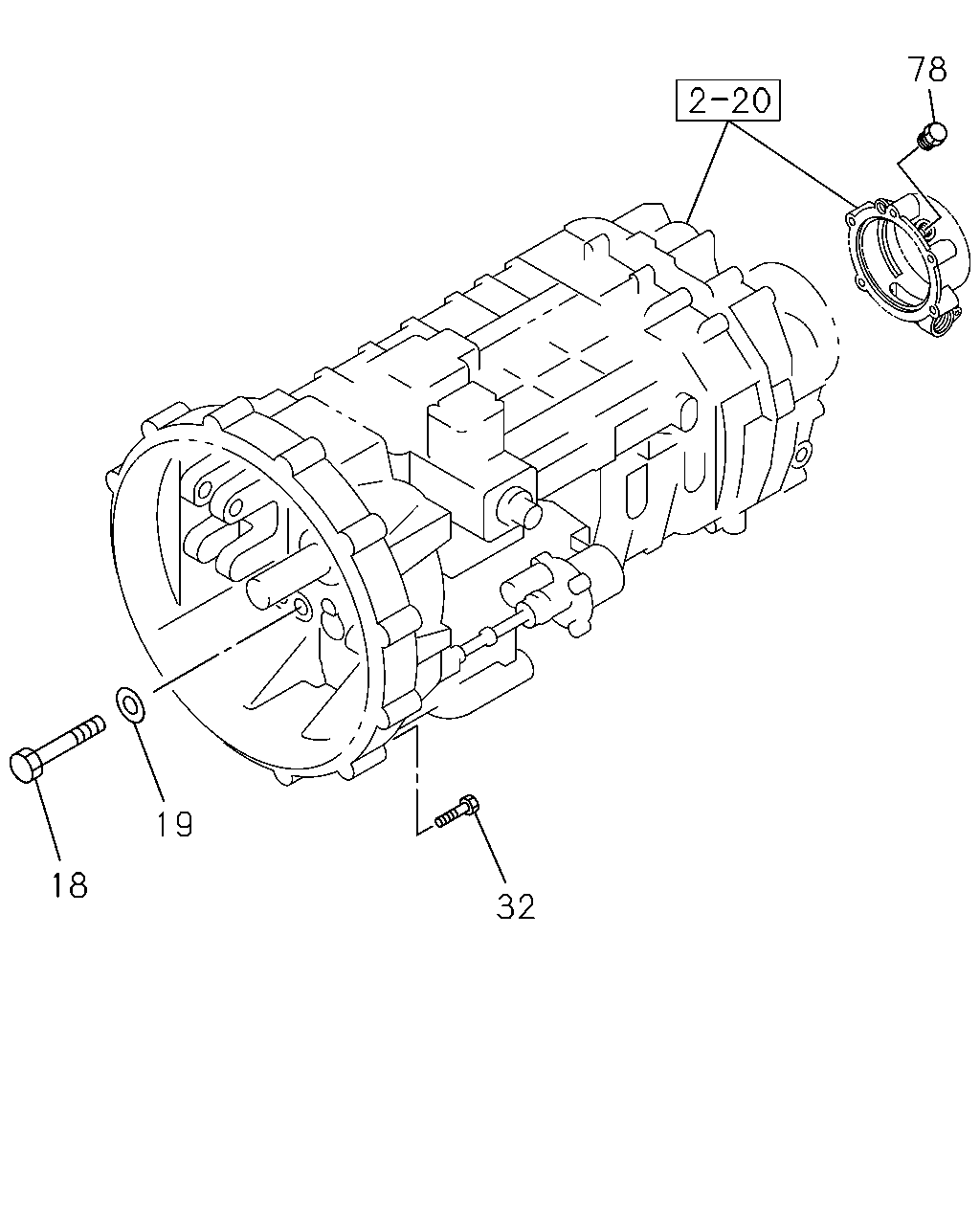

2-25B — SPEEDOMETER DRIVEN GEAR
(#67955) — 15 parça
78
32
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; CLU HSG TO TRANS
M18X85
1-31119-048-0
10
1
0803-1305
18
BOLT; CLU HSG TO TRANS
M18X85
1-31119-057-0
10
1
1306-
19
WASHER; PL,CLU HSG TO TRANS
1-31119-012-0
10
1
0803-
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) M10X92 FLANGE
8-98131-010-0
02
1
0809-0809
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 15" CLUTCH(RE9) M10X92 FLANGE
8-98131-010-0
02
1
0810-1209
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98131-010-0
02
1
1210-1211
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X92 FLANGE
8-98234-153-0
02
1
1212-
32
BOLT; CLU HSG TO FLYWHEEL HSG
15" CLUTCH(RE9) EXC. EURO2 SPECIFICATION<NT2> M10X90 FLANGE
0-28151-090-0
04
1
0809-0809
32
BOLT; CLU HSG TO FLYWHEEL HSG
15" CLUTCH(RE9) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X90 FLANGE
0-28151-090-0
04
1
0810-1209
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
04
1
0803-0808
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2> 15" CLUTCH(RE9) M10X90 FLANGE
0-28151-090-0
02
1
0809-0809
32
BOLT; CLU HSG TO FLYWHEEL HSG
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 15" CLUTCH(RE9) M10X90 FLANGE
0-28151-090-0
02
1
0810-1209
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X90 FLANGE
0-28151-090-0
02
1
1210-
32
BOLT; CLU HSG TO FLYWHEEL HSG
M10X75 FLANGE
8-94399-669-1
07
1
0803-
78
SENSOR; SPD
1-83227-018-0
01
1
0803-
